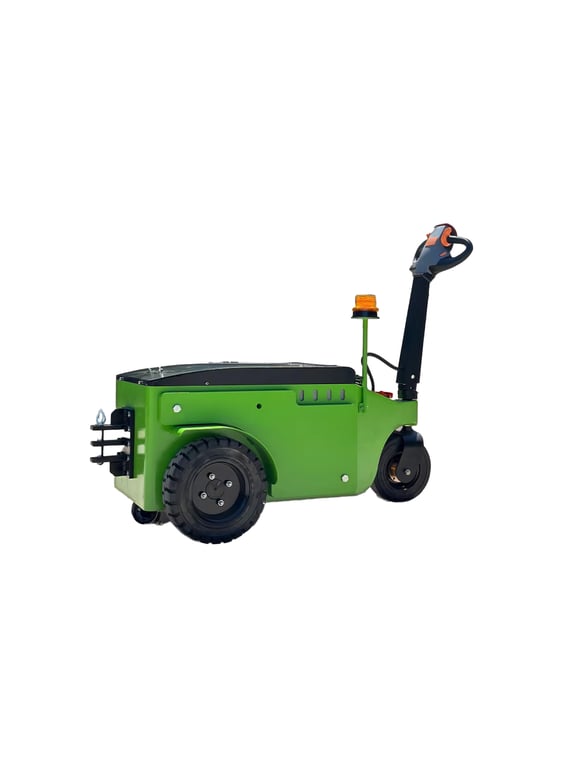

Electric Tow Tractor 6-10T

Compact size with high power, small turning radius, agile and precise steering, smooth traction output.
Industry-standard electronic motor control system, electric travel, safe and stable, strong traction.
Low center of gravity, ergonomic smart handle, simple to operate and easy to learn.
Compact layout of the three main electrical systems, refined body design, making daily maintenance simpler and more convenient.

Introduction

Specification	FSMQ60	FSMQ80	FSMQ100
Technical features
Vehicle type	Electric
Operation type	Walk-behind
Max. towing load (kg)	6000	8000	10000
Rated drawbar pull (N)	2500	3000	3600
Max. drawbar pull (N)	3500	4000	4500
Track width (mm)	999
Dimensions
Overall height (mm)	1205
Handle height (mm)	950 / 1150
Coupling height (mm)	300 / 360
Overall length (mm)	1775
Chassis width (mm)	805
Ground clearance (mm)	100
Turning radius (mm)	1450
Wheels
Tire type	Solid rubber tires with PU core
Drive wheel size (mm)	2 x Φ375 x 122
Load wheel size (mm)	Φ300 x 90	Φ300 x 90	Φ300 x 100
Support wheel (mm)	Φ100 x 50
Number of drive / load wheels	2x / 1
Front steering wheel (mm)	683
Performance
Travel speed (laden/unladen) (km/h)	4.5 / 7.0
Gradeability (%)	5 / 8
Brake type	Electromagnetic
Motor & power
Rated power S2 60 min (kW)	2.5	2.8	3.0
Battery (external)	24V / 30Ah
On-board battery	4x6 / 203	4x6 / 240	4x12 / 83
Weight
Total weight (with battery) (kg)	580	650	750
Battery weight (kg)	136	136	104
Other
Control type	AC
Steering type	Mechanical
Noise level	< 70 dB(A)
Coupling type	Pin type (Latch)
