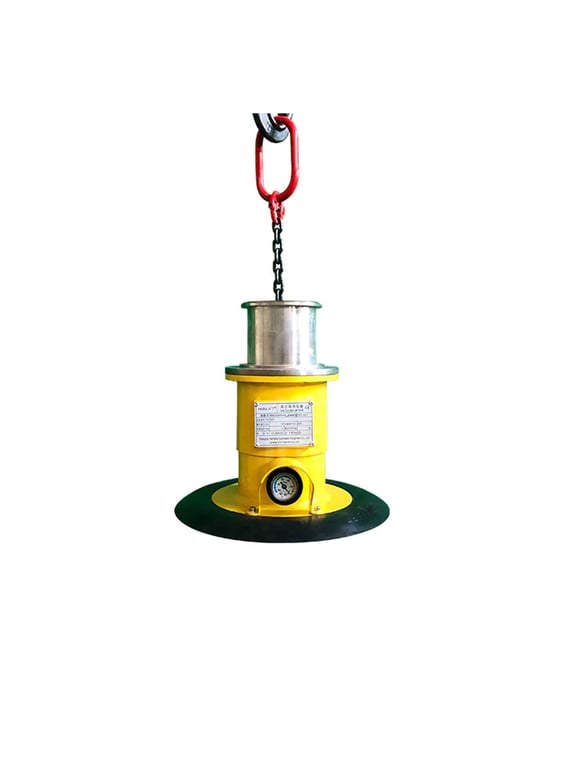

FS-WDL300-1S

Key features

  • No installation needed; the pad's lifting eye connects directly to the crane hook.
  • Vacuum is generated and released by tensioning or slackening the chain; pick-up and release are handled by the vacuum control valve.
  • No control buttons, no electricity or external power, and unaffected by power outages or low voltage.
  • No extra electrical cables or air hoses; the unit can easily be moved to wherever lifting equipment is available.
  • The load is released only when it rests on the ground and the chain is fully slack, eliminating operating errors.

Specifications

Product codeMax. loadDimensions (mm)Pad diameter (mm)Number of padsPower sourceControl typeUnit weight
FS-WDL300-1S300 kgΦ360 x 700Φ3601 pcNon-poweredAutomatic26 kg
