FS-YFXA

Safe load1,000 kg to 10 t
Suction cups2 to 20 modules, 6 × 300 mm cups each
PowerDC24V battery
ControlWireless remote
Function0–90° hydraulic flip, 0–360° hydraulic rotation
UseHeavy curved glass, inner and outer curve gripping

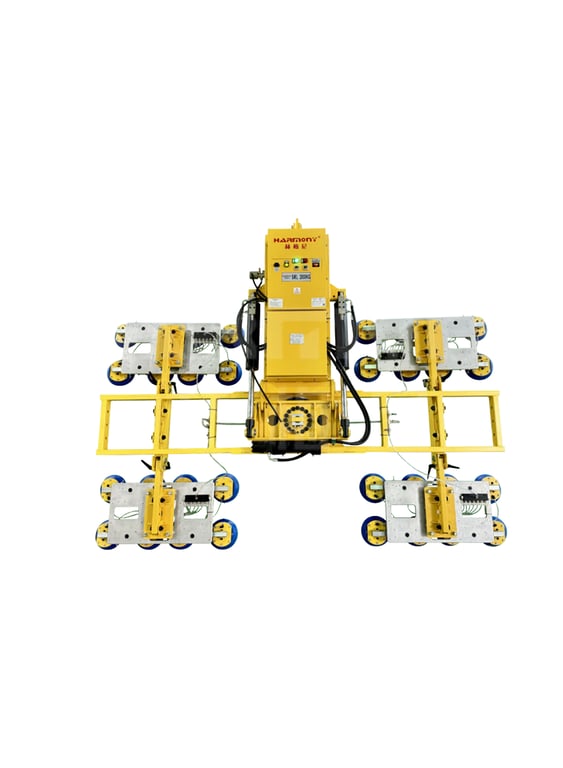

FS-YFXA curved glass vacuum lifter with hydraulic flip and rotation

FS-YFXA series: curved glass lifter with hydraulic flip and rotation

Load: 1–10 t
Power system: DC24V battery

Features

Suitable for hoisting heavy curved glass and installing curtain wall glass.
Can grip both the inner (concave) and the outer (convex) side of the glass.
Hydraulic drive gives 0–90° flip and 360° rotation.
Modular vacuum suction cup groups, each with its own independent vacuum system.
The suction cup groups adjust themselves to different curved glass and fit the glass automatically.
The frame size can be customised to the customer's needs.

FS-YFXA curved glass vacuum lifter with hydraulic flip and rotation

Specifications FS-YFXA

Model	Safe load	Size (mm)	Suction cup module size (mm)	Number of modules	Power system	Control mode	Function
FS-YFXA1000-2S	1,000 kg	3270×560	1150×560	2 modules	DC24V	Wireless remote	0–90° hydraulic flip + 0–360° hydraulic rotation
FS-YFXA2000-4S	2,000 kg	2500×1800	1150×560	4 modules	DC24V	Wireless remote	0–90° hydraulic flip + 0–360° hydraulic rotation
FS-YFXA3000-8S	3,000 kg	(1250+2500+1250)×1800	1150×560	8 modules	DC24V	Wireless remote	0–90° hydraulic flip + 0–360° hydraulic rotation
FS-YFXA5000-12S	5,000 kg	(2000+4300+2000)×1900	1150×560	12 modules	DC24V	Wireless remote	0–90° hydraulic flip + 0–360° hydraulic rotation
FS-YFXA10T-20S	10 T	(3000+6000+3000)×1900	1150×560	20 modules	DC24V	Wireless remote	0–90° hydraulic flip + 0–360° hydraulic rotation

Each suction cup module measures 1150×560 mm and carries 6 suction cups of 300 mm, with its own vacuum pump, control circuit and battery. Sizes written as (1250+2500+1250)×1800 are frames with an extension on each side of the centre section.

Main components

Vacuum pump

Low energy consumption / High vacuum purity / Strong suction from an internationally known brand, runs 24 hours continuously with more stable performance

Suction cup module group

Independent module of 6 × 300 mm suction cups / Completely independent vacuum system including vacuum pump, control circuit, battery, etc. / Safer and more efficient

Equipment frame

Custom made by the factory / National standard structural steel profiles / Welded, machined, shaped and finished with baked paint, durable

Other spare parts

Power switches, battery, etc. from internationally known brands / UL and other international certifications / Low failure rate, durable

On-site photos

**Taking a large curved glass panel from the rack on a truck**

**Bringing a long curved panel into position horizontally**

**Lifting curved glass off the rack at night**

**Installing curved curtain wall glass at ground floor**

**Installing curved glass around a building cylinder**

**Gripping the outer face of a long curved panel**

Advantages

Grips both inner and outer curves

The FS-YFXA series is designed to grip both the inner and the outer curve of the glass, giving one solution for many kinds of glass lifting work. With its hydraulic drive the lifter flips 0–90° and rotates 360° with ease.

Modular cups, independent vacuum

A main feature of the FS-YFXA series is the modular vacuum suction cup group, carefully designed to hold the glass surface safely and reliably. Each suction cup group runs on its own independent vacuum system, which greatly improves safety during lifting.

Self-adjusts to the glass curvature

For different curved glass, the suction cup groups adjust themselves and fit the glass closely and easily.

Suits many kinds of projects

Whether the job is a construction project, a glass curtain wall or an interior installation, FS-YFXA is well suited to handling curved glass.
