| Parameter | Unit | Value |
|---|---|---|

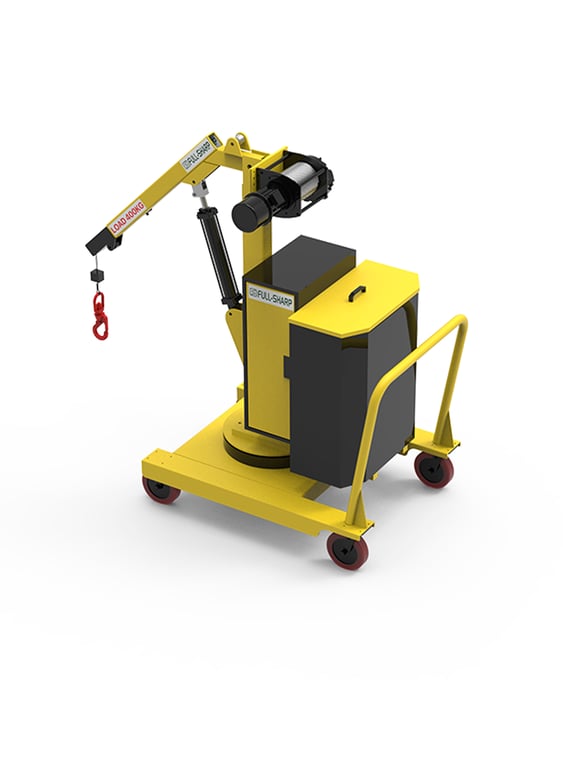

| Model | - | FS-400-BZD |

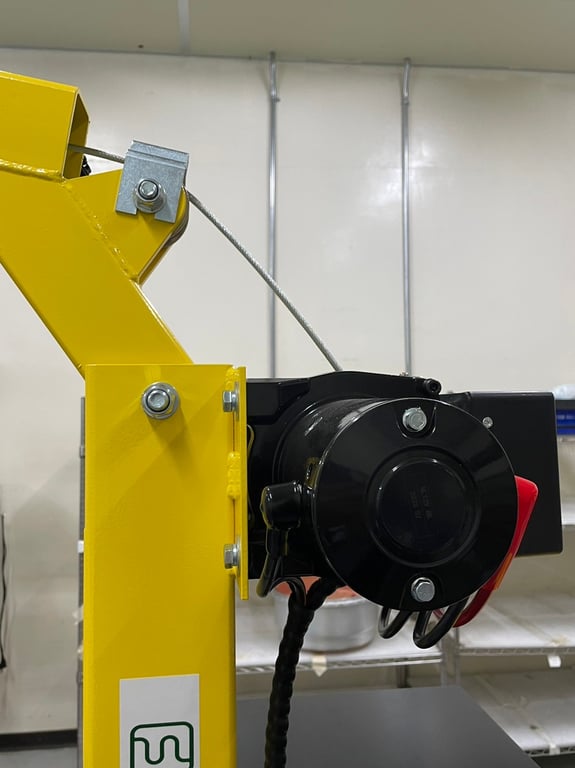

| Electric winch control method | - | Electric control |
| Boom rotation | - | Manual |
| 360° rotation | - | Yes |
| Max. load at shortest boom | kg | 400 |
| Max. load at longest boom | kg | 300 |
| Max. boom length (horizontal) | mm | 1150-1450 |
| Hydraulic cylinder stroke | mm | 400 |
| Distance from base leg to hook | mm | 500-1150 |
| Retracted dimensions (L×W×H) | mm | 1760×940×1820 |

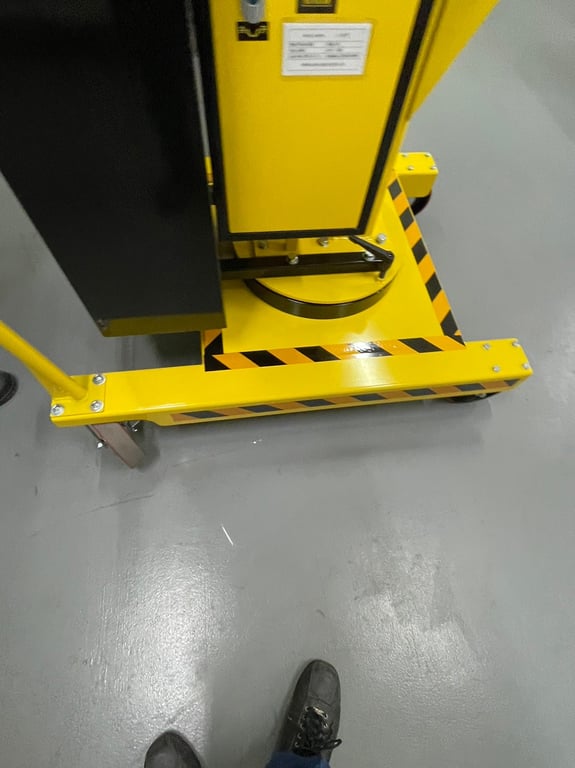

| Base plate dimensions (L×W) | mm | 1300×940 |
| Max. overall height | mm | 2820 |
| Max. lifting height (hook) | mm | 2330 |

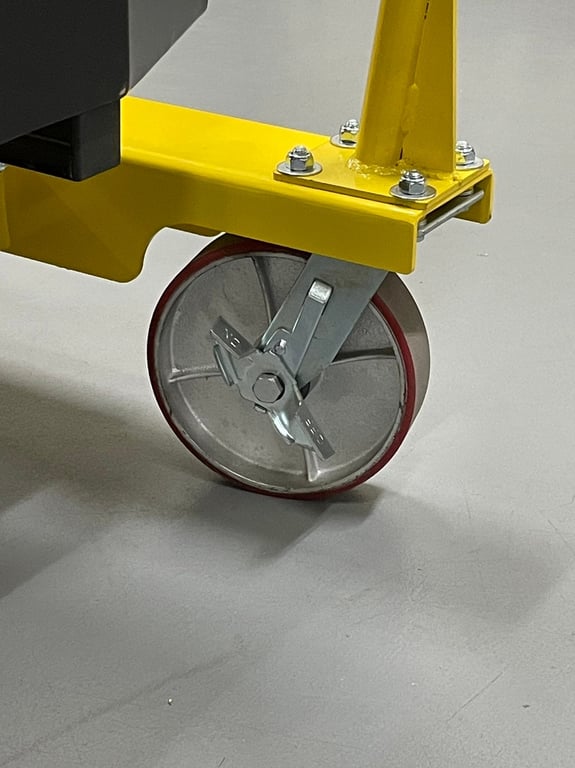

| Main wheel diameter | mm | 200 |
| Hydraulic pump power | kW | 1.5 |
| Electric motor (voltage/power) | V/W | / |
| Battery | V/A | 12/120 |
| Charger | V/A | 12/12 |
| Included wireless remote | 8 buttons | |
| Full battery charging time | h | 8 |
| Continuous operation per charge | h | ~4.5 |

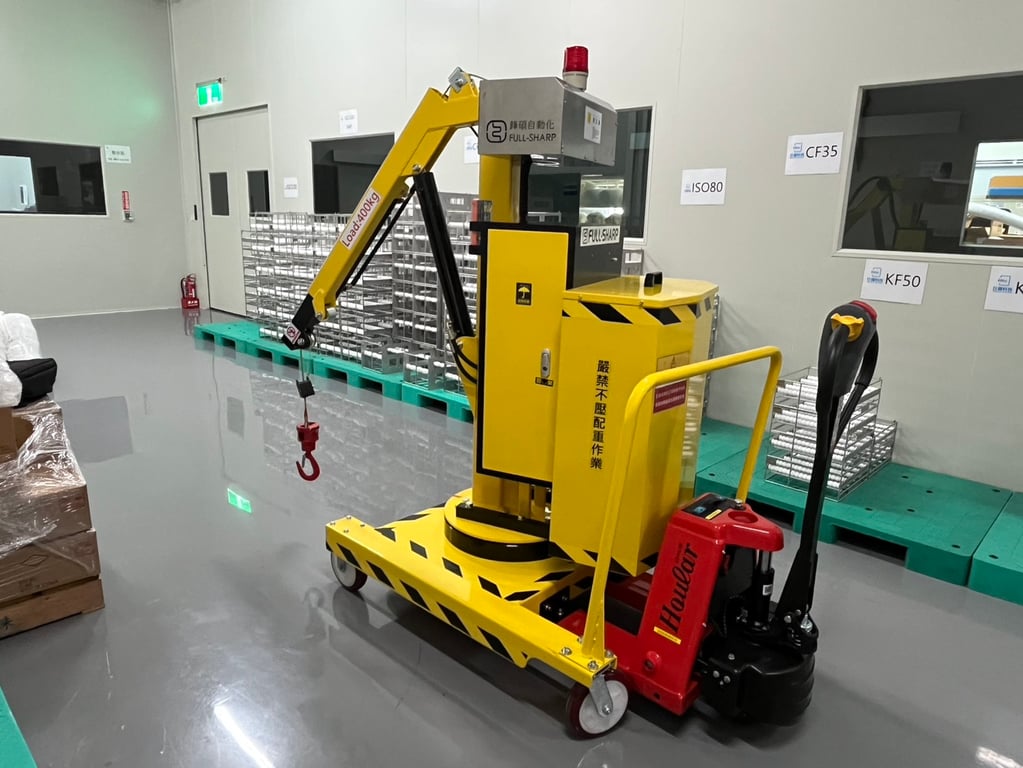

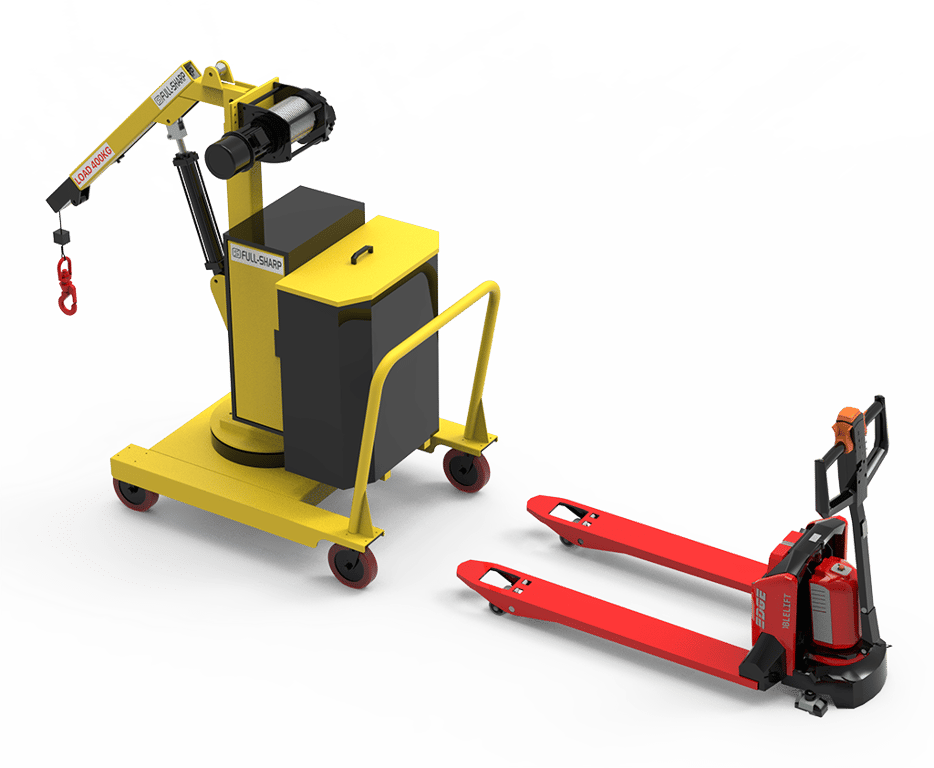

| Travel method | - | Manual push or electric drive |
| Unit weight (excluding counterweight) | kg | 330 |
| Packing dimensions (L×W×H) | m | 1.45×1.15×1.94 |
| Packed weight | kg | 450 |
