The 400 kg mini crane can be ordered with a premium Taiwan-made electric winch mounted at the boom head. The winch has a load limiting function: when the load exceeds the allowed capacity, the winch will not haul the wire rope up, protecting the crane from overload and keeping the operator safer.
| Winch rated line lift | 500 kg |
| Lifting height | 12 m |
| Lifting speed | 3 m/min (12V) / 4 m/min (24V) |
| Power supply | DC 12V or DC 24V |
| Motor output | 300 W |
| Gear ratio | 276:1 |
| Brake | Mechanical ratchet pawl, instant and failsafe |
| Drum size | 95 mm x 76 mm |
| Wire rope | Galvanized 6.35 mm x 12 m (A7 x 19) |
| Controls | Indirect, control box with pendant switch |
| Safety function | Load limiting: no rope hauling when overloaded |
| Origin | Made in Taiwan |
Contact FullSharp for configuration advice and a quote for the load limiting winch version.

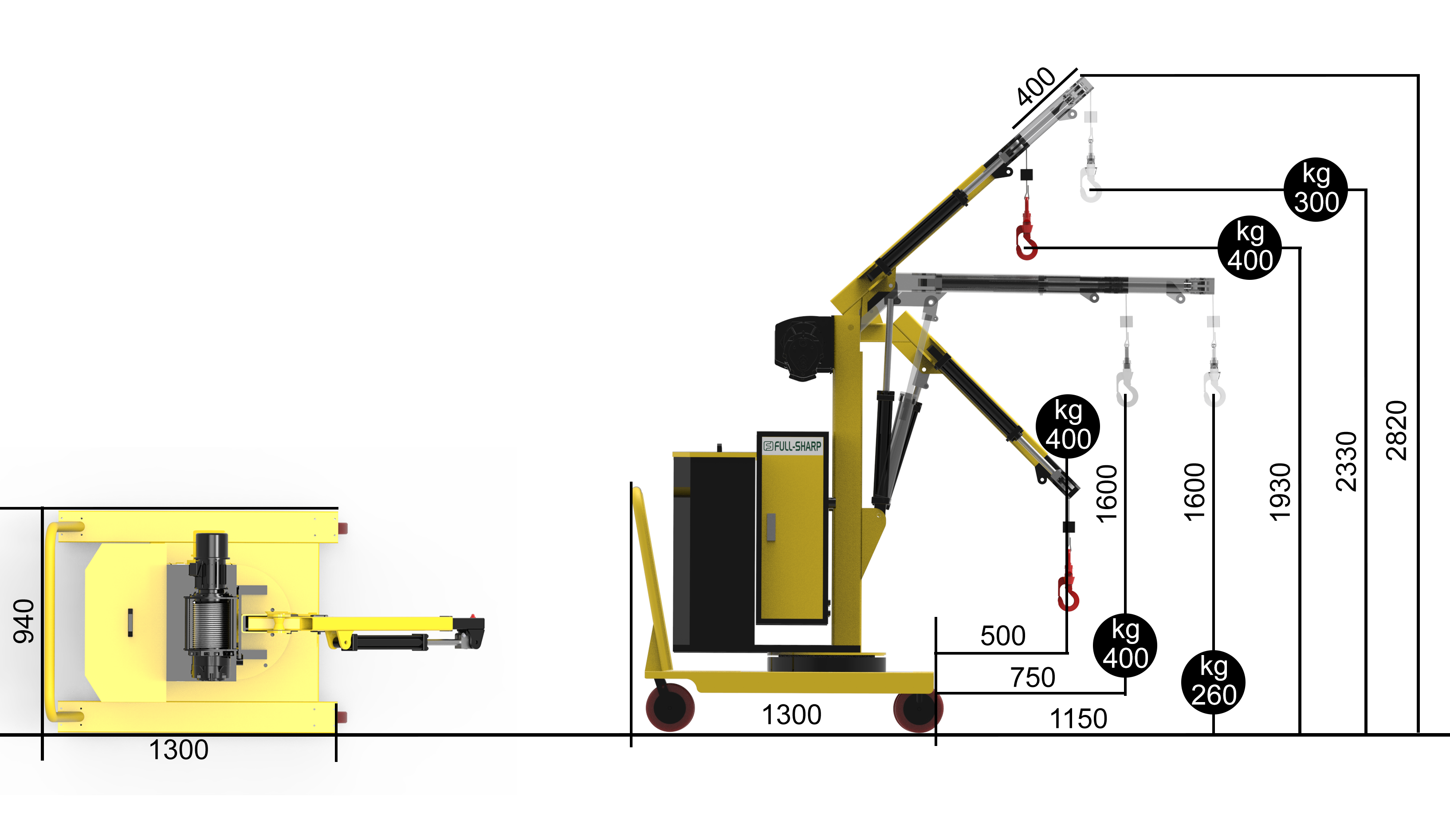

| Parameter | Unit | Value |
|---|---|---|
| Model | - | FS-400-BZD |
| Electric winch control method | - | Electric control |
| Boom rotation | - | Manual |
| 360° rotation | - | Yes |
| Max. load at shortest boom | kg | 400 |
| Max. load at longest boom | kg | 300 |
| Max. boom length (horizontal) | mm | 1150-1450 |
| Hydraulic cylinder stroke | mm | 400 |
| Distance from base leg to hook | mm | 500-1150 |
| Retracted dimensions (L×W×H) | mm | 1760×940×1820 |
| Base plate dimensions (L×W) | mm | 1300×940 |
| Max. overall height | mm | 2820 |
| Max. lifting height (hook) | mm | 2330 |
| Main wheel diameter | mm | 200 |
| Hydraulic pump power | kW | 1.5 |
| Electric motor (voltage/power) | V/W | / |
| Battery | V/A | 12/120 |
| Charger | V/A | 12/12 |
| Included wireless remote | 8 buttons | |
| Full battery charging time | h | 8 |
| Continuous operation per charge | h | ~4.5 |
| Travel method | - | Manual push or electric drive |
| Unit weight (excluding counterweight) | kg | 330 |
| Packing dimensions (L×W×H) | m | 1.45×1.15×1.94 |
| Packed weight | kg | 450 |
