Hydraulic Roll Clamp Lifter

Hydraulic Roll Clamp Lifter

Xe nâng cuộn FullSharp - Góc 1
FullSharp roll lifter - View 1

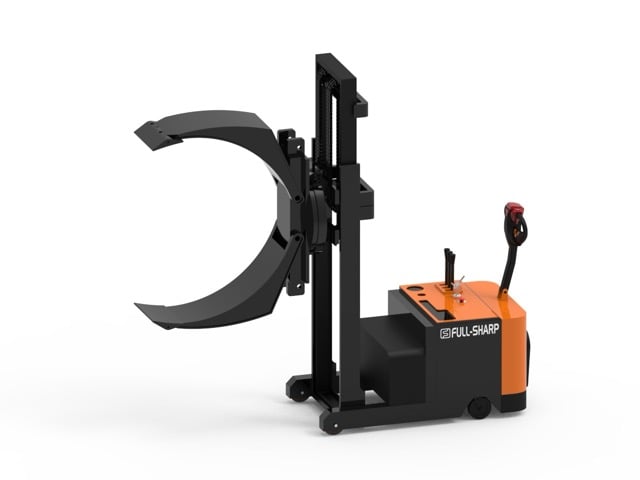

Xe nâng cuộn FullSharp - Góc 2
FullSharp roll lifter - View 2

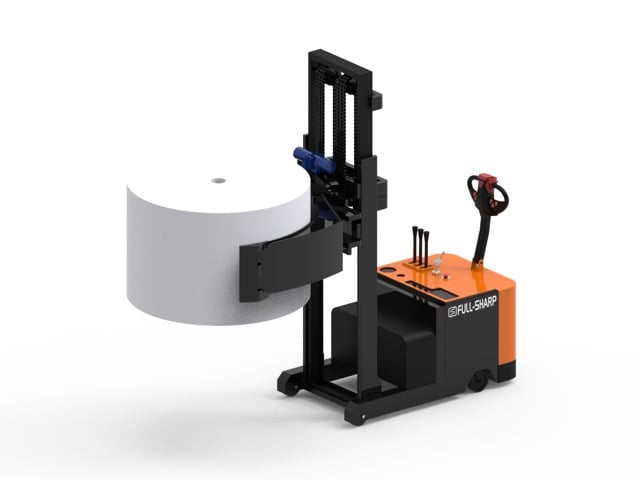

Xe nâng cuộn FullSharp - Góc 3
FullSharp roll lifter - View 3

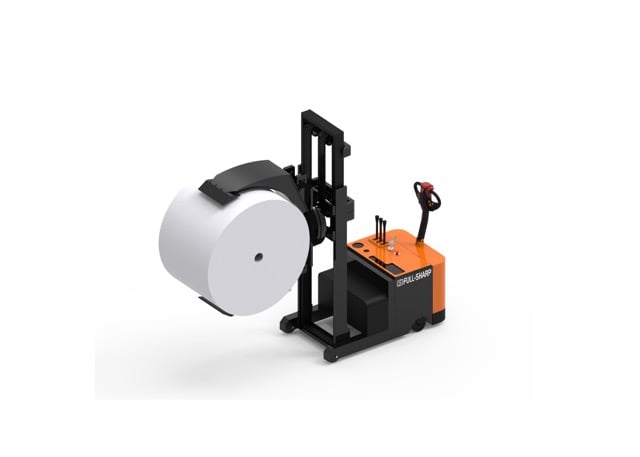

Xe nâng cuộn FullSharp - Góc 4
FullSharp roll lifter - View 4

Product Description

  • Precise clamping for efficient, easy handling.
  • Simple, convenient operation with strong power.
  • Stable performance and long service life.
  • High load-bearing capacity and durability.

Basic Information

  • ModelFSCDD0516-Z-8
  • TypeRoll clamp lifter
  • PowerDC motor
  • Load capacity500-1000kg
  • Lift height1.6m-3m
  • ConditionNew
  • Brake systemElectromagnetic brake
  • CertificationCE&ISO&TUV&GS
  • AdvantagesPowerful and smooth
  • Rotation angle90°
  • Shipping packagingWooden pallet
  • Dimensions2000*850*2050mm

Packaging & Delivery

Package size

2500.00cm * 1650.00cm * 2000.00cm

Package weight

710.000kg

Specifications

ModelFSCDD051C6-ZFSCD1016-ZFSCDD0525-ZFSCDD1025-ZFSCDD1030-Z
Load capacity (kg)500100050010001000
Max. lift height (mm)16001600250025003000
Battery (V/Ah)24/16524/16524/21024/21024/210
Charger (V/A)24/2024/2024/3024/3024/30
Weight (kg)710730760790830
Overall dimensions (mm)2500*1650*20002300*1450*20002100*1250*17802000*1050*17802000*850*2050
Lift motor (kw)2.52.52.52.52.5
Drive motor (kw)AC1.5AC1.5AC1.5AC1.5AC1.5
Gradeability (%)4/64/64/64/64/6
Brake systemElectromagnetic brake
