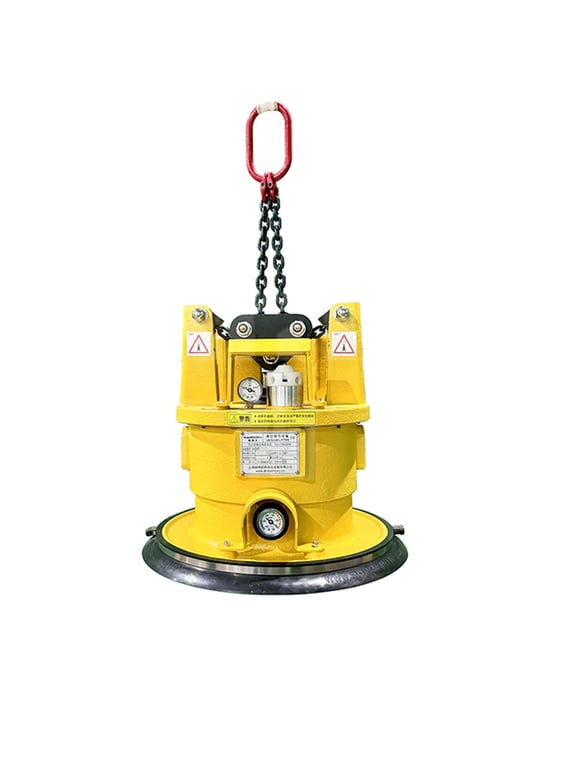

FS-WDL800-1S

  • No installation needed; the pad's lifting eye can connect directly to the crane hook
  • Vacuum generation and release are controlled by slackening or tensioning the chain; pick-up and release are carried out via the vacuum control valve
  • No control buttons and no external power source of any kind; unaffected by power outages or low voltage
  • No extra electrical cables or air hoses; the unit can be moved to any location with lifting equipment
  • The load can be released only after it has been set down and the chain is fully slack, so operating errors cannot occur and safety is extremely high

Specifications

Product codeMax. loadOuter dimensions (mm)Pad diameter (mm)Number of padsPower sourceControl typeUnit weight
FS-WDL800-1S800KGΦ450×850Φ4501pcsNon-poweredAutomatic90KG

Product video
