| Parameter | Unit | Value |
|---|---|---|
| Boom lifting method | - | Remote control |

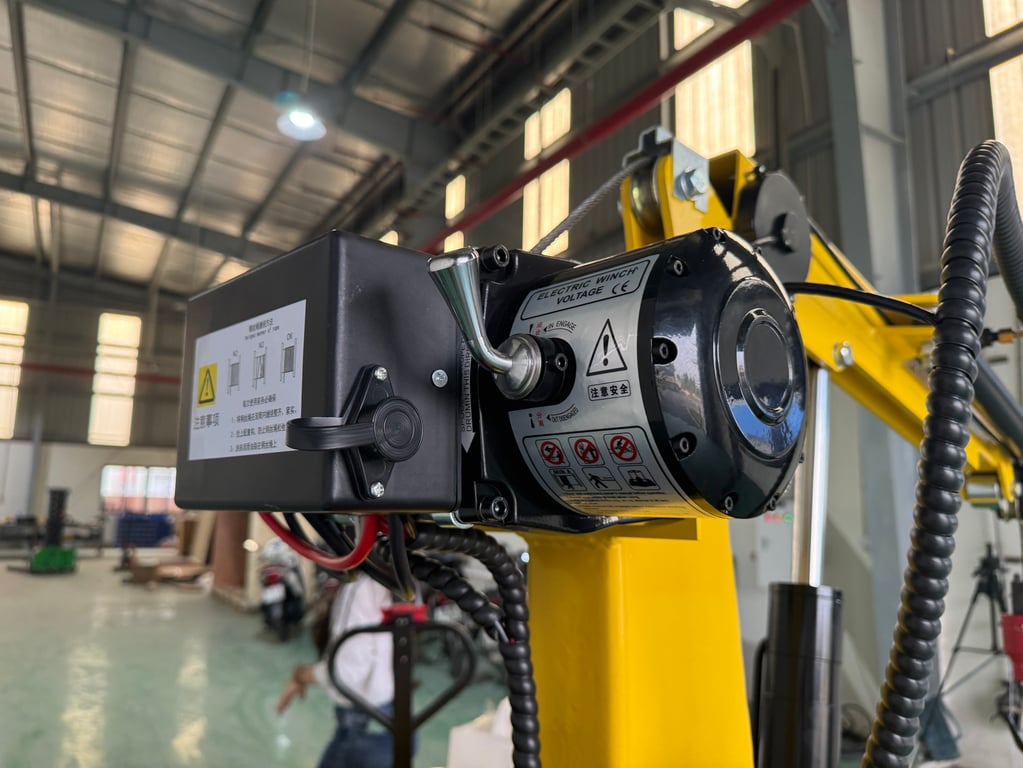

| Electric winch control method | - | Remote control |
| Travel method | - | Electric drive |

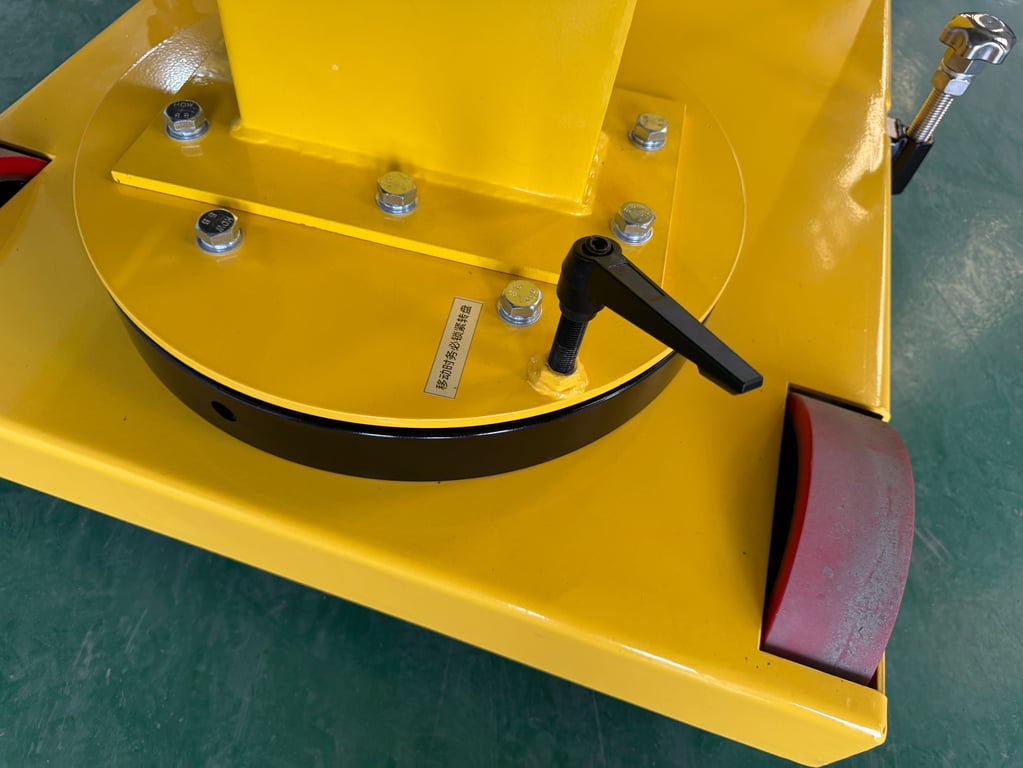

| 360° crane rotation | - | Yes |
| Max. load at shortest boom | kg | 1000 |
| Max. load at longest boom | kg | 500 |

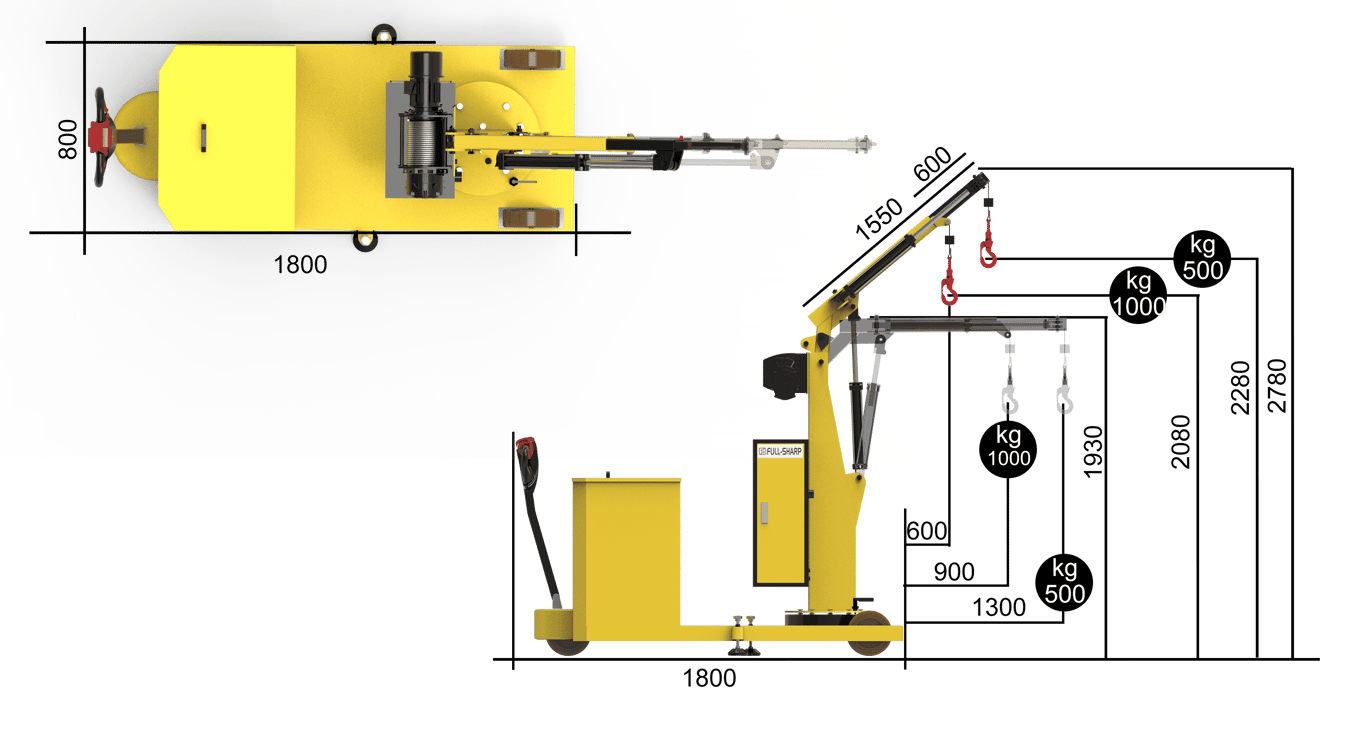

| Max. boom length (horizontal) | mm | 1150-1450 |

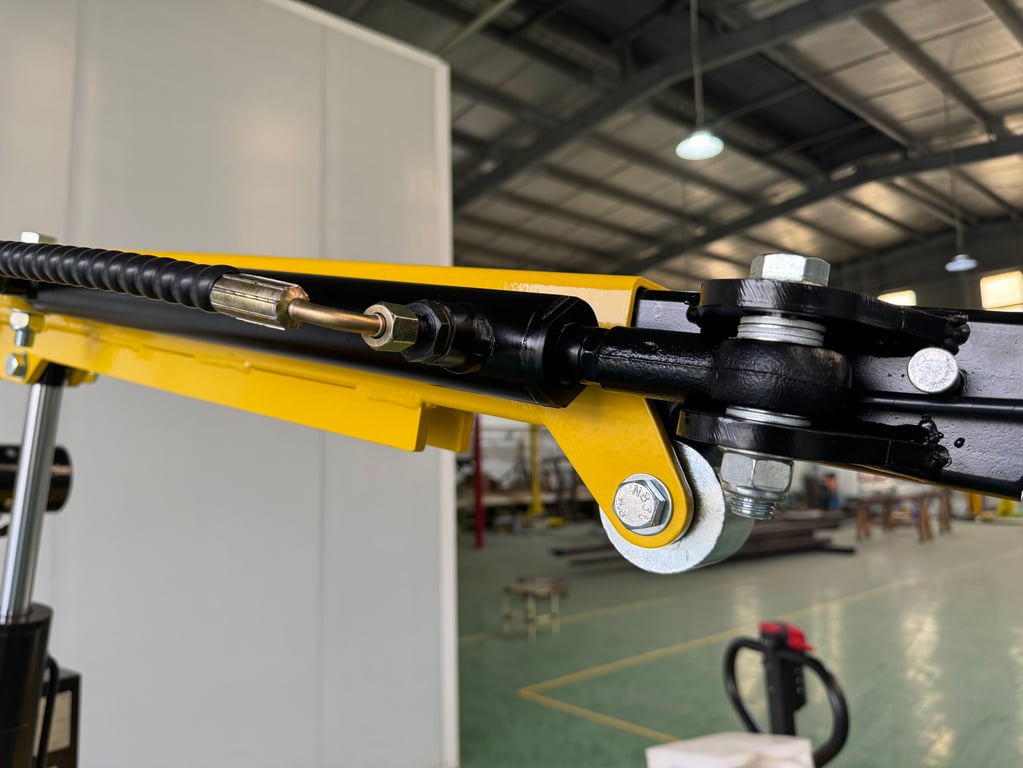

| Hydraulic cylinder stroke | mm | 400 |
| Distance from base leg to hook | mm | 600-1200 |
| Retracted dimensions (L × W × H) | mm | 1950×800×1800 |
| Base plate dimensions (L × W) | mm | 1800×800 |
| Max. overall height | mm | 2800 |

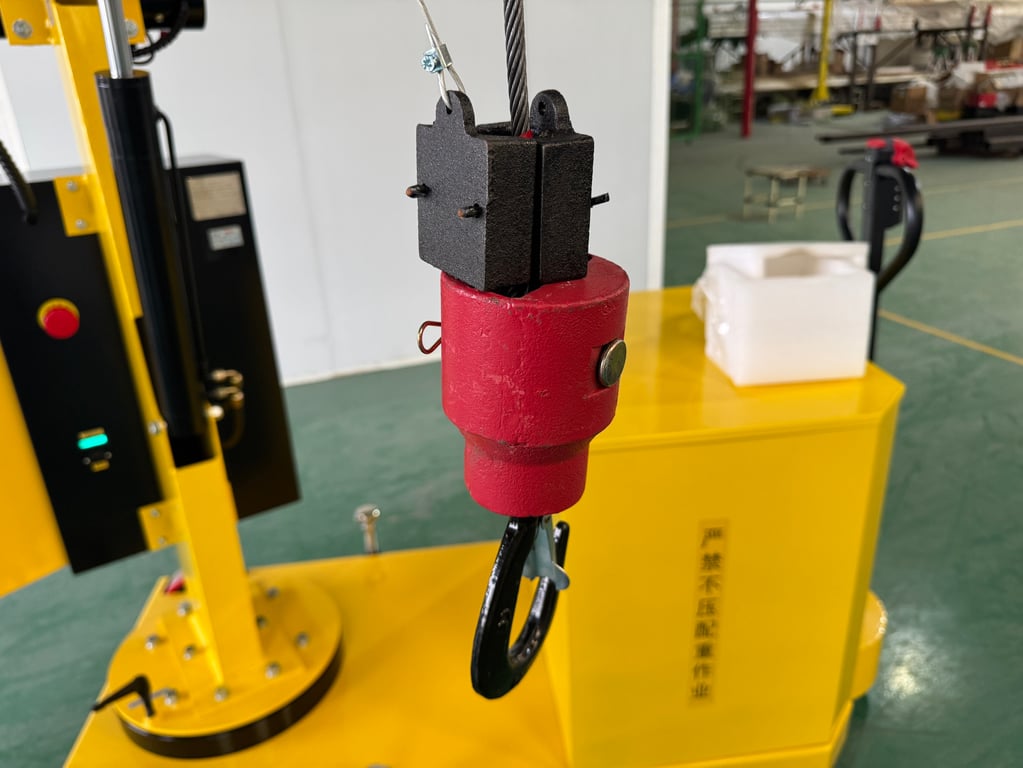

| Max. lifting height (hook) | mm | 2300 |
| Main wheel diameter | mm | 248 |
| Hydraulic pump power | KW | 1.5 |
| Drive motor (voltage/power) | V/W | 48/700 |
| Battery | V/Ah | 12/120 |
| Charger | V/A | 12/12 |
| Charging time | h | 8 |
| Continuous operation per charge | h | ~4.5 |
| Included wireless remote | buttons | 8 |
| Packing dimensions (L×W×H) | M | 2.25×0.96×1.9 |
| Unit weight (excluding counterweight) | kg | 480 |
| Packed weight | kg | 670 |
