FullSharp · since 1991

FS-QFD

Safe load400 kg
Power systemCompressed air 0.6–0.8 MPa
Suction cups6 × Φ250
Tilt0–90° pneumatic
Size860×680 mm, extended 1760×1130 mm
ControlManual

FS-QFD pneumatic tilt glass vacuum lifter for glass processing

FS-QFD belongs to the pneumatic tilt (rotation) series of vacuum lifters. Safe load 400 kg, powered by compressed air at 0.6–0.8 MPa.

It suits glass processing stations such as unloading at the tempering furnace exit, loading laminated glass into the autoclave and gluing insulating glass spacer frames. The frame is strong, carries a large load and runs steadily.

At a fixed station the lifter works with a pillar jib crane, a wall-mounted jib crane or a crane rail system, so it is quick and convenient to use. The air cylinder extends and retracts to tilt the glass pneumatically from 0 to 90°.

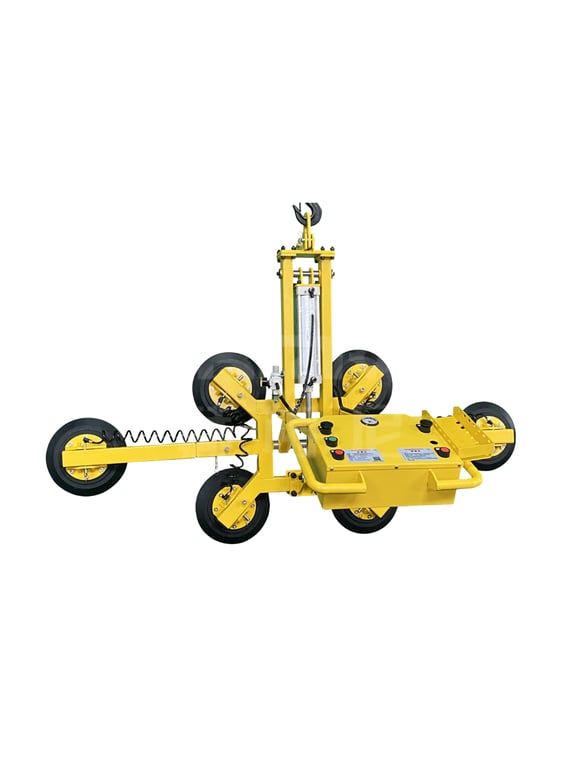

FS-QFD400-6S pneumatic tilt glass vacuum lifter with 6 suction cups

Specifications

Model	Safe load	Size (mm)	Suction cup diameter (mm)	Suction cups	Power system	Control	Function
FS-QFD400-6S	400 kg	860×680, extended: 1760×1130	Φ250	6	Compressed air (0.6–0.8 MPa)	Manual	0–90° pneumatic tilt

860×680 mm is the size with the cup arms retracted; with the arms extended the frame measures 1760×1130 mm.

Main components

High quality cylinder

Cylinder from an internationally known brand / Stable power output / Durable

Vacuum suction cup

Suction cup rubber Dia. 250 mm, nitrile rubber / Three-ring multi-cavity seal, holds pressure well / Safer

Equipment frame

Custom made by the factory / National standard structural steel sections / Welded, machined, shaped and finished with baked paint, durable

Other spare parts

Power switches, vacuum generator and more from internationally known brands / UL and other international certifications / Low failure rate, durable

On site

**Under a rail crane, guiding an insulating glass unit into place**

**Feeding glass to a production line under a pillar jib crane**

**Paired with a pillar jib crane at a fixed station**

Applications

**Handling photovoltaic glass**FS-QFD400-6S

**Tilting insulating glass at the spacer frame station**FS-QFD400-6S (400KG)

Advantages

Built for glass processing plants

The FS-QFD series is designed for glass processing companies and suits photovoltaic glass laminating, spacer frame gluing and similar workstations. The frame is sturdy, carries the load well and runs steadily.

Works with a crane at a fixed station

The lifter is used at fixed workstations together with a pillar jib crane, a wall-mounted jib crane or an overhead crane. It is an effective way to move glass: quick and convenient, raising productivity and keeping the workflow smooth.

0–90° pneumatic tilt

The key feature of the FS-QFD is its pneumatic tilt: combined with an electric hoist it gives electric lifting and 0–90° pneumatic tilting of the glass. It also needs little headroom, so it can be used in buildings with a relatively low roof.

Safe and easy to operate

Safety comes first: reliable quality reduces the risk of accidents and injuries. The dedicated design and user-friendly operation make the lifter an essential tool for glass processing companies.
