Flash(lite)

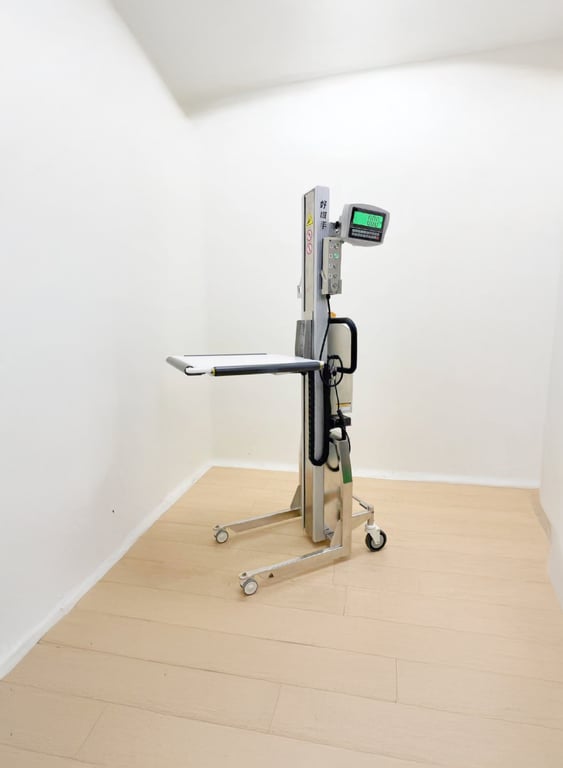

The Flash(lite)-RP cleanroom stainless steel lifter series uses a lightweight aluminum mast or 304 stainless steel, and is suitable for lifting plastic baskets, carton boxes, cloth bags and stainless steel containers. It offers a fast lifting speed of 250mm/s, a maximum load capacity of 120kg and a lifting height of up to 1900mm. The unit can be fitted with a roller table in ABS, aluminum or stainless steel, with options for an ASP control system, remote control, weighing platform and solid wheels. It runs on a fast-charging DC24V20AH battery, works in a wide range of environments, and offers IP41 protection or optional IP66.

Specifications

Model	Flash(lite)160-RP Flash160-RP	Flash(lite)190-RP Flash190-RP	Flash(lite)220-RP Flash220-RP
Spindle height H Spindle height	1600	1900	2200
Lifting height R Lifting height	1500 - 1300	1500 - 1600	1500 - 1900
Main material Host material	Flash(lite): lightweight aluminum mast + 304 stainless steel Standard Flash: stainless steel
Roller table Roller table	Table material: HDPE 304 stainless steel Roller material: ABS 304 stainless steel Aluminum Size (including wheels): 500x500mm 640x640mm 940x640mm
Load capacity Load	120kg
Lifting speed Lifting speed	250 mm/s (standard)
Applications Apply for	Plastic baskets, carton boxes, stainless steel containers, bags Flour bags, sacks, cloth bags, etc.
Protection rating Protection level	Standard IP41	Optional IP66
Battery Battery	Standard DC24V20AH
Charging Charging	Input 100–240V AC
Options Option	ASP keypad upgrade (3 working positions x 5 memory positions) RMC remote control Weighing platform + portable weighing indicator Solid front wheels for fabric, and universal casters QCA made-to-order parts can be combined with other lifting attachments, such as: - Hanging arm - Rotating roll clamp arm - For more options, please contact FULL-SHARP
