EHV SERIES (CE MARKED MODEL)

This air hoist series has a rated load of 250 kg to 1000 kg. It is equipped with a surface-hardened load chain made of alloy steel with high impact strength and outstanding wear resistance.

The load chain can be extended as required.
All EHV models are equipped with an emergency stop button on the standard push-button pendant.
Certified to ATEX: II3GD Ex h IIB T4 Gc / Ex h IIIB T135°C Dc, suitable for hazardous areas with explosive dust and gas.
Pull-cord control is available for models EHV25SP, EHV50SP and EHV100WP, with equivalent specifications and differences only in dimensions and weight

View catalogue

Download PDF spec sheet

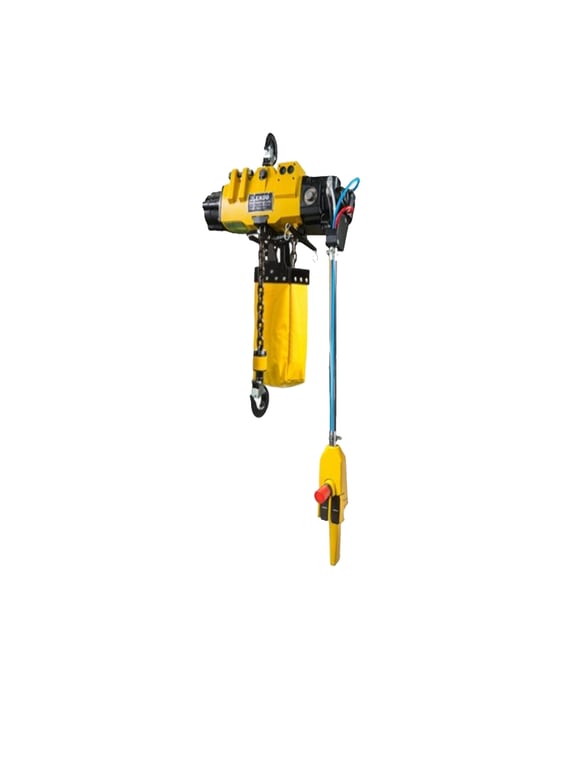

EHV Air Hoist

Working air pressure 0.4 – 0.6 MPa · Standard lifting height 3 m · Air inlet Rp 1/2

Model	Control	Rated load (kg)	Lifting height (m)	Air pressure (MPa)	Lifting speed (m/min)	Air consumption (m³/min)	Chain (mm × falls)	Air inlet	Weight (kg)
EHV25SP	Push-button	250	3	0.4 – 0.6	12 – 18	0.9 – 1.6	6.3×1	Rp 1/2	23.0
EHV50SP	Push-button	500	3	0.4 – 0.6	7.5 – 10.5	0.95 – 1.65	6.3×1	Rp 1/2	23.0
EHV98WP	Push-button	980	3	0.4 – 0.6	3.7 – 5.2	0.95 – 1.65	6.3×2	Rp 1/2	29.0
EHV100WP-OP	Push-button	1000	3	0.4 – 0.6	3.7 – 5.2	0.95 – 1.65	6.3×2	Rp 1/2	31.0
EHV25SC	Pull cord	250	3	0.4 – 0.6	12 – 18	0.9 – 1.6	6.3×1	Rp 1/2	21.0
EHV50SC	Pull cord	500	3	0.4 – 0.6	7.5 – 10.5	0.95 – 1.65	6.3×1	Rp 1/2	21.0
EHV98WC	Pull cord	980	3	0.4 – 0.6	3.7 – 5.2	0.95 – 1.65	6.3×2	Rp 1/2	27.0
EHV100WC-OP	Pull cord	1000	3	0.4 – 0.6	3.7 – 5.2	0.95 – 1.65	6.3×2	Rp 1/2	29.0

Optional Accessories

Plentrolly

By attaching it to the hanging source, it enables smooth lateral movement manually.

Air Motor Trolley

This type of trolley is powered by air and transports a suspended load horizontally.
