ENDO Air Motor Trolley

ENDO Air Motor Trolley is part of the ENDO Air Hoists range. ENDO air hoists run entirely on compressed air with no electricity: wire rope types for 60–120 kg and chain types from 60 kg to 6 tons, including ATEX-certified models (EHV, EHLK).

Overview

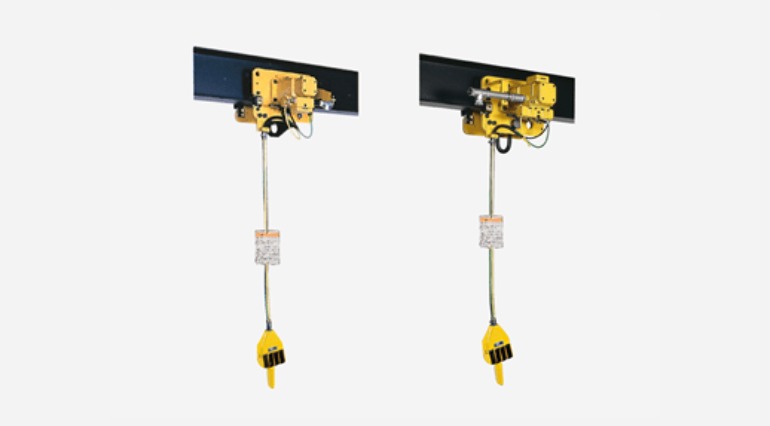

This type of trolley is powered by air and transports a suspended load horizontally.

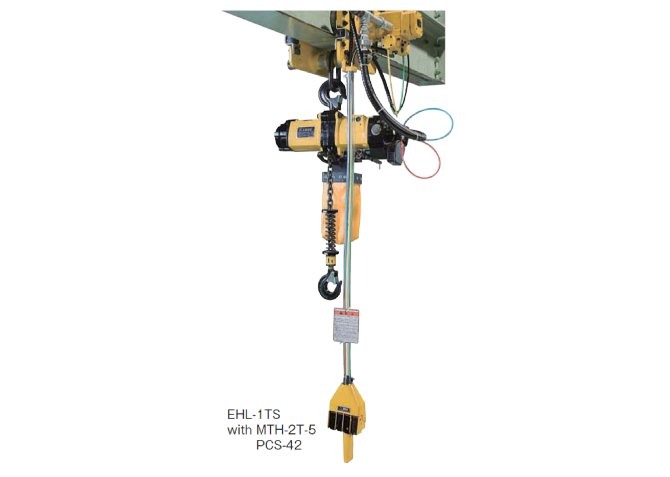

You can also combine this trolley with an Air Hoist for use as a crane. Air motors are safer than electric motors.
You can safely install this type of trolley even in chemical plants or places where hazardous materials are handled.

Pendant control switch

Model	Emergency stop button	Air motor trolley	Mass(kg)
PCS-41	-	MTH-1T-5+EHL-025TS/05TS/1TW	3.2
PCS-41BV	Equipped	MTH-1T-5+EHL-025TS/05TS/1TW EHV25SP/49SP/50SP/100WP	3.7
PCS-42	-	MTH-2T-5+EHL-1TS/2TW MTH-6.3T+EHL-3TS/6TW	3.6
PCS-42BV	Equipped	MTH-2T-5+EHL-1TS/2TW MTH-6.3T+EHL-3TS/6TW	4.4

Note) "BV" indicates "Emergency stop button equipped"
＊The extension of control tube is available up to 5.6m (total 8m length).

Dimensions

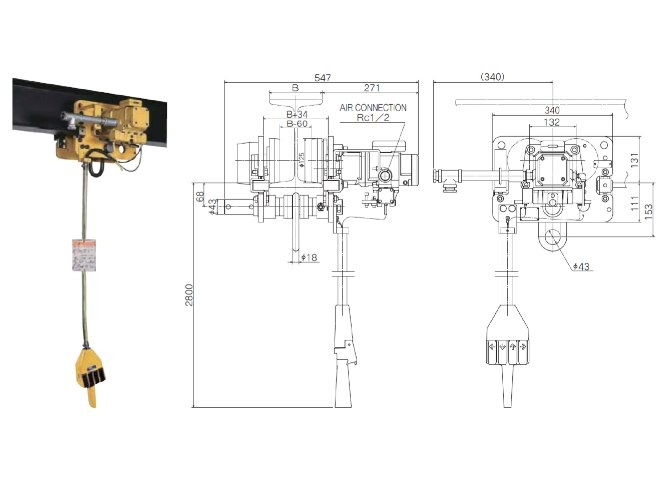

■MTH-1T-5 PCS-41

The Length of control tube is 2.4m.
4 directions pendant control
Emergency stop button (on request). * model name is PCS-41BV

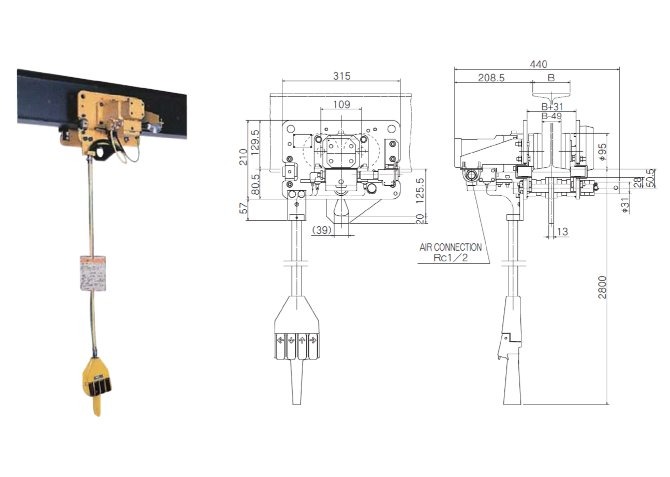

■MTH-2T-5 PCS-42

The Length of control tube is 2.4m.
4 directions pendant control
Emergency stop button (on request). * model name is PCS-42BV

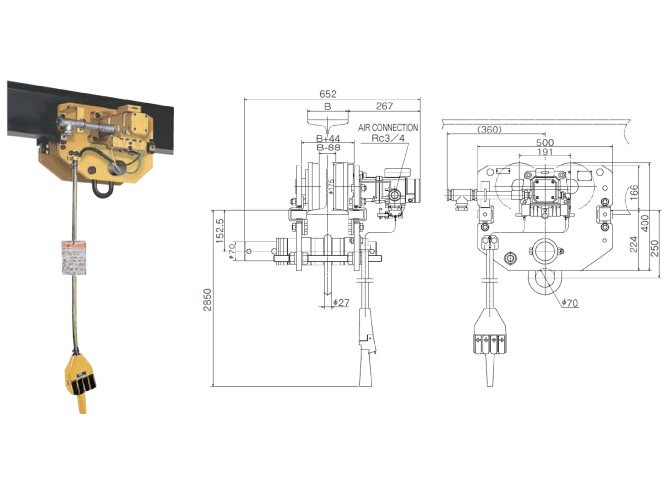

■MTH-6.3T PCS-42

The Length of control tube is 2.4m.
4 directions pendant control
Emergency stop button (on request). * model name is PCS-42BV

Specifications

Model	Rated load (Kg)	Air pressure (Mpa)	Traveling speed (m/min)	Air consumption (m³/min)	Applicable beam width (mm)	Minimum rotation radius (mm)	Air inlet (Kg)	Mass (Kg)
MTH-1T-5	1000	0.4(4)	20	0.55	75	3500	Rc1/2	Approx 35
		0.5(5)	25	0.6	100 125	800
		0.6(6)	28	0.65	100 125	800
MTH-2T-5	2000	0.4(4)	16	1.05	125 150	1000	Rc1/2	Approx 63
		0.5(5)	17	1.3
		0.6(6)	18	1.6
MTH-6.3T	6300	0.4(4)	17	1.05	150 175 190	2500	Rc3/4	Approx 127
		0.5(5)	18	1.3
		0.6(6)	19	1.6

Note) Four push buttons control (4 directions) is available as well as two push buttons control (2 directions). It depends on the customer request. Low head room application is available on request.

Correspondence table - Air hoist / Air motor trolley -

Model	EHL-025TS	EHL-05TS	EHL-098TW	EHL-1TW	EHL-1TS	EHL-2TW	EHL-3TS	EHL-6TW	EHV25SP	EHV49SP	EHV50SP	EHV100WP
MTH-1T-5	〇	〇	〇	〇	－	－	－	－	〇	〇	〇	〇
MTH-2T-5	－	－	－	－	〇	〇	－	－	－	－	－	－
MTH-6.3T	－	－	－	－	－	－	〇	〇	－	－	－	－
