Ann230A-RCS

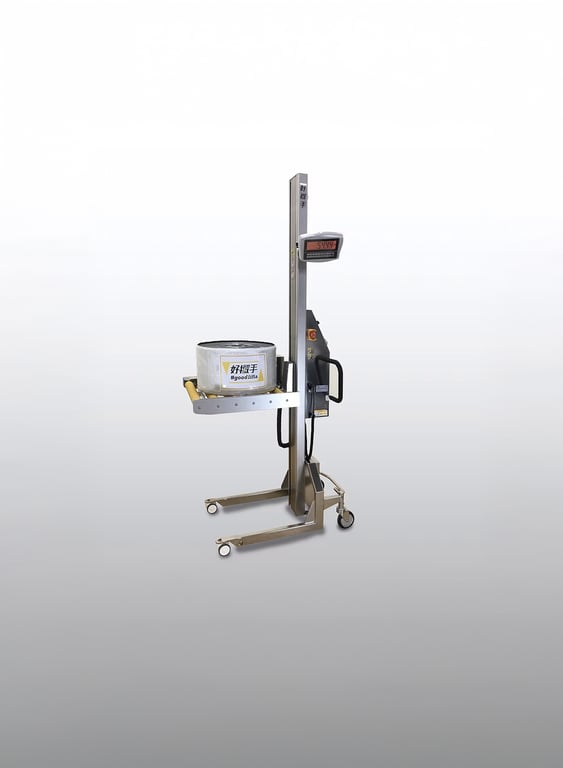

The Ann230A-RCS compact electric lifter has a 304 stainless steel frame and is built for logistics and factory environments with strict hygiene requirements. Lifting height up to 2000mm, 80kg load capacity, and a mobile roller platform for easy handling. It runs on a DC24V battery with a lifting speed of 125 mm/s and fits standard baskets and plastic crates. Optional upgrades include position locking, flexible casters and a lithium battery for higher performance.

Specifications - 80kg Cleanroom Lifter Series

Parameter	S1160	S1190	S1220
Mast height Mast height (mm)	1600	1900	2200
Lifting height Lifting height (mm)	1300	1600	1900
Lifting speed Lifting speed (mm/s)	125 mm/s	125 mm/s	125 mm/s
Protection class IP Protection	IP41	IP41	IP41
Battery Battery	24V / 10AH lead-acid	24V / 10AH lead-acid	24V / 10AH lead-acid
Charger input Charging power	100–240VAC, 50/60Hz	100–240VAC, 50/60Hz	100–240VAC, 50/60Hz
Charging time Charging time	4 hours	4 hours	4 hours
Load capacity Load capacity	80kg

Upgrade Options

Option	Description
IP Protection	IP66
Ø75mm Swivel wheel	Front leg height 92mm
Ø80mm Fixed wheel	Front leg height 85mm

Note: can be customized to suit the customer's actual application.
