GENUINE AIR BALANCER RANGES AT FULLSHARP

1. AIR BALANCER KNIGHT GLOBAL (USA)

World-Leading Technology

Key features

  • • CE compliant
  • • Hands-free operation
  • • Standard "Float" mode

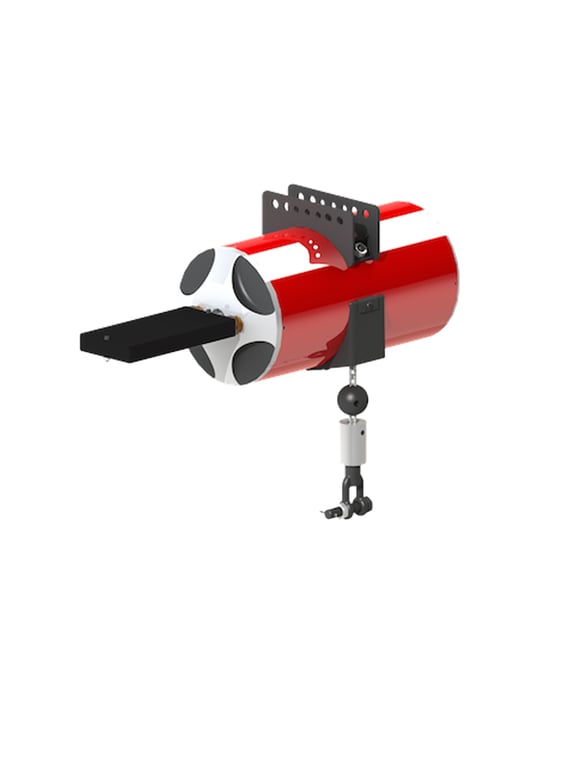

  • • Integrated Centrifugal Retract Control
  • Load capacity: Up to 635kg
  • Stroke: 2,794mm
  • Compressed air: Clean/dry, no lubrication required

Configurations & Controls

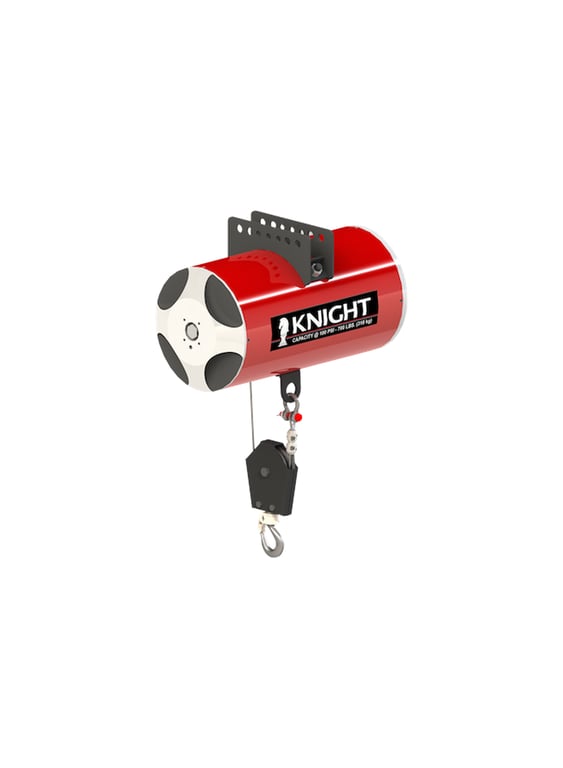

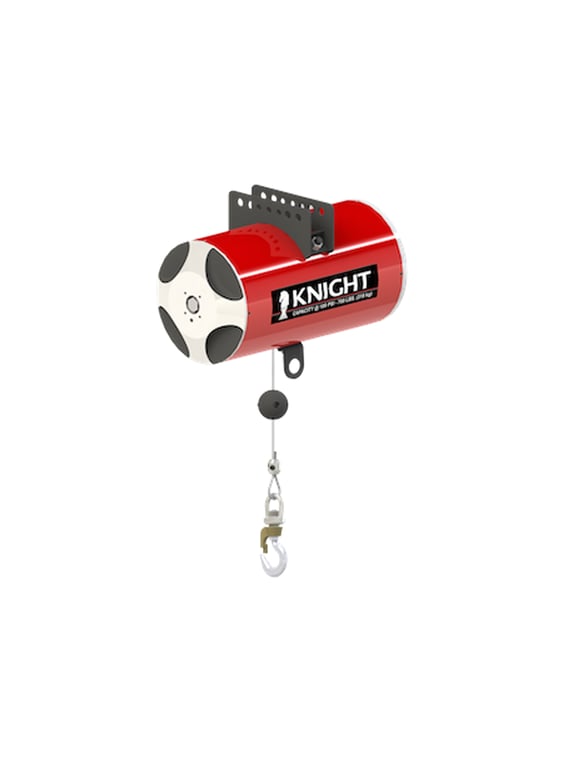

  • • Single & Single Reeved

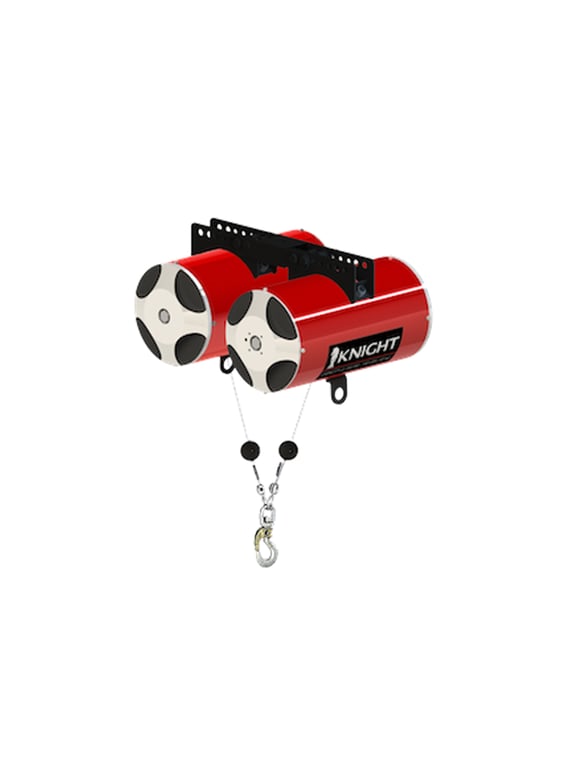

  • • Tandem & Tool-Bench
  • • GIWRC steel wire rope (DMS-2192E)
  • • Chain with 300% longer service life
  • • Ergonomic pendant control
  • • Feather-Touch Control
  • • Automatic centrifugal brake
Note: Lubriplate® 1241 oil is recommended for the wire rope and SAE 50-90 EP for the chain

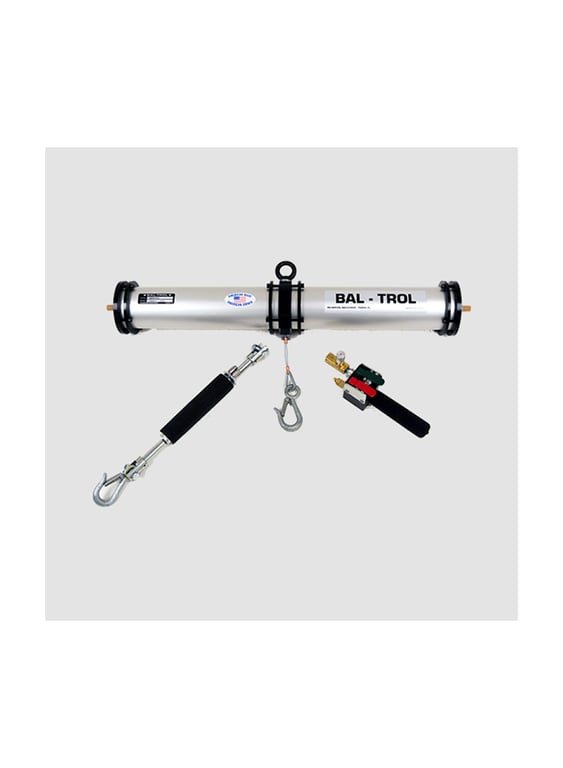

2. AIR BALANCER BALTROL/LIFTSALL (EUROPE)

Space-Saving Solutions

SM Series advantages

• Space saving
• Flexible installation
• Only 1 trolley required
• Stroke: 1–10 feet
• No electronic components
• High durability

SM Series models:

Model Ratio Pressure Load capacity
SM-03 6:1 / 4:1 60–80 / 80–125 PSI 27–36 kg
SM-06 6:1 / 4:1 60–100 / 80–125 PSI 45–57 kg
SM-12 6:1 / 4:1 60–100 / 80–125 PSI 91–136 kg

P Series models (new vertical hanging design):

Model Ratio Pressure Load capacity
P-03 8:1 / 6:1 / 4:1 40 / 60 / 80 PSI 18–36 kg
P-06 8:1 / 6:1 / 4:1 40 / 60 / 80 PSI 34–57 kg
P-12 8:1 / 6:1 / 4:1 40 / 60 / 80 PSI 68–136 kg
P-20 4:1 80 PSI 227 kg

3. AIR BALANCER ENDO (JAPAN)

Japanese Quality & Precision

MS/MSS Series

  • • Load capacity: 0–450kg
  • • Flexible speed adjustment
  • • "Floating" function
  • • Adjustment range: 35cm

Product ranges

  • • MS/MSS: Max 450kg
  • • MS-A: Max 450kg (Advanced)
  • • MS-ATC: Max 140kg (Auto)
  • • MSD: Max 90kg (Compact)

Advantages

  • • High precision
  • • Smooth operation
  • • Japanese durability
  • • Multi-layer safety

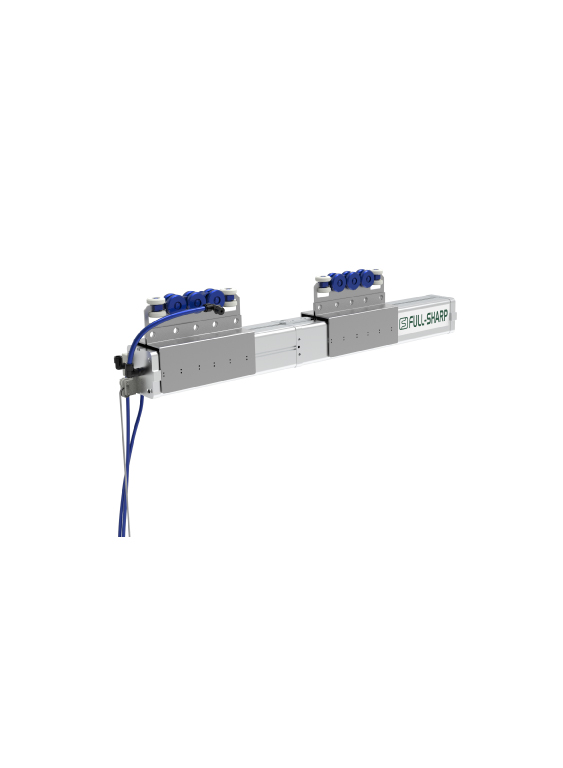

4. AIR BALANCER FULLSHARP (TAIWAN)

Cost-Effective Solutions

9 key advantages

1. Space saving
2. Flexible installation
3. High-speed lifting
4. Simple operation
5. Stroke: 2000mm
6. Load capacity: 100kg
7. Pressure: 6kg/cm²
8. Responsive control
9. Low maintenance

COMPARISON OF 4 BRANDS

Criteria Knight Global Baltrol Endo Fullsharp
Origin USA Europe Japan Taiwan
Max load 635kg 227kg 450kg 100kg
Technology Premium Space saving Precision Economical
Price High Medium High Low
Warranty 12 months 12 months 12 months 12 months

Contact FULLSHARP

Get advice on the Air Balancer solution best suited to your business

Hotline: 0817 888 198
Email: [email protected]
