Articulating Arms

Knight pneumatic articulating arms, extension arms, vertical arms and servo-controlled arms come in a wide range of configurations to lift, rotate, balance, move and transfer products in production areas such as conveyors, staging areas, assembly lines and many other applications.

The ergonomic arm design helps reduce operator fatigue by absorbing torque reaction, while allowing products to be lifted and handled smoothly and precisely.

Articulating arms are particularly well suited to positioning fixtures, end effectors or tooling in work areas that require complex handling.

FEATURES & BENEFITS

Features

  • Travels on Knight RAD4110, RAD6110 or RAD7510 rail.
  • Lifts, rotates, balances and manipulates products with minimal effort.
  • Supports a wide range of control types.
  • Carriage beam size: 609mm or 914mm.
  • Maximum arm length: 1219mm.
  • Link arm extendable up to 1219mm. (Contact Knight for longer lengths.)
  • Maximum vertical arm stroke: 1219mm.
  • Maximum lift/balance capacity: 195kg at 6.8 bar air pressure (depending on arm length).
  • Maximum load capacity: 907kg (with servo lift arm).

Benefits

  • Ceiling mounted or pedestal mounted.
  • Reduces operator fatigue.
  • 3-axis motion: X, Y and Z.
  • Absorbs torque reaction during rotation.
  • Fixed rotation or 360° rotation.
  • Optional pivot brake.
  • Optional parking brake.
  • Optional clutch brake.

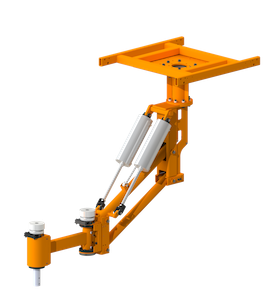

Pneumatic manipulator
Tay nâng khí nén Knight

Description

Knight pneumatic lift arms use a parallelogram mechanism for smooth, flexible vertical motion. This design allows fixtures or end effectors to be positioned vertically with precision.

Knight offers a wide range of lift arms and load capacities, with many configurations to suit applications such as lifting, rotating, balancing, moving and transferring products between conveyors, assembly lines or production areas.

Optional configurations

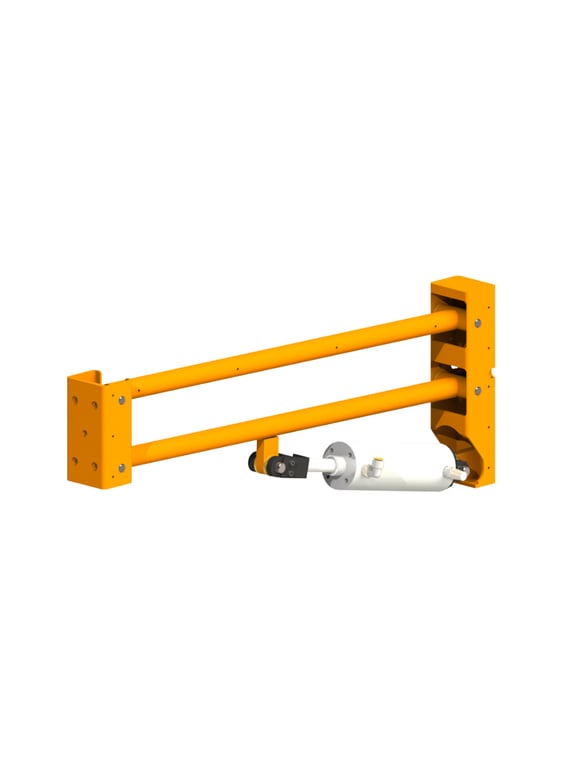

  • Light Duty

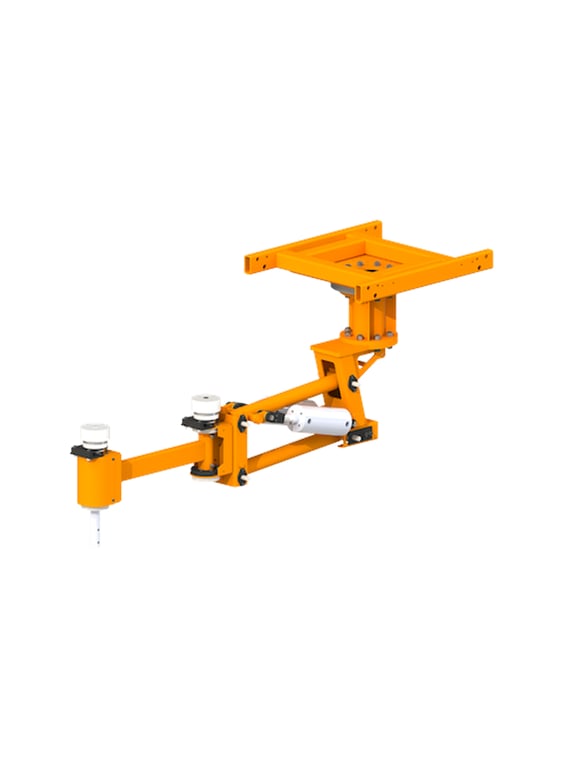

  • Medium Duty

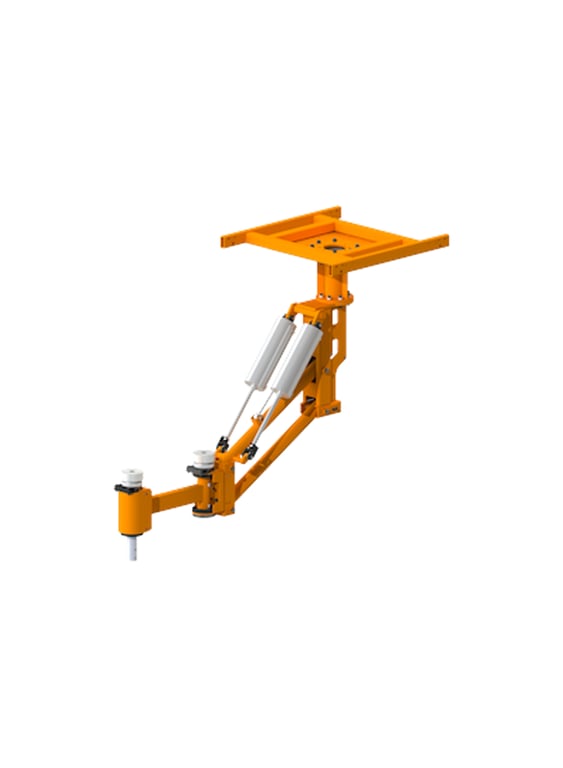

  • Heavy Duty
  • Balancer Series
  • Floor Mounted Pedestal
  • Overhead Carriage Mounted

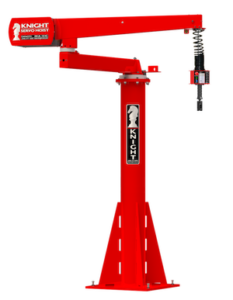

Servo Lift Arms – Knight

Knight Servo Arm

Description

Knight servo lift arms integrate Servo Hoist intelligent assist technology (IAD), giving precise control of lifting, lowering and rotating in a wide range of situations.

Available in multiple configurations: articulating arm, extension arm and vertical arm. Can be mounted on a single rail, fixed pedestal, rotating pedestal or floor-mounted stand.

  • Maximum lifting capacity: 907 kg
  • Maximum travel speed: 200 fpm (~61 m/min)

Available configurations

  • Articulating
  • Extension
  • Extension Boom
  • Vertical
  • Floor Mounted Pedestal
  • Overhead Carriage

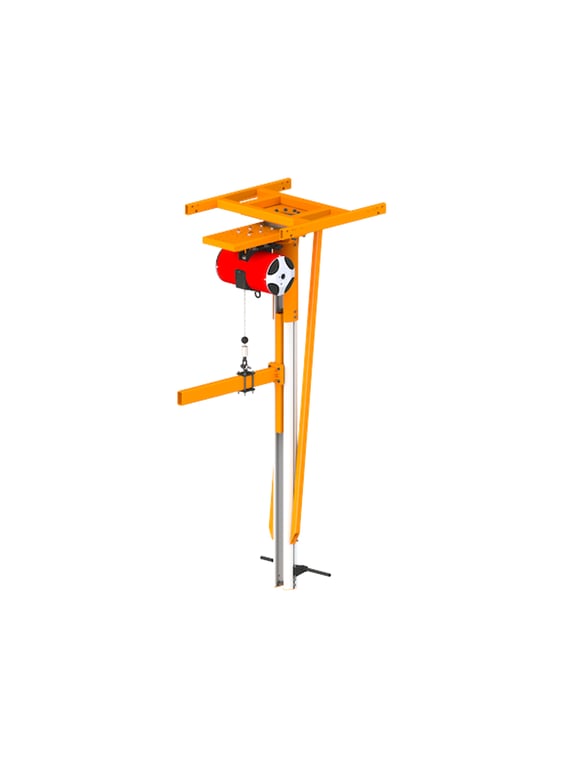

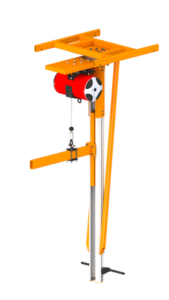

Vertical lift arm
Tay nâng dạng trụ đứng Knight

Description

Knight vertical lift arms allow an end effector to be mounted on a fixed vertical column. Up/down motion is provided by a pneumatic Air Balancer, Servo Hoist, pneumatic cylinder or chain hoist.

This type of lift arm suits applications that require long vertical travel and high positioning accuracy.

  • Maximum lifting capacity: 226kg (direct load – pneumatic hoist model shown).
  • Lifting capacity: 226kg to 454kg (offset load – not shown).
  • Lifting capacity: up to 680kg (offset load – with pulley – servo model shown).

Optional configurations

  • Balancer Series
  • Servo Series
  • Floor Mounted Pedestal
  • Overhead Carriage Mounted

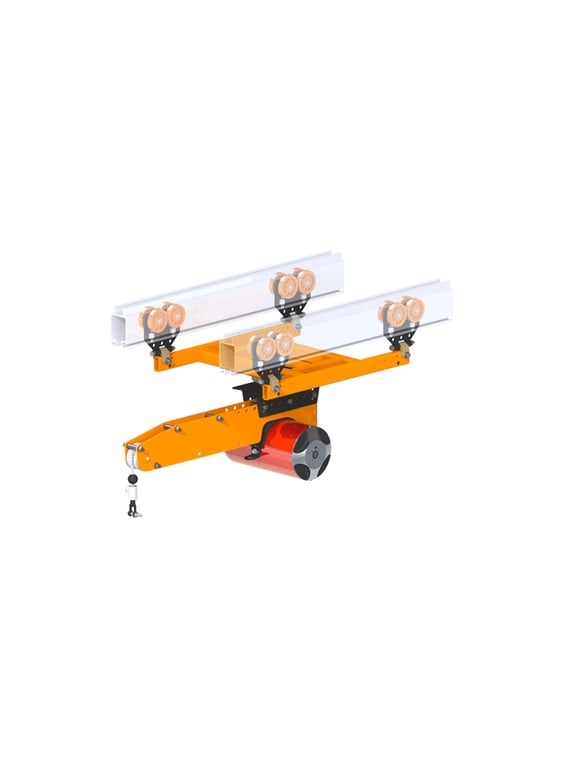

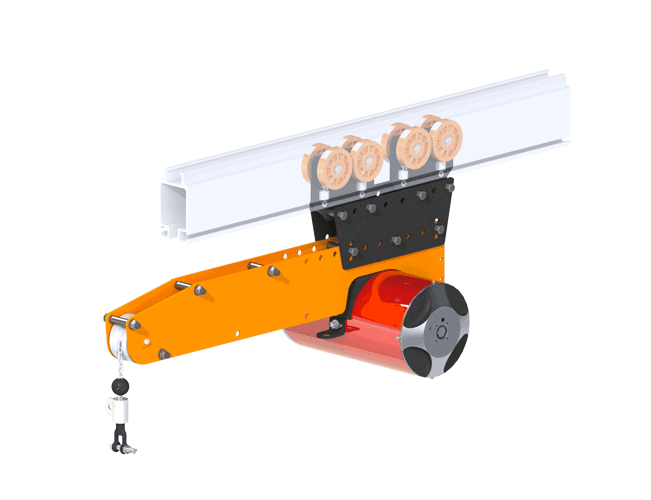

Extension Arms

Tay vươn khí nén Knight

Description

Knight extension arms extend the working reach above the work area beyond the limits of a conventional rail system. They can be fitted with a pneumatic Air Balancer or Servo Hoist for flexible load lifting and lowering.

  • Maximum lifting capacity: 700 lbs (317.5 kg) – with pneumatic Air Balancer
  • Maximum lifting capacity: 1000 lbs (453.5 kg) – with Servo Hoist

Available configurations

  • Single or double beam (for both balancer and servo)
  • Floor-mounted pedestal (servo hoist only)
