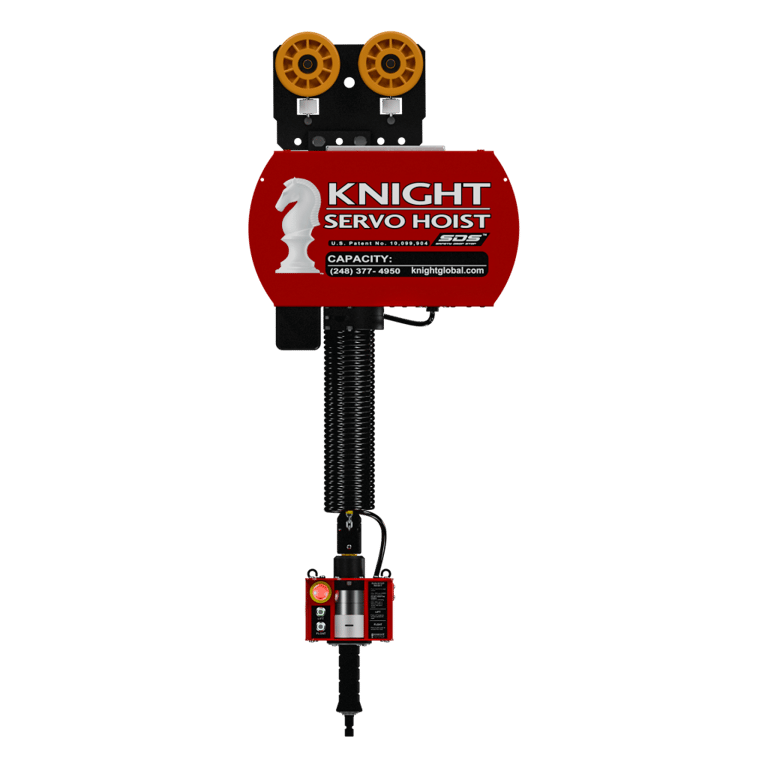

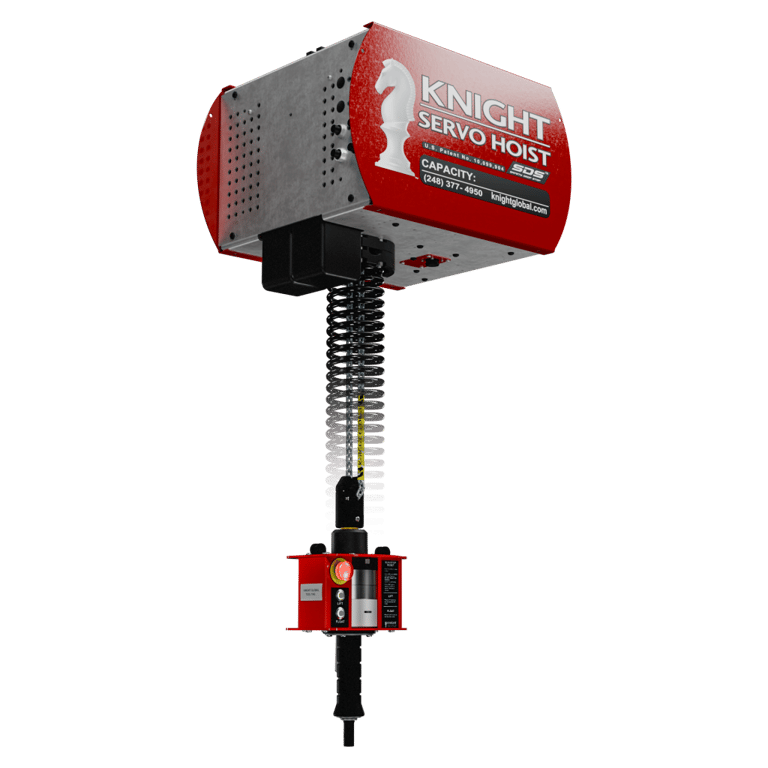

Safety Drop Stop (SDS) servo hoist

Name: Safety Drop Stop (SDS) servo hoist
Brand: FullSharp

Download PDF spec sheet

Overview

The Knight KSHS servo hoist series adds the patented Safety Drop Stop (SDS) with redundant load and safety chains. Operators simply grasp the handle and move the load, with no push buttons.

Knight is leading the industry with its next-generation KSHS Safety Drop Stop Servo Hoist series (Patent No. 10,099,904) – the safest, most intelligent hoist in the world. The KSHS Series includes our patented “Safety Drop Stop” (SDS) feature and has redundant chains – one that carries the load and another that travels along for safety.

This series has added features to its Intelligent Assist Device (IAD) that give the operator improved precision to locate or float a load in the “Z” direction (vertical axis).

Our KSHS Series allows for many application solutions due to its various programmable features and unlimited I/O. Unlike traditional hoists that require the operator to push buttons, our SDS Servo Hoist enables an operator to simply grasp the handle and move the load, eliminating push buttons altogether.

Additionally, the SDS Servo Hoist includes a drop-in graphite stick inside of the gear tower to ensure lubrication of the chains. Replacement sticks can be ordered separately.

Knight’s Servo Hoist technology becomes an extension of an operator’s natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia on heavy loads.

SDS Servo Hoist Series Model Numbers:
KSH250S-2401, KSH350S-2401, KSH500S-2401, KSH750S-2401 & KSH1000S-2401

General Information

Mechanical

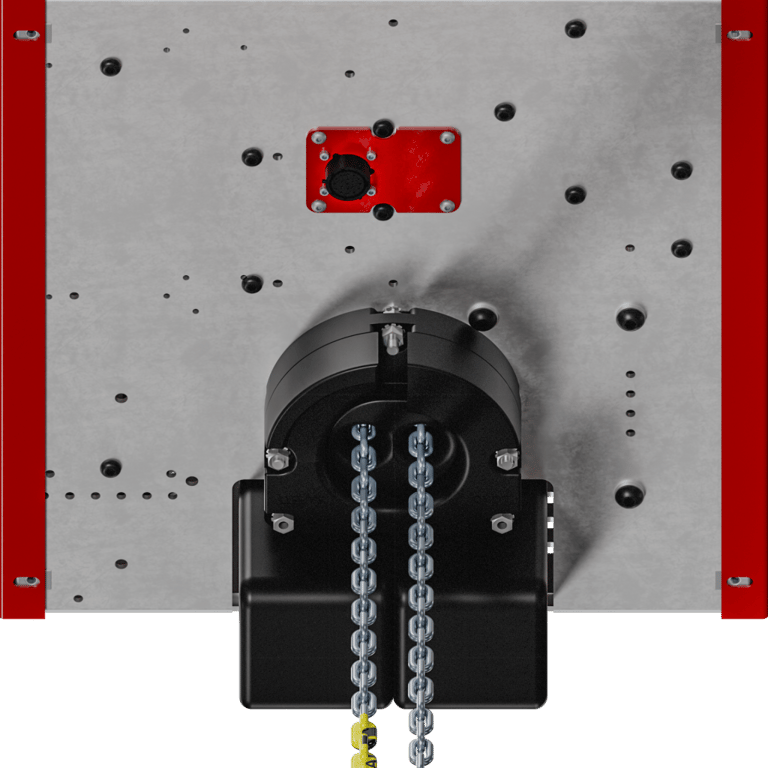

Redundant chain design for safe operation:
- Load Chain: Carries the load.
- Safety Chain: Rides along for redundancy and safety.
Speeds: Up to 241 ft. per min. [60mpm].
Safety Rating of 125%.
Fail-Safe Brake.
Knight’s Patented Chain, for longer life.
Chain Length, Unlimited (12-18 ft. Standard).
Sealed Worm Style Gearbox.
H5 Rated (Continuous Duty Cycle).
Chain Lube Stick

Software

STO – Safe Torque Off.
Enhanced User Interface (UI).
Ethernet Connection.
Programming and Diagnostic Communication Port.
Virtual Travel Limits.
Speed Reduction Zones.
Impact Limiting.
Active Damping.
Knight’s Unique Float Mode.
Programmable Overload Capability.

Electrical

Industry Standard 24 VDC, 2 AMP power is available for custom tooling such as: Clamps, Vacuum Cups, Switches, Proximity Limits, Lights, etc.
Illuminated Run/ Stop Button.
Enable trigger, for quicker response.
240 VAC, Single Phase 50/60 Hz.
Load Sensing, Pay Load and Handle Load.
I/O Capabilities:
- (4) Analog Inputs/ (4) Analog Outputs.
- (24) Inputs or Outputs, configurable.
- (8) Dedicated Inputs.
- Expansion I/O: Ethernet, unlimited.
LED Status Indicators: Green and Blue Lighted Push buttons.
LED Fault Indicators: Illuminated Red Run-Stop Button, Twist to Release.
Optional Remote Pendant or Wireless Remote Control.

SDS Servo Hoist Series Specifications

SDS Servo Hoist Series

Model Number	Capacity lbs. [kg]	Max. Speed fpm. [mpm]	Voltage / Phase
KSH250S-2401	250 lbs. [113kg]	196.85 fpm. [60.0mpm]	240 / 1 Phase
KSH350S-2401	350 lbs. [158kg]	241.00 fpm. [73.5mpm]	240 / 1 Phase
KSH500S-2401	500 lbs. [226kg]	98.43 fpm. [30.0mpm]	240 / 1 Phase
KSH750S-2401	750 lbs. [340kg]	123.03 fpm. [37.5mpm]	240 / 1 Phase
KSH1000S-2401	1,000 lbs. [453kg]	82.02 fpm. [25.0mpm]	240 / 1 Phase
KSH2000S-2401	2,000 lbs. [907kg]	37.50 fpm. [11.43mpm]	240 / 1 Phase

Videos

*Applications Compilation

*Knight Rotary Union – Electric / Pneumatic

*New Safety Drop Stop “SDS” Servo Hoist

*SDS Servo Hoist Preventative Maintenance

*Servo Hoist Extension Arm

*Servo Hoist XYZ System – Seat Install

SDS & Traditional Hoist Comparison

SDS Servo Hoist Chain Replacement Instructions

Servo System Applications

Accessories

Servo Controls 15

Inline Control Handle with Trigger KLCA1000

KLCA1000Inline Control Handle with Trigger

Weight: 15 lbs. [6.81kg]

Details

The KLCA1000 incorporates the latest in design that includes our patented load cells with integral amplifier for noise immunity, connectors for operator interface and an improved clevis mount with cross pinning to eliminate the need for threaded rod, for connecting devices below the handle grip. The KLCA1000 is a programmable load sensing handle that mounts inline of the chain on the system. The inline handle offers an inherent intuitive motion.

The KLCA1000's actuation trigger prevents the system from any unintentional movement. The operator has to depress the trigger to initiate any up or down movement. The KLCA1000 is smaller in size and weight, which creates a more ergonomic operator condition. The trigger is a feather touch, so it requires very little force to actuate. New servo software code for the trigger enables the handle speed to change direction faster, requiring less force to move up and down.

The KLCA1000 Inline Control handle with Trigger has increased responsiveness, to meet the demands of high production rates with little effort.

The KLCA1000 handle top hat connects our 4mm KDSA1010 or 5mm KDSA1011 servo chain.

(Previously EBA1381)

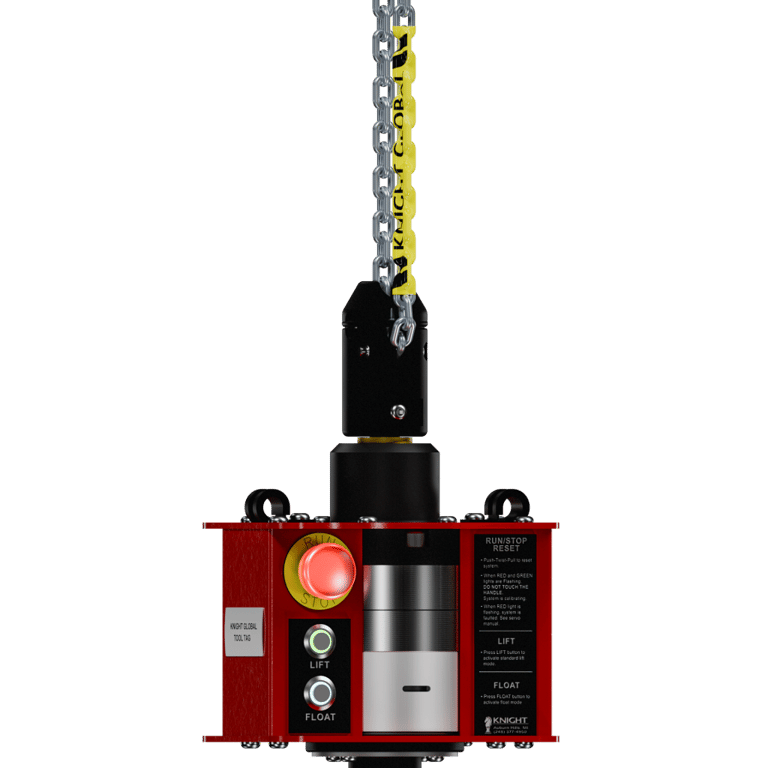

(LMM) Load Monitoring Module.
(OCI) Operator Controlled Interface.
750 lb. Handle Load Cell.
(1) 19-Pin I/O Male Receptacle.
Up to: (4) 4-Pin M12 Female Receptacles for I/O.
(1) M12 4-Pin D-Coded Female Ethernet Receptacle.
Illuminated Blue/ Green Push Buttons.
Illuminated Red Run-Stop Button.
Electrical cables sold separately.
Shackle sold separately.
KLCA1000-750:
- System Capacity: 750 lbs. [340kg].
- 750 lbs. Inline Handle-Sourcing.
- 750 lb. Gross Load Cell.
KLCA1000-2000:
- System Capacity: 2,000 lbs. [907kg].
- 2,000 lbs. Inline Handle-Sourcing.
- 2,000 lb. Gross Load Cell.

CAD drawing

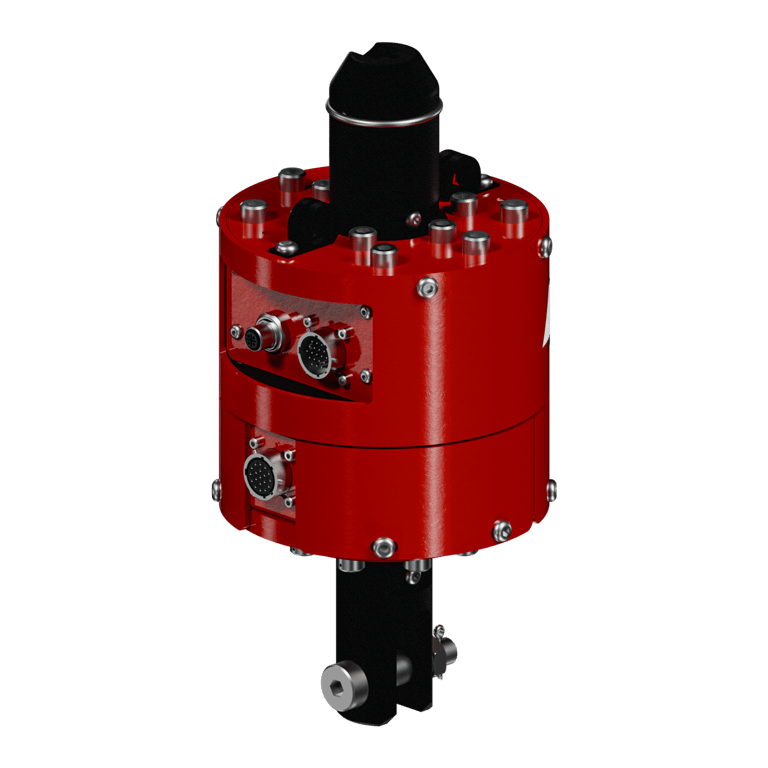

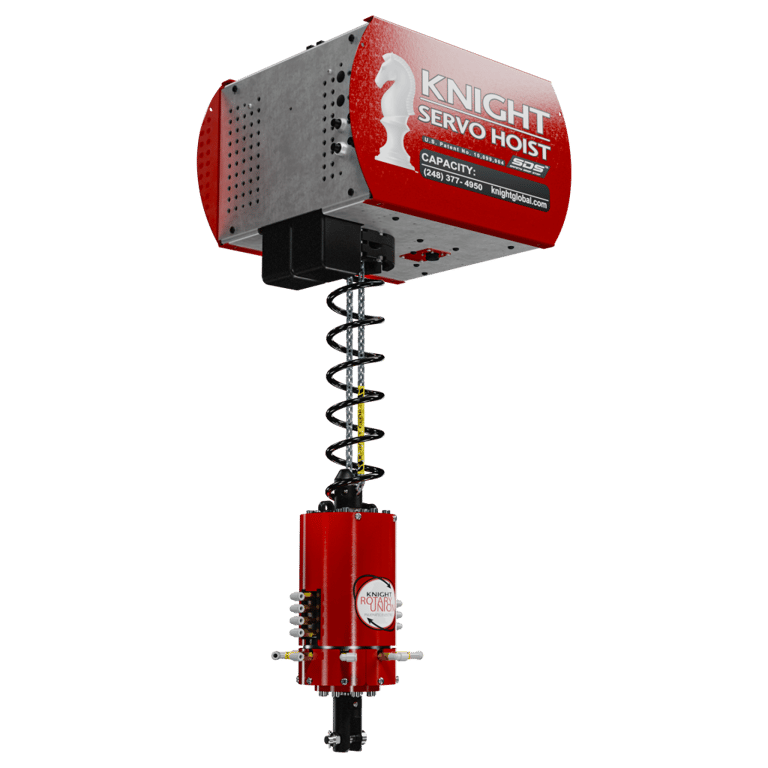

Knight Rotary Union - Electropneumatic (For Servo Hoists) KLCA1058 / KLCA1061

KLCA1058 / KLCA1061Knight Rotary Union - Electropneumatic (For Servo Hoists)

Max capacity: 400 lbs. [181kg]
Weight: 32.5 lbs. [14.7kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1058 and KLCA1061 Electropneumatic Rotary Unions are for SDS Servo Hoists with a 200-400 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1058 and KLCA1061 Rotary Unions are used in conjunction with the an (OCI) Operator Controlled Interface or the KCA1033 2-Speed Control Handle. The KLCA1058 has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KLCA1061 has (1) pneumatic passage. Both Rotary Unions have 19-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps. They include a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 400 lbs. [181kg]
Used in conjunction with an Operator Control Interface or with the KCA1033 2-Speed Control Handle with OCI.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle.
KLCA1058:
(7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa.
KLCA1061:
(1) Pneumatic Port 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa

CAD drawing

Knight Rotary Union - Electropneumatic (For Servo Hoists) KLCA1059 / KLCA1062

KLCA1059 / KLCA1062Knight Rotary Union - Electropneumatic (For Servo Hoists)

Max capacity: 1000 lbs. [454kg]
Weight: 33.2 lbs. [15.06kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1059 and KLCA1062 Electropneumatic Rotary Unions are for SDS Servo Hoists with a 750-1000 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1059 and KLCA1062 Rotary Unions are used in conjunction with the an (OCI) Operator Controlled Interface or the KCA1033 2-Speed Control Handle. The KLCA1059 has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KLCA1062 has (1) pneumatic passage. Both Rotary Unions have 19-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps. They include a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 1000lbs. [454kg]
Used in conjunction with an Operator Control Interface or with the KCA1033 2-Speed Control Handle with OCI.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle.
KLCA1059:
(7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa.
KLCA1062:
(1) Pneumatic Port 1/8G pipe capable of 1 MPA Positive Pressure and Vacuum Pressure of -1.5kPa.

CAD drawing

Knight Rotary Union - Electropneumatic (For Servo Hoists) KLCA1060 / KLCA1063

KLCA1060 / KLCA1063Knight Rotary Union - Electropneumatic (For Servo Hoists)

Max capacity: 350 lbs. [159kg]
Weight: 33.2 lbs. [15.06kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1060 and KLCA1063 Electropneumatic Rotary Unions are for SDS Servo Hoists with a 350 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1060 and KLCA1063 Rotary Unions are used in conjunction with the an (OCI) Operator Controlled Interface or the KCA1033 2-Speed Control Handle. The KLCA1060 has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KLCA1063 has (1) pneumatic passage. Both Rotary Unions have 19-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps. They include a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 350lbs. [159kg]
Used in conjunction with an Operator Control Interface or with the KCA1033 2-Speed Control Handle with OCI.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle.
KLCA1060:
(7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa.
KLCA1063:
(1) Pneumatic Port 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa.

CAD drawing

(LMM) Load Monitoring Module with OCI KLCA1002

KLCA1002(LMM) Load Monitoring Module with OCI

Details

Fully programmable analog style load monitoring module that incorporates the latest in designs. The KLCA1002 includes our patented load cells with integral amplifier for noise immunity, packaging to protect lights buttons and connectors from operator interface, and improved clevis mount with cross pinning to eliminate the need for threaded rod, for connecting devices below the handle grip.

The LMM programmable load sensing module mounts inline of the chain on the system and is used when the operator is able to reach the run stop button when the hoist is in the up position. The KLCA1002 is recommended when an Inline Control Handle is not a practical solution.

(**Previously EBA1165)

Used in conjunction with the Dual Speed Handle Pendant or Fixture Handle.
(OCI) Operator Controlled Interface.
Ethernet Programming Port.
Up to: (3) 4-Pin M12 Female Receptacles for I/O.
(1) 19-Pin M23 Male Receptacle.
(1) 6-Pin M12 Receptacle for Fixture Handle.
Illuminated Blue/ Green Push Buttons.
Illuminated Red Run-Stop Button.
KSAA1004 Shackle comes standard.

CAD drawing

(LMM) Load Monitoring Module with Pass Through KLCA1004

KLCA1004(LMM) Load Monitoring Module with Pass Through

Details

Fully programmable analog style load monitoring module that incorporates the latest in designs. The KLCA1004 includes our patented load cells with integral amplifier for noise immunity, packaging to protect lights buttons and connectors from operator interface, and improved clevis mount with cross pinning to eliminate the need for threaded rod, for connecting devices below the handle grip.

The LMM programmable load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the run stop button when the hoist is in the up position, and is used in conjunction with the KCA1015 (OCI) Operator Controlled Interface module.

KCA1040 Electrical Coil Cable and KCA1041 Electrical Straight Cable sold separately.

(Formerly EBA1166)

Ethernet Programming Port.
Used in conjunction with the Dual Speed Handle Pendant, Fixture Handle or remote OCI module.
(1) 19-Pin M23 Male Receptacle.
(1) 19-Pin M23 Female Receptacle.
KSAA1004 Shackle comes standard.

CAD drawing

EPDA9600Two-Speed Control Handle

Weight: 2.5 lbs. [1.13 kg]

Details

The EPDA9600 Two-Speed Control Handle is a non-programmable handle. It is comprised of four switches to make up a (2) two-speed operation by simply compressing the thumb levers. Halfway is one speed, fully compressed is the second speed. Units come with a standard mounting flange. You will need to specify the flange adaptor tube size for your End Effector. Non-Programmable Handle.

Previously KCA1030

Non-Programmable Handle.
Various Mounting Options.
May be mounted remotely from the end effector.
(2) Thumb Lever Configuration.
(2) Switches per thumb lever.
(4) Single Pole 240V, 3A Limit Switches.
Switches IP67.
UL Listed, CE Approved.
Cables – M12 4-pin female mating cables sold separately.
BPD1125 Ergo Grip.
Strain Cable / Tether per application use.
Specify Mounting Collar Size: (.88 in., 1 in., 1.25 in.).
Optional EPA9600 Single Speed Control Handle.
Optional EPTA9600 Single Speed Control Handle with Trigger.
Optional EPDTA9600 Two-Speed Control Handle with Trigger.
Optional Color-Coded Thumb Levers.
Optional Angled Thumb Levers.
Custom lever markings, specify when ordering.
Different Call-out Languages Available.

CAD drawing

Two-Speed Control Handle with Trigger EPDTA9600

EPDTA9600Two-Speed Control Handle with Trigger

Weight: 2.8 lbs [1.27 kg]

Details

The EPDTA9600 Two-Speed Control Handle w/ Trigger is a non-programmable handle. It is comprised of five switches to make up a (2) two-speed operation with Trigger Button by simply compressing the thumb levers. Halfway is one speed, fully compressed is the second speed. Units come with a standard mounting flange. You will need to specify the flange adaptor tube size for your End Effector.

Non-Programmable Handle.
May be mounted remotely from the end effector.
(1) Switch trigger lever.
(2) Thumb Lever Configuration.
(2) Switches per thumb lever.
(1) trigger lever.
BPD1125 Ergo Grip.
(5) Single Pole 240V, 3A Limit Switches.
Switches IP67.
UL Listed, CE Approved.
Various Mounting Options.
Cables – M12 4-pin female mating cables sold separately.
Strain Cable / Tether per application use.
Specify Mounting Collar Size: (.88 in., 1 in., 1.25 in.).
Optional EPA9600 Single Speed Control Handle.
Optional EPTA9600 Single Speed Control Handle with Trigger.
Optional EPDTA9600 Two-Speed Control Handle with Trigger.
Optional Color-Coded Thumb Levers.
Optional Angled Thumb Levers.
Custom lever markings, specify when ordering.
Different Call-out Languages Available.

CAD drawing

Wireless Remote Control KCA1004 / KCA1005 / KCA1006

KCA1004 / KCA1005 / KCA1006Wireless Remote Control

Weight: Varies

Details

The KCA1004, KCA1005 and KCA1006 Wireless Remotes by Enrange FLEX® are used to control Knight Servo Systems where wireless control is preferred. They are set-up and programmed to simulate the control functionality of a remote pendant control handle. Each wireless system consists of (1) one transmitter handset and (1) one receiver unit. Other standard-equipped accessories include a transmitter belt, spare transmitter power key, clear vinyl pouch and "AA" alkaline batteries.

The Wireless Remotes are available with up to (8) eight programmable operation/ function push-buttons (As Shown). Float, Lift, UP and DOWN are standard push-button configurations. Wireless signal distance is good up to 900 ft. [300m].

Full Compliance: All systems are fully compliant with the FCC Part-15 Rules, European Directives (Safety, EMC, R&TTE, Machinery), and Industry Canada Specifications (IC).

(Previously EBA1054)

Wireless Remote.
Wireless Signal: Up to 900 ft. [300m].
Ultra-Durable Nylon and Fiberglass Composite Enclosures.
Up to (8) Eight Function/ Operation Buttons.
(62) User-Programmable Channels.
Automatic Channel Scanning Receiver.
32bit CRC and Hamming Codes.
Reliable Push-Buttons. – Rated for more than one million press cycles.
Power Consumption: (2) “AA” Batteries, 100 hours plus.
Durable Construction.
Compact and Lightweight.
Custom Push-Button Labels.
Improves Material Handling Operations.
Low Power Consumption.
KCA1004 – (4) Button.
KCA1005 – (6) Button
KCA1006 – (8) Button.

CAD drawing

KCA1014 / KCA1015Fixture Mounted OCI

Weight: 3.5 lbs. [1.59kg] / 6.75 lbs. [3.1 kg]

Details

Knight's Fixture Mounted Operator Controlled Interface (OCI) mounts directly to a fixture and has illuminated LIFT and FLOAT buttons and a RUN-STOP button switch. Side and rear cable attachment models are available. KCA1014 has rear cable attachments, and KCA1015 has side mounted cable attachments.

Provides operator interface with the Knight Servo Hoist.
19-Pin Control and I/O connector.
Ethernet Programming Port.
Illuminated Blue/ Green Push Buttons.
Illuminated Red Run-Stop Button.
Side and rear mounted cable models are available.

CAD drawing

Two-Speed Control Handle with Operator Control Interface KCA1033

KCA1033Two-Speed Control Handle with Operator Control Interface

Weight: 5.04 lbs. [2.29 kg]

Details

The KCA1033 is a Base Pendant Control for a Knight Servo Hoist. It permits the operator to control over-sized or cumbersome loads while maneuvering them into tight spaces. Control Handle is equipped with the same features as the Knight Inline Trigger Control Handle and is available in a Single or Two-Speed configuration that may be mounted on a separate cable, connected to a Knight (LMM) Load Monitoring Module or connected directly to a Servo Hoist box.

Knight Global's Operator Control Interface consists of (2) 4-Pin M12 female receptacles for I/O, (1) 6-Pin M12 receptacle for fixture handle, (1) 19-Pin male receptacle, Green/Blue lighted push buttons, lighted Red Run-Stop Push Button and (1) 9-Pin programming port.

(**Previously EBA1063)

Allows for 2-Speed Operation.
Operator Control Interface (OCI).
9-Pin D-Sub Programming Port.
19-Pin I/O and Control Connector.
Safety Run-Stop Button.
Illuminated (Blue/Green) Float and Lift Push Buttons.
Electrical Straight Cable sold separately.
Electrical Coil Cable sold separately.
Optional Trigger Button Configuration.

CAD drawing

KCA1071Load Cell Fixture Handle

Weight: 10.9 lbs [4.96kg]

Details

The KCA1071 Load Cell Fixture Handle is a programmable load sensing handle that can be mounted inline or remotely on the system. The fixture handle offers an inherent intuitive motion. The operator places force on the handles which creates a directional motion for the overall system which eliminates the need to push buttons. Up and Down motions can be initiated by grasping anywhere on the fixture handles.

Knight's KCA1071 Load Cell Handles are designed for rugged applications and high duty cycles.

Previously EBA1141

Designed for rugged applications and continuous duty cycles.
Eliminates need to push buttons.
Motion initiated by simply grasping handles.
500 lbs. [226kg] Load Cell with Amplifier.
Attaches directly to fixture.
Load Responsive Handling.
Handle Force Response: – Less than 1.5 lbs. [0.68kg].
Handle Fixture Size: 5 X 5.
(1) 8-Pin M12 Male Receptacle.
(2) 6 in. [152mm] Handles Included. – (Unless Specified)
Custom handles can be configured for most applications and are designed on a per job basis.
8-pin M12 cable is included, length to be specified.

CAD drawing

Knight Rotary Union - Electric (For Servo Hoists) KLCA1064

KLCA1064Knight Rotary Union - Electric (For Servo Hoists)

Max capacity: 400 lbs. [181kg]
Weight: 23.3 lbs. [10.57kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1064 Rotary Union is for SDS Servo Hoists with 200-400 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1064 Rotary Union is used in conjunction with the KCA1015 (OCI) Operator Controlled Interface Module. The KLCA1064 Electric Rotary Union has 19-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps. It includes a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 400lbs. [181kg]
Used with the KCA1033 2-Speed Control Handle with OCI or KCA1123 Variable Speed Pendant.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle and 4mm chain nest.

CAD drawing

Knight Rotary Union - Electric (For Servo Hoists) KLCA1065

KLCA1065Knight Rotary Union - Electric (For Servo Hoists)

Max capacity: 1, 000 lbs. [454kg]
Weight: 27.6 lbs. [12.52kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1065 Rotary Union is for SDS Servo Hoists with 750-1,000 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1064 Rotary Union is used in conjunction with the KCA1015 (OCI) Operator Controlled Interface Module. The KLCA1065 Electric Rotary Union has 19-Pin M/F Amphenol connectors (15 open) and an operating voltage of 24VDC up to 2 amps. It includes a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 1000 lbs. [454kg]
Used with the KCA1033 2-Speed Control Handle with OCI or KCA1123 Variable Speed Pendant.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle and 5mm chain nest.

CAD drawing

Knight Rotary Union - Electric (For Servo Hoists) KLCA1066

KLCA1066Knight Rotary Union - Electric (For Servo Hoists)

Max capacity: 350 lbs. [158kg]
Weight: 27.6 lbs. [12.52kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KLCA1066 Rotary Union is for SDS Servo Hoists with 350 lbs. capacity. It includes Knight's patented load cells with integral amplifier for noise immunity. The LMM "pass-thru" load sensing module mounts inline of the chain on the system and is used when the operator is not able to reach the Run Stop button when the hoist is in the UP position. The KLCA1064 Rotary Union is used in conjunction with the KCA1015 (OCI) Operator Controlled Interface Module. The KLCA1066 Electric Rotary Union has 19-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps. It includes a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Includes patented load cells with integral amplifier for noise immunity.
Operating Voltage: 24VDC up to 2 amps.
Capacities up to 350 lbs. [158kg]
Used with the KCA1033 2-Speed Control Handle with OCI or KCA1123 Variable Speed Pendant.
Sealed packaging to protect wiring, slip ring and rotate assembly.
(1) 19-Pin M23 Male Receptacle, 15 open.
(1) 19-Pin M23 Female Receptacle, 15 open.
Includes KSAA1004 Shackle.

CAD drawing

General 8

KSAA1003Precision Chain Wear Gauge

Weight: 0.87 lbs [0.39kg]

Details

The KSAA1003 Precision Chain Wear Gauge is used to measure the wear on Knight servo hoists and pneumatic balancers 4mm/5mm galvanized chain.

To view the instructional video, click here or visit Knight's Youtube page.

Steel Construction
Measures Knight 4mm & 5mm Galvanized Chain Wear.

CAD drawing

SDS Servo Hoist Chain Replacement Kit KDSA1010 / KDSA1011

KDSA1010 / KDSA1011SDS Servo Hoist Chain Replacement Kit

Details

Knight Global's KDSA1010 and KDSA1011 SDS Servo Hoist Chain Replacement Kits are developed in conjunction with Pewag to ensure optimal strength and wear. Knight Global is the only (IAD) Intelligent Assist Device company in the world to use chain in its products. Knight's KDSA1010 and KDSA1011 patented chain is adapted to the requirements through a special heat treatment technology, in which we case harden our chain to promote extended wear and strength. Knight's Servo Hoist chains are electro galvanized to protect against corrosion and treated in a chromating which increases corrosion protection. Servo chains are ideal chain for high-wear applications and high dynamic chain loads.

KDSA1010 (4mm) for 200 lbs-500 lbs capacity SDS Hoists.
KDSA1011 (5mm) for 350 lbs-1000 lbs capacity SDS Hoists.
(2) Chain End Stop Assemblies.
(2) Interface Links to assist in installing the chain.

KDSA1010

Servo Hoist Model: KSH250S – 500S Series, Speed Hoist & D-Series 200-400lbs.
(2) 4mm Steel Grade (80), Carburized, Heat Treated chain and electro galvanized blue chromated.
12mm Pitch Chains.
4mm Chain Pull Cord.
Chain Length: 18 ft. [548.6cm] standard.
Maximum Working Load: 500 lbs. [226kg].

KDSA1011

Servo Hoist Model: KSH350S, 750S, 1000S Series, Speed Hoist & D-series 750-1000lbs.
(2) 5mm Steel Grade (8), Carburized, Heat Treated chain and electro galvanized blue chromated.
15mm Pitch Chains.
5mm Chain Pull Cord.
Chain Length: 12 ft. [365.7cm] standard.
Maximum Working Load: 1,000 lbs [453kg].

Rotary Union Adapter KSAA1073 / KSAA1075

KSAA1073 / KSAA1075Rotary Union Adapter

Max capacity: 1, 000 lbs. [454kg]

Details

(KLCA1002 LMM shown in picture is not included)

Adapter for a Rotary Union that can be used with existing Servo Hoists already equipped with an LMM.
Comes with all necessary hardware required to retrofit.
KSAA1073 is for 4mm chain (500lbs max. capacity).
KSAA1075 is for 5mm chain (1000lbs max. capacity).
Includes bearing and KSAA1004 Shackle.

CAD drawing

Quick Connect/ Disconnect KSAA1001 / KSAA1002

KSAA1001 / KSAA1002Quick Connect/ Disconnect

Max capacity: KSAA1001: 1, 500 lbs. [680kg], KSAA1002: 1, 500 lbs. -2, 000 lbs. [453.5kg-907kg]

Details

The KSAA1001 and KSAA1002 Quick Connect/Disconnects allow for fast connections and disconnections of fixtures and end effectors. The Quick Connect/ Disconnect easily disengages by the simple pull of a release pin. Each quick disconnect comes with two pins, and can be quickly connected to the servo inline handle.

KSAA1001 : 16mm to 7/8 in. adapter
KSAA1002 : 20mm to 1.25 in. adapter

(Previously EBA1183 / EBA1265)

Forged Alloy Steel – Quenched and Tempered.
Fast Tool Connections/ Disconnections.
Each disconnect comes with two male stems EBD1825-1, 5″x7/8″, custom stems available upon request.

CAD drawing

KSAA1004Shackle

Max capacity: 1, 000 lbs. [453kg]

Details

Secures fixtures and loads in-line with the Servo System chain. The KSAA1004 Shackle is normally attached below the load cell. Knight's Shackle features a female clevis for direct connections. The KSAA1004 Shackles are constructed of 4140 steel, and heat treated to Rock "C" 38-42. They have (2) two M6 steel dowel pins to capture, verses threaded rod and a M5 cross hole with retaining plates. Shackle is normally attached below the load cell handle.

(Previously EBA1213)

4140 Steel Shackle Housing.
Secures fixtures or loads in-line with chain.
Shackle attaches to 16mm 4140 steel shaft (Not Included).
Shackle is secured with (2) steel dowels.
5/8 in. grade 8 shoulder bolt.
Throat Opening: 7/8 in. X 2-1/8 in.

CAD drawing

KSAA1007Swivel Hook Shackle

Max capacity: 1, 000 lbs. [453kg]
Weight: 4.6 lbs [2.08kg]

Details

The KSAA1007 secures fixtures and loads in-line with the Servo System chain. This Shackle is designed with a larger connection opening to accommodate for Knight's KSAA1007 Swivel Hook width. The KSAA1007 Swivel Hook Shackle is normally attached below the load cell handle and is used primarily for Knight's In-Line Handle applications. Shackle is normally attached below the load cell handle and used primarily for in-line handle applications that utilize a KSAD1022 Swivel Hook.

(Previously EBA1269)

4140 Steel Shackle Housing.
Larger Connection Opening.
Secures fixtures or loads in-line with chain.
Shackle attaches to 16mm 4140 steel shaft (Not Included).
Shackle is secured with (1) steel dowel and (1) Steel Pin-bolt.
Includes KSAD1022 Swivel Hook with Eye.

CAD drawing

KSAA1011Servo Hoist Rail Brake

Weight: 6.0 lbs. [2.72kg]

Details

Bolt-on design that attaches to the servo hoists load trolley. The KSAA1011 Rail Brake is typically used when the operator needs to lock the servo hoist from moving in the bridge or runway rail. The locking feature allows the operator to accurately load and unload parts. The KSAA1011 servo hoist parking brake is also designed to be used as a drag brake, but a regulator is needed to supply air pressure to the cylinder. Servo Hoist Rail Brake can be mounted facing the front or rear of the Servo Hoist depending on the applications specific braking requirements.

(Previously EBA1330)

Fits models: KSH250S, KSH350S, KSH500S, KSH750S, and KSH1000S and Speed Hoists.
Attaches to Knight Servo Hoist Load Trolleys.
Pneumatic Servo Hoist to Rail Braking System.
Stroke Size: 0.75 in. [19.1mm].
Bore Pneumatic Cylinder: 2.00 in. [50.8kg].
Parking brake is also a drag brake when regulator is attached.
Replaceable Brake Pads.
Mounts to front or rear of Servo Hoist.

CAD drawing

KSAD1022Swivel Hook with Eye

Max capacity: 3, 200 lbs. [1, 451kg]
Weight: 1.6 lbs. [.72kg]

Details

The KSAD1022 Swivel Hook has a latch that automatically closes when the load is applied and can only open by pressing the release button and removing the load. You load them up and their latch locks them down. The KSAD1022 Swivel Hook is a Supermax grade 100 hook that is 20% stronger then high strength (grade 80) hooks when used with chain of the same grade. This hook is included with the KSAA1007 Swivel Hook with Shackle. The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B). Use in corrosive environment requires shank and nut inspection in accordance with ASME B 30.10-1.10.4 (b)(5)(c) 2009.

Previously EBA1219

Forged Alloy Steel – Quenched and Tempered.
Included with KSAA1007 Swivel Hook with Shackle.
Swivel Hook utilizes anti-friction bearing design which allows hook to rotate freely under load.
Individually Proof Tested at 2-1/2 times the 4:1 Working Load Limit with certification.
Grade: 100.
Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
Positive Lock Latch is Self-Locking when hook is loaded.
Trigger – consists of spring, roll pin and trigger.
Hook swivel allows positioning and connecting loads easier
Open bend keeps the load inline with the chain.
Open bend allows for ease of engaging and disengaging the load.
Easy to operate with enlarged thumb access.
Rated for both Wire Rope and use with Grade 80/100 Chain.
Fatigue rated.

CAD drawing

Load Trolley 3

KSAA1050Servo Hoist Load Trolley

Max capacity: 2, 500 lbs. [1, 134kg]
Weight: 9.5 lbs. [4.31kg]

Details

The KSAA1050 Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD7510 series rail systems.

(Previously EBA1030)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1059Servo Hoist Load Trolley

Max capacity: 1, 600 lbs. [725kg]
Weight: 7.6 lbs. [3.45kg]

Details

The KSAA1059 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD6110 series rail systems.

(Previously EBA1173)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1048Servo Hoist Load Trolley

Max capacity: 900 lbs. [408kg]
Weight: 4.5 lbs. [2.04kg]

Details

The KSAA1048 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD4110 series rail systems.

(Previously EBA1020)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: 20 degs. F to 248 degs. F.

CAD drawing

Electrical Cables 4

CALL8-Pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

8-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male / Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

8-Pin Micro DC Single Key.
PVC Gray.
90° Male / Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

CALL4-pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

4-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male-In-Line/ Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

4-Pin Micro DC Single Key.
PVC Gray.
Male-In-Line/ Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

KCA1040Electrical Coiled Cable

Details

The KCA1040 Electrical Coil cable provides a robust method of communicating from the OCI (Operator Control Interface) module on the floor level, to the servo controls up on the rail. The coil cable is made up of a high resistant PVC and has proved the test of time. The four inch coil connects the In-Line Handle or (LMM) Load Monitoring Module in a clean and compact package by wrapping around the Servo Hoist Chain. The KCA1040 Coiled Cable is made exclusively for Knight with 19-Pin Military style connectors and is available in various cable lengths. Knight's KCA1040 coiled cable is provided in many lengths, with specified lengths being the total. For example a 3ft coil will stretch to 3ft. See product features for all part numbers.

Previously EBA1011

Electrical Coiled Cables are made exclusively for Knight Global.
Connects a Servo Hoist to a load monitoring module by wrapping itself around the Servo Chain.
19-Pin Military Bayonet Style Connectors.
90 Degree Male to Female Connectors.
Optional Straight Cable configuration.
Available Lengths:
- KCA1040-2 (2 ft. [60.9 cm])
- KCA1040-3 (3 ft. [91.4 cm])
- KCA1040-4 (4 ft. [121.9 cm])
- KCA1040-6 (2 ft. [182.9 cm])
- KCA1040-8 (8 ft. [243.8 cm])
- KCA1040-10 (10 ft. [304.8 cm])
- KCA1040-12 (12 ft. [365.7 cm])
- KCA1040-15 (15 ft. [457.2 cm])
- KCA1040-20 (20 ft. [609.6 cm])

KCA1041Electrical Straight Cable

Lengths: • KCA1041-2 ( 2 ft. [61.0 cm] ), • KCA1041-3 ( 3 ft. [91.4 cm] ), • KCA1041-4 ( 4 ft. [121.9 cm] ), • KCA1041-6 ( 6 ft. [182.9 cm] ), • KCA1041-10 ( 10 ft. [304.8 cm] ), • KCA1041-15 ( 15 ft. [457.2 cm] )

Details

The KCA1041 Electrical Straight cable provides a robust method of communicating from the OCI (Operator Control Interface) module to the LMM (Load monitoring Module). The cable is made up of a high resistant PVC and has proved the test of time. The straight cable connects the In-Line Handle or (LMM) Load Monitoring Module. The cable is made exclusively for Knight with 19-Pin Military style connectors and is available in various cable lengths.

Previously EBA1009

Electrical Straight Cables are made exclusively for Knight Global.
Connects a separate control handle pendant to Servo Hoists.
19-Pin Military Bayonet Style Connectors.
90 Degree Male to Female Connectors.
Optional Coiled Cable configuration.

Disconnects 8

I-Beam Column Mount Kit for Disconnect Boxes KCA1100

KCA1100I-Beam Column Mount Kit for Disconnect Boxes

Details

The KCA1100 I-Beam Column Mount Kit is designed as a universal solution for mounting Knight's Electrical disconnect boxes. It is ideal in cases where mounting options for the boxes are limited due to spatial restrictions. The Column Mount Kit can be mounted directly to an I-Beam post in multiple orientations. It does not require any drilling into posts, but instead includes beam clamps.

Mounts directly to an I-Beam Post in multiple orientations.
Works with the KCA1018, KCA1019, and KCA1056 Disconnect Boxes.
No drilling into I-Beam required.
Disconnect boxes not included.

Electrical Disconnect Enclosure Stand KCA1001

KCA1001Electrical Disconnect Enclosure Stand

Details

The KCA1001 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1018 and KCA1055 transformer disconnect enclosure boxes. Electrical Disconnect Enclosure Box Not Included.

Previously EBA1145

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 30x21x62.
Floor Mounting Hole Pattern: 24×18.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Electrical Disconnect Enclosure Stand KCA1102

KCA1102Electrical Disconnect Enclosure Stand

Details

The KCA1102 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1019 transformer disconnect enclosure box. Electrical Disconnect Enclosure Box Not Included.

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 19x21x62.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

3KVA Electrical Disconnect Enclosure KCA1018

KCA10183KVA Electrical Disconnect Enclosure

Details

The KCA1018 3KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 3KVA finger safe transformer and primary and secondary fusing for all your single chain servo products. (i.e., Knight's KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists). Electrical Disconnect Enclosure Stands Not Included.

Previously EBA1003

Used with: KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists.
Flange disconnect.
Transformer Disconnect, 3KVA.
Enclosure Size: 21 in. X 20 in. X 10 in.
480VAC – 240VAC, FLA 6.25.
15A Primary Fusing.
15A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

5KVA Electrical Disconnect Enclosure KCA1055

KCA10555KVA Electrical Disconnect Enclosure

Details

The KCA1055 5KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 5KVA finger safe transformer, primary and secondary fusing for your dual and triple servo products. (i.e., Knight KSHXY, KSHXZ, KSHTCDM, KSHXYZ Servo Tractors and Hoists). KCA1001 Electrical Disconnect Enclosure Stand Not Included.

Previously EBA1085

Used with: KSHXY, KSHXZ, KSHTCDM and KSHXYZ Servo Tractors and Hoists.
Flange disconnect.
Transformer Disconnect, 5KVA.
Enclosure Size: 30 in. X 25 in. X 12 in.
480VAC – 240VAC, FLA 10.4.
25A Primary Fusing.
25A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

Electrical Disconnect Enclosure Stand KCA1002

KCA1002Electrical Disconnect Enclosure Stand

Details

The KCA1002 Electrical Disconnect Enclosure Stand is for the mounting of Power Distribution Panels (PDP) to provide an ergonomically positioned height for access. It is equipped with an over-sized lower cross brace for front side air prep. Stand allows for multiple adjustment heights. PDP Not Included.

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Power Distribution Panel (PDP) Not Included.
Air Prep option for the back side or the lower cross brace.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Custom finishes are available. (Blue is Standard).
Foot Print: 40x21x65
Optional Pneumatic Lockout Mounting Plate.

Electrical Disconnect Enclosure Stand KCA1003

KCA1003Electrical Disconnect Enclosure Stand

Details

The KCA1003 Electrical Disconnect Enclosure Stand is for the mounting of a PDP (Power Distribution Panel) to provide an ergonomically positioned height for the flange disconnect handle. It is equipped with an over-sized cross brace for front and side air prep. It also features an additional side plate space used to mount ancillary controls such as a lighting disconnect. The stand allows for multiple adjustment heights. PDP Box Not Included.

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Power Distribution Panel (PDP) Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Custom finishes are available. (Blue is Standard).
Foot Print: 56x21x66
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Dual 5KVA Electrical Disconnect Enclosure KCA1056

KCA1056Dual 5KVA Electrical Disconnect Enclosure

Details

The KCA1056 Dual 5KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists, this panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 5KVA finger safe transformer and primary. The secondary fusing is set up for a dual output for two separate servo systems. (i.e, Knight's KSHXY, KSHXZ, KSHTCDM, and KSHXYZ Servo Tractors and Hoists). KCA1001 Electrical Disconnect Enclosure Stand Not Included.
