Knight KSHCA/KSHFA Articulating Servo Arm

Articulating Servo Arms

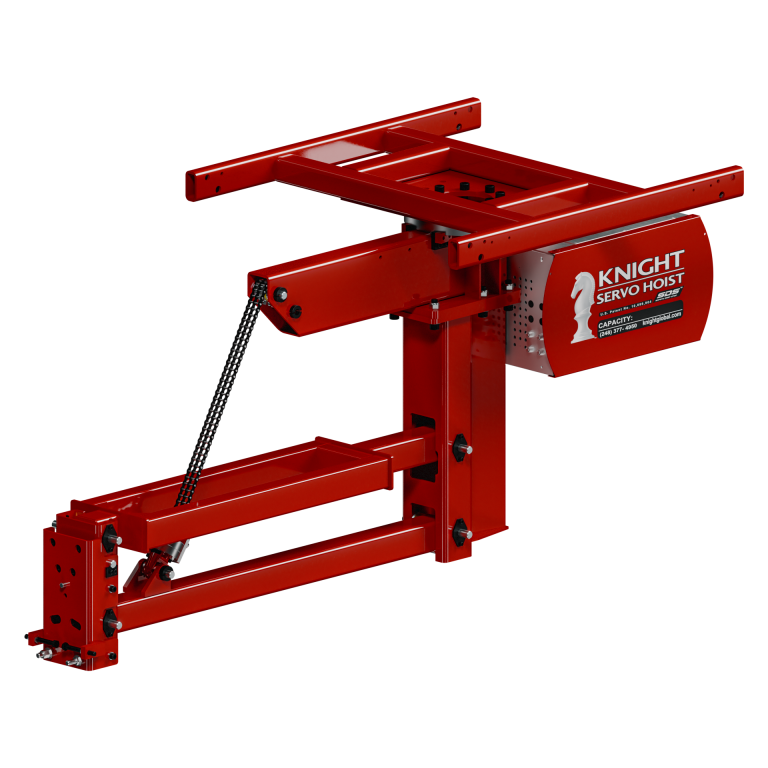

KSHCA Overhead – Gắn ray trần — **KSHCA overhead – rail mounted**

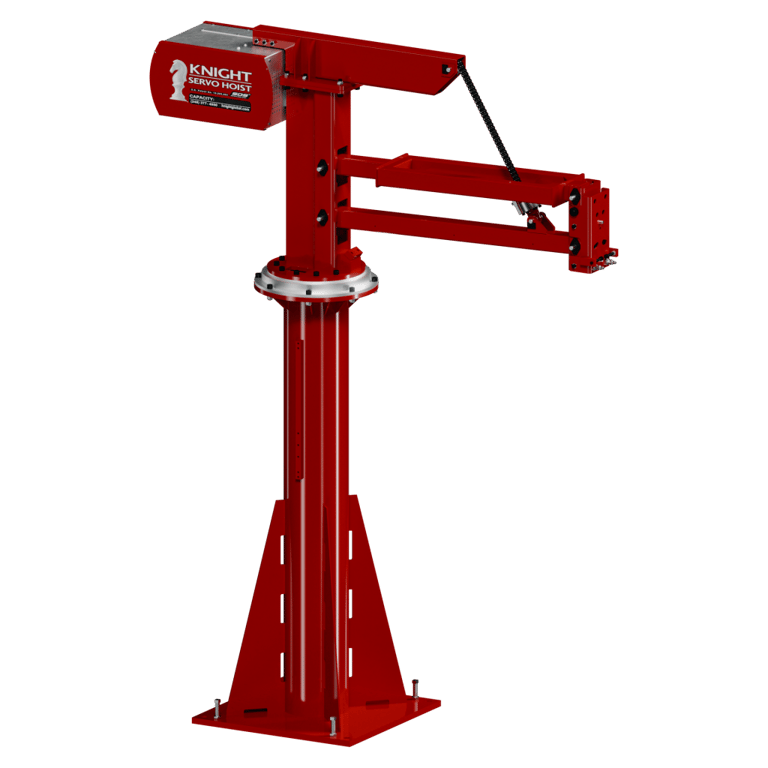

KSHFA Floor – Gắn sàn — **KSHFA floor – floor mounted**

Articulating servo arms

Model: KSHCA / KSHFA – 500 / 1000 / 1500-2301

Knight KSHCA (overhead rail mounted) and KSHFA (floor mounted) are Intelligent Assist Devices (IAD) that let operators reach beyond the area directly beneath the rail system and precisely position loads in the "Z" (vertical) axis with high speed and outstanding reliability.

Knight servo hoist technology becomes an extension of the operator natural motion, significantly improving accuracy, responsiveness and repeatability – raising safety, productivity and overall quality. Key benefits: no wasted motion, shorter response time and minimal inertia effects with heavy loads.

Overhead carriage mounted series: KSHCA500-2301 | KSHCA1000-2301 | KSHCA1500-2301

Floor mounted series: KSHFA500-2301 | KSHFA1000-2301 | KSHFA1500-2301

General specifications

Mechanical

Speed: up to 98 ft/min [30 m/min]
Maximum reach: up to 48 in [1,219 mm] (excluding boom/end effector)
Floor pedestal height: 2.4 m – 3.0 m
Safety factor: 125%
Fail-safe brake
Heavy-duty roller chain
Chain length: 12 ft [365 cm] – 20 ft [609 cm]
Sealed worm-style gearbox
H5 class – continuous duty cycle

Electrical

24 VDC, 2A industrial-standard power for custom tooling (grippers, suction cups, switches, sensors, lights…)
Illuminated Run/Stop button
240 VAC, 1-phase, 50/60 Hz
Payload & handle load sensing
I/O capability:
- 16 inputs / 8 outputs
- 8 inputs / 4 outputs available for interface control
Status LED – green & blue push buttons
Fault LED, Run/Stop button twist to release
Optional remote pendant or remote handle

Specifications – KSHCA series (overhead rail mounted)

Model number	Capacity lbs. [kg]	Max speed fpm. [mpm]	Voltage / Phase
KSHCA500-2301	500 lbs. [226 kg]	98.43 fpm. [30.0 mpm]	240V / 1-phase
KSHCA1000-2301	1,000 lbs. [453 kg]	82.02 fpm. [25.0 mpm]	240V / 1-phase
KSHCA1500-2301	1,500 lbs. [680 kg]	65.62 fpm. [20.0 mpm]	240V / 1-phase

Specifications – KSHFA series (floor mounted)

Model number	Capacity lbs. [kg]	Max speed fpm. [mpm]	Voltage / Phase
KSHFA500-2301	500 lbs. [226 kg]	98.43 fpm. [30.0 mpm]	240V / 1-phase
KSHFA1000-2301	1,000 lbs. [453 kg]	82.02 fpm. [25.0 mpm]	240V / 1-phase
KSHFA1500-2301	1,500 lbs. [680 kg]	65.62 fpm. [20.0 mpm]	240V / 1-phase

Configuration guide

KSH servo hoist – application definition process

When selecting a Knight servo control system, several factors must be defined before choosing the right configuration. Please contact the FULLSHARP engineering team for detailed advice:

System configuration: The KSHAEA series comes with an inline or remote handle – choose one type only; they cannot be used together.
Lifting capacity: Include the weight of the fixture and the load when selecting the model.
System type: Single chain.
Coiled cable length:
- Determine the suspension point from the bottom of the rail to the load hook point (up to ~1.2 m depending on configuration).
- Determine pick-up/set-down heights – these directly affect rail height.
- Use the application drawing to calculate the stack-up and select the right cable length.
Trolley: The suspension cannot be a single point. If you already have trolleys, the EBD1127 adapter plate is supplied free of charge.
Lift controls:
- Inline handle: can the operator reach it when the hoist is at its highest position?
- Always ensure the Run-Stop button is reachable. Identify additional cables: LMM → OCI and fixture handle → OCI.
Plant power supply: The servo runs on 230 VAC 1-phase. If only 480 VAC is available, order an additional 480/240 VAC transformer.

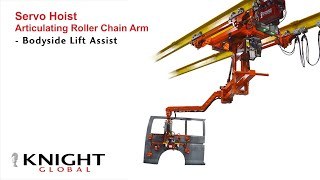

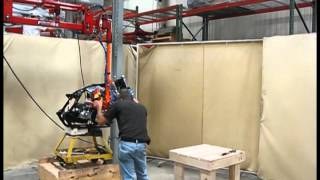

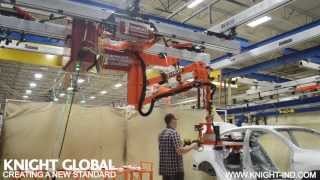

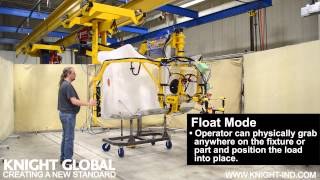

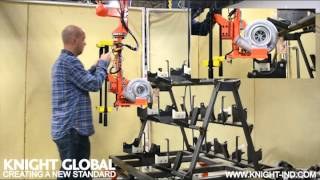

Application videos

Video

Accessories

Servo controls

Tay Cầm Inline có Trigger — **Inline handle with trigger**KLCA1000
Weight: 6.81 kg | Capacity: 750–2,000 lbs
Integrated LMM & OCI module.; Programmable 750 lb load cell.; Illuminated Float/Lift & Run-Stop buttons.; Up to four M12 4-pin ports.

Module LMM + OCI — **LMM + OCI module**KLCA1002
Used with a pendant handle / fixture handle
Programmable load sensor.; Ethernet programming port.; Up to three M12 4-pin I/O ports.; Includes KSAA1004 shackle.

Module LMM Pass Through — **Pass-through LMM module**KLCA1004
For use when the operator cannot reach the Run-Stop
Ethernet programming port.; 19-pin M23 input & output connectors.; Includes KSAA1004 shackle.; Used with a separate OCI (KCA1015).

Tay Cầm 2 Tốc Độ + OCI — **Dual speed handle + OCI**KCA1033
Weight: 2.29 kg
Dual speed control.; 9-pin D-Sub programming port.; Illuminated Float/Lift & Run-Stop buttons.; Optional trigger configuration.

Tay Cầm Load Cell Gắn Đồ Gá — **Fixture-mounted load cell handle**KCA1071
Weight: 4.96 kg
Amplified 500 lbs load cell.; No buttons to press – just hold the handle.; Response force < 0.68 kg.; 8-pin M12 cable included.

Remote Điều Khiển Không Dây — **Wireless remote control**KCA1004 / 1005 / 1006
FCC Part-15 & CE compliant
Signal range: 900 ft [300 m].; 62 programmable channels; AA batteries > 100 hours.; KCA1004: 4 buttons | 1005: 6 buttons | 1006: 8 buttons.

OCI Gắn Đồ Gá (Fixture Mounted) — **Fixture-mounted OCI**KCA1014 / KCA1015
Weight: 1.59 kg / 3.1 kg
Mounts directly to the fixture.; Illuminated LIFT, FLOAT & RUN-STOP buttons.; KCA1014: rear cable | KCA1015: side cable.

Tay Cầm 2 Tốc Độ (Non-Prog.) — **Dual speed handle (non-programmable)**EPDA9600
Weight: 1.13 kg
Two thumb levers – 4 switches.; Half press = speed 1 | full press = speed 2.; IP67 | UL Listed, CE Approved.

Tay Cầm 2 Tốc Độ + Trigger — **Dual speed handle + trigger**EPDTA9600
Weight: 1.27 kg
Two thumb levers + one trigger.; Five switches in total.; IP67 | UL Listed, CE Approved.

General accessories

Bộ Xích Con Lăn Thay Thế — **Replacement roller chain kit**KSHD1021
Max load: 2,000 lbs [908 kg]
Standard ANSI 50-2 double-strand chain.; KSHD1021-12: 12 ft | -20: 20 ft.; Average tensile strength: 12,200 lbs [5,534 kg].

Móc Nối Nhanh / Tháo Nhanh — **Quick connect / quick release hook**KSAA1001 / KSAA1002
Max load: 680–907 kg
Quick release via release pin.; KSAA1001: 16mm | KSAA1002: 20mm.; Heat-treated alloy steel.

Shackle (Khóa Treo) — **Shackle**KSAA1004
Max load: 453 kg [1,000 lbs]
4140 steel housing, heat-treated to Rock C 38-42.; Secured by two M6 steel pins.; Mounts below the load cell.

Swivel Hook Shackle — **Swivel hook shackle**KSAA1007
Weight: 2.08 kg | Capacity: 1,000 lbs
Large connection hole for the swivel hook.; Includes KSAD1022 swivel hook.; Heat-treated 4140 steel.

Móc Xoay Có Khóa — **Locking swivel hook**KSAD1022
Weight: 0.72 kg | Capacity: 1,451 kg
Grade 100 – 20% stronger than Grade 80.; Self-locking under load.; Anti-friction bearing, 360° swivel.

Phanh Ray Servo Hoist — **Servo hoist rail brake**KSAA1011
Weight: 2.72 kg
Locks the hoist against travel along the rail.; Pneumatic brake – front or rear mounting.; Replaceable brake pads.

Load trolleys

Xe Con Tải – Ray RAD7510 — **Load trolley – RAD7510 rail**KSAA1050
Max load: 1,134 kg | Weight: 4.31 kg
High-impact glass-filled nylon wheels.; Double-shielded bearings, no lubrication required.; −29°C to +120°C.

Xe Con Tải – Ray RAD6110 — **Load trolley – RAD6110 rail**KSAA1059
Max load: 725 kg | Weight: 3.45 kg
High-impact glass-filled nylon wheels.; Double-shielded bearings, no lubrication required.; −29°C to +120°C.

Xe Con Tải – Ray RAD4110 — **Load trolley – RAD4110 rail**KSAA1048
Max load: 408 kg | Weight: 2.04 kg
High-impact glass-filled nylon wheels.; Double-shielded bearings, no lubrication required.; −7°C to +120°C.

Electrical cables

Cáp Điện Cuộn (Coiled) — **Coiled electrical cable**KCA1040
Manufactured exclusively for Knight Global
Wraps around the servo hoist chain.; 19-pin military bayonet connectors.; Length: 2–20 ft (KCA1040-2 → -20).

Cáp Điện Thẳng (Straight) — **Straight electrical cable**KCA1041
Manufactured exclusively for Knight Global
Connects the handle to the servo hoist.; 19-pin military bayonet connectors.; Length: 2–15 ft (KCA1041-2 → -15).

Cáp Micro Switch 4 & 8 Chân — **4 & 8-pin micro switch cable**CALL
Contact FULLSHARP to order
Gray PVC, 22 AWG, 4A, 300V.; Straight or 90° right-angle connector.; Length: 1–6 m.

Electrical enclosures & disconnects

Tủ Cầu Dao Điện 3KVA — **3KVA disconnect enclosure**KCA1018
Converts 480VAC → 240VAC.; Finger-safe 3KVA transformer.; 15A primary & secondary breakers.; For KSH250S–KSH1000S.

Tủ Cầu Dao Điện 5KVA — **5KVA disconnect enclosure**KCA1055
Converts 480VAC → 240VAC.; Finger-safe 5KVA transformer.; 25A primary & secondary breakers.; For dual/triple servo systems.

Đế Đỡ Tủ Cầu Dao — **Disconnect enclosure stand**KCA1001
Holds the enclosure at an ergonomic height.; Multiple height adjustments.; M10×1.5 Nylock bolts.

Technical documents

Catalogs

Spec sheets

Installation guides

Software

Knight Servo Configuration SoftwareZIP

FULL-SHARP AUTOMATIZED VN (FULLSHARP)
Authorized distributor of Knight Global lifting equipment in Vietnam — VSIP Hai Phong
Contact FULLSHARP for a quotation and advice on the right system configuration for your project.
