SDS speed hoist

Name: SDS speed hoist
Brand: FullSharp

Download PDF spec sheet

Overview

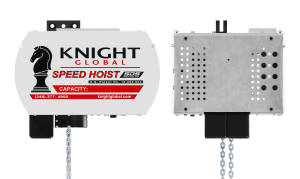

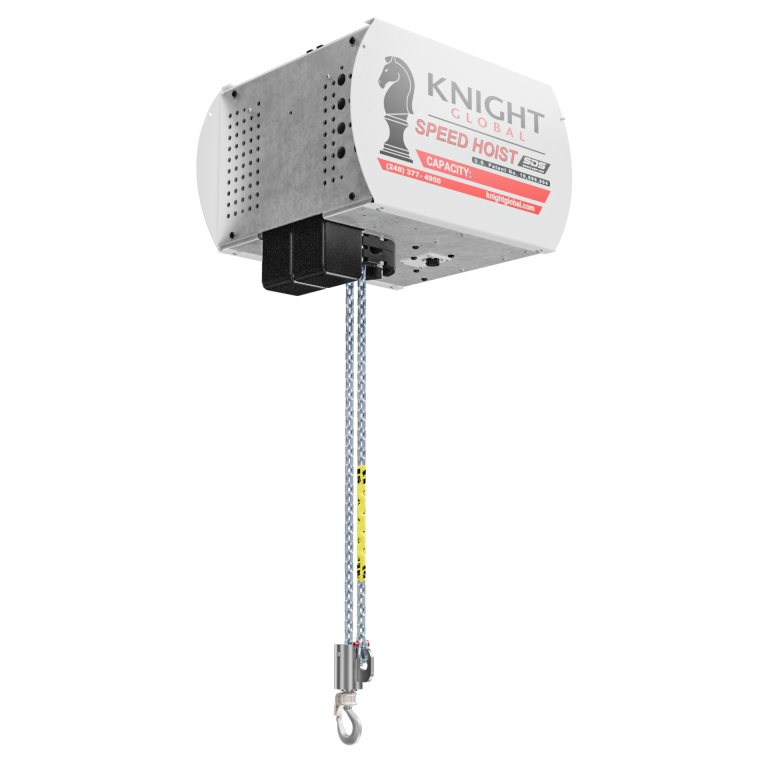

An electric hoist with the patented SDS dual chain system of the D-Series servo hoist and a simple analog handle that needs minimal training. A 100 lbs 120VAC version is also available.

Knight’s new SDS SPEED HOIST is an electric hoist containing many of the same features as the D-Series Servo Hoist including the patented “safety drop stop” dual chain system. Additionally, it utilizes a simple analog handle with an UP/DOWN thumb switch, ensuring that the hoist can be operated with minimal training. The handle provides the user with the ability to control graduated movement as well as acceleration and deceleration of the hoist.

An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist.

Additionally, the SPEED HOIST includes a drop-in graphite stick inside of the gear tower to ensure lubrication of the chains. Replacement sticks can be ordered separately.

The SPEED HOIST has capacities up to 1,000 lbs [453kg] and can travel as fast as 50 inches per second (unloaded). Combined with the “SDS” feature, Knight’s SPEED HOIST is the safest AND most efficient hoist in the industry.

*Specifications: “XXXX” = either 2401 or 4803 for 240VAC or 480VAC, respectively.

SDS Speed Hoist Series Model Numbers:
KSH200SS-2401-006, KSH400SS-2401-006, KSH750SS-2401-006, KSH1000SS-2401-006
KSH200SS-4803-006, KSH400SS-4803-006, KSH750SS-4803-006, KSH1000SS-4803-006

100 lbs Speed Hoist Model Number:
KSH100LS-1201-006

General Information

Mechanical

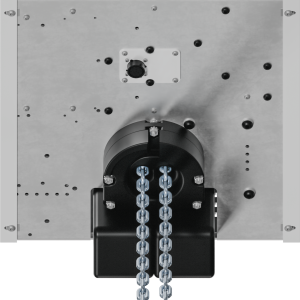

Redundant chain design for safe operation:
- Load Chain: Carries the load.
- Safety Chain: Rides along for redundancy and safety.
Knight’s Patented Chains, for longer life.
Two buckets to keep chains separated.
Chain Length, Unlimited (12-18 ft. Standard).
Sealed Worm Style Gearbox.
Speeds: Up to 241 ft. per min. [60mpm].
Maximum Lifting Capacity: Up to 1000 lbs. [453kg]
Lube Stick

Software

Knight Servo Studio provides user optimization of hoist parameters.
Custom setup of height, slow down zones, and speed control.
Analog switch provides graduated movement and acceleration/deceleration.
Ethernet Connection.
Full analog speed control.
Multi-step digital control.

Electrical

Analog UP/DOWN thumb switch.
240VAC, Single Phase or 480VAC, 3 Phase input power.
LED Fault Indicators: Run-Stop Button, Twist to Release functionality.
Ethernet Port allows access to Knight Servo Studio for programming and diagnostics.

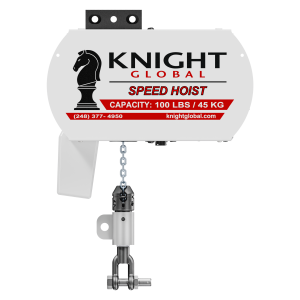

100 LBS Capacity Speed Hoist Information

Mechanical

Single Chain design.
Knight’s Patented Chain, for longer life.
Chain bucket.
Chain Length: 12 ft. Standard.
Sealed Worm Style Gearbox.
Speeds: Up to 23 in. / sec
Maximum Lifting Capacity: Up to 100 lbs. [45kg]
Lube Stick

Software

Knight Servo Studio provides user optimization of hoist parameters.
Custom virtual limits and speed control.
Analog switch provides graduated movement and acceleration/deceleration.
Ethernet Connection.
Full analog speed control.
Multi-step digital control.

Electrical

Analog UP/DOWN thumb switch.
120VAC, 15amp, 120V dedicated circuit.
LED Fault Indicators: Run-Stop Button, Twist to Release functionality.
Ethernet Port allows access to Knight Servo Studio for programming and diagnostics.

SDS Speed Hoist Specifications*

SDS Speed Hoist Series

Model Number*	Capacity lbs. [kg]	Max Speed fpm. [mpm]	Hoist Weight lbs. [kg]
KSH200SS-XXXX-006	200 lbs. [90kg]	241 fpm. [73.5mpm]	96 lbs. [43kg]
KSH400SS-XXXX-006	400 lbs. [181kg]	120 fpm. [36.5mpm]	96 lbs. [43kg]
KSH750SS-XXXX-006	750 lbs. [340kg]	150 fpm. [45.7mpm]	126 lbs. [57kg]
KSH1000SS-XXXX-006	1000 lbs. [453kg]	105 fpm. [32mpm]	126 lbs. [57kg]

100 LBS Speed Hoist Specifications

100 LBS Capacity Speed Hoist

Model Number	Capacity lbs. [kg]	Max Speed	Voltage	Hoist Weight lbs. [kg]
KSH100LS-1201-006	100 lbs. [45kg]	23 in./sec	120VAC	55 lbs. [25kg]

Videos

*Knight Rotary Union – Electric / Pneumatic

*SDS Speed Hoist

Accessories

Controls 6

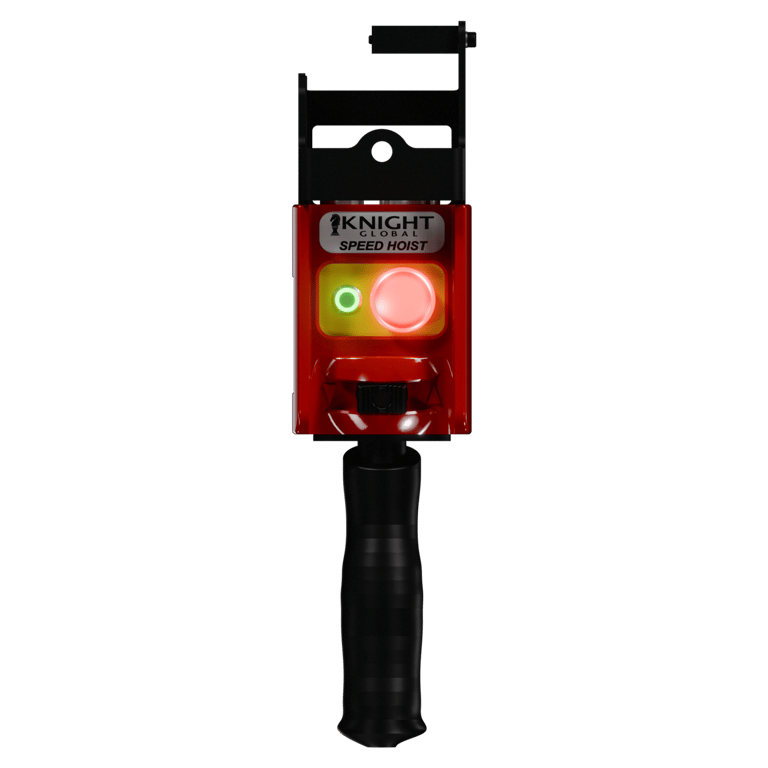

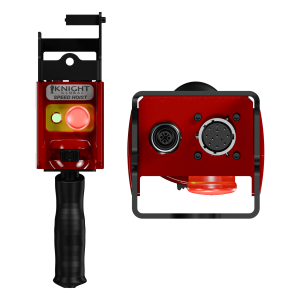

Analog Remote Handle for Speed Hoist KCA1110

KCA1110Analog Remote Handle for Speed Hoist

Weight: 2.5 lbs [1.13kg]

Details

The KCA1110 Analog Remote Control Handle for the SDS Speed Hoist has an UP/DOWN rocker switch to control movement and speed of the hoist. This handle provides the user with the ability to easily control movement using the programmable variable speed rocker. An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist. The KCA1110 is the standard handle included with the Speed Hoist. But it is also available in a 2-button lever style configuration, KCA1119.

Standard Analog Remote Handle for the SDS Speed Hoist.
UP/DOWN rocker switch.
Run/Stop button
Indicator light
Lightweight, 3D printed casing
Ethernet port for easy setup of parameters

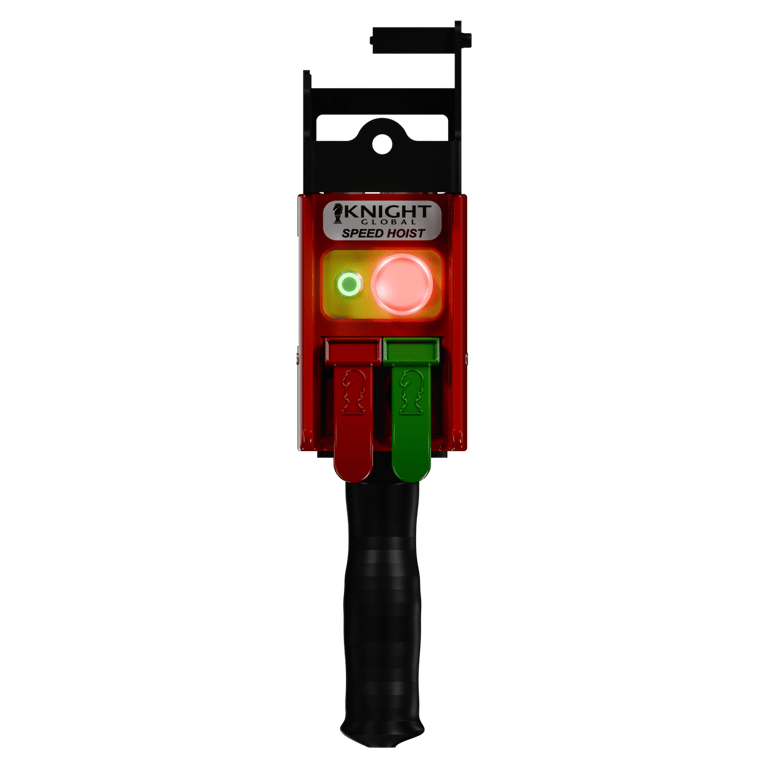

2-Button Lever Style Analog Remote Handle KCA1119

KCA11192-Button Lever Style Analog Remote Handle

Weight: 2.9 lbs. [1.3kg]

Details

The KCA1119 2-Button Lever Style Analog Remote Control Handle is an optional handle for Knight's Speed Hoist. It has UP/DOWN thumb levers to control movement and speed of the hoist. This handle provides the user with the ability to easily control movement using programmable variable speed levers. An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist. The KCA1119 is also available in a rocker switch configuration, KCA1110 (standard Speed Hoist handle).

Optional Lever Style Analog Remote Handle for the SDS Speed Hoist.
UP/DOWN thumb levers.
Run/Stop button
Indicator light
Lightweight, 3D printed casing
Ethernet port for easy setup of parameters

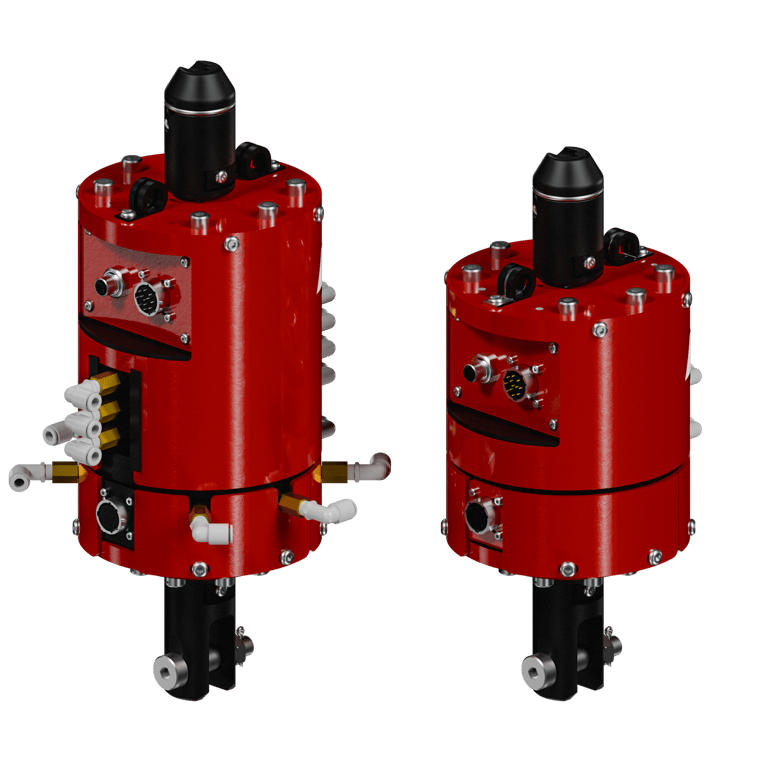

Knight Rotary Union - Electropneumatic (for Speed Hoists) KSAA1068 / KSAA1069

KSAA1068 / KSAA1069Knight Rotary Union - Electropneumatic (for Speed Hoists)

Max capacity: 400 lbs. [181.4kg]
Weight: 29.3 lbs. [13.29kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1068 and KSAA1069 Electropneumatic Knight Rotary Unions are for Speed Hoists with a 200 lbs. or 400 lbs. capacity. They include a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The KSAA1068 Rotary Union has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KSAA1069 has (1) pneumatic passage. They both have 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 400 lbs. [181.4kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.
KSAA1068:
Up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
KSAA1069:
(1) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.

CAD drawing

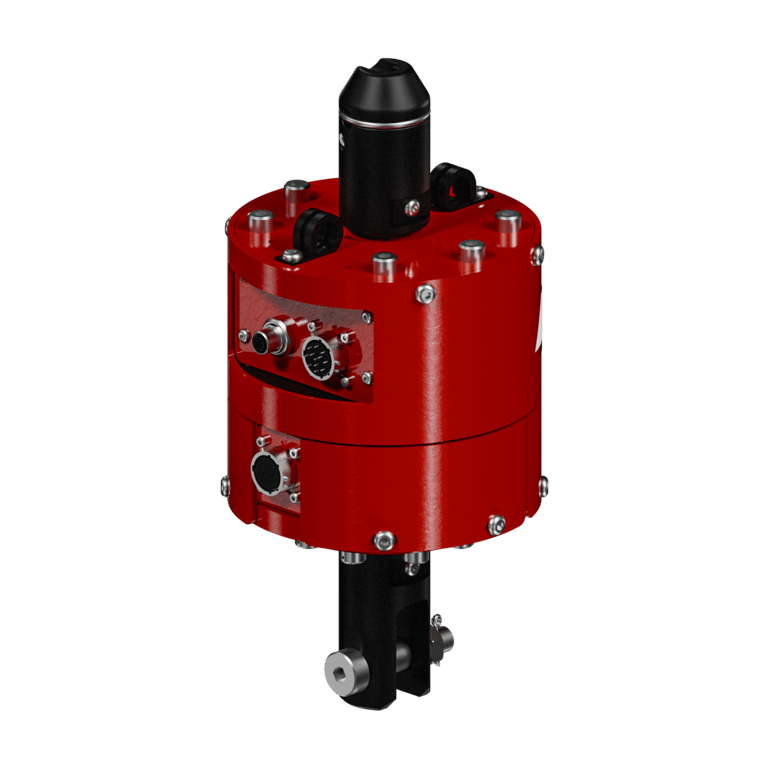

Knight Rotary Union - Electric (For Speed Hoists) KSAA1078

KSAA1078Knight Rotary Union - Electric (For Speed Hoists)

Max capacity: 400 lbs. [181kg]
Weight: 27.6 lbs. [12.52kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1078 Knight Rotary Union is for Speed Hoists with a 200 lbs. - 400 lbs. capacity. It includes a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The Electric Rotary Union has 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 400 lbs. [181kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.

CAD drawing

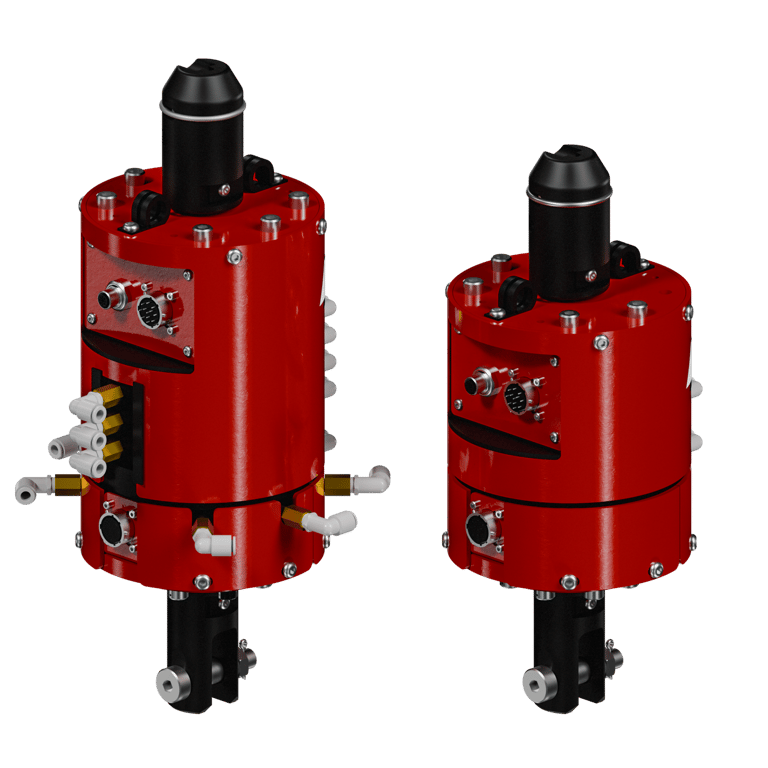

Knight Rotary Union - ElectroPneumatic (For Speed Hoists) KSAA1070 / KSAA1071

KSAA1070 / KSAA1071Knight Rotary Union - ElectroPneumatic (For Speed Hoists)

Max capacity: 1000 lbs. [453kg]
Weight: 30 lbs. [13.6kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1070 and KSAA1071 Knight Rotary Unions are for Speed Hoists with a 750 lbs. or 1000 lbs. capacity. They include a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The KSAA1070 Rotary Union has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KSAA1071 has (1) pneumatic passage. They both have 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 1000 lbs. [453kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.
KSAA1070:
Up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
KSAA1071:
(1) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.

CAD drawing

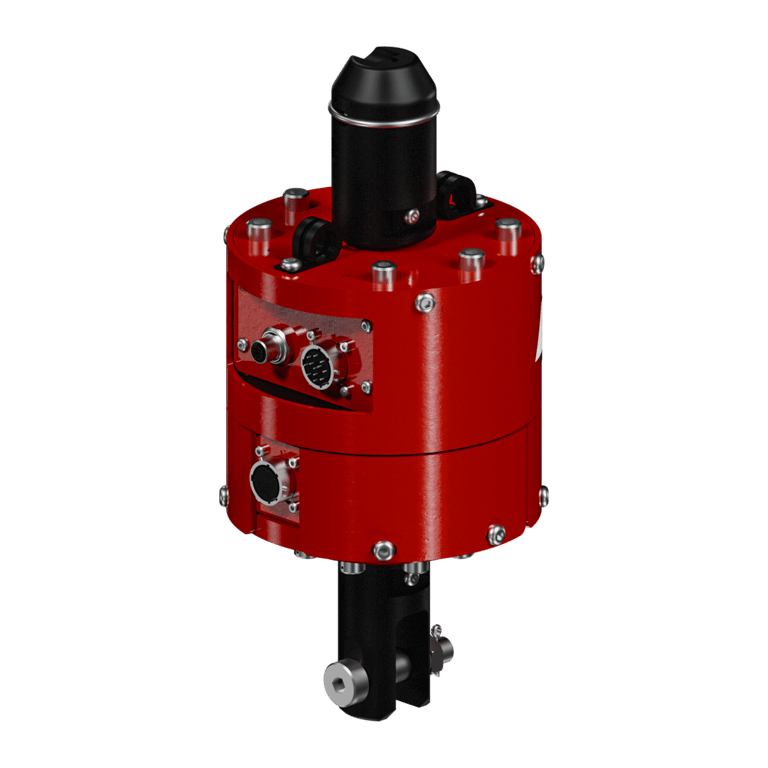

Knight Rotary Union - Electric (For Speed Hoists) KSAA1079

KSAA1079Knight Rotary Union - Electric (For Speed Hoists)

Max capacity: 1, 000 lbs. [454kg]
Weight: 27.6 lbs. [12.52kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1078 Knight Rotary Union is for Speed Hoists with a 750 lbs. - 1000 lbs. capacity. It includes a 5mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The Electric Rotary Union has 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 1000 lbs. [181kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.

CAD drawing

General 6

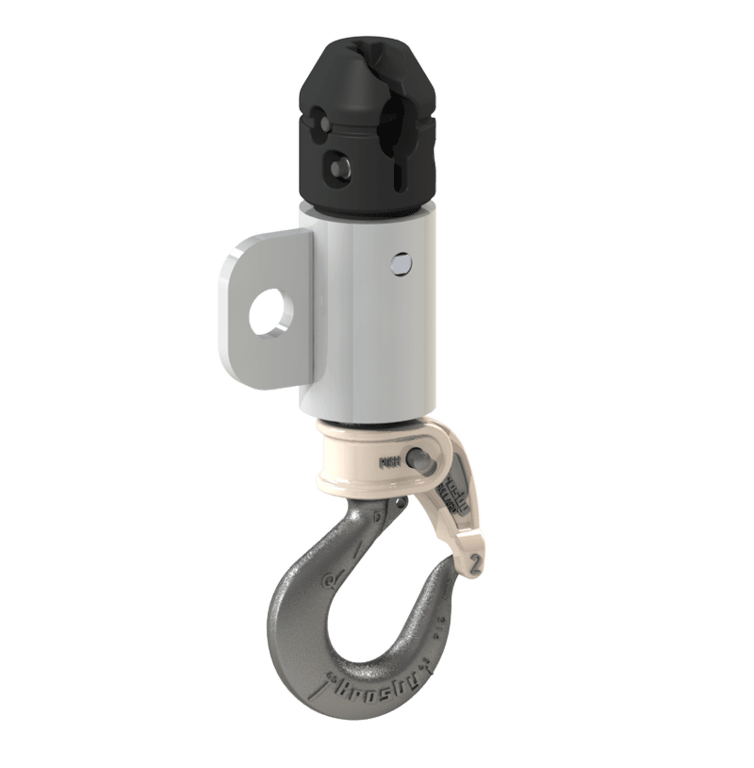

KSAA1066Speed Hoist Chain Hook

Weight: 2.4 lbs. [1.08kg]

Details

The KSAA1066 Speed Hoist Chain Hook attaches to Knight's 4mm chain on the SDS Speed Hoist. The Hook is equipped with a 1 ton capacity Crosby/Bullard® Golden Gate size 2 Pin-Lok Hook with self closing gate and 360° rotational capabilities. The KSAA1066 is equipped with a connection for a drop stop safety chain.

(Formerly KLCA1033)

Connects 4mm chain to the SDS Speed Hoist
(Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
Quick and Secure Connection
360 degree rotation.

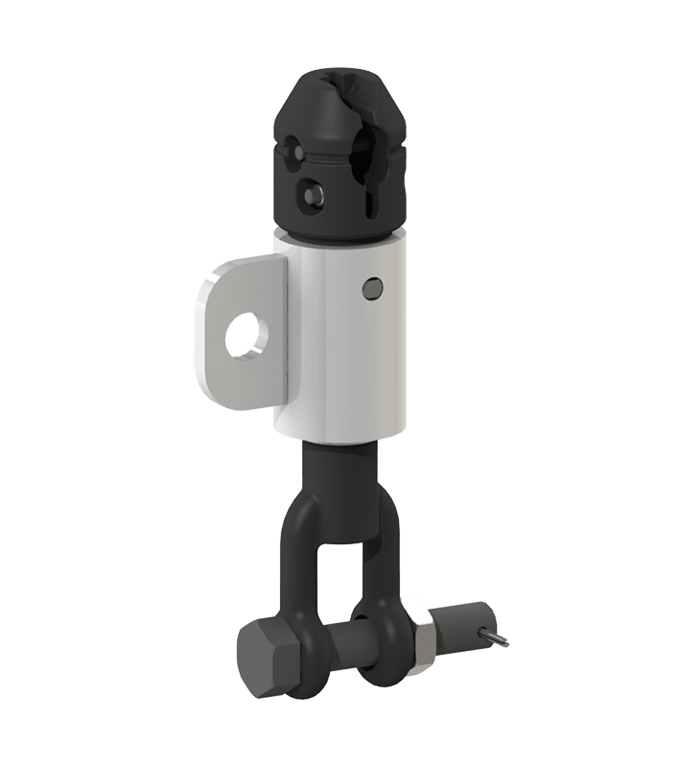

KSAA1065Speed Hoist Chain Shackle

Weight: 2.7 lbs. [1.24kg]

Details

The KSAA1065 Speed Hoist Chain Shackle attaches to Knight's 4mm chain on the SDS Speed Hoist. The Hook is equipped with a 1 ton capacity Crosby/Bullard® Golden Gate size 2 Pin-Lok Hook with self closing gate and 360° rotational capabilities. The KSAA1065 is equipped with a connection for a drop stop safety chain.

(Formerly KLCA1034)

Connects 4mm chain to the SDS Speed Hoist
(Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
Quick and Secure Connection
360 degree rotation.

SDS Servo Hoist Chain Replacement Kit KDSA1010 / KDSA1011

KDSA1010 / KDSA1011SDS Servo Hoist Chain Replacement Kit

Details

Knight Global's KDSA1010 and KDSA1011 SDS Servo Hoist Chain Replacement Kits are developed in conjunction with Pewag to ensure optimal strength and wear. Knight Global is the only (IAD) Intelligent Assist Device company in the world to use chain in its products. Knight's KDSA1010 and KDSA1011 patented chain is adapted to the requirements through a special heat treatment technology, in which we case harden our chain to promote extended wear and strength. Knight's Servo Hoist chains are electro galvanized to protect against corrosion and treated in a chromating which increases corrosion protection. Servo chains are ideal chain for high-wear applications and high dynamic chain loads.

KDSA1010 (4mm) for 200 lbs-500 lbs capacity SDS Hoists.
KDSA1011 (5mm) for 350 lbs-1000 lbs capacity SDS Hoists.
(2) Chain End Stop Assemblies.
(2) Interface Links to assist in installing the chain.

KDSA1010

Servo Hoist Model: KSH250S – 500S Series, Speed Hoist & D-Series 200-400lbs.
(2) 4mm Steel Grade (80), Carburized, Heat Treated chain and electro galvanized blue chromated.
12mm Pitch Chains.
4mm Chain Pull Cord.
Chain Length: 18 ft. [548.6cm] standard.
Maximum Working Load: 500 lbs. [226kg].

KDSA1011

Servo Hoist Model: KSH350S, 750S, 1000S Series, Speed Hoist & D-series 750-1000lbs.
(2) 5mm Steel Grade (8), Carburized, Heat Treated chain and electro galvanized blue chromated.
15mm Pitch Chains.
5mm Chain Pull Cord.
Chain Length: 12 ft. [365.7cm] standard.
Maximum Working Load: 1,000 lbs [453kg].

KSAA1003Precision Chain Wear Gauge

Weight: 0.87 lbs [0.39kg]

Details

The KSAA1003 Precision Chain Wear Gauge is used to measure the wear on Knight servo hoists and pneumatic balancers 4mm/5mm galvanized chain.

To view the instructional video, click here or visit Knight's Youtube page.

Steel Construction
Measures Knight 4mm & 5mm Galvanized Chain Wear.

CAD drawing

KSAA1004Shackle

Max capacity: 1, 000 lbs. [453kg]

Details

Secures fixtures and loads in-line with the Servo System chain. The KSAA1004 Shackle is normally attached below the load cell. Knight's Shackle features a female clevis for direct connections. The KSAA1004 Shackles are constructed of 4140 steel, and heat treated to Rock "C" 38-42. They have (2) two M6 steel dowel pins to capture, verses threaded rod and a M5 cross hole with retaining plates. Shackle is normally attached below the load cell handle.

(Previously EBA1213)

4140 Steel Shackle Housing.
Secures fixtures or loads in-line with chain.
Shackle attaches to 16mm 4140 steel shaft (Not Included).
Shackle is secured with (2) steel dowels.
5/8 in. grade 8 shoulder bolt.
Throat Opening: 7/8 in. X 2-1/8 in.

CAD drawing

KSAA1011Servo Hoist Rail Brake

Weight: 6.0 lbs. [2.72kg]

Details

Bolt-on design that attaches to the servo hoists load trolley. The KSAA1011 Rail Brake is typically used when the operator needs to lock the servo hoist from moving in the bridge or runway rail. The locking feature allows the operator to accurately load and unload parts. The KSAA1011 servo hoist parking brake is also designed to be used as a drag brake, but a regulator is needed to supply air pressure to the cylinder. Servo Hoist Rail Brake can be mounted facing the front or rear of the Servo Hoist depending on the applications specific braking requirements.

(Previously EBA1330)

Fits models: KSH250S, KSH350S, KSH500S, KSH750S, and KSH1000S and Speed Hoists.
Attaches to Knight Servo Hoist Load Trolleys.
Pneumatic Servo Hoist to Rail Braking System.
Stroke Size: 0.75 in. [19.1mm].
Bore Pneumatic Cylinder: 2.00 in. [50.8kg].
Parking brake is also a drag brake when regulator is attached.
Replaceable Brake Pads.
Mounts to front or rear of Servo Hoist.

CAD drawing

Load Trolleys 3

KSAA1050Servo Hoist Load Trolley

Max capacity: 2, 500 lbs. [1, 134kg]
Weight: 9.5 lbs. [4.31kg]

Details

The KSAA1050 Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD7510 series rail systems.

(Previously EBA1030)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1059Servo Hoist Load Trolley

Max capacity: 1, 600 lbs. [725kg]
Weight: 7.6 lbs. [3.45kg]

Details

The KSAA1059 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD6110 series rail systems.

(Previously EBA1173)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1048Servo Hoist Load Trolley

Max capacity: 900 lbs. [408kg]
Weight: 4.5 lbs. [2.04kg]

Details

The KSAA1048 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD4110 series rail systems.

(Previously EBA1020)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: 20 degs. F to 248 degs. F.

CAD drawing

Electrical Cables 3

KCA1041Electrical Straight Cable

Lengths: • KCA1041-2 ( 2 ft. [61.0 cm] ), • KCA1041-3 ( 3 ft. [91.4 cm] ), • KCA1041-4 ( 4 ft. [121.9 cm] ), • KCA1041-6 ( 6 ft. [182.9 cm] ), • KCA1041-10 ( 10 ft. [304.8 cm] ), • KCA1041-15 ( 15 ft. [457.2 cm] )

Details

The KCA1041 Electrical Straight cable provides a robust method of communicating from the OCI (Operator Control Interface) module to the LMM (Load monitoring Module). The cable is made up of a high resistant PVC and has proved the test of time. The straight cable connects the In-Line Handle or (LMM) Load Monitoring Module. The cable is made exclusively for Knight with 19-Pin Military style connectors and is available in various cable lengths.

Previously EBA1009

Electrical Straight Cables are made exclusively for Knight Global.
Connects a separate control handle pendant to Servo Hoists.
19-Pin Military Bayonet Style Connectors.
90 Degree Male to Female Connectors.
Optional Coiled Cable configuration.

CALL8-Pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

8-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male / Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

8-Pin Micro DC Single Key.
PVC Gray.
90° Male / Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

CALL4-pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

4-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male-In-Line/ Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

4-Pin Micro DC Single Key.
PVC Gray.
Male-In-Line/ Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

Disconnects 6

I-Beam Column Mount Kit for Disconnect Boxes KCA1100

KCA1100I-Beam Column Mount Kit for Disconnect Boxes

Details

The KCA1100 I-Beam Column Mount Kit is designed as a universal solution for mounting Knight's Electrical disconnect boxes. It is ideal in cases where mounting options for the boxes are limited due to spatial restrictions. The Column Mount Kit can be mounted directly to an I-Beam post in multiple orientations. It does not require any drilling into posts, but instead includes beam clamps.

Mounts directly to an I-Beam Post in multiple orientations.
Works with the KCA1018, KCA1019, and KCA1056 Disconnect Boxes.
No drilling into I-Beam required.
Disconnect boxes not included.

3KVA Electrical Disconnect Enclosure KCA1018

KCA10183KVA Electrical Disconnect Enclosure

Details

The KCA1018 3KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 3KVA finger safe transformer and primary and secondary fusing for all your single chain servo products. (i.e., Knight's KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists). Electrical Disconnect Enclosure Stands Not Included.

Previously EBA1003

Used with: KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists.
Flange disconnect.
Transformer Disconnect, 3KVA.
Enclosure Size: 21 in. X 20 in. X 10 in.
480VAC – 240VAC, FLA 6.25.
15A Primary Fusing.
15A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

5KVA Electrical Disconnect Enclosure KCA1055

KCA10555KVA Electrical Disconnect Enclosure

Details

The KCA1055 5KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 5KVA finger safe transformer, primary and secondary fusing for your dual and triple servo products. (i.e., Knight KSHXY, KSHXZ, KSHTCDM, KSHXYZ Servo Tractors and Hoists). KCA1001 Electrical Disconnect Enclosure Stand Not Included.

Previously EBA1085

Used with: KSHXY, KSHXZ, KSHTCDM and KSHXYZ Servo Tractors and Hoists.
Flange disconnect.
Transformer Disconnect, 5KVA.
Enclosure Size: 30 in. X 25 in. X 12 in.
480VAC – 240VAC, FLA 10.4.
25A Primary Fusing.
25A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

Electrical Disconnect Enclosure Stand KCA1102

KCA1102Electrical Disconnect Enclosure Stand

Details

The KCA1102 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1019 transformer disconnect enclosure box. Electrical Disconnect Enclosure Box Not Included.

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 19x21x62.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Electrical Disconnect Enclosure Stand KCA1001

KCA1001Electrical Disconnect Enclosure Stand

Details

The KCA1001 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1018 and KCA1055 transformer disconnect enclosure boxes. Electrical Disconnect Enclosure Box Not Included.

Previously EBA1145

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 30x21x62.
Floor Mounting Hole Pattern: 24×18.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Electrical Disconnect Enclosure Stand KCA1003

KCA1003Electrical Disconnect Enclosure Stand

Details

The KCA1003 Electrical Disconnect Enclosure Stand is for the mounting of a PDP (Power Distribution Panel) to provide an ergonomically positioned height for the flange disconnect handle. It is equipped with an over-sized cross brace for front and side air prep. It also features an additional side plate space used to mount ancillary controls such as a lighting disconnect. The stand allows for multiple adjustment heights. PDP Box Not Included.
