FullSharp · since 1991

E-Float Hoist®

Name: E-Float Hoist®
Brand: FullSharp

Download PDF spec sheet

Overview

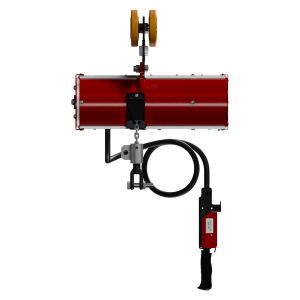

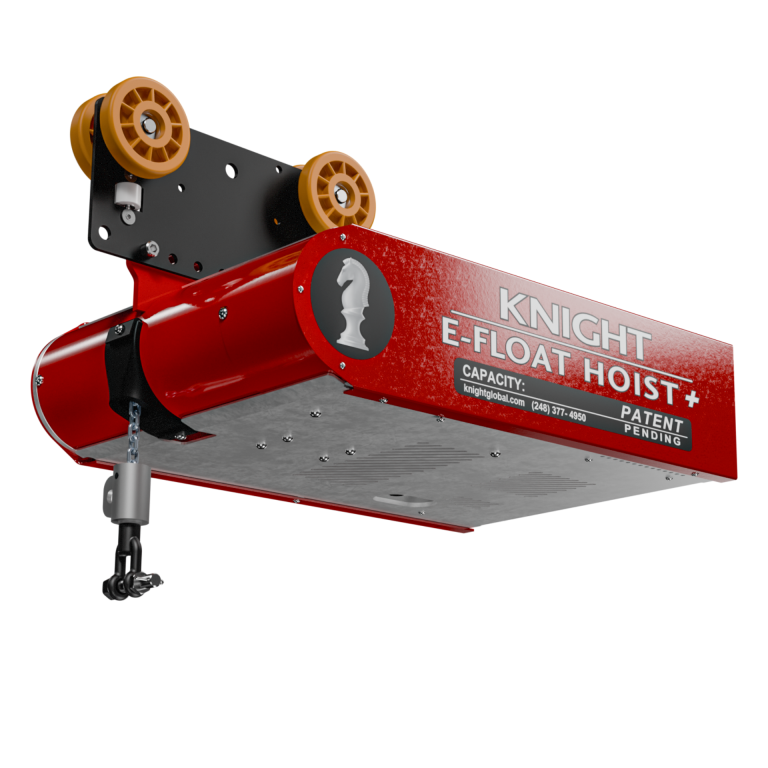

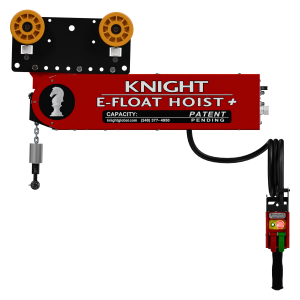

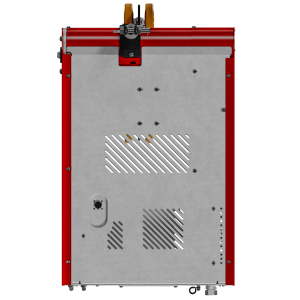

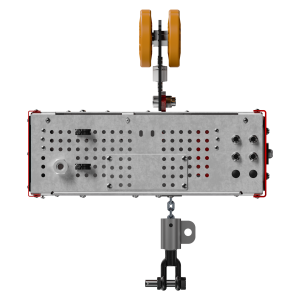

The Knight E-Float Hoist® is a low-profile, high-performance servo hoist that offers Float Mode without an inline load cell, ideal where overhead space is limited.

Knight’s E-Float Hoist® is a high-performance servo hoist designed for flexible and efficient material handling. It includes Knight’s intuitive Float Mode without requiring an inline load cell. Its design is very low-profile, reducing stack-up and making it an ideal solution for environments where space is limited. The hoist supports a maximum lifting capacity of up to 300 lbs.

The hoist features a sealed gearbox that ensures durability and smooth operation. Its structure is modular, allowing for quick and easy access during inspections or maintenance, should it ever be required.

E-Float Hoists are available in multiple configurations, offering the choice to lift with link chain or wire rope, controlling the lift in float mode, or one of the several pendant handle options. Additionally, there is an option to order an E-Float Hoist+, which offers added features such as custom tooling integration, custom programming, and I/O capabilities.

Designed with both performance and user experience in mind, the E-Float Hoist’s advanced diagnostics and fault monitoring system ensure reliability and easy troubleshooting, making it a robust solution for demanding industrial applications.

E-Float Hoist® Model Numbers:

KSBA150-80-S-2401-002, KSBA150-80-P-2401-002, KSBC150-80-S-2401-002, KSBC150-80-P-2401-002, KSBC300-80-S-2401-002, KSBC300-80-P-2401-002

General Information

E-Float Hoist® Includes:

Mechanical

Low Profile – reduced stack-up height.
Available with Cable or Chain.
- Standard Cable: includes Hook with Bail and Locking Gate attachment (BPA2020).
- Standard Chain: includes Safety Chain Shackle attachment (BPA2410).
Holding Brake.
Chain / Cable Travel Length – 80 in. Standard.
Sealed Gearbox.
Meets and exceeds industry standards.
H5 Rated (Continuous Duty Cycle).
Modular design for quick maintenance (including cable / chain replacement).
CE and UL compliant.
Speed – up to 241 fpm. [73.5 mpm] or 50 ips. [1.27 m/s].
Maximum Lifting Capacity – up to 300 lbs. [136 kg.]

Software

Auto-Balance Mode up to 300 lbs.
STO – Safe Torque Off.
Enhanced User Interface (UI).
Ethernet Connection.
Programming / Diagnostic Communication port.
Speed Reduction Zones.
Impact Limiting.
Active Damping.
Knight’s Unique “Float” Mode.
Programmable Overload Capability.
Advanced Diagnostics and Fault Monitoring.

Electrical

Load Sensing.
240-Volt operation.
LED Status Indicators: Green and Blue Lighted Push Buttons.
LED Fault Indicators: Illuminated Run / Stop.
Standard Pendants:
- Rocker-Style Pendant.
- Dual-Speed Pendant.
Standard Electrical Cable: Electrical Straight Cable (KCA1041-10).

Optional Features

Wireless Remote Pendant.
Fixture Handle.
Inline Handle.
Balancer Chain Hook (BPA2113).
Custom Programming for End Users’ Specific Needs.**
Industry Standard 24 VDC, 2 AMP power available for custom tooling:**
- Clamps, Vacuum Cups, Switches, Proximity Lights, etc.
I/O Capabilities:**
- (4) Analog Inputs / (4) Analog Outputs.
- (24) Sourcing Inputs or Outputs, configurable.
- (8) Dedicated Inputs / Outputs.
- Expansion I/O: Ethernet, unlimited.

**Features available with E-FLOAT HOIST+® only

*NOTE – Load Trolley NOT included, see below*

E-Float Hoist® Specifications

E-FLOAT HOIST

	Model Number*	Max. Capacity lbs. [kg]	Max. Speed fpm. [mpm]
CABLE	KSBA150-80-S-2401-002	150 lbs. [68 kg]	241 fpm. [73.5 mpm]
KSBA150-80-P-2401-002	150 lbs. [68 kg]	241 fpm. [73.5 mpm]
CHAIN	KSBC150-80-S-2401-002	150 lbs. [68 kg]	241 fpm. [73.5 mpm]
KSBC150-80-P-2401-002	150 lbs. [68 kg]	241 fpm. [73.5 mpm]
KSBC300-80-S-2401-002	300 lbs. [136 kg]	241 fpm. [73.5 mpm]
KSBC300-80-P-2401-002	300 lbs. [136 kg]	241 fpm. [73.5 mpm]

*(-P) are E-FLOAT HOIST+® versions with I/O Capabilities.

Accessories

Controls 5

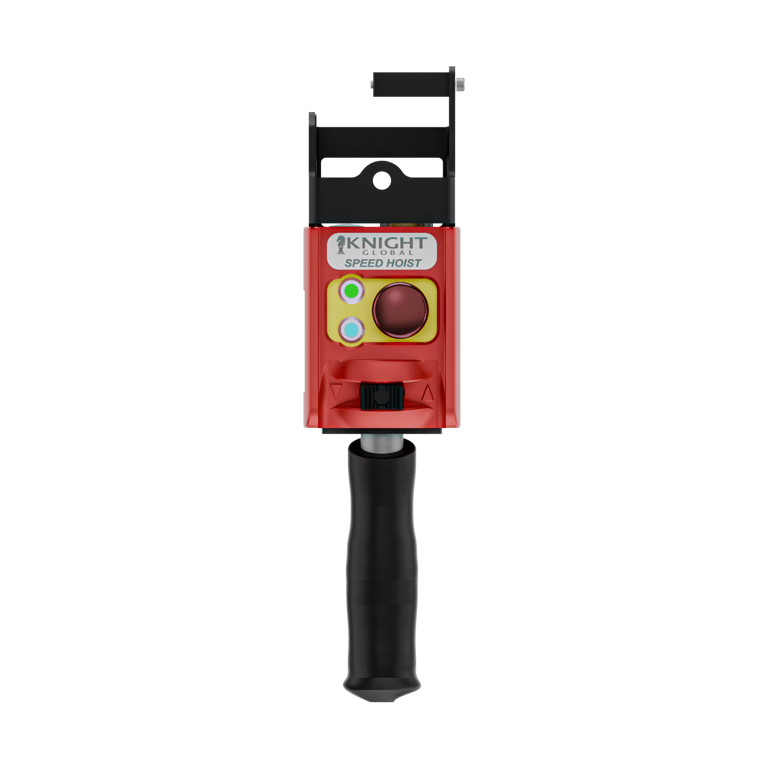

Analog Remote Pendant Handle for E-Float Hoist® KCA1213

KCA1213Analog Remote Pendant Handle for E-Float Hoist®

Weight: 2.5 lbs [1.13kg]

Details

The KCA1213 Analog Remote Control Handle for the E-Float Hoist® has an UP/DOWN rocker switch to control movement and speed of the hoist. This handle provides the user with the ability to easily control movement using the programmable variable speed rocker. An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist. (E-Float Hoist® "+" models) The KCA1213 one of the handle choices for the E-Float Hoist®. The handle is also available in a 2-button lever style configuration, KCA1114.

Standard Analog Remote Handle for the E-Float Hoist™.
UP/DOWN rocker switch.
Run/Stop button
Illuminated Blue/Green push buttons
Lightweight, 3D printed casing
Ethernet port for easy setup of parameters

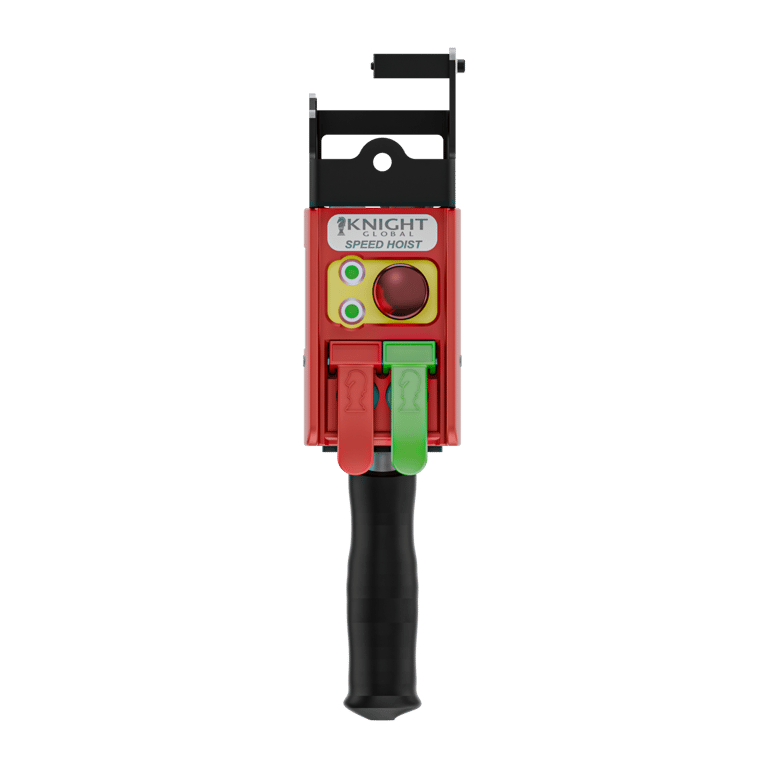

Analog Remote Pendant Handle for E-Float Hoist® KCA1214

KCA1214Analog Remote Pendant Handle for E-Float Hoist®

Weight: 2.9 lbs [1.3kg]

Details

The KCA1214 2-button Lever Style Analog Remote Control Handle is one of the handle choices for Knight's E-Float Hoist®. It has an UP/DOWN thumb levers to control movement and speed of the hoist. This handle provides the user with the ability to easily control movement using the programmable variable speed levers. An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist. The KCA1214 is also available in a rocker switch configuration, KCA1213.

Standard Analog Remote Handle for the E-Float Hoist™.
UP/DOWN rocker switch.
Illuminated Run/Stop button
Blue/Green illuminated buttons
Lightweight, 3D printed casing
Ethernet port for easy setup of parameters

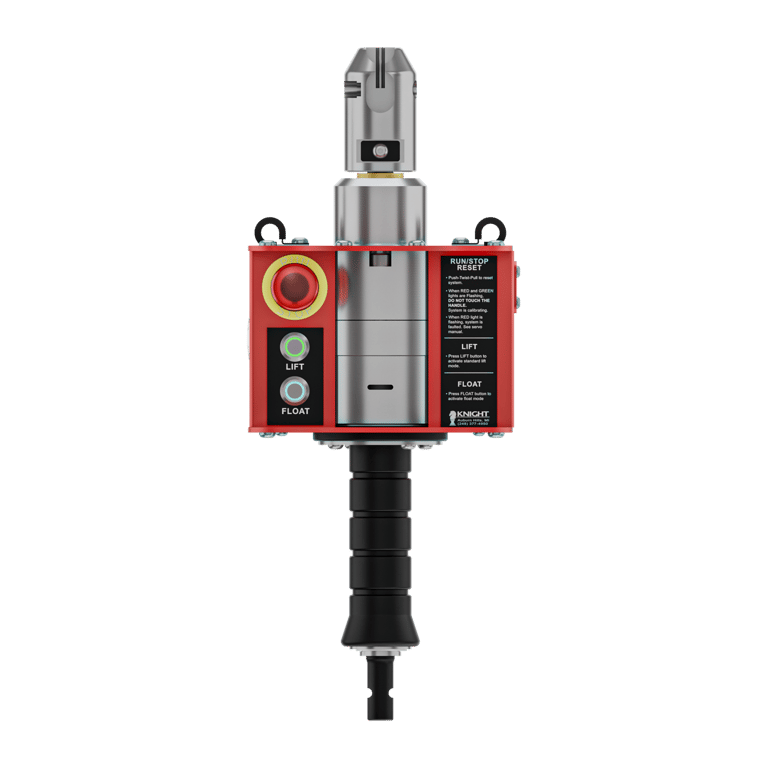

Inline Control Handle with Trigger KLCA1080

KLCA1080Inline Control Handle with Trigger

Weight: 15 lbs. [6.81kg]

Details

The KLCA1080 incorporates the latest in design that includes our patented load cells with integral amplifier for noise immunity, connectors for operator interface and an improved clevis mount with cross pinning to eliminate the need for threaded rod, for connecting devices below the handle grip. The KLCA1080 is a programmable load sensing handle that mounts inline of the chain on the system. The inline handle offers an inherent intuitive motion.

The KLCA1080's actuation trigger prevents the system from any unintentional movement. The operator has to depress the trigger to initiate any up or down movement. The KLCA1080 is smaller in size and weight, which creates a more ergonomic operator condition. The trigger is a feather touch, so it requires very little force to actuate. New servo software code for the trigger enables the handle speed to change direction faster, requiring less force to move up and down.

The KLCA1080 Inline Control handle with Trigger has increased responsiveness, to meet the demands of high production rates with little effort.

The KLCA1080 handle top hat connects our 4mm KDSA1010 or 5mm KDSA1011 servo chain.

(LMM) Load Monitoring Module.
(OCI) Operator Controlled Interface.
500 lb. Handle Load Cell.
(1) 19-Pin I/O Male Receptacle.
2-Pin M12 Female Receptacles for I/O or I/O Power
(1) M12 4-Pin D-Coded Female Ethernet Receptacle.
Illuminated Blue/ Green Push Buttons.
Illuminated Red Run-Stop Button.
Electrical cables sold separately.
Shackle sold separately.

Knight Rotary Union - Electropneumatic (for Speed Hoists) KSAA1068 / KSAA1069

KSAA1068 / KSAA1069Knight Rotary Union - Electropneumatic (for Speed Hoists)

Max capacity: 400 lbs. [181.4kg]
Weight: 29.3 lbs. [13.29kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1068 and KSAA1069 Electropneumatic Knight Rotary Unions are for Speed Hoists with a 200 lbs. or 400 lbs. capacity. They include a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The KSAA1068 Rotary Union has up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands (i.e. Common, Clamp, Unclamp, Rotate, Tilt, Start, etc.). The KSAA1069 has (1) pneumatic passage. They both have 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 400 lbs. [181.4kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.
KSAA1068:
Up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
KSAA1069:
(1) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.

CAD drawing

Knight Rotary Union - Electric (For Speed Hoists) KSAA1078

KSAA1078Knight Rotary Union - Electric (For Speed Hoists)

Max capacity: 400 lbs. [181kg]
Weight: 27.6 lbs. [12.52kg]

Details

Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The KSAA1078 Knight Rotary Union is for Speed Hoists with a 200 lbs. - 400 lbs. capacity. It includes a 4mm chain nest for the S.D.S. chains as well as a KSAA1004 Shackle. Used in conjunction with the KCA1110 or KCA1119 Variable Speed Pendants. The Electric Rotary Union has 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.

Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
Operating Voltage: 24VDC up to 2 amps.
Sealed packaging to protect wiring, slip ring and rotate assembly.
Capacities up to 400 lbs. [181kg]
(1) 12-Pin M23 Male Receptacle
(1) 12-Pin M23 Female Receptacle
Includes KSAA1004 Shackle.

CAD drawing

General 5

BPA2113Pneumatic Balancer Chain Hook

Weight: 2.4 lbs. [1.08kg]

Details

Knight Global's BPA2113 Pneumatic Balancer Chain Hook connects Air Balancers quickly and securely to fixtures and end effectors. The Hook is equipped with a 1 ton capacity Crosby/Bullard® Golden Gate size 2 Pin-Lok Hook with self closing gate and 360° rotational capabilities.

For instructions on installing this hook to Knight's chain, see the video here.

(Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
Quick and Secure Connection
360 degree rotation.

CAD drawing

BPA2410Safety Chain Shackle

Weight: 2.7 lbs. [1.23kg]

Details

Knight Global's BPA2410 Safety Chain Shackle connects Air Balancers quickly and securely to fixtures and end effectors. Knight's Shackle features a female clevis for direct connections. The BPA2410 Safety Chain Shackle attaches to Knight pneumatic balancer chains. It is equipped with a connection for a drop stop safety chain.

360 degree rotation.
Steel Construction.
Connection for Safety Chain.
Quick and Secure Connection.

CAD drawing

BPA2020Hook with Bail and Locking Gate

Max capacity: 2, 000 lbs [907kg]
Weight: 0.8 lbs. [0.36kg]

Details

Knight Global's BPA2020** Hook with Bail and Locking Gate is a manufactured by Brass alloy Golden Gates®. It is typically used with Knight's KBA Cable Balancers. The BPA2020 is engineered for quality, easy handling and dependability. The heavy duty, corrosion resistant locking mechanism will stay locked until an operator releases it; yet, can easily be shut with one hand. Cost effective, these gates reduce down time, providing the alternative to conventional latches.

**previously EBA1083

Lif-Lok® Gate.
Suitable for infrequent, non-continuous rotation under load.
Typically used with Knight’s KBA Cable Balancers
Open bend keeps the load inline with the chain.
Open bend allows for ease of engaging and disengaging the load.
Use in corrosive environment requires shank and nut inspection in accordance with ASME B30.10-1.10.4(b)(5)(c)2009.

CAD drawing

KSAA1003Precision Chain Wear Gauge

Weight: 0.87 lbs [0.39kg]

Details

The KSAA1003 Precision Chain Wear Gauge is used to measure the wear on Knight servo hoists and pneumatic balancers 4mm/5mm galvanized chain.

To view the instructional video, click here or visit Knight's Youtube page.

Steel Construction
Measures Knight 4mm & 5mm Galvanized Chain Wear.

CAD drawing

KSAA1011Servo Hoist Rail Brake

Weight: 6.0 lbs. [2.72kg]

Details

Bolt-on design that attaches to the servo hoists load trolley. The KSAA1011 Rail Brake is typically used when the operator needs to lock the servo hoist from moving in the bridge or runway rail. The locking feature allows the operator to accurately load and unload parts. The KSAA1011 servo hoist parking brake is also designed to be used as a drag brake, but a regulator is needed to supply air pressure to the cylinder. Servo Hoist Rail Brake can be mounted facing the front or rear of the Servo Hoist depending on the applications specific braking requirements.

(Previously EBA1330)

Fits models: KSH250S, KSH350S, KSH500S, KSH750S, and KSH1000S and Speed Hoists.
Attaches to Knight Servo Hoist Load Trolleys.
Pneumatic Servo Hoist to Rail Braking System.
Stroke Size: 0.75 in. [19.1mm].
Bore Pneumatic Cylinder: 2.00 in. [50.8kg].
Parking brake is also a drag brake when regulator is attached.
Replaceable Brake Pads.
Mounts to front or rear of Servo Hoist.

CAD drawing

Load Trolley 3

KSAA1050Servo Hoist Load Trolley

Max capacity: 2, 500 lbs. [1, 134kg]
Weight: 9.5 lbs. [4.31kg]

Details

The KSAA1050 Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD7510 series rail systems.

(Previously EBA1030)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1059Servo Hoist Load Trolley

Max capacity: 1, 600 lbs. [725kg]
Weight: 7.6 lbs. [3.45kg]

Details

The KSAA1059 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD6110 series rail systems.

(Previously EBA1173)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

KSAA1048Servo Hoist Load Trolley

Max capacity: 900 lbs. [408kg]
Weight: 4.5 lbs. [2.04kg]

Details

The KSAA1048 Servo Load Trolley transfers loads along the horizontal axis and suspends Knight Servo Hoists from Knight's RAD4110 series rail systems.

(Previously EBA1020)

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: 20 degs. F to 248 degs. F.

CAD drawing

Electrical Cables 4

CALL8-Pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

8-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male / Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

8-Pin Micro DC Single Key.
PVC Gray.
90° Male / Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

CALL4-pin Micro Switch Cable

Lengths: 1m [3.28 ft.] to 6.0m [19.68 ft.]

Details

4-Pin Micro Switch Load Cell Cables are a DC Single Key, AWM PVC Grey, 8x24 AWG, 105°C, 60 VAC/75VDC, 2 A, 7.3 mm OD, TPE, Male-In-Line/ Female, shielded Cord Assembly. They come in various lengths and are also available with either Straight or Right Angle connector ends.

4-Pin Micro DC Single Key.
PVC Gray.
Male-In-Line/ Female Connectors.
22 AWG, 4A, 300V Cord.
Available with Straight or Right Angle Connector Ends.

KCA1040Electrical Coiled Cable

Details

The KCA1040 Electrical Coil cable provides a robust method of communicating from the OCI (Operator Control Interface) module on the floor level, to the servo controls up on the rail. The coil cable is made up of a high resistant PVC and has proved the test of time. The four inch coil connects the In-Line Handle or (LMM) Load Monitoring Module in a clean and compact package by wrapping around the Servo Hoist Chain. The KCA1040 Coiled Cable is made exclusively for Knight with 19-Pin Military style connectors and is available in various cable lengths. Knight's KCA1040 coiled cable is provided in many lengths, with specified lengths being the total. For example a 3ft coil will stretch to 3ft. See product features for all part numbers.

Previously EBA1011

Electrical Coiled Cables are made exclusively for Knight Global.
Connects a Servo Hoist to a load monitoring module by wrapping itself around the Servo Chain.
19-Pin Military Bayonet Style Connectors.
90 Degree Male to Female Connectors.
Optional Straight Cable configuration.
Available Lengths:
- KCA1040-2 (2 ft. [60.9 cm])
- KCA1040-3 (3 ft. [91.4 cm])
- KCA1040-4 (4 ft. [121.9 cm])
- KCA1040-6 (2 ft. [182.9 cm])
- KCA1040-8 (8 ft. [243.8 cm])
- KCA1040-10 (10 ft. [304.8 cm])
- KCA1040-12 (12 ft. [365.7 cm])
- KCA1040-15 (15 ft. [457.2 cm])
- KCA1040-20 (20 ft. [609.6 cm])

KCA1041Electrical Straight Cable

Lengths: • KCA1041-2 ( 2 ft. [61.0 cm] ), • KCA1041-3 ( 3 ft. [91.4 cm] ), • KCA1041-4 ( 4 ft. [121.9 cm] ), • KCA1041-6 ( 6 ft. [182.9 cm] ), • KCA1041-10 ( 10 ft. [304.8 cm] ), • KCA1041-15 ( 15 ft. [457.2 cm] )

Details

The KCA1041 Electrical Straight cable provides a robust method of communicating from the OCI (Operator Control Interface) module to the LMM (Load monitoring Module). The cable is made up of a high resistant PVC and has proved the test of time. The straight cable connects the In-Line Handle or (LMM) Load Monitoring Module. The cable is made exclusively for Knight with 19-Pin Military style connectors and is available in various cable lengths.

Previously EBA1009

Electrical Straight Cables are made exclusively for Knight Global.
Connects a separate control handle pendant to Servo Hoists.
19-Pin Military Bayonet Style Connectors.
90 Degree Male to Female Connectors.
Optional Coiled Cable configuration.

Disconnects 6

I-Beam Column Mount Kit for Disconnect Boxes KCA1100

KCA1100I-Beam Column Mount Kit for Disconnect Boxes

Details

The KCA1100 I-Beam Column Mount Kit is designed as a universal solution for mounting Knight's Electrical disconnect boxes. It is ideal in cases where mounting options for the boxes are limited due to spatial restrictions. The Column Mount Kit can be mounted directly to an I-Beam post in multiple orientations. It does not require any drilling into posts, but instead includes beam clamps.

Mounts directly to an I-Beam Post in multiple orientations.
Works with the KCA1018, KCA1019, and KCA1056 Disconnect Boxes.
No drilling into I-Beam required.
Disconnect boxes not included.

3KVA Electrical Disconnect Enclosure KCA1018

KCA10183KVA Electrical Disconnect Enclosure

Details

The KCA1018 3KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 3KVA finger safe transformer and primary and secondary fusing for all your single chain servo products. (i.e., Knight's KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists). Electrical Disconnect Enclosure Stands Not Included.

Previously EBA1003

Used with: KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists.
Flange disconnect.
Transformer Disconnect, 3KVA.
Enclosure Size: 21 in. X 20 in. X 10 in.
480VAC – 240VAC, FLA 6.25.
15A Primary Fusing.
15A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

5KVA Electrical Disconnect Enclosure KCA1055

KCA10555KVA Electrical Disconnect Enclosure

Details

The KCA1055 5KVA Electrical Disconnect Enclosures converts 480VAC to 240VAC for powering the Knight Global servo hoists. This panel comes with an industrial flange disconnect and provides a means to lock out the system when time for maintenance. It also includes a 5KVA finger safe transformer, primary and secondary fusing for your dual and triple servo products. (i.e., Knight KSHXY, KSHXZ, KSHTCDM, KSHXYZ Servo Tractors and Hoists). KCA1001 Electrical Disconnect Enclosure Stand Not Included.

Previously EBA1085

Used with: KSHXY, KSHXZ, KSHTCDM and KSHXYZ Servo Tractors and Hoists.
Flange disconnect.
Transformer Disconnect, 5KVA.
Enclosure Size: 30 in. X 25 in. X 12 in.
480VAC – 240VAC, FLA 10.4.
25A Primary Fusing.
25A Secondary Fusing.
Enclosures are mounted at a ergonomically correct height.
Optional Dual Enclosure Configuration. (Front and Back)
Stand not included.

Electrical Disconnect Enclosure Stand KCA1102

KCA1102Electrical Disconnect Enclosure Stand

Details

The KCA1102 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1019 transformer disconnect enclosure box. Electrical Disconnect Enclosure Box Not Included.

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 19x21x62.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Electrical Disconnect Enclosure Stand KCA1001

KCA1001Electrical Disconnect Enclosure Stand

Details

The KCA1001 Electrical Disconnect Enclosure Stand is for the mounting of disconnect enclosures to provide an ergonomically positioned height for the flange disconnect handle. Stand allows for multiple adjustment heights. Mounting patterns set up for Knight's KCA1018 and KCA1055 transformer disconnect enclosure boxes. Electrical Disconnect Enclosure Box Not Included.

Previously EBA1145

Provides mounting surface for enclosures in open workstation environments.
Stand allows for multiple adjustment heights.
Electrical Disconnect Enclosure Box Not Included.
Air Prep option for the back side.
Floor Mounted.
Bolted Construction M10X1.5 w/ Nylock nuts.
Various enclosures mount to stand.
Wall mounted enclosures mount to stand.
Custom finishes are available. (Blue is Standard).
Foot Print: 30x21x62.
Floor Mounting Hole Pattern: 24×18.
Optional Pneumatic Lockout Mounting Plate.
Optional Dual Enclosure Configuration. (Front and Back).

Electrical Disconnect Enclosure Stand KCA1003

KCA1003Electrical Disconnect Enclosure Stand

Details

The KCA1003 Electrical Disconnect Enclosure Stand is for the mounting of a PDP (Power Distribution Panel) to provide an ergonomically positioned height for the flange disconnect handle. It is equipped with an over-sized cross brace for front and side air prep. It also features an additional side plate space used to mount ancillary controls such as a lighting disconnect. The stand allows for multiple adjustment heights. PDP Box Not Included.
