Heavy duty articulating pneumatic arm

Name: Heavy duty articulating pneumatic arm
Brand: FullSharp

Download PDF spec sheet

Overview

A parallelogram arm with twin cylinders that lifts, rotates and balances product while absorbing torque reaction. Overhead rail mounted or floor mounted.

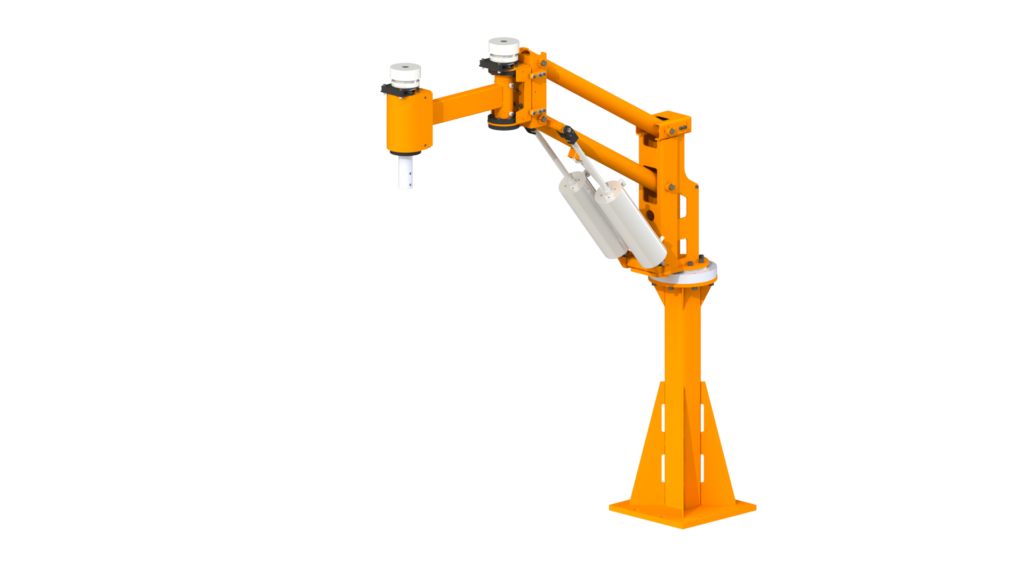

Knight’s AAA9000 Overhead and Floor Mounted Heavy Duty Articulating Pneumatic Arms are parallelogram arms used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. They utilize twin cylinders in the rear of the arm to achieve greater lifting capacity while reducing the overall mass of the tool. This minimizes operator fatigue by absorbing torque reaction and helping to lift and manipulate the product effortlessly.

The Overhead Mounted AAA9000 travels inside Knight’s RAD6110 and RAD7510 Aluminum Series Rail Systems on the “X”, “Y”, and “Z” axis and features a variety of control configurations.

Knight also offers fixed and 360 degree rotational AAA9000 Articulating Arms. These have a maximum reach (without Extension Boom) of 60 in. [1,524mm] and a maximum balance capacity of up to 600 lbs. [272kg] at 100 psi [6.8bar]. Capacities vary with reach.

Pictured carriage pan and extension boom not included.

For more information, contact a Knight Global representative.

General Information

Features

Travels inside Knight’s RAD6110 or RAD7510 Series Rail.
Lifts, Rotates, Balances, and Manipulates product with minimal effort.
Variety of Control Configurations.
Overhead Carriage Sizes: 24 in. [609mm] or 36 in. [914mm].
Max. Arm Length: Up to 60 in. [1,524mm].
Max. Extension Boom Length: Up to 48in. [1,219mm]. (Lengths over 48 in. Contact a Knight Representative).
Max. Vertical Arm Travel: Up to 60 in. [1,524mm].
Max. Lifting/Balance Capacity: Up to 600 lbs. [272kg] at 100 psi [6.8bar]. (Capacity Varies with Reach – See Specification Sheet).

Benefits

Overhead Mounted or Floor Mounted.
Floor mounted eliminates need for overhead system.
Reduces Operator Fatigue.
Arm travels on the “X”, “Y”, and “Z” Axis.
Elimination of torque reaction exposure.
Fixed or 360° Rotation.
Optional Pivot Brake.
Optional Parking Brake.
Optional Clutch Brake.

Videos

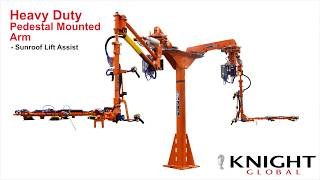

*Applications Compilation

Accessories

General 4

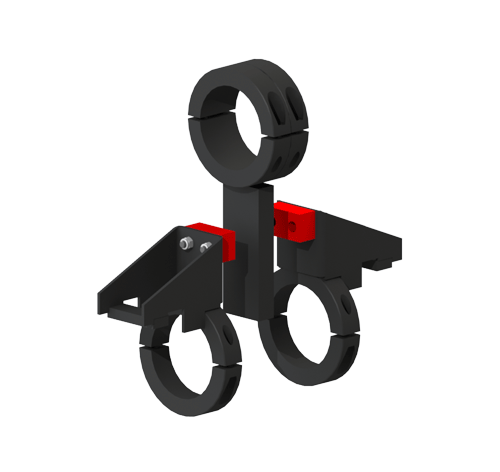

AOA9050Arm Stop Assembly

Weight: 9.9 lbs. [4.49 kg].

Details

Knight Global's AOA9050 Arm Stop Assembly is used when there is a need to limit the vertical travel on an arm. They can be adjusted to limit the up and down vertical travel independently at any position within the travel of the arm.

Manual Stopping System.
Easy Bolt-on Design.
Adjustable.
Attaches to Knight Heavy Duty Pneumatic Arms.

CAD drawing

ASA9510Parking Brake

Weight: 3.6 lbs. [1.63kg]

Details

Knight Global's ASA9510 is a bolt-on design that attaches to the arm bearing to allow an arm to be parked when not in use. The ASA9510 parking brake will eliminate any vertical rotation on the main bearing. It can be integrated with fixture controls to accommodate the user. The ASA9510 should not be used for torque applications.

Pneumatic Parking Brake System.
Parking brake is also a drag brake when regulator is attached.
Replaceable Brake Pads.
Stroke Size: 0.75 in. [19.1mm].
Bore Pneumatic Cylinder: 2.00 in. [50.8kg].

CAD drawing

ASA9522Clutch Bearing Brake

Weight: 19.8 lbs. [8.98kg]

Details

Knight Global's ASA9522 is a bolt-on design that attaches to the arm carriage pan to allow an arm to be parked when not in use. The ASA9522 clutch bearing brake will eliminate any vertical rotation on the main bearing. It can be integrated with fixture controls to accommodate the user. The ASA9522 can be used for torque applications.

Pneumatic clutch Brake.
Min. Static Clutch Torque: 910 in. lbs. [102Nm].
Max. Static Clutch Torque: 3,640 in. lbs. [411Nm].
For Torque Applications.

CAD drawing

TRA5500Series Lube-Free Motor

Max capacity: 2, 000 lbs. [908kg]

Details

Knight Global's TRA5500 Series Lube-Free Motor provides mobility by towing bridges, fixtures and heavier loads. The TRA5500 is equipped with a Lube-Free Motor that requires less maintenance and will have a longer expected service life and is typically used to assist an operator to push, pull or position loads. Knight's Lube-Free Motors are available on the TRA5500 Series Air Tractors only. The TRA5500 Tractor Series is designed to be used in conjunction with Knight's RAD4110 and RAD7510 workstation crane systems. Knight Pneumatic Tractors can be integrated with an pneumatic fixture allowing for multiple configurations such as: automatic return home, conveying of a load to the next position, and starting and stopping limits with the use of air logic.

Assists operator in pushing, pulling and positioning loads.
Maximum Speed: 1.9 ft. per sec [1.3mph].
Maximum Air Consumption: 75 cfm.
MCBF: >500,000 (>10,000,000 Linear ft.).
Integrated Load Trolley.
Tows fixtures, bridges and loads.
Optional TRA2001 (Hanging) pendant.
Optional TRA2002 (Fixture Mounted) pendant.

CAD drawing

Load Trolley 5

MRTA7723Load Trolley with Yoke

Max capacity: 3, 000 lbs. [1, 360kg]
Weight: 12.1 lbs. [5.49kg]

Details

The MRTA7723 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight's RAD7510 series overhead aluminum rail systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

MRTA6123Low Profile Load Trolley with Yoke

Max capacity: 1, 600 lbs. [725kg]
Weight: 8.3 lbs. [3.76kg]

Details

The MRTA6123 Low Profile Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight's RAD6110 Series Overhead Aluminum Rail Systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

MRTA4009Load Trolley with Yoke

Max capacity: 1, 100 lbs. [499kg]
Weight: 7 lbs. [3.22kg]

Details

The MRTA4009 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages from Knight's RAD4110 series overhead aluminum rail systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

ATA2603Flat I-Beam Load Trolley

Weight: 13.4 lbs. [6.08kg]

Details

Transfers and suspends Knight's overhead mounted arms along a horizontal axis. The ATA2603 Flat I-Beam Load Trolley travels along a 3.25 in. [82.55mm] or 3.33 in. [84.58mm] I-Beam flange.

Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Fiberglass filled High Impact Nylon Wheels.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

ATA2604S-Beam Load Trolley

Weight: 13.4 lbs. [6.08kg]

Details

Transfers Knight's overhead mounted arms along a horizontal axis. The ATA2604 S-Beam Load Trolley travels along a 2.66 in. [67.56mm] flange or a 4.00 in. [101.6mm] S-Beam.

Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Fiberglass filled High Impact Nylon Wheels.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Safety Cable 3

FDA4133Eye Bolt Safety Cable Kit

Lengths: 10 ft. [3.048m]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's FDA4133 Eye Bolt Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.

(4) Crosby® Saddle Clamps
(2) Cable Thimbles
(2) Eye Bolts
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

CAD drawing

Safety Cable Kit with Oval Sleeves NICORWA4133

NICORWA4133Safety Cable Kit with Oval Sleeves

Weight: 2 lbs. [.91kg]
Lengths: 10 ft. [3m.]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's NICORWA4133 Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.

Replaces the CAMIRWA4133 Safety Cable Kit.

(2) Copper Oval Sleeves
(2) Cable Thimbles
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

RWA4133Safety Cable Kit

Lengths: 6 ft. [1.8m]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's RWA4133 prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident. This safety cable kit is used as Knight's standard kit.

Used as Knight’s standard safety cable kit.
(4) Crosby® Saddle Clamps
(2) Cable Thimbles
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
