Light duty articulating pneumatic arm

Name: Light duty articulating pneumatic arm
Brand: FullSharp

Download PDF spec sheet

Overview

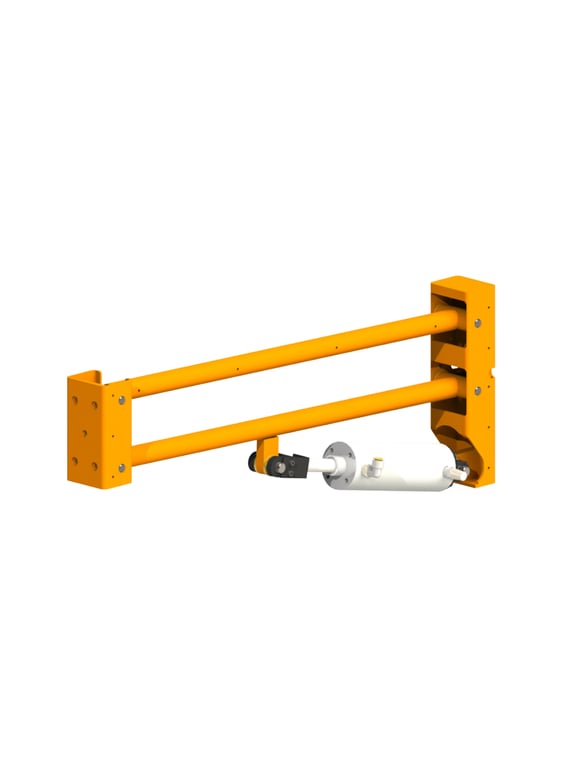

The Knight Global AAA4000 parallelogram arm lifts, rotates, balances and moves product while absorbing torque reaction to reduce operator fatigue.

Knight’s AAA4000 Light Duty Articulating Pneumatic Arm is a parallelogram arm used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. It uses a single cylinder in the rear of the arm to achieve greater lifting capacity, and therefore reduces fatigue by absorbing torque reaction and helping the operator lift and manipulate the product effortlessly.

The Light Duty Articulating Pneumatic Arm travels inside Knight’s RAD4110, RAD6110, or RAD7510 Aluminum Series Rail Systems on the “X”, “Y”, and “Z” axis and features a variety of control configurations. Linear Mounted Arms run in Knight’s LRD9500 Series Rail.

For more information on our Light Duty Articulating Arm contact a Knight Global representative.

General Information

Features

Travels inside Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
Lifts, Rotates, Balances, and Manipulates product with minimal effort.
Variety of Control Configurations.
Overhead Carriage Sizes: 24 in. [609mm] or 36 in. [914mm].
Max. Arm Length: Up to 36 in. [914mm].
Max. Extension Boom Length: Up to 36in. [914mm].
Max. Vertical Arm Travel: Up to 36 in. [914mm].
Max. Vertical Mast Height: Up to 9 ft. [914mm].
Max. Pedestal Height: Up to 6 ft. [1828mm].
Max. Lifting/Balance Capacity:
– 24″ arm can lift 80 lbs [36kg] at a min. of 60 psi.
– 36″ arm can lift 65 lbs [29kg] at a min. of 60 psi.

Benefits

Overhead Mounted, Floor Mounted, or Linear Rail Mounted.
Floor mounted eliminates need for overhead system.
Adjustable Arm Heights.
Reduces Operator Fatigue.
Absorbs Torque Reaction.
Optional Pivot Brake.
Optional Parking Brake.
Optional Clutch Brake.

Videos

*Applications Compilation

*Bolt Secure Assists on Linear Rail

Cross Member Nut Runner – Linear Rail

Accessories

General 6

AAA4005Arm Stop Assembly

Weight: 3.9 lbs. [1.79kg]

Details

Knight Global's AAA4005 Arm Stop Assembly is used when there is a need to limit the vertical travel on an arm. They can be adjusted to limit the up and down vertical travel independently at any position within the travel of the arm.

Manual Stopping System.
Easy Bolt-on Design.
Adjustable.
Attaches to Knight Light Duty Pneumatic Arms.

CAD drawing

ASA9510Parking Brake

Weight: 3.6 lbs. [1.63kg]

Details

Knight Global's ASA9510 is a bolt-on design that attaches to the arm bearing to allow an arm to be parked when not in use. The ASA9510 parking brake will eliminate any vertical rotation on the main bearing. It can be integrated with fixture controls to accommodate the user. The ASA9510 should not be used for torque applications.

Pneumatic Parking Brake System.
Parking brake is also a drag brake when regulator is attached.
Replaceable Brake Pads.
Stroke Size: 0.75 in. [19.1mm].
Bore Pneumatic Cylinder: 2.00 in. [50.8kg].

CAD drawing

ASA9522Clutch Bearing Brake

Weight: 19.8 lbs. [8.98kg]

Details

Knight Global's ASA9522 is a bolt-on design that attaches to the arm carriage pan to allow an arm to be parked when not in use. The ASA9522 clutch bearing brake will eliminate any vertical rotation on the main bearing. It can be integrated with fixture controls to accommodate the user. The ASA9522 can be used for torque applications.

Pneumatic clutch Brake.
Min. Static Clutch Torque: 910 in. lbs. [102Nm].
Max. Static Clutch Torque: 3,640 in. lbs. [411Nm].
For Torque Applications.

CAD drawing

MLRA9501Linear Rail Carriage

Weight: 35.9 lbs. [16.28 kg]

Details

Knight Global's MLRA9501 Linear Rail Carriage travels along the horizontal axis and suspends lifting devices from Knight's LRD9500 series linear rail. It is designed for cantilevered and direct load applications. Knight carriages are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

Travels along Knight LRD9500 Series Rail.
Suspends Arms and Fixtures.
Cantilevered and direct load applications.
Fiberglass filled High Impact Nylon Wheels.

CAD drawing

MLRA9502Mount Plate Assembly

Weight: 15.4 lbs. [6.99 kg]

Details

Knight Global's MLRA9502 Mount Plate Assembly attaches Knight's LRD9500 Series Engineered Rail to post beams and wall structures.

Suspends Knight LRD9500 Series Rail.
Mounts to Post Beams and Wall Structures.
Coated with an environmentally friendly corrosion protection.** (Autophoretic ACC 900®).

CAD drawing

TRA5500Series Lube-Free Motor

Max capacity: 2, 000 lbs. [908kg]

Details

Knight Global's TRA5500 Series Lube-Free Motor provides mobility by towing bridges, fixtures and heavier loads. The TRA5500 is equipped with a Lube-Free Motor that requires less maintenance and will have a longer expected service life and is typically used to assist an operator to push, pull or position loads. Knight's Lube-Free Motors are available on the TRA5500 Series Air Tractors only. The TRA5500 Tractor Series is designed to be used in conjunction with Knight's RAD4110 and RAD7510 workstation crane systems. Knight Pneumatic Tractors can be integrated with an pneumatic fixture allowing for multiple configurations such as: automatic return home, conveying of a load to the next position, and starting and stopping limits with the use of air logic.

Assists operator in pushing, pulling and positioning loads.
Maximum Speed: 1.9 ft. per sec [1.3mph].
Maximum Air Consumption: 75 cfm.
MCBF: >500,000 (>10,000,000 Linear ft.).
Integrated Load Trolley.
Tows fixtures, bridges and loads.
Optional TRA2001 (Hanging) pendant.
Optional TRA2002 (Fixture Mounted) pendant.

CAD drawing

Load Trolley 5

MRTA7723Load Trolley with Yoke

Max capacity: 3, 000 lbs. [1, 360kg]
Weight: 12.1 lbs. [5.49kg]

Details

The MRTA7723 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight's RAD7510 series overhead aluminum rail systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

MRTA6123Low Profile Load Trolley with Yoke

Max capacity: 1, 600 lbs. [725kg]
Weight: 8.3 lbs. [3.76kg]

Details

The MRTA6123 Low Profile Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight's RAD6110 Series Overhead Aluminum Rail Systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

MRTA4009Load Trolley with Yoke

Max capacity: 1, 100 lbs. [499kg]
Weight: 7 lbs. [3.22kg]

Details

The MRTA4009 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages from Knight's RAD4110 series overhead aluminum rail systems.

Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

ATA2603Flat I-Beam Load Trolley

Weight: 13.4 lbs. [6.08kg]

Details

Transfers and suspends Knight's overhead mounted arms along a horizontal axis. The ATA2603 Flat I-Beam Load Trolley travels along a 3.25 in. [82.55mm] or 3.33 in. [84.58mm] I-Beam flange.

Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Fiberglass filled High Impact Nylon Wheels.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

ATA2604S-Beam Load Trolley

Weight: 13.4 lbs. [6.08kg]

Details

Transfers Knight's overhead mounted arms along a horizontal axis. The ATA2604 S-Beam Load Trolley travels along a 2.66 in. [67.56mm] flange or a 4.00 in. [101.6mm] S-Beam.

Side Guide Rollers with integrated bearings.
Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Fiberglass filled High Impact Nylon Wheels.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Safety Cable 3

FDA4133Eye Bolt Safety Cable Kit

Lengths: 10 ft. [3.048m]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's FDA4133 Eye Bolt Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.

(4) Crosby® Saddle Clamps
(2) Cable Thimbles
(2) Eye Bolts
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

CAD drawing

Safety Cable Kit with Oval Sleeves NICORWA4133

NICORWA4133Safety Cable Kit with Oval Sleeves

Weight: 2 lbs. [.91kg]
Lengths: 10 ft. [3m.]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's NICORWA4133 Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.

Replaces the CAMIRWA4133 Safety Cable Kit.

(2) Copper Oval Sleeves
(2) Cable Thimbles
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

RWA4133Safety Cable Kit

Lengths: 6 ft. [1.8m]
Cable thickness: 0.25 in. [6mm]

Details

Knight Global's RWA4133 prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident. This safety cable kit is used as Knight's standard kit.

Used as Knight’s standard safety cable kit.
(4) Crosby® Saddle Clamps
(2) Cable Thimbles
(1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
