FullSharp · since 1991

Engineered aluminum rail series

Download PDF spec sheet

Overview

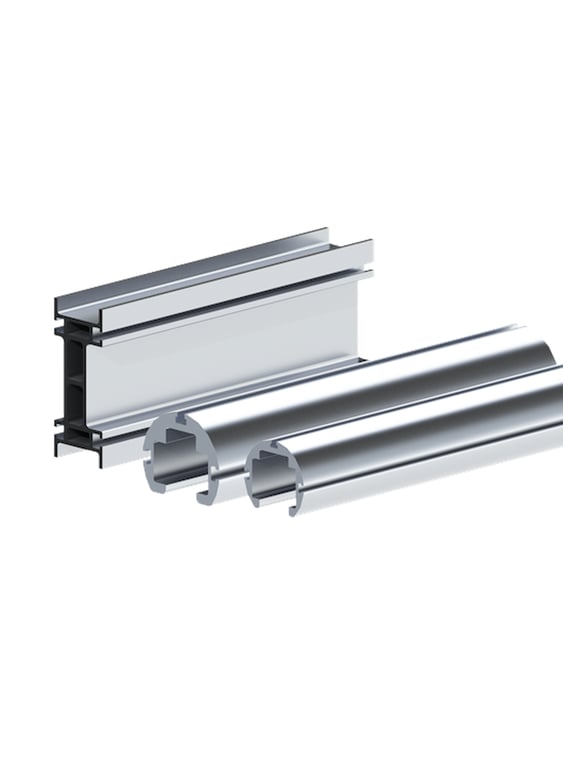

Knight engineered aluminum rails cover light duty overhead and bench applications (HAD3000, HAD3500) and low friction linear movement on posts or floors (LRD9500).

Knight’s HAD3000 Engineered Aluminum Rail Series has a Chambered Rail design that is from a lightweight, high-strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The HAD3000 Series Rail is the ideal solution for light duty applications, work benches and stations, festooning management and light fixtures. This series can also be used as a fluid power distribution system for non-caustic fluids and can serve as a manifold, providing more CFM to pneumatic powered tools when compared to black pipe.

The HAD3500 Series Rail can also be used for light duty applications, such as weld guns, work benches and stations, festooning management and light fixtures. This series, combined with nylon trolley wheels, provides the lowest friction in the industry.

The LRD9500 Engineered Aluminum Linear Rail is for post-mounted or floor-mounted applications that require low friction horizontal movements. It is capable of handling direct and offset loads. Linear engineered rail is a lower maintenance alternative to hardened ground rail and bearings blocks. Linear rail is most often mounted in horizontal configurations using carriage mounted pneumatic arms.

The RAD4700 and RAD6500 Engineered Round Rail Series is for low friction vertical or horizontal linear movements. It is capable of handling direct or offset loads as well as high torque applications. Round rail is designed to be more ergonomically friendly when compared to traditional linear motion products. Capacities are usually based by application.

General Information

Engineered Aluminum Rail Series

SeriesMax. CapacityProduct Weight
HAD3000125 lbs. [56kg]3.3 lbs/ ft. [1.50kg/m]
HAD3500125 lbs. [56kg]2.6 lbs/ ft. [1.18kg/m]
LRD9500300 lbs. [136kg]9.8 lbs/ ft. [4.45kg/m]

HAD3000 Series

Features

  • Mechanical Properties: ASTM B221 6005-T5 Series Aluminum.
  • Overhead and Floor Mounted Configurations.
  • Supports Trolleys.
  • Pre-Drilled Ports every: 5 ft. [1.3m].
  • NPT Air Outlet Connector: 3/8 in. [9.5mm] or 1/2 in. [12.7mm].
  • NPT Plant Air Inlet Connector: 1 in. [25mm].
  • Up to 600 psi when used for Fluid/ Air.

Benefits

  • Rail Lengths: Up to 20 ft. [6m].
  • Multiple Pre-Assembled Accessories.
  • Can be used as a Fluid Power Distribution System and a Pneumatic CFM Manifold System.
  • Easy Maintenance.
  • Simple Installation:
    • No Welding or Grinding.
    • Modular Connections to Structural Supports.
    • Modular Connections between Sections.

HAD3500 Series

Features

  • Mechanical Properties: ASTM B221 6005-T5 Series Aluminum.
  • Overhead and Floor Mounted Configurations.
  • Supports Trolleys.

Benefits

  • Rail Lengths: Up to 20 ft. [6m].
  • Multiple Pre-Assembled Accessories.
  • Can be used as a Fluid Power Distribution System and a Pneumatic CFM Manifold System.
  • Easy Maintenance.
  • Simple Installation:
    • No Welding or Grinding.
    • Modular Connections to Structural Supports.
    • Modular Connections between Sections.

LRD9500 Series

Features

  • Mechanical Properties: ASTM B221 6005-T5 Series Aluminum.
  • Floor Mounted Post Configurations.
  • Supports carriages and pneumatic arms.

Benefits

  • Multiple Pre-Assembled Accessories.
  • Carriages are designed for cantilevered and direct load applications.

HAD3000 and HAD3500 Capacities

HAD3000 & HAD3500 Capacities

Hanger Span Deflection Criteria
1:350 Capacity 1:450 Capacity
ft m lbs kg lbs kg
5 1.52 125 57 125 57
6 1.83 125 57 125 57
7 2.13 125 57 125 57
8 2.45 125 57 125 57
9 2.74 125 57 125 57
10 3.05 125 57 125 57
11 3.35 125 57 122 56
12 3.66 125 57 104 47
13 3.96 125 57 84 38
14 4.27 125 57 77 35
15 4.57 125 57 70 31
16 4.88 125 57 60 27
17 5.18 113 51 54 24
18 5.49 100 45 52 23
19 5.79 91 41 46 20
20 6.10 82 37 11 19
Knight Global follows material handling industry standards in determining the capacity ratings for enclosed track overhead workstation crane systems. Each component (e.g. rail, hangers, trolleys, etc.) is individually tested to establish its ultimate failure point. From this number, a safe working load is then assigned to the component. Each rail span length is then tested to determine the maximum single point load required to achieve a predetermined deflection based on a 1:350 ratio (1″ of deflection for each 350″ of length). The recommended rated capacity chart is based upon single point loading for the listed spans.

LRD9500 Capacities

LRD9500 Capacities

Linear Ergo Forces
50 Lbs. Push/Pull 100 Lbs Push/Pull. 150 Lbs. Push/Pull 200 Lbs. Push/Pull
3.97 lbs. ft. 6.33 lbs. ft. 7.10 lbs. ft. 10.46 lbs. ft.
Note: Test data was performed within a controlled series of (5) push/pull tests. Wall mounted 4 ft. cantilever.

Videos

*Bolt Secure Assists on Linear Rail

*Custom Linear Rail System – Fuel Tank Load

*Suspension Build-Up Table on Linear Rail

Linear Rail ERM Install

Linear Rail Nut Runner

Linear Rail Range of Motion

Accessories

General 6
Linear Rail Carriage MLRA9501
MLRA9501Linear Rail Carriage
Weight
35.9 lbs. [16.28 kg]
DetailsKnight Global's MLRA9501 Linear Rail Carriage travels along the horizontal axis and suspends lifting devices from Knight's LRD9500 series linear rail. It is designed for cantilevered and direct load applications. Knight carriages are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.
  • Travels along Knight LRD9500 Series Rail.
  • Suspends Arms and Fixtures.
  • Cantilevered and direct load applications.
  • Fiberglass filled High Impact Nylon Wheels.

CAD drawing

Mount Plate Assembly MLRA9502
MLRA9502Mount Plate Assembly
Weight
15.4 lbs. [6.99 kg]
DetailsKnight Global's MLRA9502 Mount Plate Assembly attaches Knight's LRD9500 Series Engineered Rail to post beams and wall structures.
  • Suspends Knight LRD9500 Series Rail.
  • Mounts to Post Beams and Wall Structures.
  • Coated with an environmentally friendly corrosion protection.** (Autophoretic ACC 900®).

CAD drawing

3/8" NPT Air Outlet MHAA3015
MHAA30153/8" NPT Air Outlet
Details

The MHAA3015 attaches to the HAD3000 series rail. The Air Outlet attaches to the top of the rail and is used to distribute air from the rail.

  • Attaches to the top of the HAD3000 Series Rail.
  • Outlet Holes are drilled every 5 ft. [1.5m] or at customer specified locations.
  • Distributes Air from the rail.

CAD drawing

1/2" NPT Air Outlet MHAA3025
MHAA30251/2" NPT Air Outlet
Details

The MHAA3025 attaches to the HAD3000 series rail. The Air Outlet attaches to the top of the rail and is used to distribute air from the rail.

  • Attaches to the HAD3000 Series Rail.
  • Outlet Holes are drilled every 5 ft. [1.5m] or at customer specified locations.
  • Distributes air from the rail.

CAD drawing

Cable and Hose Saddle MHMA3180
MHMA3180Cable and Hose Saddle
Weight
0.9 lbs [0.42kg]
Details

Attaches to the MHTA3013 Load Trolley. MHMA3180 Cable and Hose Saddle supports a hose width of 0.75 in. [19.05mm] and allows minimal stack-up widths.

  • Attaches to the MHTA3013 Load Trolley.
  • Bolt-On Saddle.
  • Supports Hose and Cable Width of: 0.75 in. [19.05mm].
  • Allows minimal stack-up widths.

CAD drawing

Cable and Hose Saddle MHMA3181
MHMA3181Cable and Hose Saddle
Weight
0.9 lbs [0.42kg]
Details

Attaches to the MHTA3013 Load Trolley. MHMA3181 Cable and Hose Saddle supports a hose width of 1.5 in. [38.1mm] and reduces stack-up widths.

  • Attaches to the MHTA3013 Load Trolley.
  • Bolt-On Saddle.
  • Supports Hose and Cable Width of: 1.5 in. [38.1mm].
  • Allows minimal stack-up widths.

CAD drawing

Load Trolleys 10
Extended Load Trolley MHTA3009
MHTA3009Extended Load Trolley
Max capacity
60 lbs. [27kg].
Weight
3.1 lbs. [1.41kg]
Details

Knight Global's MHTA3009 Extended Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 or HAD3500 Series Aluminum Rail Systems.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Low Profile Anti Kick-Up Load Trolley MHTA3010
MHTA3010Low Profile Anti Kick-Up Load Trolley
Max capacity
125 lbs. [56kg].
Weight
3 lbs. [1.36kg]
Details

Knight Global's MHTA3010 Low Profile Anti Kick-Up Load Trolley transfers loads along the horizontal axis and suspends Hand Tools from Knight's HAD3000 Series Aluminum Rail Systems. Knight's Anti Kick-Up design is used for cantilevered loads.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 Series Rail.
  • Reduces stack-up heights by: 3.67 in. [93mm].
  • Has an anti kick-up design for cantilevered loads.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Low Profile Load Trolley MHTA3011
MHTA3011Low Profile Load Trolley
Max capacity
60 lbs. [27kg].
Weight
1.8 lbs. [.80kg]
Details

Knight Global's MHTA3011 Low Profile Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 or HAD3500 Series Aluminum Rail Systems.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Low Profile Load Trolley with Mount MHTA3013
MHTA3013Low Profile Load Trolley with Mount
Weight
1.9 lbs. [0.86kg]
Details

Knight Global's MHTA3013 Load Trolley with Cable Saddle carries festooned hose and cable used in hose management kits for Knight's HAD3000 or HAD3500 Series Aluminum Rail Systems. Knight's MHTA3013 attaches to Knight's MHMA3180 or MHMA3181 Cable Saddle.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Attaches to Knight’s MHMA3180 or MHMA3181 Cable Saddle.
  • Carries festooned cable and hose used in hose management kits.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Dual Low Profile Load Trolley MHTA3016
MHTA3016Dual Low Profile Load Trolley
Max capacity
125 lbs. [56kg]
Weight
5.9 lbs. [2.68kg]
Details

Knight Global's MHTA3016 Low Profile Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 or HAD3500 Series Aluminum Rail Systems. Knight's Dual Trolley design provides added stability to prevent the trolley from rocking.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Dual Extended Load Trolley MHTA3018
MHTA3018Dual Extended Load Trolley
Max capacity
125 lbs. [56kg].
Weight
8.6 lbs. [3.9kg]
Details

Knight Global's MHTA3018 Extended Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 or HAD3500 Series Aluminum Rail Systems. Knight's Dual Trolley design provides added stability to prevent the trolley from rocking.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Dual load trolleys provide added stability.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Extended Anti Kick-Up Load Trolley MHTA3027
MHTA3027Extended Anti Kick-Up Load Trolley
Max capacity
60 lbs. [27kg].
Weight
4.4 lbs. [1.98kg]
Details

Knight Global's MHTA3027 Extended Anti Kick-Up Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 Series Aluminum Rail Systems. Knight's Anti Kick-Up design is used for cantilevered loads.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 Series Rail.
  • Has an anti kick-up design for cantilevered loads.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Dual Extended Anti Kick-Up Load Trolley MHTA3028
MHTA3028Dual Extended Anti Kick-Up Load Trolley
Max capacity
125 lbs. [56kg].
Weight
9.9 lbs. [4.5kg]
Details

Knight Global's MHTA3028 Extended Anti Kick-Up Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight's HAD3000 Series Aluminum Rail Systems. Knight's Anti Kick-Up design is used for cantilevered loads and the Dual Trolley design provides added stability to prevent the trolley from rocking.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 Series Rail.
  • Dual load trolleys provide added stability.
  • Has an anti kick-up design for cantilevered loads.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Dual Low Profile Anti Kick-Up Load Trolley MHTA3029
MHTA3029Dual Low Profile Anti Kick-Up Load Trolley
Max capacity
125 lbs. [56kg].
Weight
7.1 lbs. [3.22kg]
Details

Knight Global's MHTA3029 Low Profile Anti Kick-Up Load Trolley transfers loads along the horizontal axis and suspends Knight Air Balancers and fixtures from Knight's HAD3000 Series Aluminum Rail Systems. Knight's Anti Kick-Up design is used for cantilevered loads and the low profile design reduces stack-up heights by 3.67 in. [93mm].

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 Series Rail.
  • Has an anti kick-up design for cantilevered loads.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Balancer Load Trolley MHTA3031
MHTA3031Balancer Load Trolley
Max capacity
125 lbs. [56kg].
Weight
8.4 lbs. [3.80kg]
Details

Knight Global's MHTA3031 Balancer Load Trolley transfers loads along the horizontal axis and suspends Knight Air Balancers from Knight Global's HAD3000 or HAD3500 Series Aluminum Rail Systems.

Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

  • Travels along the HAD3000 or HAD3500 Series Rail.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

End Caps / Stops 3
End Cap with 1" NPT Air Outlet MHAA3019
MHAA3019End Cap with 1" NPT Air Outlet
Details

The MHAA3019 End Cap with Air Outlet attaches to the end of the HAD3000 series rail. It is used to supply plant air to the HAD3000 rail and prevents the load trolley from exiting the rail.

  • Splices the HAD3000 Series Rail.
  • Bolt-On End Cap with 1″ NPT Air Inlet (HAD3000 Only).
  • Bolt-on kit eliminates need to weld bosses.

CAD drawing

End Cap or Mid-Rail Stop MHAA3020
MHAA3020End Cap or Mid-Rail Stop
Details

The MHAA3020 End Cap or Mid-Rail Stop attaches to the HAD3000 or HAD3500 series rail. When used as a mid-rail stop, it is typically used to separate the working area of the rail. When used as an end cap it prevents the load trolley from exiting the rail.

  • Attaches to the HAD3000 and HAD3500 Series Rail.
  • Bolt-On End Cap or Mid-Rail Stop.
  • Can be used as an End Cap or Mid-Rail Stop.
  • Can separate the working area of a rail or prevent a load trolley from exiting the rail.

CAD drawing

End Cap with Shock MLRA9504
MLRA9504End Cap with Shock
Weight
6.5 lbs. [2.94kg]
DetailsKnight Global's MLRA9504 End Cap with Shock attaches to the end of the LRD9500 Series Rail. The MLRA9504 End Cap with Shock absorbs up to 229 ft. lbs. [311Nm] of striking force from the load trolley to reduce the impact on the end cap. Knight's MLRA9504 is required for applications using a Telescoping Bridge, Servo Hoist, or where the load trolley will frequently contact the end of the rail.
  • Attaches to the LRD9500 Series Rail.
  • Shock Diameter: 1 in. [25mm].
  • Shock Length: 7.15 in. [181mm].
  • Shock Absorbs up to 229 ft. lbs. [311Nm).
  • Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).

CAD drawing

Splice Kits 3
Splice Kit MHAA3012
MHAA3012Splice Kit
Details

Bolt-on kit that connects or joins (2) two sections of the HAD3000 series rail. The MHAA3012 "O" ring seal provides an air tight seal for applications using the HAD3000 rail as fluid power or air distributor.

  • Splices the HAD3000 Series Rail.
  • Bolt-On Splice Kit.
  • “O” ring seal provides air tight seal for applications using the HAD3000 rail as fluid power or air distributor.

CAD drawing

Splice Kit MHAA3021
MHAA3021Splice Kit
Details

Knight Global's MHAA3021 Splice Kit is a bolt-on kit that connects or joins (2) two sections of the HAD3500 Series Rail.

  • Splices the HAD3500 Series Rail.
  • Bolt-On Splice Kit.

CAD drawing

Splice Kit MLRA9505
MLRA9505Splice Kit
Weight
6.5 lbs. [2.94kg]
DetailsKnight Global's MLRA9505 Splice Kit is a bolt-on kit that connects or joins (2) two sections of LRD9500 series rail without the need to weld bosses and provides an easier access to the head bolts.
  • Splices (2) sections of the LRD9500 Series Rail.
  • Bolt-On Splice Kit.
  • Bolt-on kit eliminates need to weld bosses.
  • Coated with an environmentally friendly corrosion protection.** (Autophoretic ACC 900®).

CAD drawing

Technical documents

Brochure

CAD Drawings

Installation Guides

Manuals

Spec Sheet

More in this category

Curved aluminum rail series
Curved aluminum rail series
DSD quick connect star rail series
DSD quick connect star rail series
Enclosed track aluminum rail series
Enclosed track aluminum rail series
eRail electrified rail systems
eRail electrified rail systems
Floor mounted rail systems
Floor mounted rail systems
RAD series switch track rail
RAD series switch track rail

Need a Knight Global system configured?

Send photos, weight and dimensions of the load. FullSharp represents Knight Global and replies with a configuration and quotation within 24 hours.

Contact us
