Knight Global RAD Pneumatic Switch Track

RAD Series Switch Track Rail

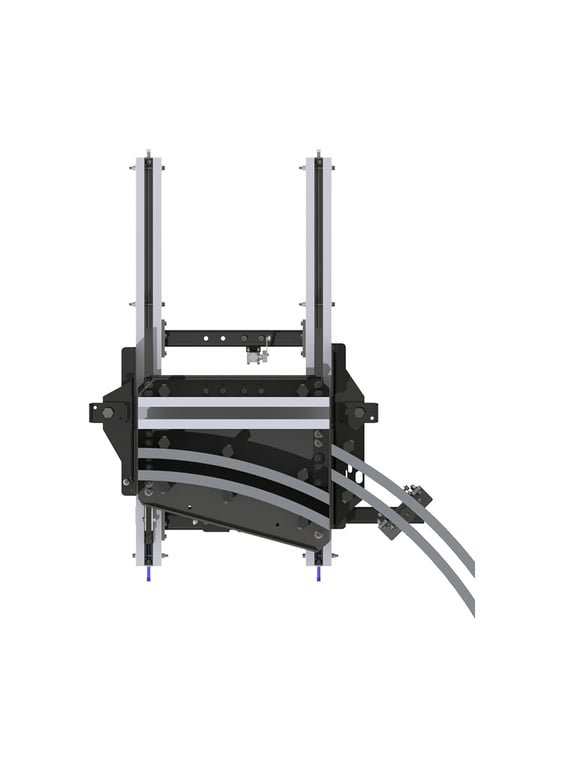

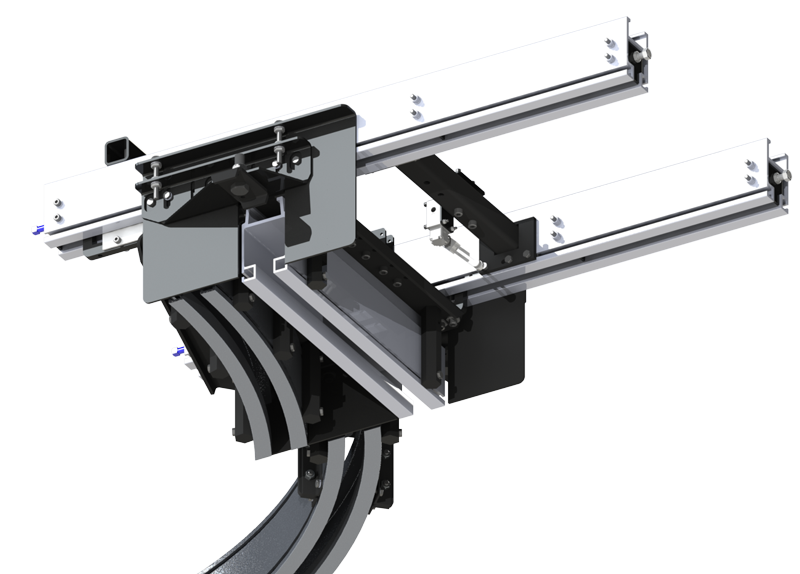

ISO View - RAD Switch Track — **ISO view - RAD switch track**

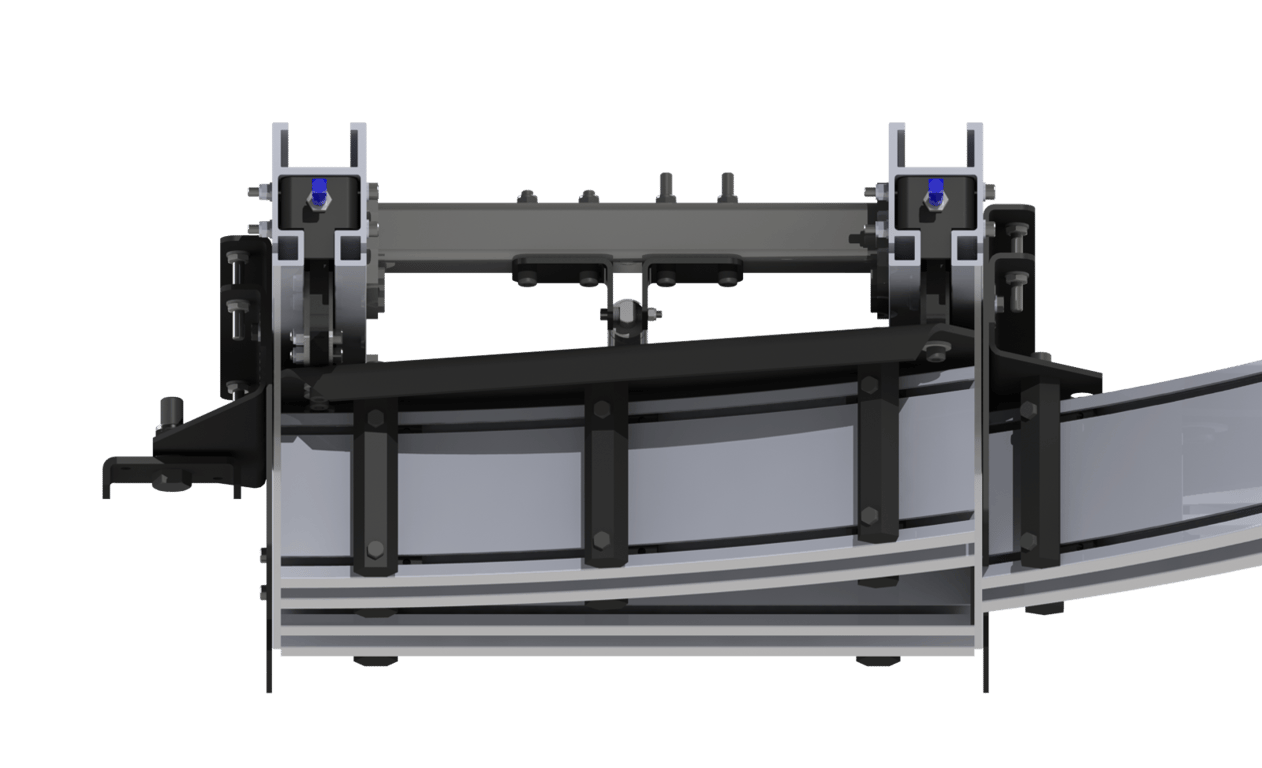

Side View - RAD Switch Track — **Side view - RAD switch track**

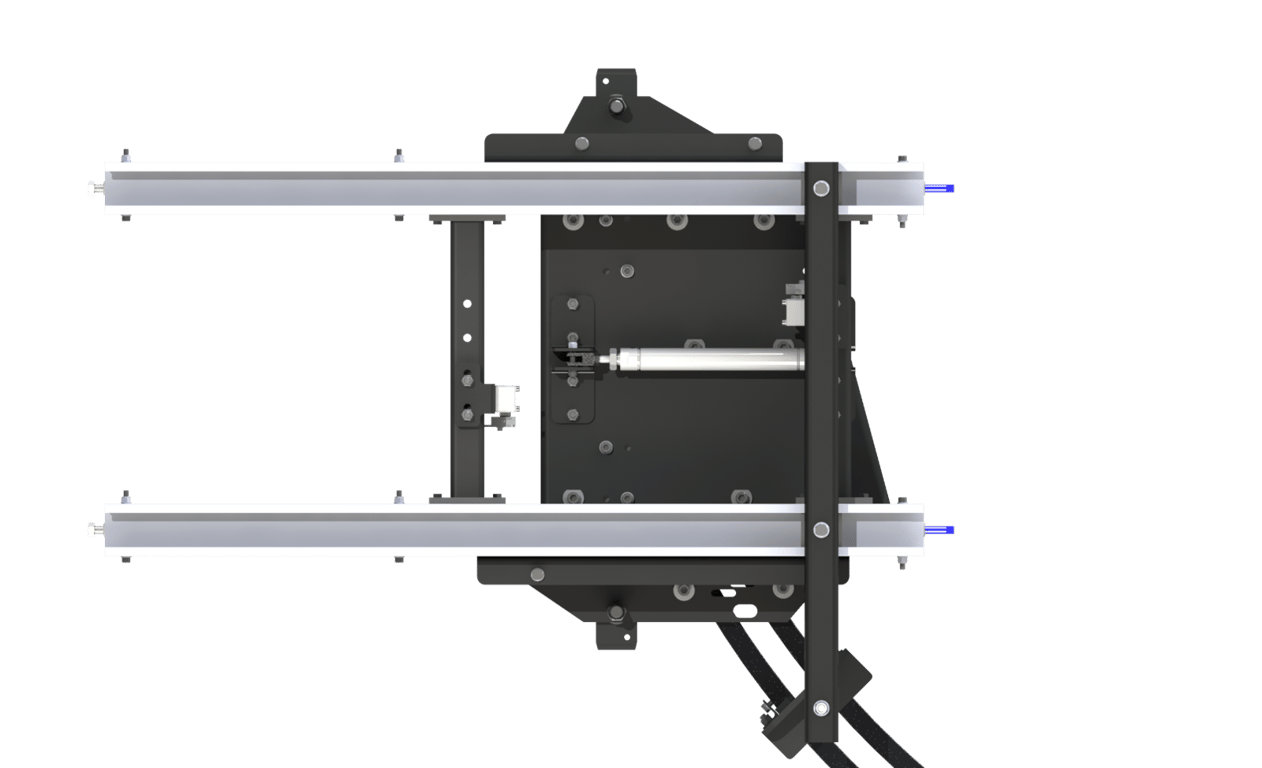

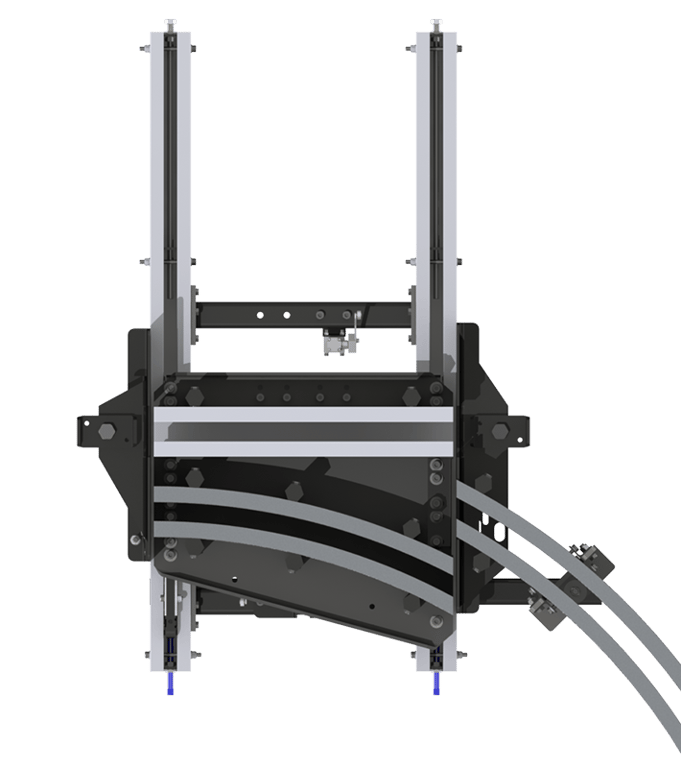

Top View - RAD Switch Track — **Top view - RAD switch track**

Pneumatically Operated Switch Track

Series: RAD6110 Switch Track

The Knight Global RAD Series Switch Track Rail transfers tooling between work areas without the need for cranes or forklifts or dismantling the system. It is a pneumatically operated rail system that can be controlled from the handle controls on the tooling or from a pendant switch below the switch track.

The product is designed for the RAD6110 rail system. Each RAD Series switch track is a custom design built for the customer's specific application. Any Knight Global trolley can run inside the switch track without special end trucks.

*Note: This product is custom-designed for each application. For a configuration suited to your project, please contact a FULLSHARP representative.

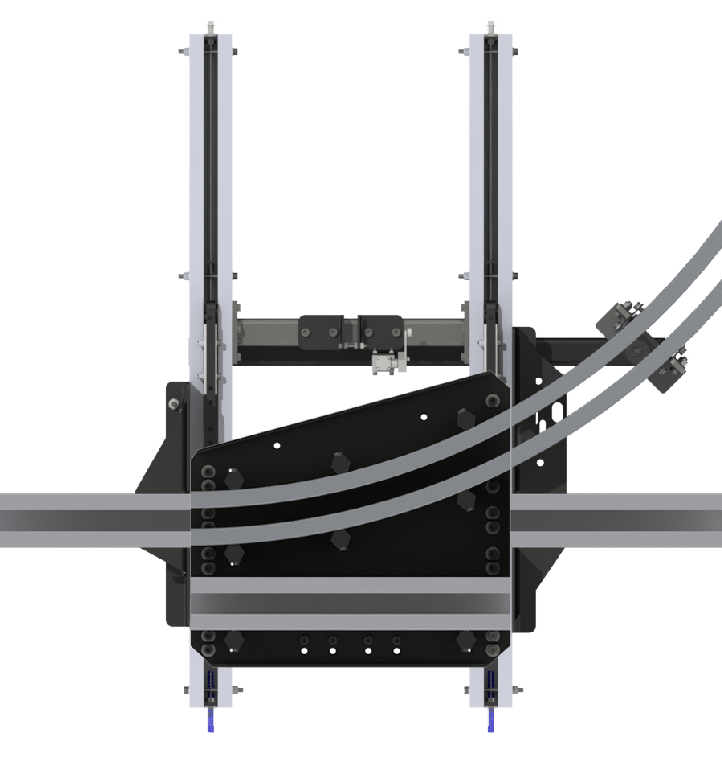

Operation Simulation

Features & Benefits

Features

Transfers tooling between workstations.
Pneumatically operated.
For the RAD6110 rail system.
Controlled from the tooling handle or a pendant switch.
Custom designed for each specific application.

Benefits

Any Knight Global trolley can run inside the switch track.
No special end trucks required.
Saves changeover time between production stations.
Reduces investment in auxiliary cranes and forklifts.
Increases production line flexibility.

Key Specifications

Item	Value
Product	RAD Series Switch Track Rail
Compatible rail	RAD6110
Operation	Pneumatic
Control	Tooling handle or pendant switch
Load type	Direct load
Design	Custom, per application
Compatible trolleys	All Knight Global trolleys

Videos

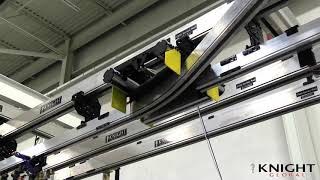

Hệ thống Switch Track Rail (Tổng quan)

RAD Series Switch Track Rail

Hanger Accessories

Compatible Rails: RAD4110 / RAD6110 / RAD7510

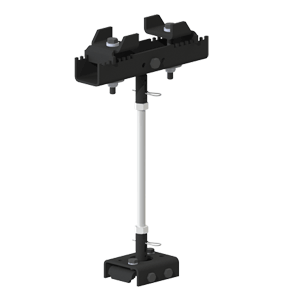

Móc treo I-Beam dạng thanh kéo dài có quả cầu (cánh dầm 2"-7") — **Extended Ball-Rod I-Beam Hanger (2"-7" flange)**MRHS40471
Height-adjustable hanger for direct loading. Suspends RAD4110/RAD6110/RAD7510 rail systems. Supported flange width: 51-178mm. Max. I-beam flange thickness: 7/16" (11mm). Includes 1 ft of threaded rod, 2 lock nuts and 2 spring clips.
**Weight:** 4.63 kg [10.2 lbs]
RAD4110 · RAD6110 · RAD7510

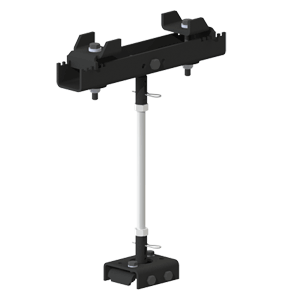

Móc treo I-Beam dạng thanh kéo dài có quả cầu (cánh dầm 7"-11") — **Extended Ball-Rod I-Beam Hanger (7"-11" flange)**MRHS40511
Height-adjustable hanger for direct loading. Supported flange width: 178-279mm. Max. I-beam flange thickness: 7/16". Includes 1 ft of threaded rod, 2 lock nuts and 2 spring clips. Eco-friendly corrosion-resistant coating (Autophoretic ACC 900®).
**Weight:** 5.13 kg [11.3 lbs]
RAD4110 · RAD6110 · RAD7510

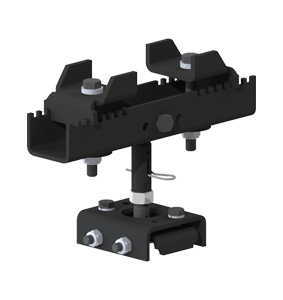

Móc treo I-Beam dạng thanh có quả cầu (cánh dầm 2"-7") — **Ball-Rod I-Beam Hanger (2"-7" flange)**MRHS40361
Height-adjustable hanger for direct loading. Flange width: 51-178mm. Max. I-beam flange thickness: 7/16". Includes 1 lock nut and 1 spring clip. Optional RWA4133 safety cable.
**Weight:** 4.17 kg [9.2 lbs]
RAD4110 · RAD6110 · RAD7510

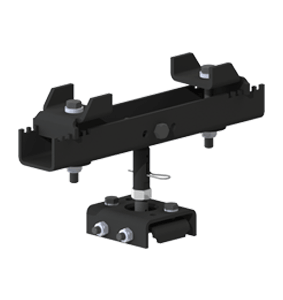

Móc treo I-Beam dạng thanh có quả cầu (cánh dầm 7"-11") — **Ball-Rod I-Beam Hanger (7"-11" flange)**MRHS40431
Height-adjustable hanger for direct loading. Supported flange width: 178-279mm. Max. I-beam flange thickness: 7/16". Includes 1 lock nut and 1 spring clip.
**Weight:** 4.54 kg [10.0 lbs]
RAD4110 · RAD6110 · RAD7510

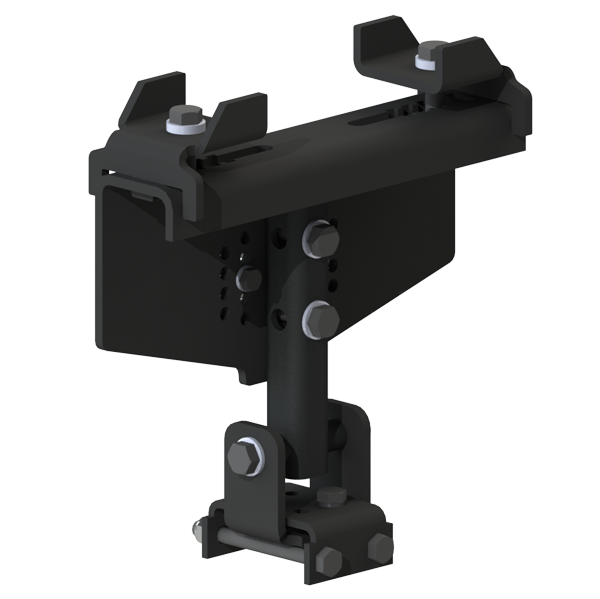

Móc treo I-Beam (cánh dầm 2"-7") — **I-Beam Hanger (2"-7" flange)**MRHS40384
For direct or offset loading. **Vertical adjustment up to 50.8mm** (6.35mm increments). Supported flange width: 51-178mm. **Max. I-beam flange thickness: 5/8"**. Supporting steel can run perpendicular or parallel to the Knight rail.
**Weight:** 6.33 kg [13.9 lbs]
RAD4110 · RAD6110 · RAD7510

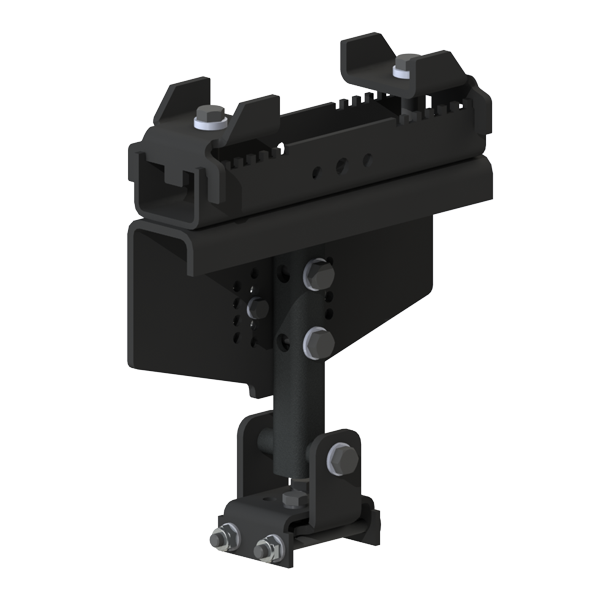

Móc treo I-Beam dạng kéo dài (cánh dầm 2"-7") — **Extended I-Beam Hanger (2"-7" flange)**MRHS40385
For direct or offset loading. Vertical adjustment up to 50.8mm (6.35mm increments). Supported flange width: 51-178mm. Max. I-beam flange thickness: 7/16". Autophoretic ACC 900® corrosion-resistant coating.
**Weight:** 7.75 kg [17.1 lbs]
RAD4110 · RAD6110 · RAD7510

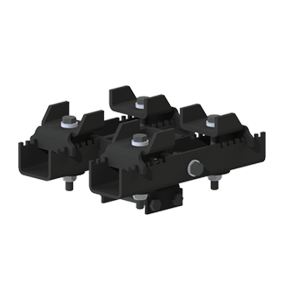

Móc treo I-Beam Short Stack (vuông góc với I-Beam, cánh dầm 2"-7") — **Short Stack I-Beam Hanger (perpendicular to I-beam, 2"-7" flange)**MRHS40771
For direct or offset loading. Supported flange width: 51-178mm. Max. I-beam flange thickness: 7/16". Fixed-height hanger. Supporting steel must run **perpendicular** to the Knight rail.
**Weight:** 7.14 kg [15.7 lbs]
RAD4110 · RAD6110 · RAD7510

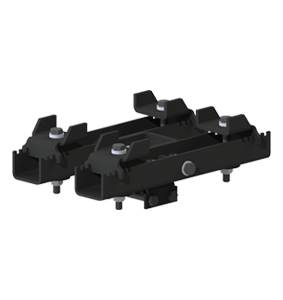

Móc treo I-Beam Short Stack (vuông góc với I-Beam, cánh dầm 7"-11") — **Short Stack I-Beam Hanger (perpendicular to I-beam, 7"-11" flange)**MRHS40781
For direct or offset loading. Supported flange width: 178-279mm. Max. I-beam flange thickness: 7/16". Fixed-height hanger.
**Weight:** 8.29 kg [18.3 lbs]
RAD4110 · RAD6110 · RAD7510

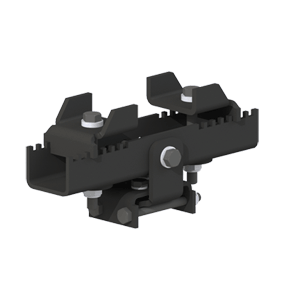

Móc treo I-Beam Short Stack (song song với I-Beam, cánh dầm 2"-7") — **Short Stack I-Beam Hanger (parallel to I-beam, 2"-7" flange)**MRHS40821
For direct or offset loading. Supported flange width: 51-178mm. Max. I-beam flange thickness: 7/16". Fixed-height hanger. Supporting steel runs **parallel** to the Knight rail.
**Weight:** 3.63 kg [8.0 lbs]
RAD4110 · RAD6110 · RAD7510

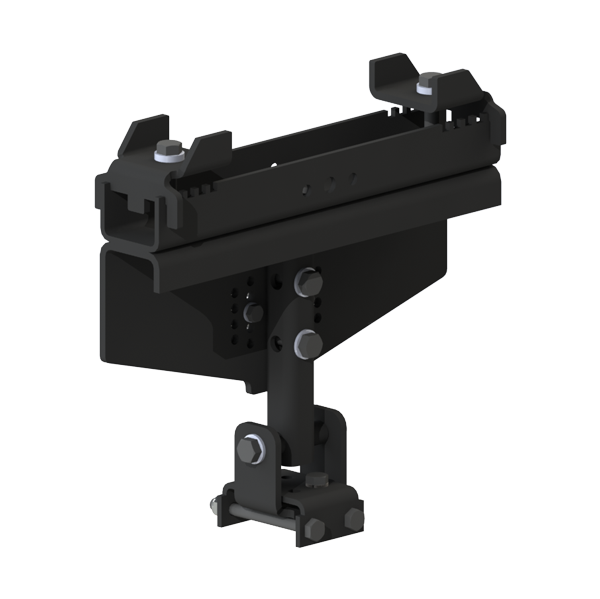

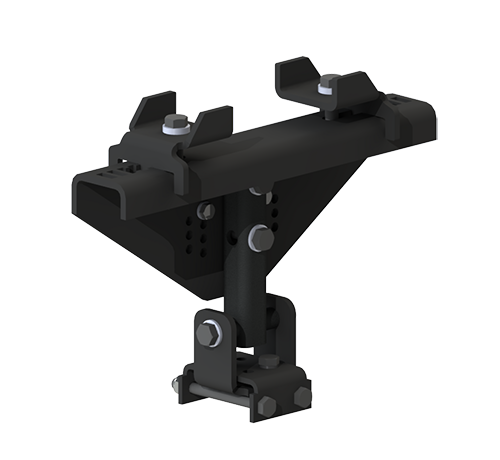

Móc treo I-Beam dạng kéo dài (cánh dầm 7"-11") — **Extended I-Beam Hanger (7"-11" flange)**MRHS42182
For direct or offset loading. Vertical adjustment up to 38mm (6.35mm increments). Supported flange width: 178-279mm. Max. I-beam flange thickness: 5/8".
**Weight:** 6.61 kg [14.6 lbs]
RAD4110 · RAD6110 · RAD7510

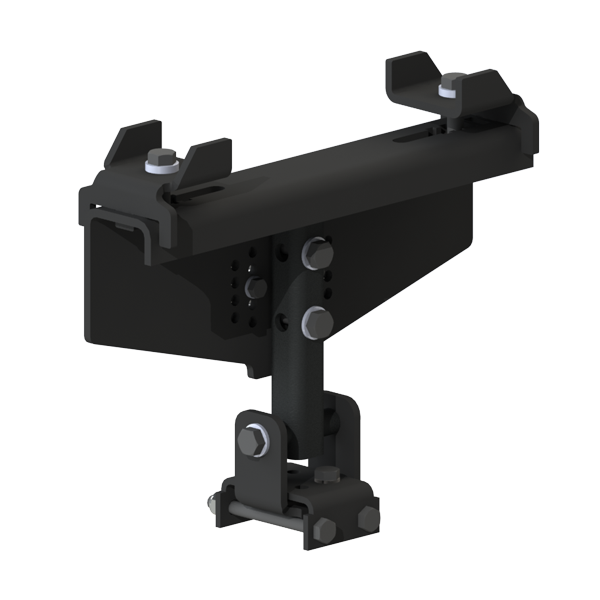

Móc treo I-Beam (cánh dầm 7"-11") — **I-Beam Hanger (7"-11" flange)**MRHS42184
For direct or offset loading. **Vertical adjustment up to 50.8mm** (6.35mm increments). Supported flange width: 178-279mm. Max. I-beam flange thickness: 5/8". Supporting steel can run perpendicular or parallel to the Knight rail.
**Weight:** 7.07 kg [15.6 lbs]
RAD4110 · RAD6110 · RAD7510

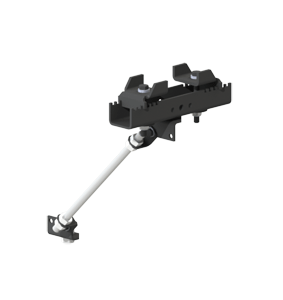

Thanh giằng chống lắc V-Sway Brace (cánh dầm 2"-7") — **V-Sway Brace (2"-7" flange)**MRWS40161
Stabilizes RAD4110/RAD6110/RAD7510 rail systems. Supported flange width: 51-178mm. Use when the hanger threaded rod length is 0.6m or more. Max. I-beam flange thickness: 7/16". Includes 6 lock nuts.
**Weight:** 3.95 kg [8.7 lbs]
RAD4110 · RAD6110 · RAD7510

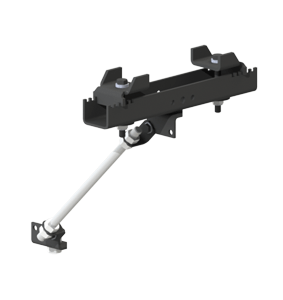

Thanh giằng chống lắc V-Sway Brace (cánh dầm 7"-11") — **V-Sway Brace (7"-11" flange)**MRWS41431
Stabilizes RAD4110/RAD6110/RAD7510 rail systems. Supported flange width: 178-279mm. Use when the hanger threaded rod length is 0.6m or more. Max. I-beam flange thickness: 7/16". Includes 6 lock nuts.
**Weight:** 4.45 kg [9.8 lbs]
RAD4110 · RAD6110 · RAD7510

Technical Documents

Brochure

Manuals

Installation Guides

FULL-SHARP AUTOMATIZED VN (FULLSHARP)
Authorized distributor of Knight Global aluminum rail and lifting equipment in Vietnam
For a RAD6110 switch track rail configuration suited to your project, please contact a FULLSHARP representative for a quotation and detailed design drawings.
