FSCDD-CL Electric Crucible Lifter with Dumping

500 – 1,000 kg, 1.6 – 3 m lift
Round tub clamp Ø100 – 1,200 mm with dumping
Wireless remote control
Powered travel and lift, electromagnetic brake

FSCDD-CL Electric Crucible Lifter with Dumping

The FSCDD-CL is an electric lifter with a tub clamp and dumping mechanism for safely lifting large tubs of salt, soy sauce, sauces, seasonings and other food ingredients, then dumping, stacking and palletising them.

A wireless remote makes clamping, lifting and tipping fast and precise. Capacity 500 – 1,000 kg, 1.6 – 3 m lift, five models by tub diameter from 100 to 1,200 mm.

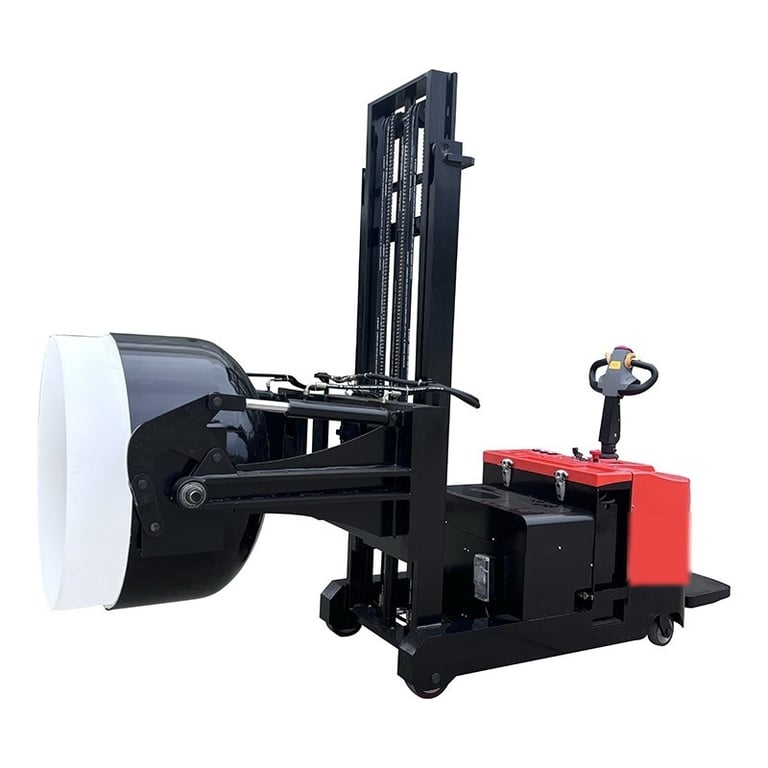

FSCDD-CL Electric Crucible Lifter with Dumping – photo 1

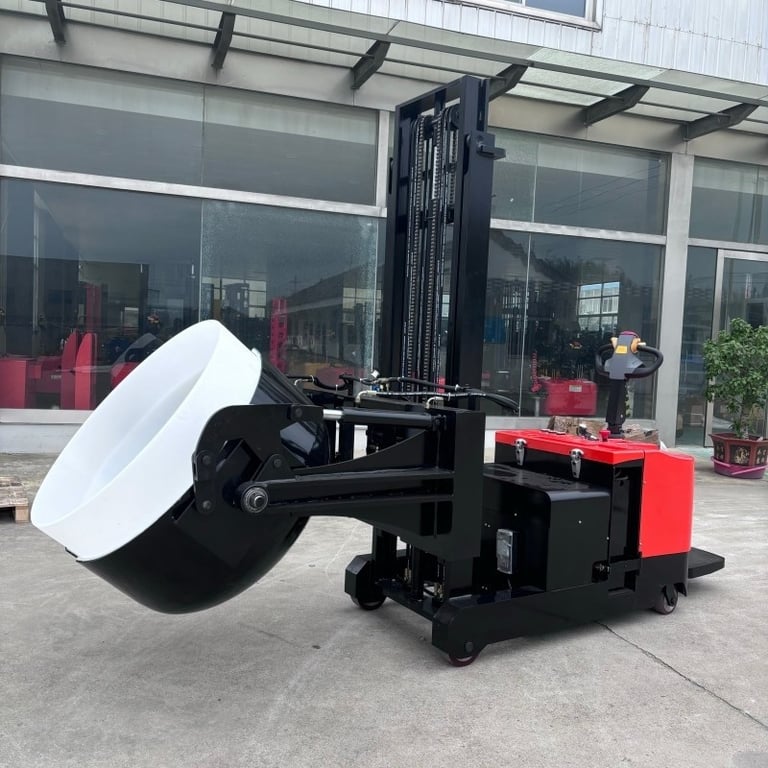

FSCDD-CL Electric Crucible Lifter with Dumping – photo 2

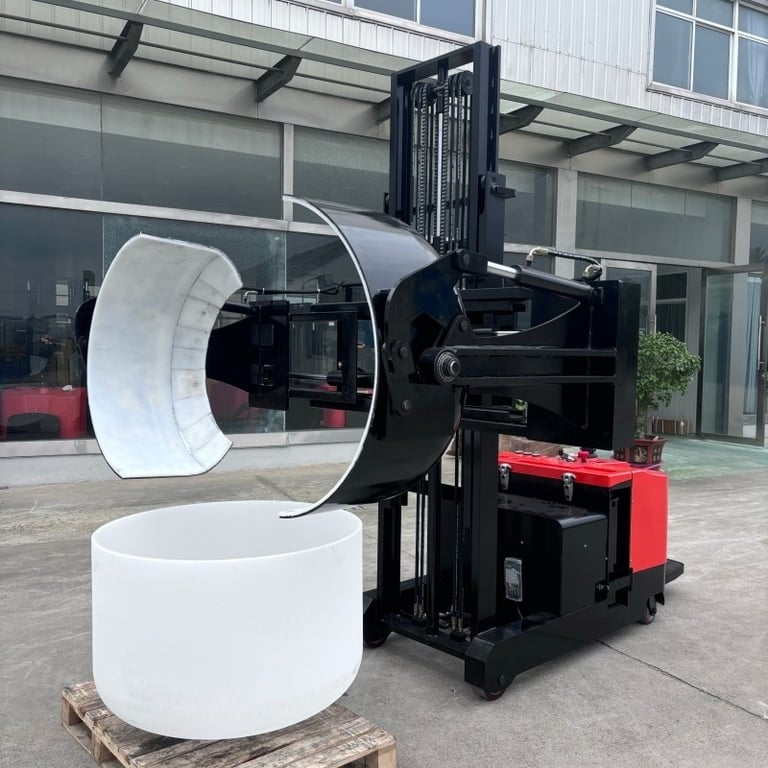

FSCDD-CL Electric Crucible Lifter with Dumping – photo 3

Key features

Durable self-levelling clamp holds tubs steadily without slipping
Powered lifting, travel, dumping and stacking
Wireless remote for easy operation while dumping
EPS handle with stepless speed control and a compact control panel
Wear-resistant, smooth PU wheels; high-capacity battery

Specifications

Model	FSCDD0516-CL	FSCDD1016-CL	FSCDD0525-CL	FSCDD1025-CL	FSCDD1030-CL
Load capacity (kg)	500	1,000	500	1,000	1,000
Max. lift height (mm)	1,600	1,600	2,500	2,500	3,000
Tub diameter (mm)	800 – 1,200	600 – 1,000	400 – 800	200 – 600	100 – 400
Unit weight (kg)	710	730	760	790	830
Overall size L × W × H (mm)	2,500 × 1,650 × 2,000	2,300 × 1,450 × 2,000	2,100 × 1,250 × 1,780	2,000 × 1,050 × 1,780	2,000 × 850 × 2,050
Working aisle (mm)	2,600	2,400	2,200	2,100	2,100
Travel aisle (mm)	1,700	1,500	1,300	1,100	900

Common specifications

Battery24V / 200Ah
Charger24V / 30A
Lift motor2.5 kW
Drive motorAC 1.5 kW
Gradeability (laden / unladen)4 / 6 %
ControlEPS handle and wireless remote
BrakeElectromagnetic
CertificatesCE, ISO, TUV, GS

Product photos

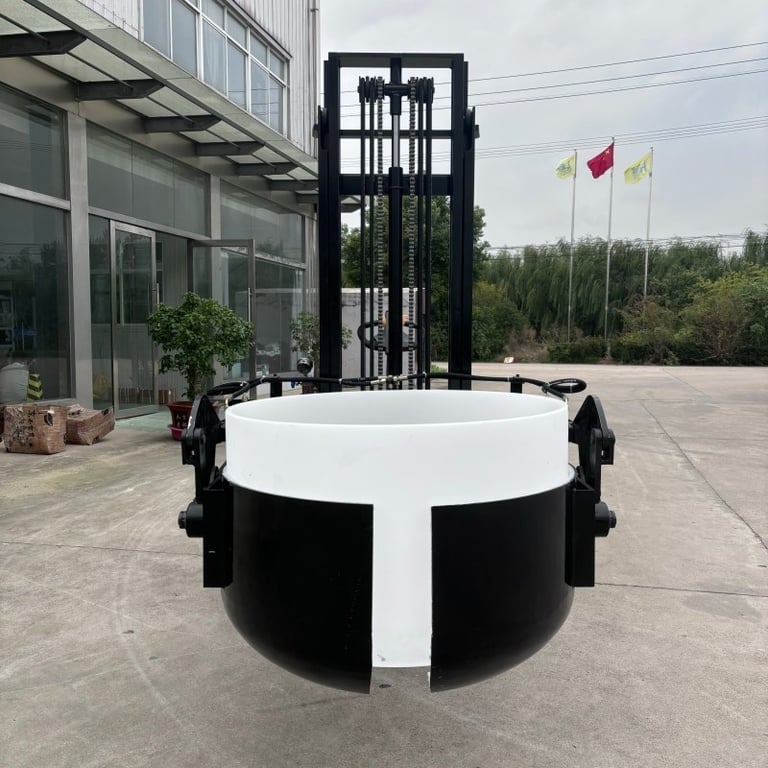

FSCDD-CL Electric Crucible Lifter with Dumping – photo 4

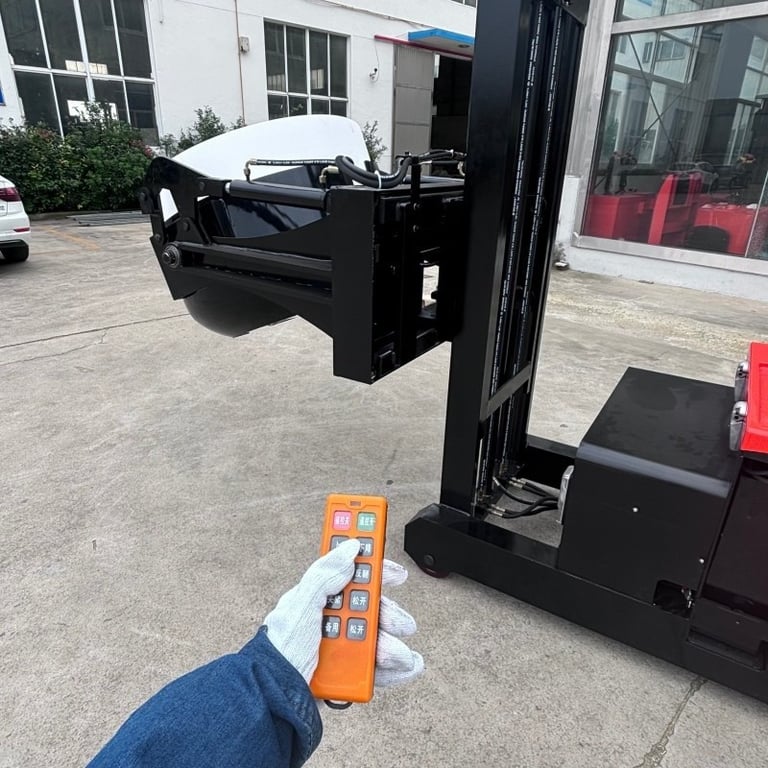

FSCDD-CL Electric Crucible Lifter with Dumping – photo 5

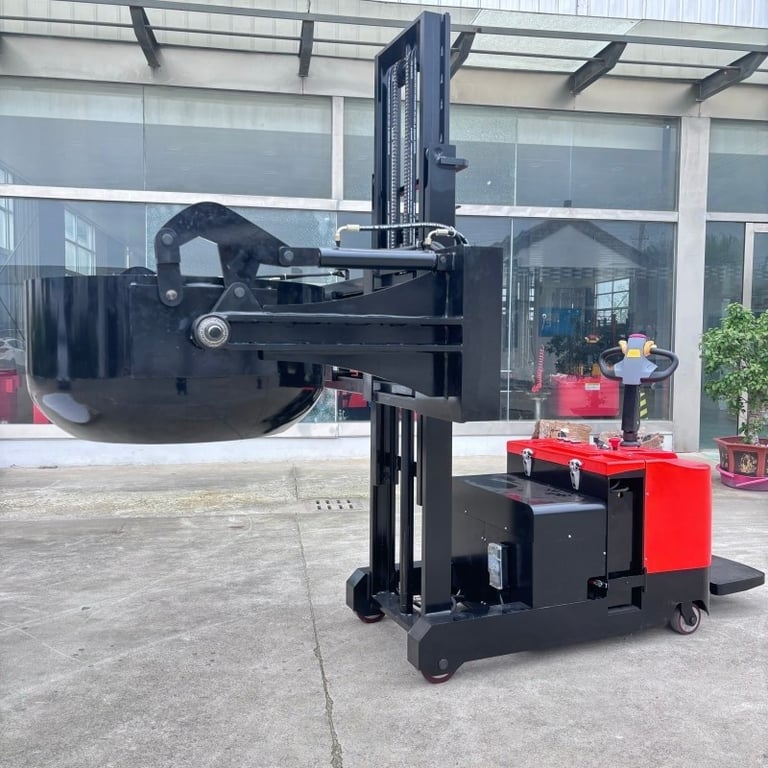

FSCDD-CL Electric Crucible Lifter with Dumping – photo 6

Applications

Salt, soy sauce, dipping sauce and seasoning plants
Food processing: moving and tipping ingredients
Tub storage and palletising

Capacity, lift height and clamp can be designed to your requirements. Contact FullSharp for the right model.
