FS-Q6L Intelligent Balancing Electric Hoist 100kg-600kg

Download PDF spec sheet

Note: See Optional Control Handles for detailed handle configurations

FS-Q6L INTELLIGENT

BALANCING ELECTRIC HOIST

PRODUCT FEATURES

Product Features

⇧

Automatic Slowdown
at Upper Limit

⚙

Handle Mode

≈

Float Mode

◎

Precise Positioning

⚠

Overload Protection

⏳

Stepless Speed Control

⚡

Photoelectric Sensor

↶

Anti-Rebound

⏻

Power-Loss Protection

HANDLE CONFIGURATION DIAGRAM

Configuration Diagram

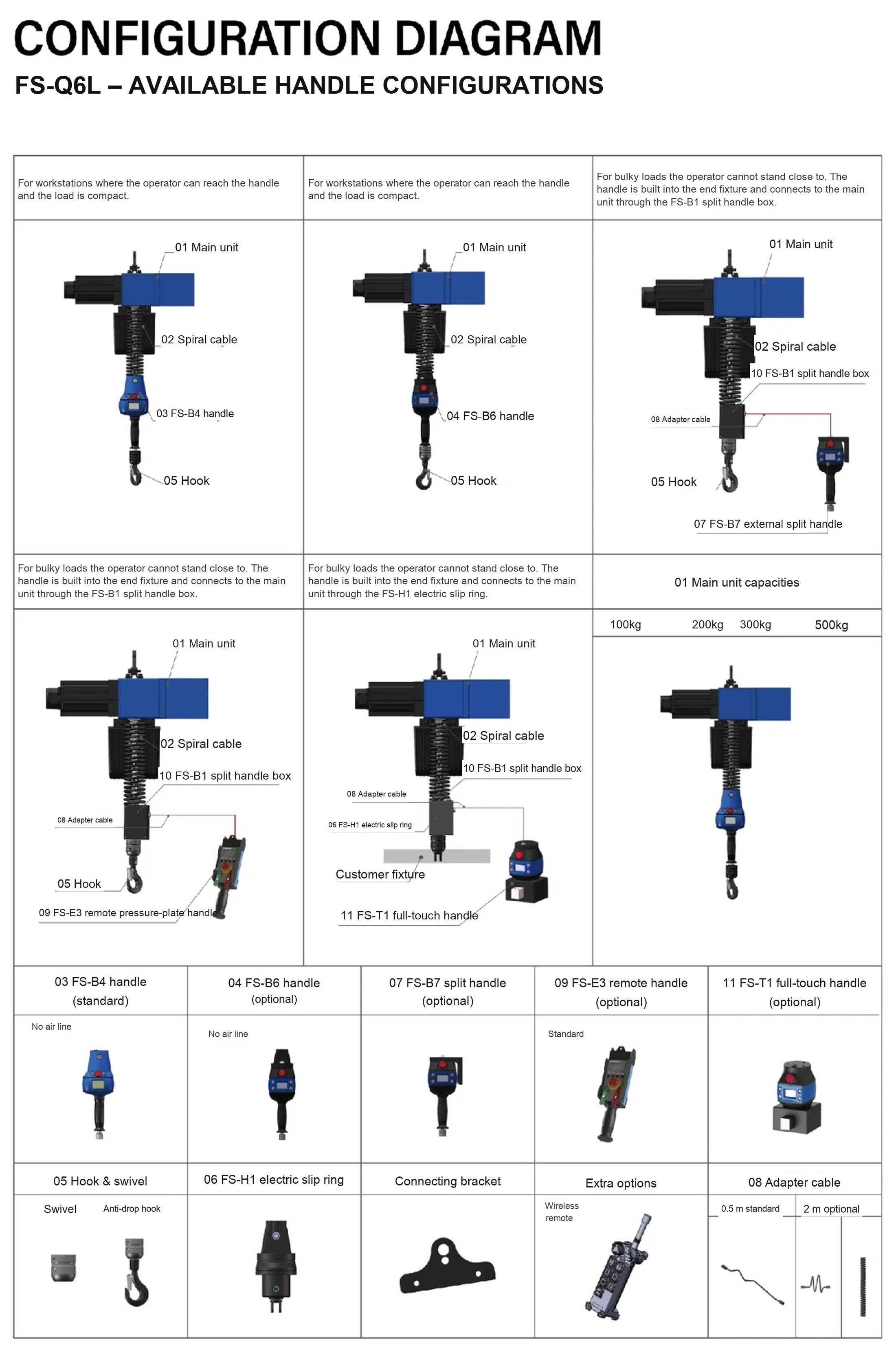

The FS-Q6L can be fitted with 5 handle configurations, chosen by where the operator stands and how bulky the load is:

Operator can reach the handle, compact load: FS-B4 handle (standard) or FS-B6 handle (optional).
Bulky load, operator cannot stand close: the handle is built into the end fixture and connects to the main unit through the FS-B1 split handle box and an adapter cable (0.5 m standard, 2 m optional). Choose the FS-B7 external split handle or the FS-E3 remote pressure-plate handle.
Customer-supplied fixture: use the FS-T1 full-touch handle, connected to the main unit through the FS-H1 electric slip ring.
Optional accessories: anti-drop hook and swivel assembly, FS-H1 electric slip ring, connecting bracket, wireless remote.

Click the image to enlarge.

SPECIFICATIONS

Product Specifications and Dimensions

MODELITEM	FS-Q6L010-B6	FS-Q6L020-B6	FS-Q6L030-B6	FS-Q6L050-B6	FS-Q6L060-B6
Rated load (kg)	100	200	300	500	600
Lifting speed (m/min)	0~16	0~13	0~11	0~10	0~8
Rated power (kW)	0.55	0.75	1.1	1.5	1.5
Standard lift (m)	2.8 (Customizable)
Control mode	Coaxial Slide Handle
Self weight (kg)	37	37	48	48	48
Chain size (mm)	5.0	5.0	6.3	6.3	6.3
Power supply	Standard 1-phase 220V (3-phase 380V)
Mechanism duty class	3m/M6
Operating temperature (°C)	-10°C ~ 55°C

Note: The above specifications are for model selection reference only. Please refer to the nameplate supplied with the product for actual specifications.
