FSCDD-D Rotating Roll Clamp Stacker

The FSCDD-D is an electric roll clamp stacker with a rotating clamp that grips cylindrical loads and rolls up to 1,200 mm in diameter, up to 1,000 kg, with up to 3 m lift. The clamp rotates to stand rolls upright or lay them flat.

It is widely used for paper, film, foil, textile and nonwoven rolls in printing, packaging and paper plants, carrying rolls to printers, slitters and finished-goods stores.

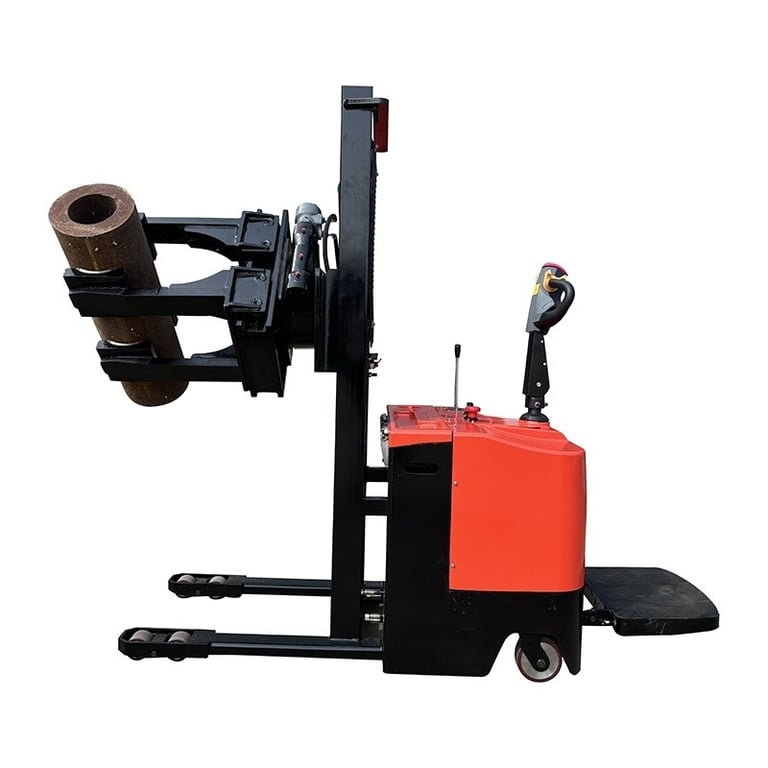

FSCDD-D Rotating Roll Clamp Stacker – photo 1

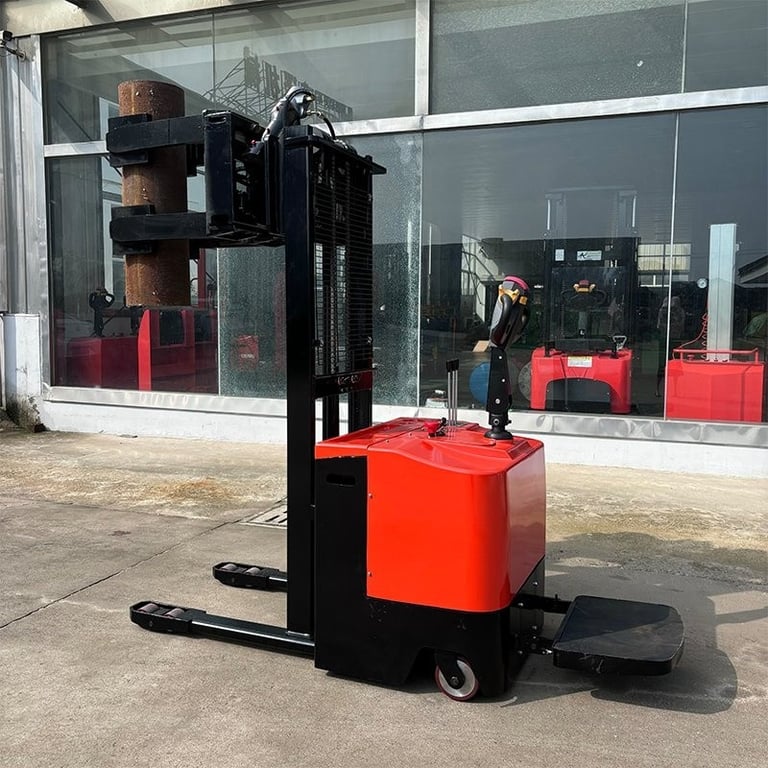

FSCDD-D Rotating Roll Clamp Stacker – photo 2

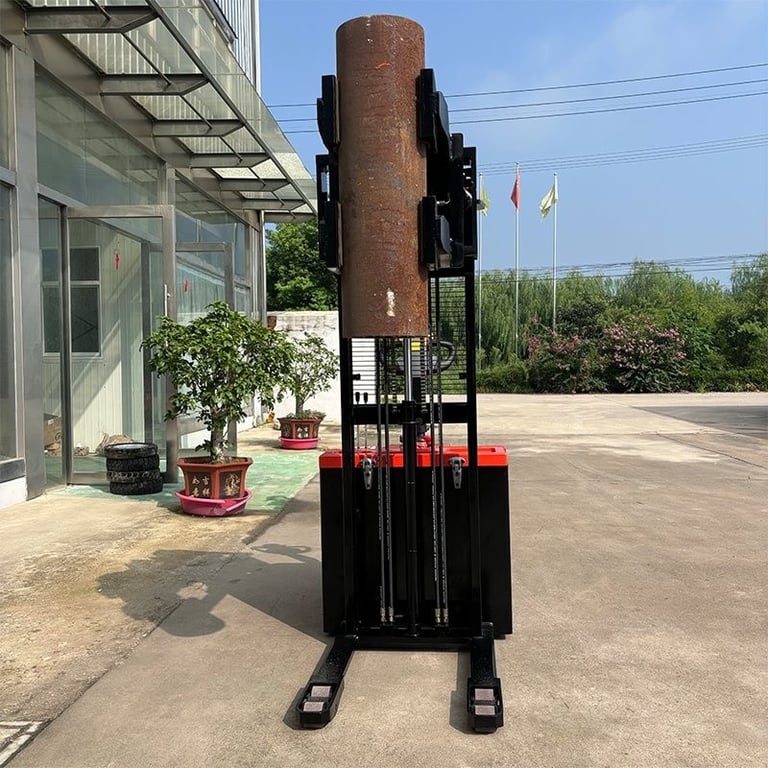

FSCDD-D Rotating Roll Clamp Stacker – photo 3

Key features

Powered travel and lift for quick, efficient roll handling
High-strength steel clamp arms give steady clamping force, no swaying or dropping
Vertical drive unit and dedicated gearbox kept away from dust and moisture, with good heat dissipation for long shifts
Five models by roll diameter from 100 to 1,200 mm

Specifications

Model	FSCDD0516-D	FSCDD1016-D	FSCDD0525-D	FSCDD1025-D	FSCDD1030-D
Load capacity (kg)	500	1,000	500	1,000	1,000
Max. lift height (mm)	1,600	1,600	2,500	2,500	3,000
Roll diameter (mm)	800 – 1,200	600 – 1,000	400 – 800	200 – 600	100 – 400
Unit weight (kg)	710	730	760	790	830
Overall size L × W × H (mm)	2,500 × 1,650 × 2,000	2,300 × 1,450 × 2,000	2,100 × 1,250 × 1,780	2,000 × 1,050 × 1,780	2,000 × 850 × 2,050
Working aisle (mm)	2,600	2,400	2,200	2,100	2,100
Travel aisle (mm)	1,700	1,500	1,300	1,100	900

Common specifications

Battery24V / 200Ah
Charger24V / 30A
Lift motor2.5 kW
Drive motorAC 1.5 kW
Gradeability (laden / unladen)4 / 6 %
Load centre500 mm
BrakeElectromagnetic
CertificatesCE, ISO, TUV, GS

Product photos

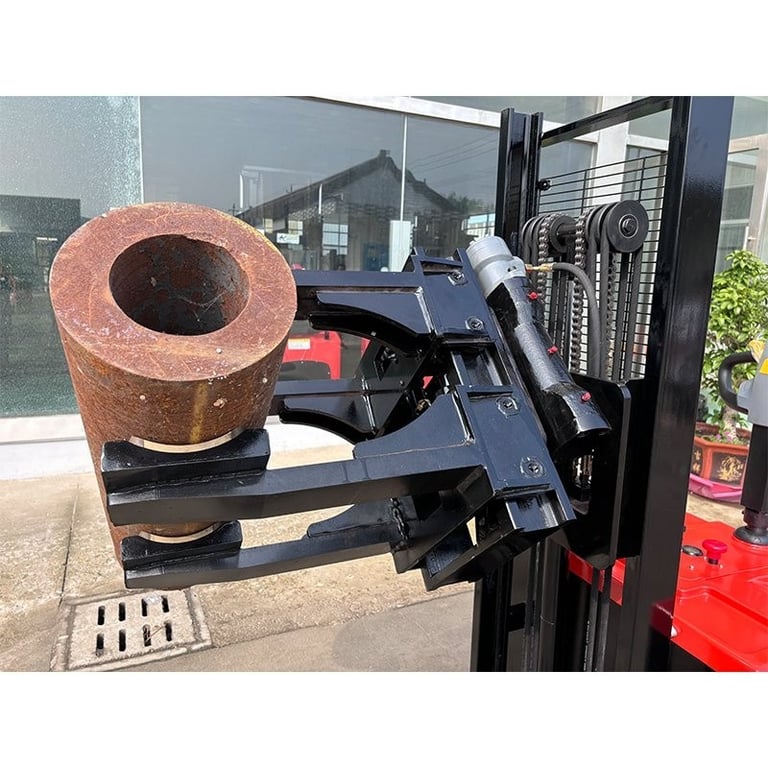

FSCDD-D Rotating Roll Clamp Stacker – photo 4

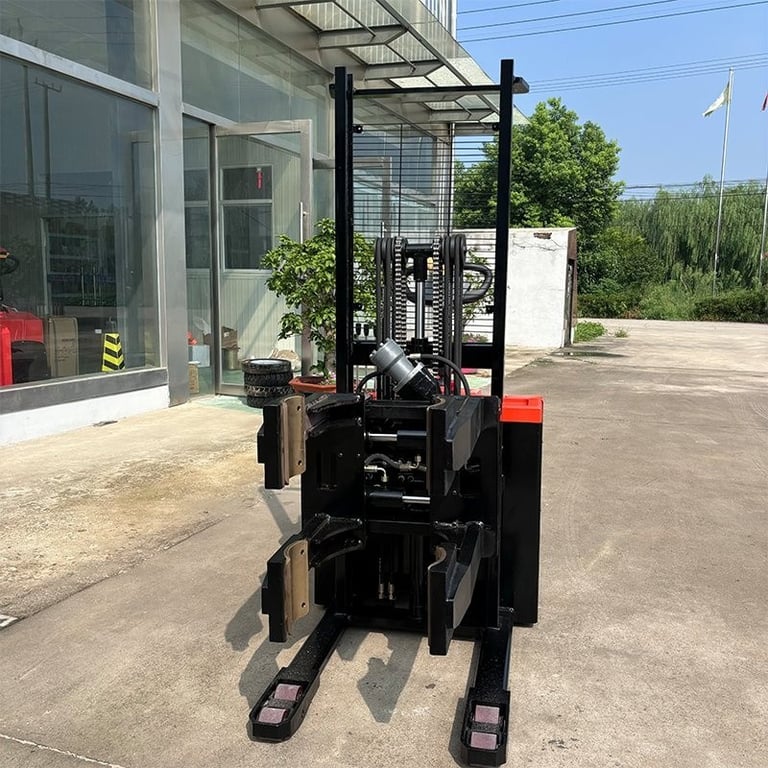

FSCDD-D Rotating Roll Clamp Stacker – photo 5

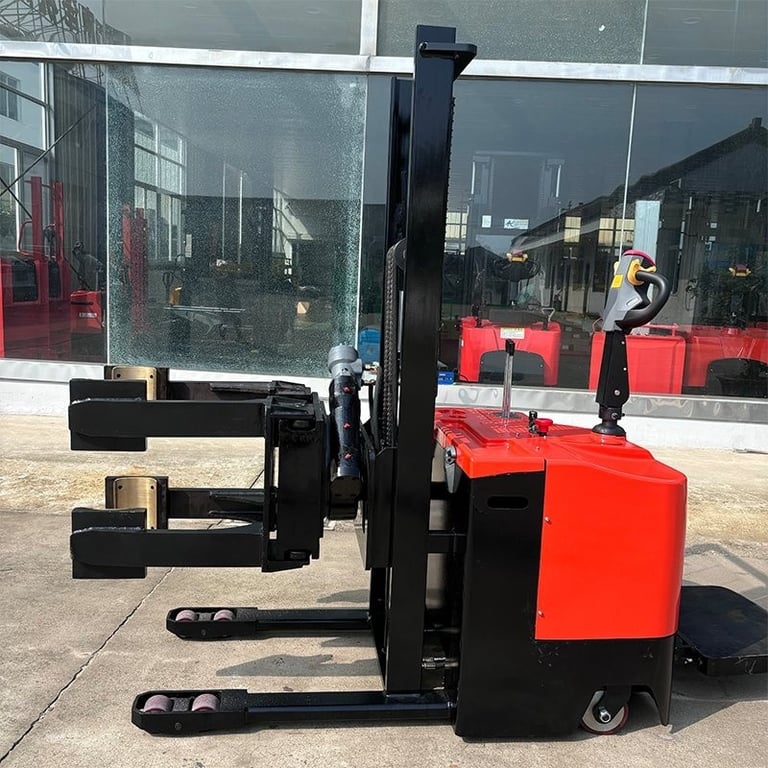

FSCDD-D Rotating Roll Clamp Stacker – photo 6

Applications

Paper, printing and packaging plants
Film, aluminium and copper foil plants
Textiles, nonwovens, steel pipes and other cylindrical loads

Capacity, lift height and clamp can be designed to your requirements. Contact FullSharp for the right model.
