The Air Balancer FullSharp is a pneumatic balancing hoist: the load is held in balance as if weightless, and the operator lifts, lowers and positions it with a light touch. It runs entirely on compressed air with no electricity, making it ideal for repetitive lifting at the workstation.
It comes in one standard configuration: 100 kg capacity, Ø10 mm wire rope and 2 m lifting travel. It mounts on jib cranes, overhead rails or freestanding frames and combines with a range of handles and grippers designed for your product.
| Item | Specification |
|---|---|
| Capacity | 100 kg |
| Rope | Ø10 mm steel wire rope |
| Lifting travel | 2 m |
| Power | Compressed air 6 – 7 bar, no electricity |
| Mode | Balance / float |
| Controls | Speed-adjustable pneumatic push-button, force-sensing handle, custom handles |

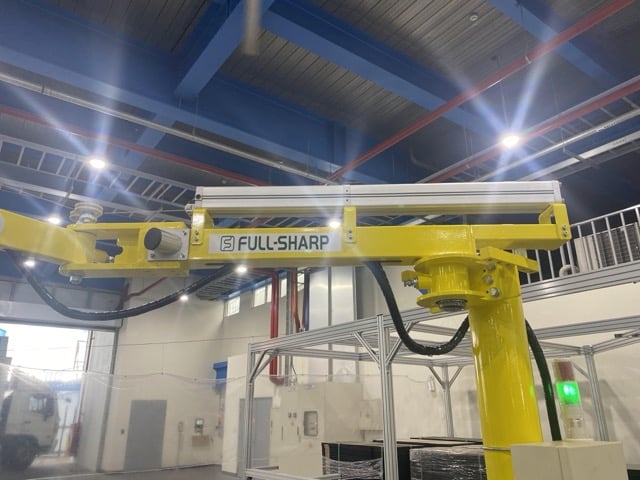

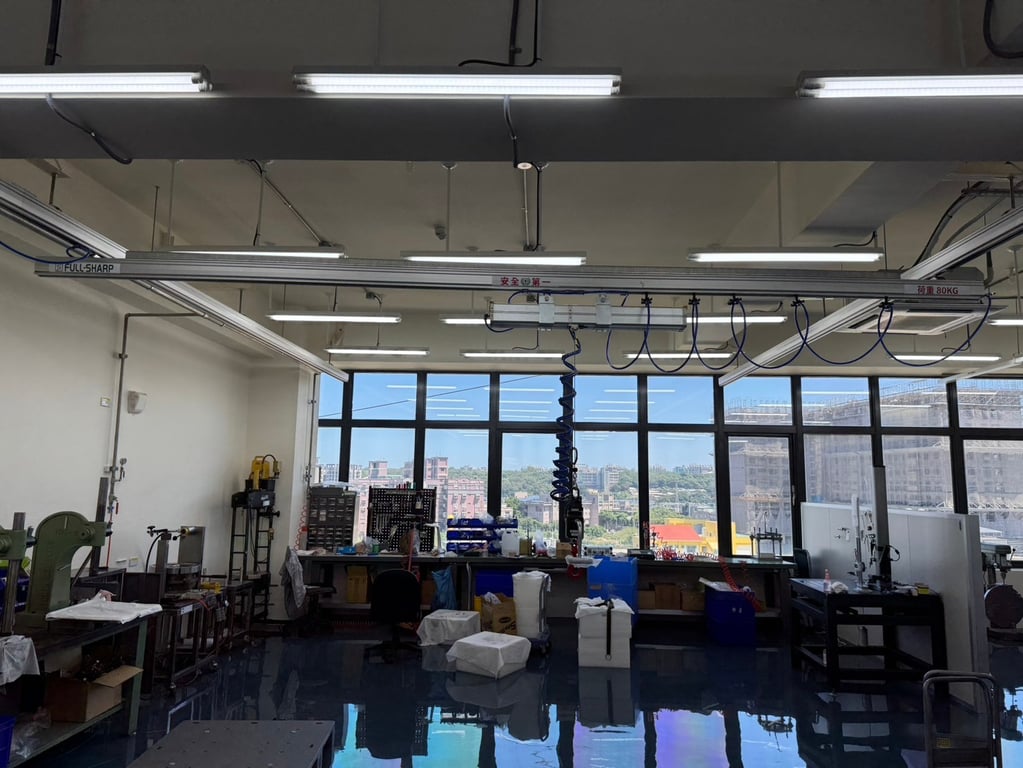

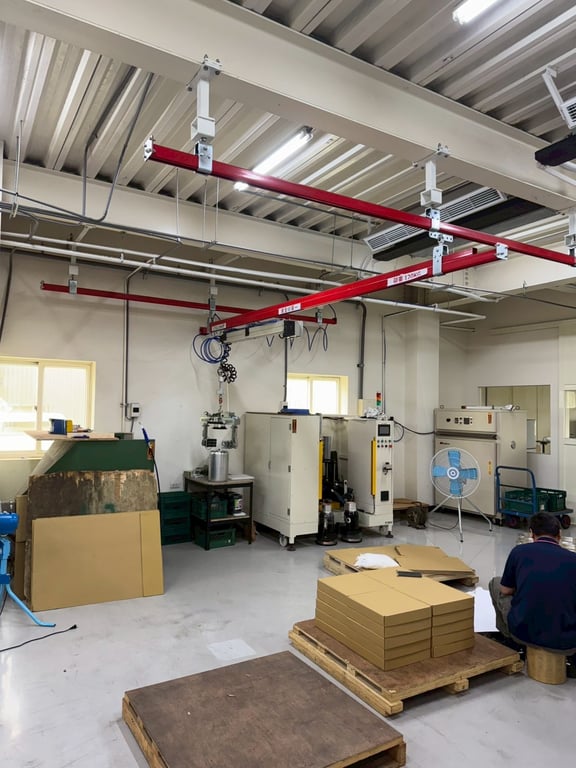

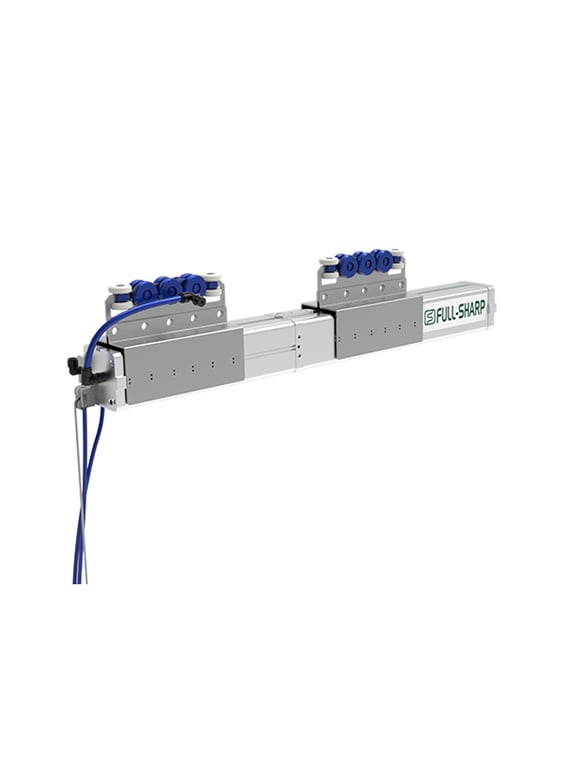

| Mounting | Jib crane, 5T steel / aluminum overhead rail, freestanding frame |
The load stays balanced at any height and can be positioned precisely by hand without hitting the product or machine.
No electronic components to fail from heat, moisture or programming errors.
Operators no longer lift by muscle, reducing back and shoulder strain in repetitive work.
Simple design, quick to fit onto existing systems, field repairable.
Up/down pneumatic buttons with a speed-adjustment knob; the handle can be detached and held separately.
Push down or lift lightly and the load follows, with speed proportional to hand force – light enough to control with one finger.
FULLSHARP also designs handles with product-specific grippers: hooks, mechanical clamps, vacuum pads and more.
Contact FULLSHARP for help choosing the handle, gripper and rail or jib crane.
