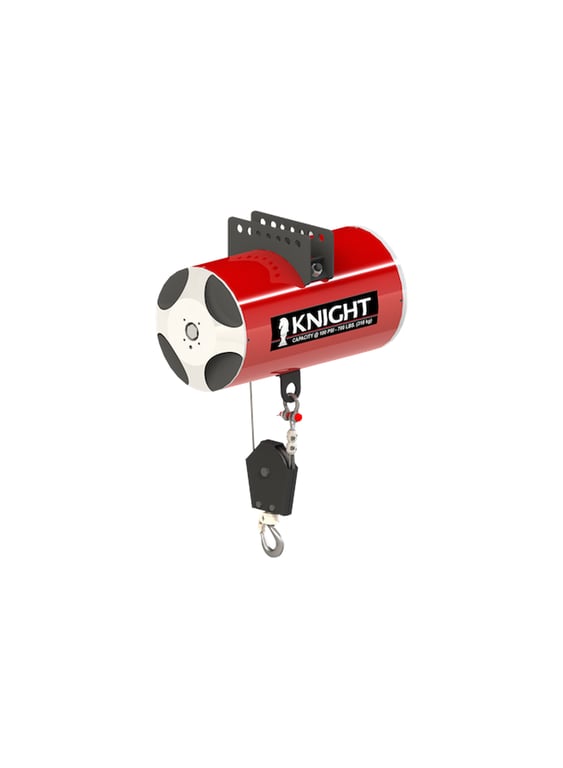

Reeved cable/chain pneumatic balancer series

Download PDF spec sheet

Overview

Knight Global reeved air balancers are built for loads above 450 lbs [204 kg], in cable (RKBA) and chain (RKBC) versions. FullSharp represents Knight Global and helps select the model by load and plant air pressure.

Knight’s Reeved Pneumatic Balancer Series is primarily designed for weights exceeding 450 lbs. [204 kg]. Reeving a pneumatic balancer increases the mechanical advantage of the product, and the stroke length is half the length of a standard balancer.

Our reeved pneumatic balancers come standard with a Knight swiveling shackle on a pulley.
When specifying a pneumatic balancer, it is recommended for working loads to use 80% of the operating capacity for lifting applications. This approach compensates for the normal fluctuations within the plant compressed air supply. Working loads include part weight and handling device weight. Balancers are rated at 100 psi [6.8bar] therefore use the following example to calculate exact operating capability.
Formula for pneumatic balancer sizing:
Example: plant air 60 psi, 350 air balancer, 80% load capability (0.60 air supply x 350 lbs. = 210 x .80 = 168 lbs. operating capability).

Reeved Cable Series Model Numbers:
RKBA450-036, RKBA450-055, RKBA700-036, RKBA1000-040 & RKBA1400-027

Reeved Chain Series Model Numbers:
RKBC400-055, RKBC450-033, RKBC700-033, RKBC1000-040 & RKBC1400-026

General Information

Features

  • CE Compliant.
  • Cable or Chain.
  • Hands-Free Operation.
  • Standard “Float” Mode.
  • Internal Centrifugal Retract Control.
  • Requires Non-Lubricated Clean/Dry Air.
  • Max. Balancing Capacity: Up to 1400 lbs. [635kg].
  • Standard Travel: Up to 55 in. [1397mm].

Benefits/Options

  • Optional External Retract Controls.
  • Optional Limit Switches.
  • Optional High Relieving and Feathertouch Controls.
  • Multiple Suspension Kits Available.

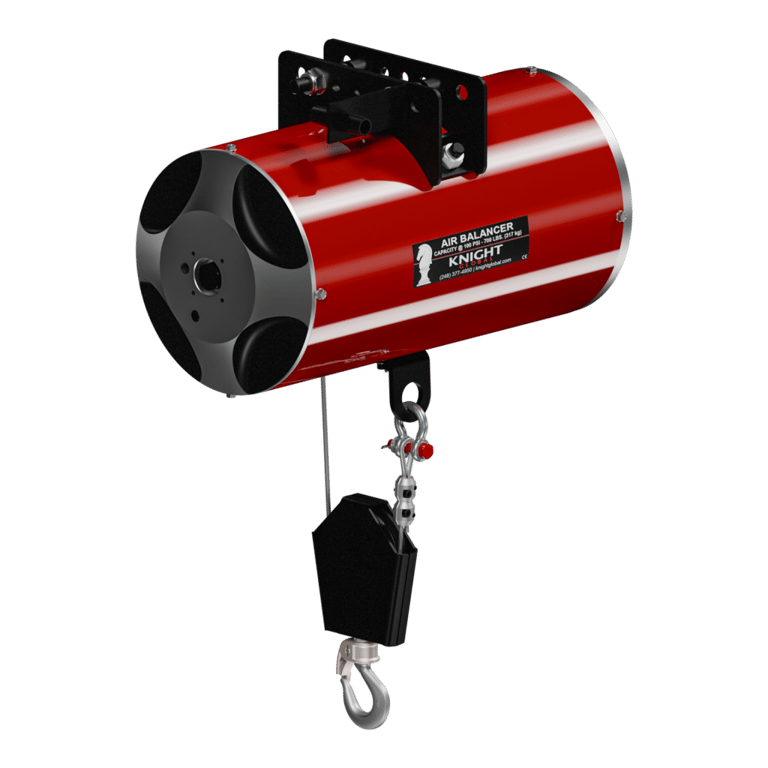

Reeved Cable Pneumatic Balancers

Model NumberRated Capacity lbs. [kg]Maximum Travel in. [mm]
RKBA450-036450 lbs [204kg]36 in [914mm]
RKBA450-55450 lbs [204kg]55 in [1397mm]
RKBA700-036700 lbs [318kg]36 in [914mm]
RKBA1000-0401000 lbs [454kg]40 in [1016mm]
RKBA1400-0271400 lbs [635kg]27 in [685mm]

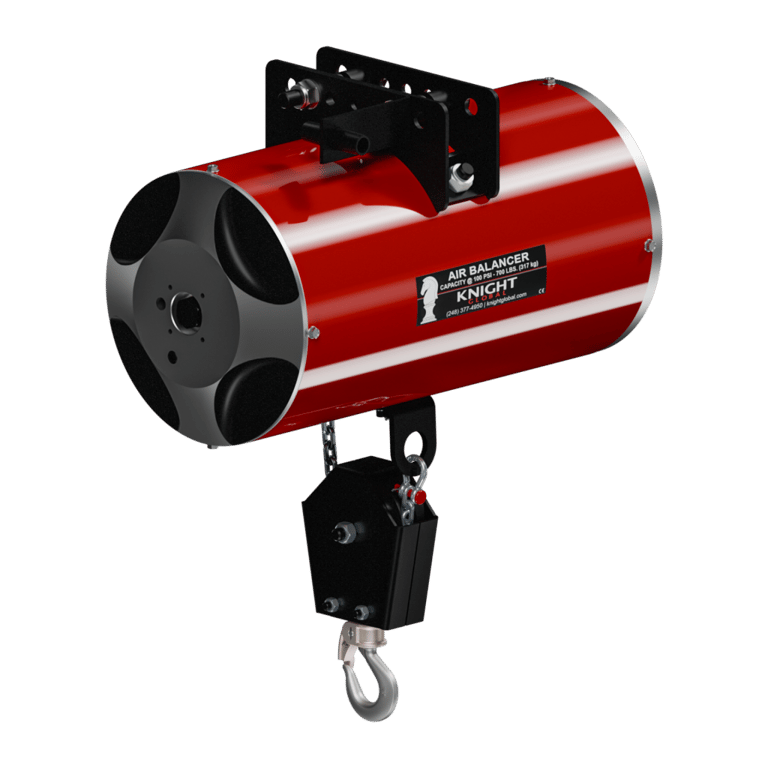

Reeved Chain Pneumatic Balancers

Model NumberRated Capacity lbs. [kg]Maximum Travel in. [mm]
RKBC400-055400 lbs [181kg]55 in [1397mm]
RKBC450-33450 lbs [204kg]33 in [818mm]
RKBC700-033700 lbs [318kg]33 in [818mm]
RKBC1000-0401000 lbs [454kg]40 in [1016mm]
RKBC1400-0261400 lbs [635kg]26 in [685mm]

RKBA SERIES SPECIFICATIONS

Model(A) in. [mm](B) (min.) in. [mm](C) in. [mm](D) in. [mm]Product Weight lbs [kg]
RKBA450-0368 1/2 [216]23 [584]6 1/2 [165]15 1/2 [394]63.6 [29]
RKBA450-05510 3/4 [273]28 [711]10 3/4 [273]16 1/2 [419]94.4 [43]
RKBA700-0368 3/4 [222]28 [711]8 3/4 [222]16 3/4 [426]77.8 [35]
RKBA1000-0409 3/4 [248]28 [711]10 3/4 [273]16 1/2 [419]115.8 [53]
RKBA1400-0279 3/4 [248]28 [711]10 3/4 [273]21 13/16 [554]92.8 [42]

RKBC SERIES SPECIFICATIONS

Model(A) in. [mm](B) (min.) in. [mm](C) in. [mm](D) in. [mm]Product Weight lbs [kg]
RKBC400-0558 1/2 [216]16 1/2 [419]6 1/2 [165]15 1/2 [394]98.8 [45]
RKBC450-03310 3/4 [273]20 1/2 [521]10 3/4 [273]16 1/2 [419]68.4 [31]
RKBC700-0338 3/4 [222]18 1/2 [470]8 3/4 [222]16 3/4 [426]83.4 [38]
RKBC1000-0409 3/4 [248]20 1/2 [521]10 3/4 [273]16 1/2 [419]123.4 [56]
RKBC1400-0269 3/4 [248]20 1/2 [521]10 3/4 [273]21 13/16 [554]98.8 [45]

Videos

*Applications Compilation

*Pneumatic Rotary Union for Air Balancers

*Reeved Cable / Chain Air Balancers

*Standard Balancer VS. External Retract Balancer

Air Balancer Cable Hook Installation

Air Balancer Manifold & Control Handle Installation

Air Balancer Safety Cable Kit Installation

Air Balancer to Rail Installation

Air Balancer Trolley Installation

Suspension Lift Assist

Accessories

General 6
Precision Chain Wear Gauge KSAA1003
KSAA1003Precision Chain Wear Gauge
Weight
0.87 lbs [0.39kg]
DetailsThe KSAA1003 Precision Chain Wear Gauge is used to measure the wear on Knight servo hoists and pneumatic balancers 4mm/5mm galvanized chain.

To view the instructional video, click here or visit Knight's Youtube page.

  • Steel Construction
  • Measures Knight 4mm & 5mm Galvanized Chain Wear.

CAD drawing

Safety Chain Shackle BPA2410
BPA2410Safety Chain Shackle
Weight
2.7 lbs. [1.23kg]
DetailsKnight Global's BPA2410 Safety Chain Shackle connects Air Balancers quickly and securely to fixtures and end effectors. Knight's Shackle features a female clevis for direct connections. The BPA2410 Safety Chain Shackle attaches to Knight pneumatic balancer chains. It is equipped with a connection for a drop stop safety chain.
  • 360 degree rotation.
  • Steel Construction.
  • Connection for Safety Chain.
  • Quick and Secure Connection.

CAD drawing

Pneumatic Balancer Chain Hook BPA2113
BPA2113Pneumatic Balancer Chain Hook
Weight
2.4 lbs. [1.08kg]
DetailsKnight Global's BPA2113 Pneumatic Balancer Chain Hook connects Air Balancers quickly and securely to fixtures and end effectors. The Hook is equipped with a 1 ton capacity Crosby/Bullard® Golden Gate size 2 Pin-Lok Hook with self closing gate and 360° rotational capabilities.

For instructions on installing this hook to Knight's chain, see the video here.

  • (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
  • Quick and Secure Connection
  • 360 degree rotation.

CAD drawing

Quick Connect/Disconnect BPA2035
BPA2035Quick Connect/Disconnect
Max capacity
700 lbs [318 kgs]
Weight
4.8 lbs. [2.22kg].
Details

The BPA2035 Quick Connect/Disconnect allows for fast connections and disconnections of fixtures and end effectors. Easily disengages by the simple push and twist of the release pin. Each quick disconnect comes with two pins, and can be quickly connected to the load chain.

  • 360 degree rotation.
  • Forged Alloy Steel – Quenched and Tempered.
  • Connection for Safety Chain.
  • Nylon Safety Cover.
  • Quick and Secure Connection.

CAD drawing

Reeved Cable Pulley BPA2065
BPA2065Reeved Cable Pulley
Weight
4.4 lbs. [2.0kg]
DetailsThe BPA2065 Reeved Cable Pulley doubles the balancing capacity of a reeved cable pneumatic balancer.
  • Pulley enclosed with steel safety guard.
  • Available with a bullard swivel hook or a shackle.
  • Used with Knight’s RKBA Reeved Cable Balancers.

CAD drawing

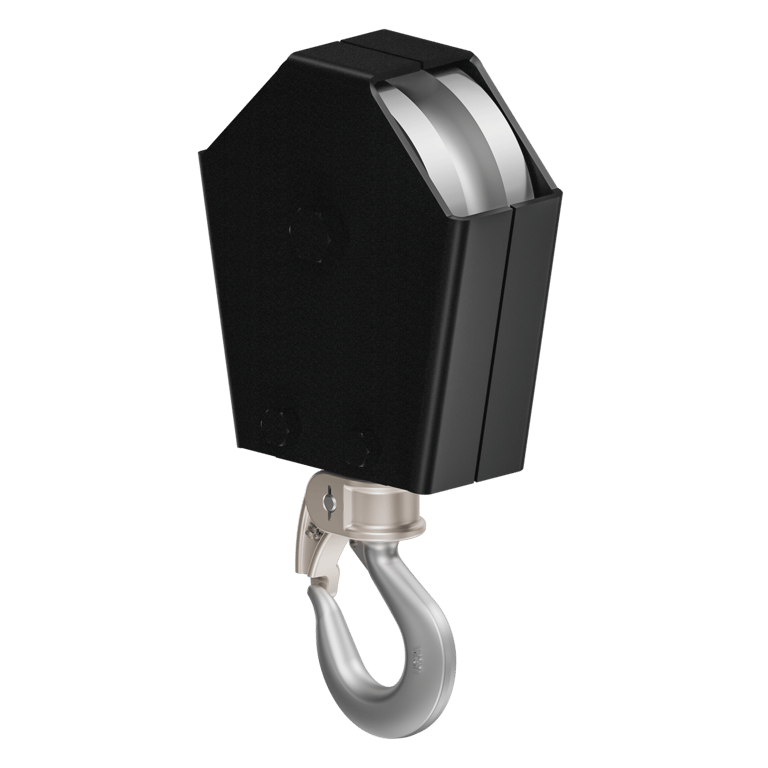

Reeved Chain Pulley BPA2066
