Dual drum SDS balancer

Download PDF spec sheet

Overview

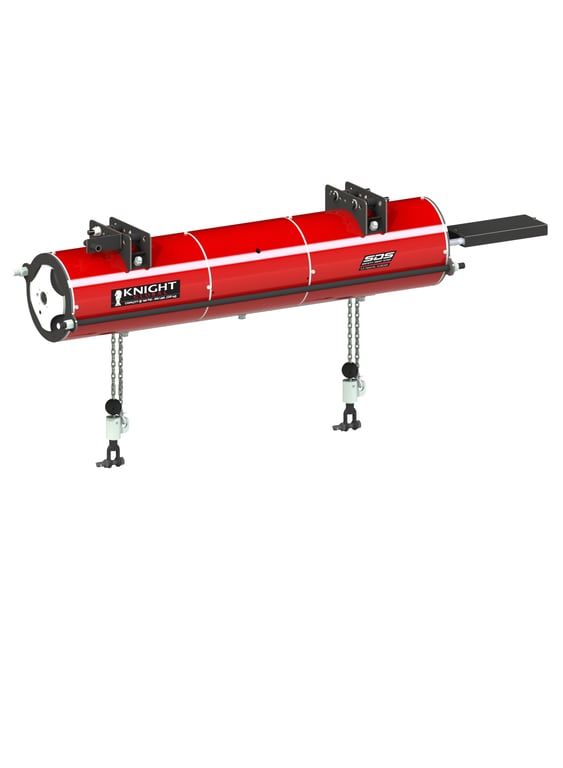

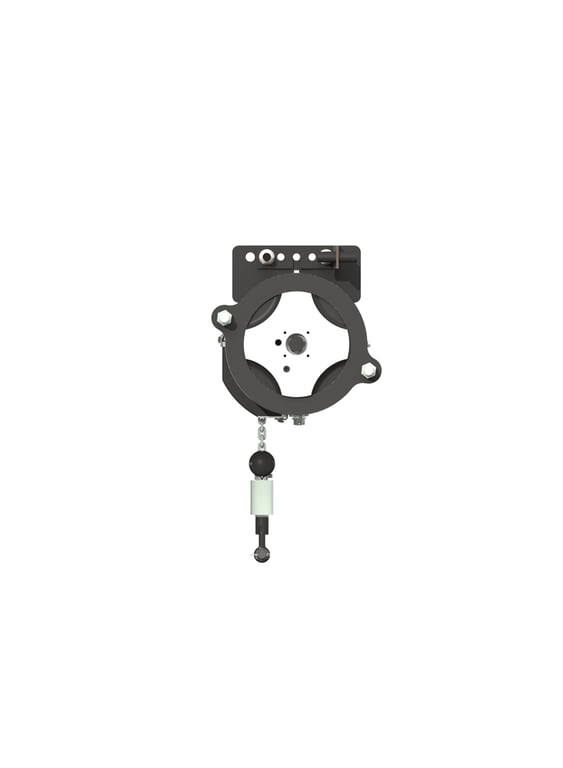

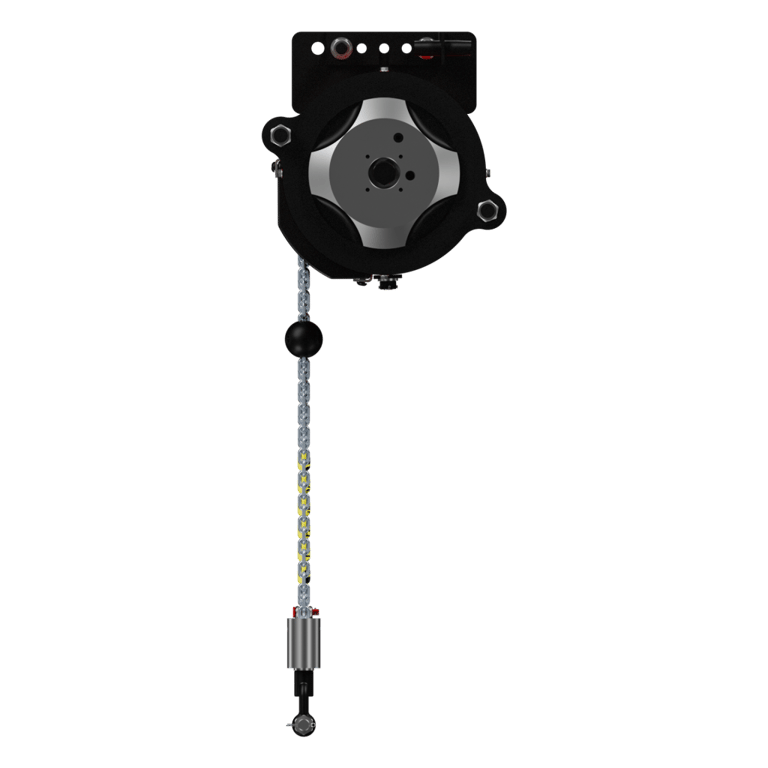

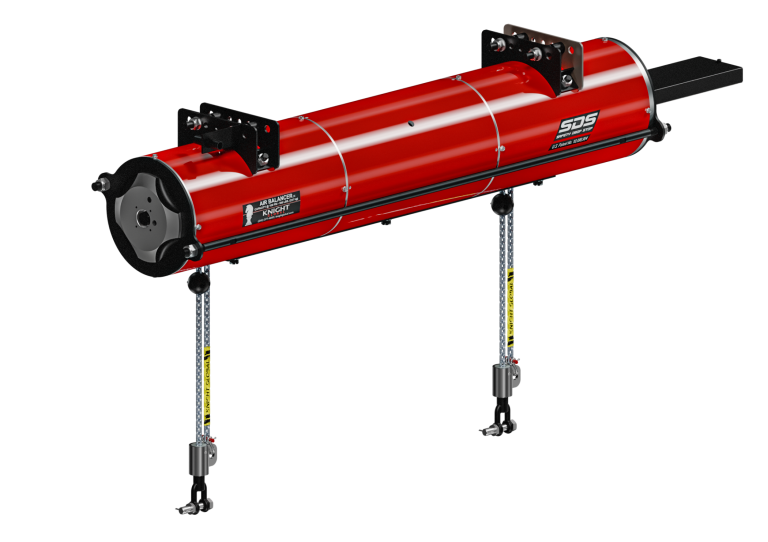

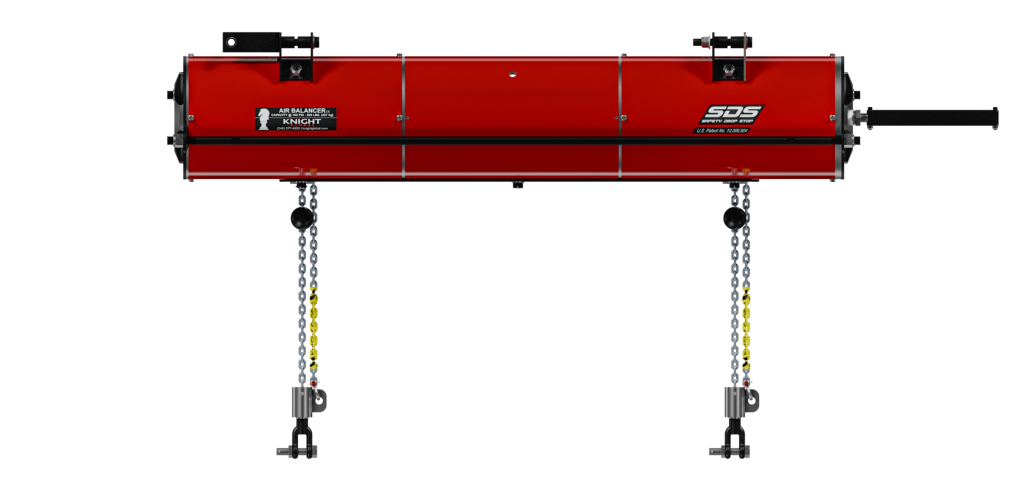

The Knight Global dual drum balancer houses two synchronized spools in one body to lift and balance long or awkward loads from two suspension points.

Knight has designed a “Dual Drum” Air Balancer with the patented Safety Drop Stop “SDS” dual chain feature. This type of Pneumatic Balancer is typically used in applications that require the manipulation of an unwieldy or large part. Also, a single suspension point may not stabilize a lengthy part. Some applications require that the fixture remain square to a part and (2) two hook points prevent fixture rotation.

Having two synchronized spools inside one housing, the Dual Drum Balancer offers added balance to awkwardly weighted or shaped loads by lifting and balancing from two suspension points.

This balancer comes equipped with an external retract control. Limit switches can also be ordered as an option.

Pneumatic Balancers are used in applications where a “float” condition is beneficial. Float allows for the hands-free final positioning of an object. The up/down speed of an pneumatic balancer is quicker when compared to a hoist and allows for a “feathering” operation when locating the load. The pendant controls are ergonomically designed incorporating color-coded thumb levers.

Knight chain balancers use a custom grade 80 lifting chain specially treated to increase the life of the chain by up to 300% over standard grade 80 lifting chain.

DKBCS Series Model Numbers:
DKBC500S-078 & DKBC700S-048

General Information

Features

  • CE Compliant Upon Request.

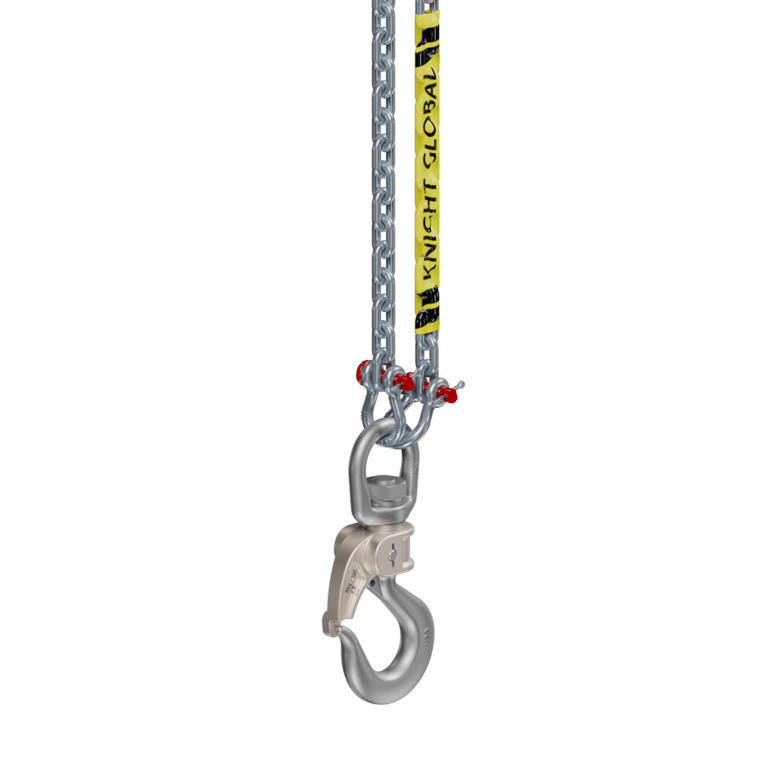

  • Redundant chain design for safe operation:
    • Load Chain: Carries the load.
    • Safety Chain: Rides along for redundancy.
  • Hands-Free Operation.
  • Standard “Float” Mode.
  • External Retract Control.
  • Requires Non-Lubricated Clean/Dry Air.
  • Max Balancing Capacity: Up to 700 lbs. [318kg].
  • Standard Travel: Up to 78 in. [1981mm].

Benefits & Options

  • Optional Limit Switches (1 or 2)
  • Optional High Relieving and Feathertouch Controls.
  • Multiple Suspension Kits Available.

DKBCS Series Specifications

DKBCS Series Specifications

Model NumberCapacity lbs. [kg]Travel in. [mm]
DKBC500S-078-33-EX500 [227]78 [1981]
DKBC500S-078-33-LS1500 [227]78 [1981]
DKBC500S-078-33-LS2500 [227]78 [1981]
DKBC500S-078-38-EX500 [227]78 [1981]
DKBC500S-078-38-LS1500 [227]78 [1981]
DKBC500S-078-38-LS2500 [227]78 [1981]
DKBC700S-048-33-EX700 [318]48 [1219]
DKBC700S-048-33-LS1700 [318]48 [1219]
DKBC700S-048-33-LS2700 [318]48 [1219]
DKBC700S-048-38-EX700 [318]48 [1219]
DKBC700S-048-38-LS1700 [318]48 [1219]
DKBC700S-048-38-LS2700 [318]48 [1219]

Videos

*Dual Drum SDS Air Balancer

*Pneumatic Rotary Union for Air Balancers

*Standard Balancer VS. External Retract Balancer

Accessories

General 4
Quick Connect/Disconnect BPA2035
BPA2035Quick Connect/Disconnect
Max capacity
700 lbs [318 kgs]
Weight
4.8 lbs. [2.22kg].
Details

The BPA2035 Quick Connect/Disconnect allows for fast connections and disconnections of fixtures and end effectors. Easily disengages by the simple push and twist of the release pin. Each quick disconnect comes with two pins, and can be quickly connected to the load chain.

  • 360 degree rotation.
  • Forged Alloy Steel – Quenched and Tempered.
  • Connection for Safety Chain.
  • Nylon Safety Cover.
  • Quick and Secure Connection.

CAD drawing

Pneumatic Balancer Chain Hook BPA2113
BPA2113Pneumatic Balancer Chain Hook
Weight
2.4 lbs. [1.08kg]
DetailsKnight Global's BPA2113 Pneumatic Balancer Chain Hook connects Air Balancers quickly and securely to fixtures and end effectors. The Hook is equipped with a 1 ton capacity Crosby/Bullard® Golden Gate size 2 Pin-Lok Hook with self closing gate and 360° rotational capabilities.

For instructions on installing this hook to Knight's chain, see the video here.

  • (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
  • Quick and Secure Connection
  • 360 degree rotation.

CAD drawing

Safety Chain Shackle BPA2410
BPA2410Safety Chain Shackle
Weight
2.7 lbs. [1.23kg]
DetailsKnight Global's BPA2410 Safety Chain Shackle connects Air Balancers quickly and securely to fixtures and end effectors. Knight's Shackle features a female clevis for direct connections. The BPA2410 Safety Chain Shackle attaches to Knight pneumatic balancer chains. It is equipped with a connection for a drop stop safety chain.
  • 360 degree rotation.
  • Steel Construction.
  • Connection for Safety Chain.
  • Quick and Secure Connection.

CAD drawing

Precision Chain Wear Gauge KSAA1003
KSAA1003Precision Chain Wear Gauge
Weight
0.87 lbs [0.39kg]
DetailsThe KSAA1003 Precision Chain Wear Gauge is used to measure the wear on Knight servo hoists and pneumatic balancers 4mm/5mm galvanized chain.

To view the instructional video, click here or visit Knight's Youtube page.

  • Steel Construction
  • Measures Knight 4mm & 5mm Galvanized Chain Wear.

CAD drawing

Load Trolley 5
Load Trolley MRTA4442
MRTA4442Load Trolley
Max capacity
1, 100 lbs. [499kg]
Weight
5 lbs. [2.26kg]
DetailsThe MRTA4442 Load Trolley suspends Knight pneumatic balancers and fixtures from RAD4110 series aluminum rail systems.
  • Recommended for the optimum Balancer Load Trolley.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Load Trolley MRTA6106
MRTA6106Load Trolley
Max capacity
1, 600 lbs. [725kg]
Weight
6 lbs. [2.72kg]
DetailsThe MRTA6106 Load Trolley suspends Knight pneumatic balancers and fixtures from RAD6110 series aluminum rail systems.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Load Trolley MRTA7706
MRTA7706Load Trolley
Max capacity
3, 000 lbs. [1, 360kg]
Weight
9 lbs. [4.08kg]
DetailsThe MRTA7706 Load Trolley suspends Knight pneumatic balancers and fixtures from RAD7510 series aluminum rail systems.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

CAD drawing

Load Trolley RTA2013
RTA2013Load Trolley
Max capacity
2, 000 lbs. [1, 360kg]
Weight
23 lbs. [10.4kg]
DetailsThe RTA2013 Load Trolley for W-Beams transfers loads along the horizontal axis and suspends Knight pneumatic balancers by the use of the center mounting holes.
  • Travels on a W-Beam, I-Beam and Patented Track.
  • Steel Wheels.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.

CAD drawing

Load Trolley RTA2014
RTA2014Load Trolley
Max capacity
2, 000 lbs. [1, 360kg]
Weight
22.1 lbs. [10.2kg]
DetailsThe RTA2014 Load Trolley for S-Beams transfers loads along the horizontal axis and suspends Knight pneumatic balancers by the use of the center mounting holes.
  • Travels on a S-Beam.
  • Steel Wheels.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.

CAD drawing

Safety Cables 3
Safety Cable Kit RWA4133
RWA4133Safety Cable Kit
Lengths
6 ft. [1.8m]
Cable thickness
0.25 in. [6mm]
DetailsKnight Global's RWA4133 prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident. This safety cable kit is used as Knight's standard kit.
  • Used as Knight’s standard safety cable kit.
  • (4) Crosby® Saddle Clamps
  • (2) Cable Thimbles
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
Eye Bolt Safety Cable Kit FDA4133
FDA4133Eye Bolt Safety Cable Kit
Lengths
10 ft. [3.048m]
Cable thickness
0.25 in. [6mm]
DetailsKnight Global's FDA4133 Eye Bolt Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.
  • (4) Crosby® Saddle Clamps
  • (2) Cable Thimbles
  • (2) Eye Bolts
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

CAD drawing

Safety Cable Kit with Oval Sleeves NICORWA4133
NICORWA4133Safety Cable Kit with Oval Sleeves
Weight
2 lbs. [.91kg]
Lengths
10 ft. [3m.]
Cable thickness
0.25 in. [6mm]
DetailsKnight Global's NICORWA4133 Safety Cable Kit prevents pneumatic balancers or fixtures from separating or falling from the overhead mounted trolleys, end trucks, or hangers in the event of an accident.

Replaces the CAMIRWA4133 Safety Cable Kit.

  • (2) Copper Oval Sleeves
  • (2) Cable Thimbles
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
Pneumatic Controls 5
Air Connection with Balancer Logic Box
Air Connection with Balancer Logic Box
DetailsCoiled or straight hose management kit controls connection to balancer logic box.
  • Air logic box and bracket.
  • Logic box to balancer air bracket connection hose fitting

CAD drawing

Air Connection with Balancer Mainfold
Air Connection with Balancer Mainfold
DetailsCoiled or straight hose management kit connection to balancer air bracket.
  • Manifold to Balancer Air Bracket Connection to Hose Fitting.
  • Air Manifold and Control Handle.

CAD drawing

Single Balancer Control Module BCS2018
BCS2018Single Balancer Control Module
Max capacity
150 lbs. [68kg].
Weight
2.2 lbs. [0.99kg]
DetailsBalances a single object without requiring the need for a separate pendant control. It allows for a hands free operation while supporting a constant weight at zero gravity. The BCS2018 is ideal for fastening tools and recommended to be used for applications not to exceed 150 lbs. [68kg] (end effector and part).
  • Supports a constant weight at zero gravity.
  • Ideal for balancing fastening tools.
  • Balances a single object without requiring the need for a separate pendant control.
  • Allows for a hands free operation.

CAD drawing

High Relieving Single Balancer Control Modules BCS2090 & BCS2322
BCS2090 & BCS2322High Relieving Single Balancer Control Modules
Lengths
10 ft. [3m]
Hose type
Straight
DetailsThe BCS2090 & BCS2322 High Relieving Single Balancer Control Module are most commonly used for near capacity or heavy weight applications to eliminate the need for a separate pendant and allows for the operator to more efficiently control the balance mode of a heavier part such as a setting fixture.
  • Does not allow for variances in weights.
  • Assists in increasing the air volume.
  • Exhausts the air in a more efficient manner.
  • BCS2090 – Loads under 250 lbs. [113kg].
  • BCS2322 – Loads UP TO 500 lbs. [227kg].

CAD drawing

Feather-Touch Balancer Control BCS2213 & BCS2214
BCS2213 & BCS2214Feather-Touch Balancer Control
Max capacity
100 lbs. [45kg] at 80 psi
Weight
12.4 lbs. [5.64kg].
Lengths
10 ft. [3m]
Hose type
Straight Hose Only
Configuration
Horizontal or Vertical
Details

The BCS2213 and BCS2214 Feather-Touch Air Balancer Control handle is typically used for lightweight applications. This control handle is activated by an up or down movement of the control handle. Knight's Feather-Touch Control handles are available in a Horizontal handle (BCS2213) or Vertical handle (BCS2214) with standard hose lengths of up to 10 ft. [3m] (Straight Hose only).

  • Eliminates the need for a separate pendant.
  • Allows the operator to control the up and down movements close to the part.
  • Horizontal handle (BCS2213)
  • Vertical handle (BCS2214)

CAD drawing
