FS-X3S Intelligent Balancing Electric Hoist (Wire Rope Type) 100kg-600kg

Download PDF spec sheet

FS-X3S Smart Electric Balancing Hoist, Wire Rope Type

Note: See Optional Control Handles for detailed handle configurations

FS-X3S INTELLIGENT

BALANCING ELECTRIC HOIST (WIRE ROPE TYPE)

PRODUCT FEATURES

Product Features

A wire rope design with higher precision replaces the conventional chain design, for faster operation and more accurate positioning;
Automatic slowdown at the upper limit reduces the risk of hitting the top, and the workpiece's working range can be limited flexibly;
Maximum speed reaches 35m/min, minimum speed down to 0.05m/min, ensuring precise control when handling and assembling precision equipment or impact-sensitive parts;
Better stability during start-up, travel, and set-down. The dense fine-strand wire rope effectively prevents twisting, and combined with the built-in planetary gear reducer, operation is smooth and quiet for a more fluid handling feel.

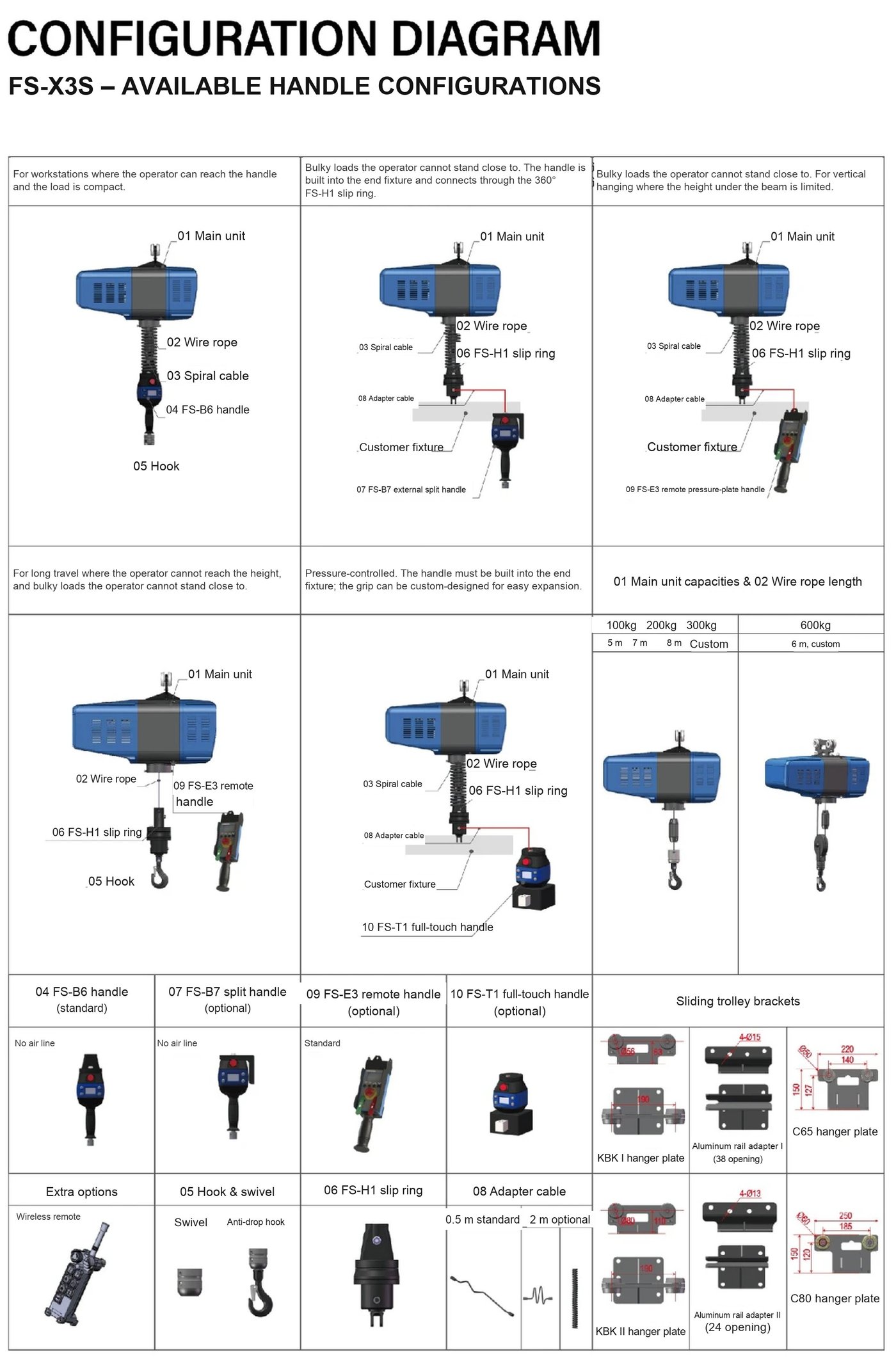

HANDLE CONFIGURATION DIAGRAM

Configuration Diagram

The FS-X3S can be fitted with 5 handle configurations, chosen by where the operator stands, the travel height and how bulky the load is:

Operator can reach the handle, compact load: FS-B6 handle (standard) on the spiral cable.
Bulky load, operator cannot stand close: the handle is built into the end fixture and connects through the 360° FS-H1 electric slip ring and an adapter cable (0.5 m standard, 2 m optional). Choose the FS-B7 external split handle or the FS-E3 remote pressure-plate handle; also suits vertical hanging with limited height under the beam.
Long travel, operator cannot reach the height: FS-E3 remote pressure-plate handle connected through the FS-H1 slip ring.
Pressure control on a customer-supplied fixture: FS-T1 full-touch handle; the grip can be custom-designed.
Main unit and wire rope: 100/200/300 kg with 5, 7, 8 m or custom rope; 600 kg with 6 m or custom rope.
Optional accessories: anti-drop hook and swivel assembly, FS-H1 slip ring, wireless remote, sliding trolley brackets (KBK I/II hanger plates, aluminum rail adapters I/II, C65/C80 hanger plates).

Click the image to enlarge.

SPECIFICATIONS

Product Specifications and Dimensions

MODELITEM	FS-X3S010-B6	FS-X3S020-B6	FS-X3S030-B6	FS-X3S060-B6
Rated load (kg)	100	200	300	600 (Double rope)
Lifting/lowering speed (m/min)*	0~35	0~29	0~25	0~10
Rated power (kW)	0.8	0.8	1.1	1.1
Standard lift (m)	2.5	2.5	2.5	1.6
Control mode	Coaxial Force-Sensing Handle
Self weight (kg)	66	66	66	68
Power supply	Standard 220V (380V optional)
Mechanism duty class	3m/M6	3m/M6	3m/M6	2m/M5
Ambient operating temperature (non-condensing)	-10°C ~ 55°C

* Lifting speed is for reference only; the product nameplate shall prevail; 2. Maximum and minimum speeds can be customized on request.
Note: The above specifications are for model selection reference only; the label supplied with the product shall prevail.
