FSCDD-C Rotating Cable Reel Stacker

90° rotating arm threads through the core
100 – 500 kg, 1.6 – 3 m lift
Powered travel and lift, 24V/200Ah battery
Arm designed around your coils

FSCDD-C Rotating Cable Reel Stacker

The FSCDD-C is an electric stacker with a 90° rotating arm that threads through the core to lift and move cable reels, steel coils, wire and rope coils. The rotating arm presents the coil to machines or racks in the right direction and eases turning in narrow aisles.

Four models with 100, 300 and 500 kg capacity and 1.6 m or 3 m lift. Arm, lift height and capacity can be designed around the customer’s coils.

FSCDD-C Rotating Cable Reel Stacker – photo 1

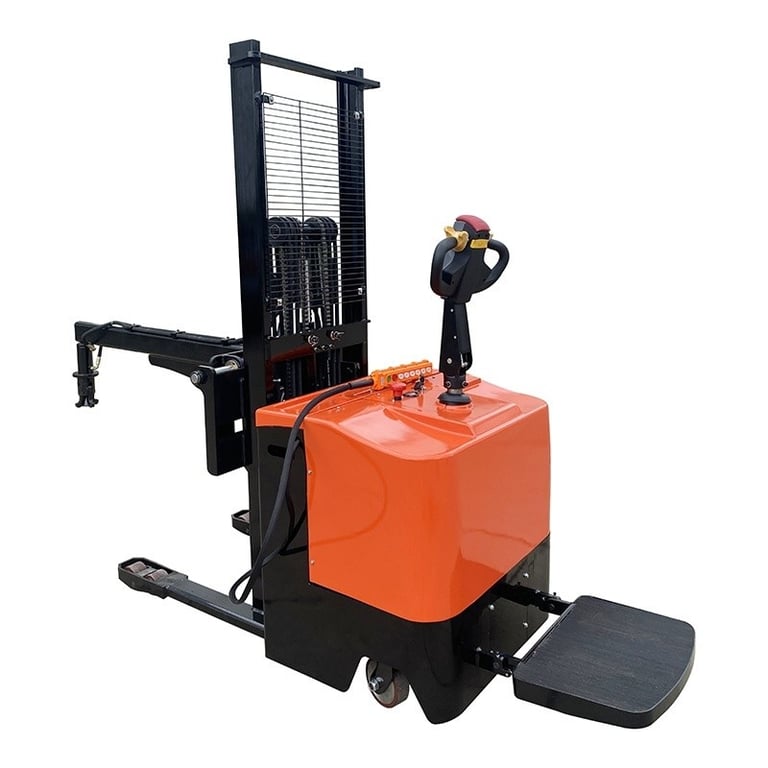

FSCDD-C Rotating Cable Reel Stacker – photo 2

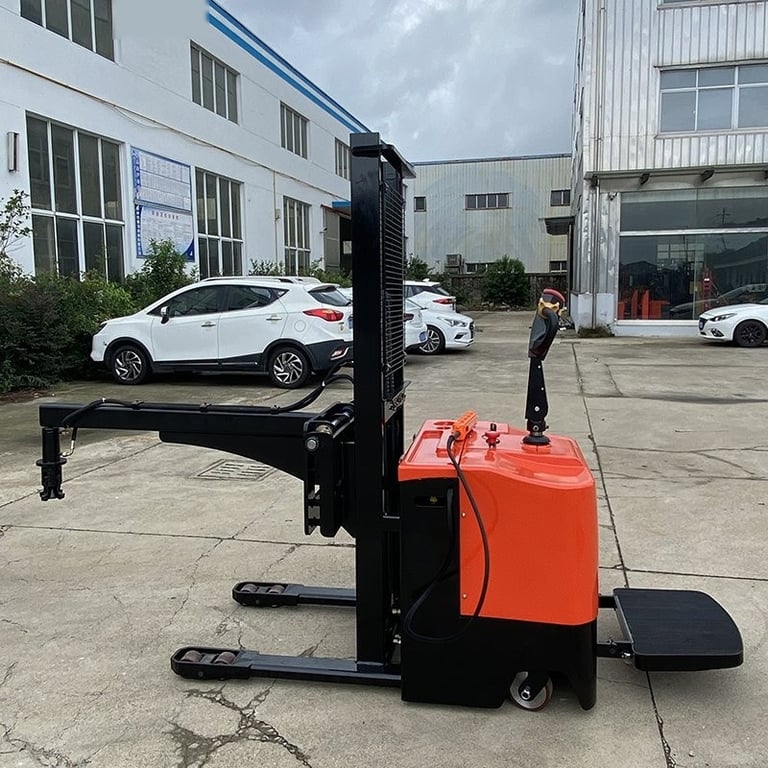

FSCDD-C Rotating Cable Reel Stacker – photo 3

Key features

90° rotating arm for correct coil orientation and easy turning in tight aisles
Powered travel and lift: 1.5 kW drive motor, 2.5 kW lift motor
Lift height 1,600 – 3,000 mm, effective height up to 2,000 mm
Stand-on operation on a folding platform, multi-function handle
Arm, capacity and height built to order

Specifications

Model	FSCDD01016-C	FSCDD0316-C	FSCDD0516-C	FSCDD0530-C
Load capacity (kg)	100	300	500	500
Max. lift height (mm)	1,600	1,600	1,600	3,000
Effective lift height (mm)	1,000	1,000	800	2,000
Unit weight (kg)	1,100	1,200	1,300	1,400
Overall size L × W × H (mm)	2,550 × 850 × 2,000	2,650 × 850 × 2,000	2,650 × 850 × 2,000	2,750 × 850 × 2,050

Common specifications

Arm rotation90°
Battery24V / 200Ah
Charger24V / 30A
Drive motor24V 1.5 kW
Lift motor24V 2.5 kW
Load centre500 mm
CertificatesCE, ISO, TUV, GS

Product photos

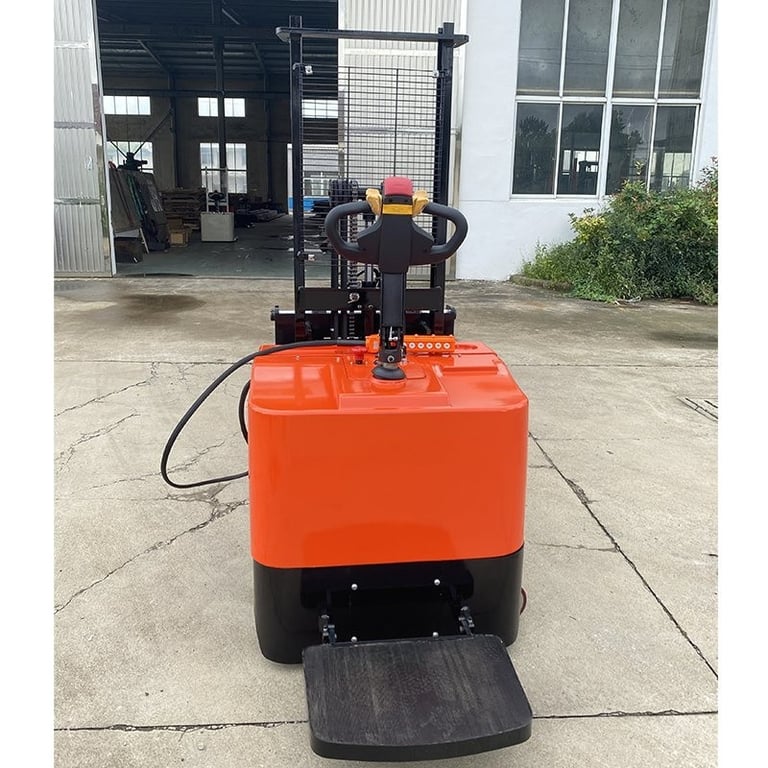

FSCDD-C Rotating Cable Reel Stacker – photo 4

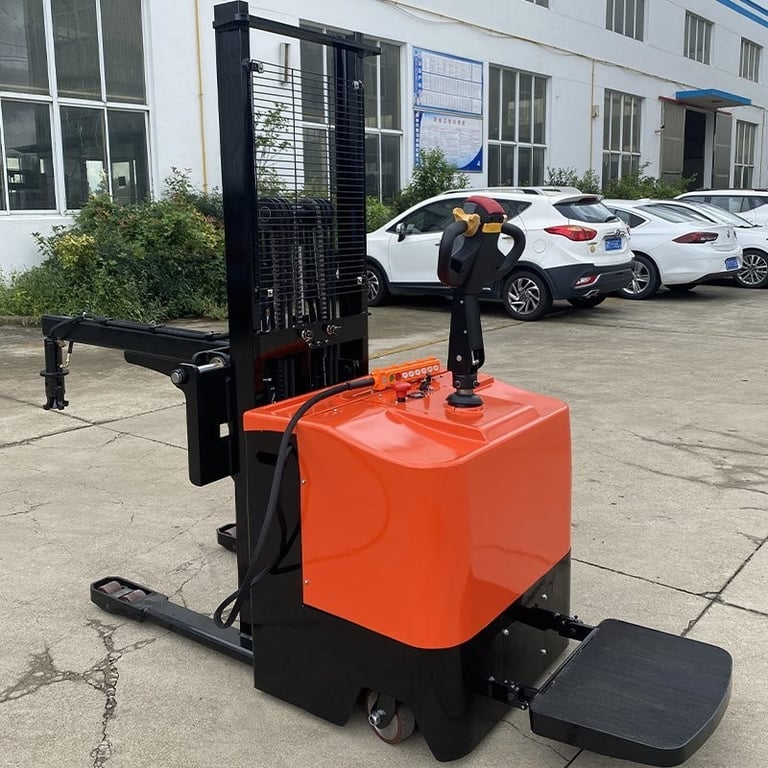

FSCDD-C Rotating Cable Reel Stacker – photo 5

FSCDD-C Rotating Cable Reel Stacker – photo 6

Applications

Power cable and wire reels
Steel coils and small sheet coils
Wire rope, nylon rope and rope coils

Capacity, lift height and clamp can be designed to your requirements. Contact FullSharp for the right model.
