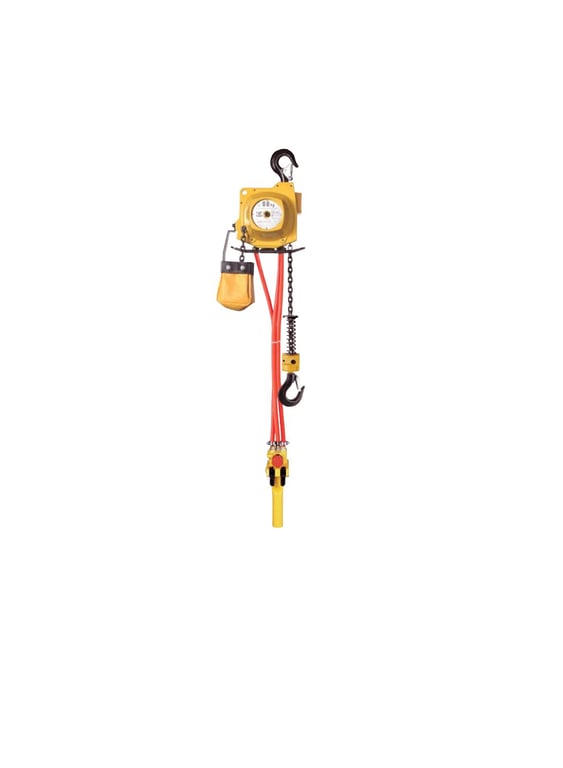

AT SERIES

Rated load from 60 kg to 125 kg. This air hoist series uses a surface-hardened load chain made of high-strength alloy steel with excellent wear resistance. Buttons on the pendant make operation easy. The load chain can be extended. Models AT-60-K-5 and AT-125-K-5 come with an emergency stop button on the pendant as standard.

View catalogue

Download PDF spec sheet

Endo Air Hoist Specifications – AT Series

Model	Rated load (kg)	Stroke (m)	Air pressure (MPa)	Lifting speed (m/min)	Air consumption (m³/min)	Load chain (size × falls)	Air inlet	Weight (kg)	Emergency stop
AT-60K	60	3	0.4	16.5	0.52	4.0×1	Rc 3/8	12.3	–
			0.5	20.0	0.67
			0.6	23.5	0.85
AT-60K-5	60	3	0.4	16.5	0.52	4.0×1	Rc 3/8	13.0	●
			0.5	20.0	0.67
			0.6	23.5	0.85
AT-125K	125	3	0.4	10.0	0.55	4.0×1	Rc 3/8	12.5	–
			0.5	12.0	0.71
			0.6	14.5	0.90
AT-125K-5	125	3	0.4	10.0	0.55	4.0×1	Rc 3/8	13.2	●
			0.5	12.0	0.71
			0.6	14.5	0.90

Models marked "-5"

come with an emergency stop button as standard. Lifting speed and air consumption vary with supply pressure.

Optional Accessories

Plentrolly

By attaching it to the hanging source, it enables smooth lateral movement manually.

Air Motor Trolley

This type of trolley is powered by air and transports a suspended load horizontally.
