Simple connection; the handle can be detached to hold separately during operation or used with other equipment.
Lifting and lowering speed follows the downward and upward force of your hand, so light that one finger is enough to operate it.
Adjustable rotation stop. A 270° setting is recommended to keep the jib from over-rotating and twisting the air hose.
Aluminum housing and pneumatic operation suit environments that must stay clean, free of falling dust and sparks.
Combined with the pneumatic crane, it gives light, precise movement when pushing heavy loads by hand.
Removes water, dust and contaminants from compressed air, protecting pneumatic equipment from damage caused by pressure and impurities.
Protects pneumatic components such as the filter, hoist and solenoid valves, and maintains pressure at the load end while lifting.
Withstands higher pressure than standard PU hose and does not crack when extended. Stable air delivery and long service life.
The pneumatic jib crane is designed around ergonomics and high efficiency, letting operators move loads safely and quickly while minimizing physical effort. A dual-wire balancing structure, pneumatically controlled lifting and precise rotation allow loads to be handled steadily and accurately. Because the load weight is self-balanced, lifting and lowering is light and precise.

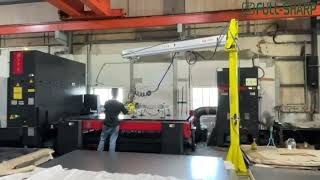

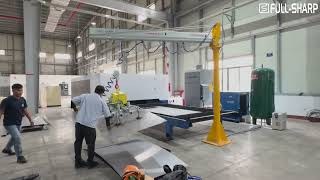

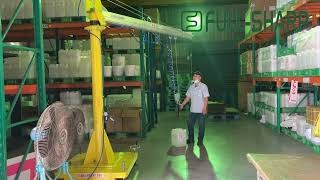

The unit can be fitted with various end effectors such as vacuum, mechanical grippers and magnets, or customized tooling, for use across many industries.
| Model | Capacity | Arm length | Lifting height |
|---|---|---|---|
| FL80 | 80 kg | 3 – 4 m | 2 m |
| FL200 | 200 kg | 3 m | 2 m |
