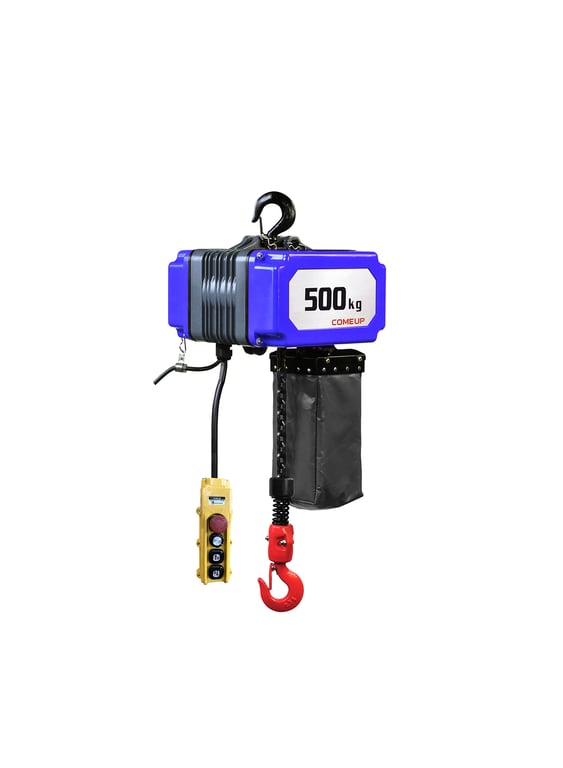

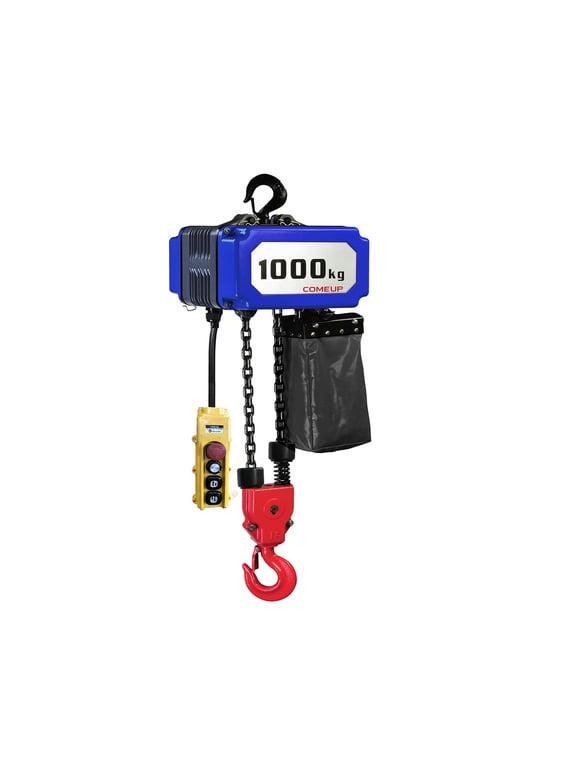

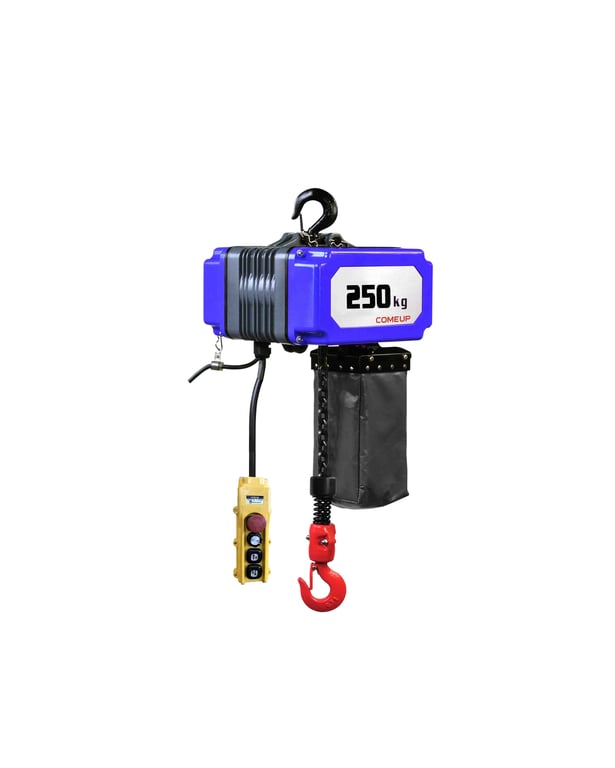

Brushless Motor Chain Hoist – Modern, Precise and Energy-Efficient Lifting Solution

Brushless motor chain hoist is an advanced lifting solution, specially designed for industries requiring high precision and stable working performance. Using brushless motor technology, the equipment completely eliminates carbon dust and electrical sparks, increasing lifespan and minimizing maintenance costs.

Outstanding power-saving capability is optimized thanks to the DC frequency controller, keeping starting and operating current at low levels, providing smooth and stable operation. This is an ideal choice for applications requiring high precision such as mold lifting in plastic molding industry, vertical transportation in logistics warehouses and many other technical fields.

Superior Safety Features

The hoist is equipped with 6 main safety features:

1. Automatic shut-off when motor overheats.
2. Automatic shut-off when overload occurs.
3. Automatic shut-off when input voltage is abnormal.
4. Automatic shut-off when motor stalls.
5. Torque limiter to prevent hook jamming.
6. Upper/lower limit switches to prevent excessive chain winding.

Additionally, the 2-speed push-button emergency stop switch supports precise adjustment at low speed, which is essential for applications requiring high precision such as mold pressing.

Durable Structure – Easy Installation

• Housing made of IP55-rated aluminum alloy, dust and water-resistant, ensuring high durability in all environments.
• Braking system combines motor brake and mechanical ratchet mechanism, ensuring absolute safety during operation.
• Certified to international standards: CE Machinery Directive, CE EMC Directive, EN 14492-2, JIS B8815, ISO 4301-1, and ASME B30.7.
• Equipped with industrial plug, can be directly connected to 1-phase 200-240V power supply – easy installation without complex wiring.

Applications

Whether used for precise lifting of molds or lifting ordinary heavy objects in factories, the brushless motor chain hoist always ensures maximum efficiency and absolute safety – becoming an indispensable choice in modern workshops today.
