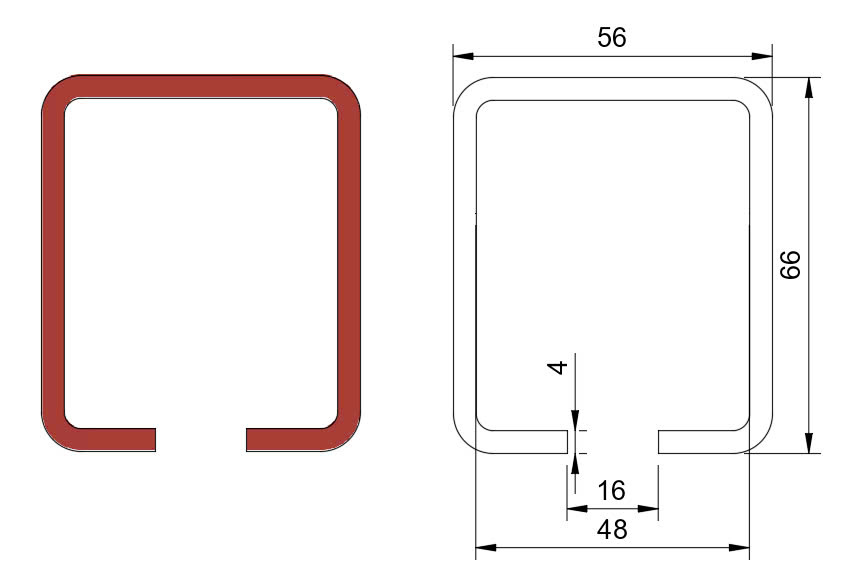

This rail supports lifting loads of up to 200 kg when combined with a trolley. With one of the best load-to-weight ratios in Taiwan, it delivers high performance while staying light and easy to install. The 5T rail is made to tight tolerances in dimensions and straightness, ensuring consistent quality.
| Specification | |
|---|---|
| Material | Alloy steel |
| Rated load | 200 kg |
| Runway rail length | Unlimited |
| Bridge rail length | 5.5 m |
| Length | Weight |
|---|---|
| 1000mm | 6 kg |
| 2000mm | 13 kg |
| 3000mm | 20 kg |
| 4000mm | 26 kg |
| 5000mm | 33 kg |
| 6000mm | 40 kg |

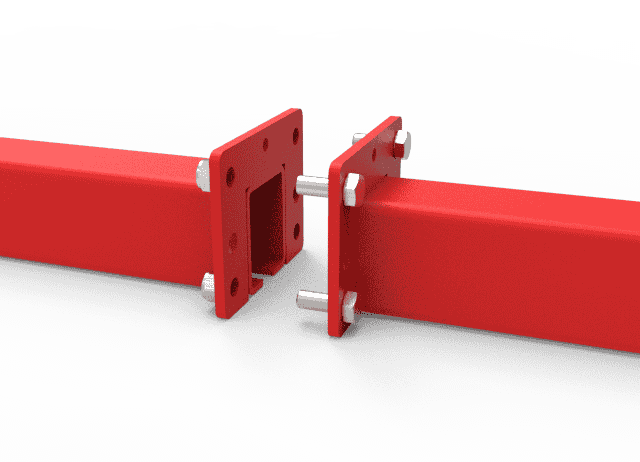

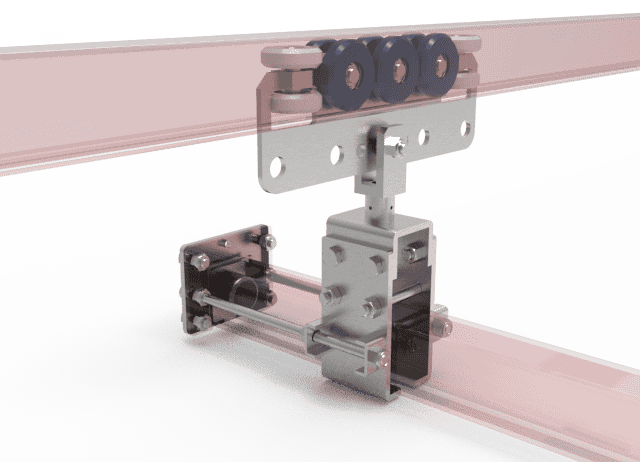

Chamfered rail ends allow fast, accurate assembly with no further adjustment. No tools or measuring are required. The smart joint design makes installation easy even in confined spaces. Precise alignment between rail sections lets the trolley run smoothly, with low effort and no noise. Rails can be installed from either end without turning the profile. The optimized design saves installation time.

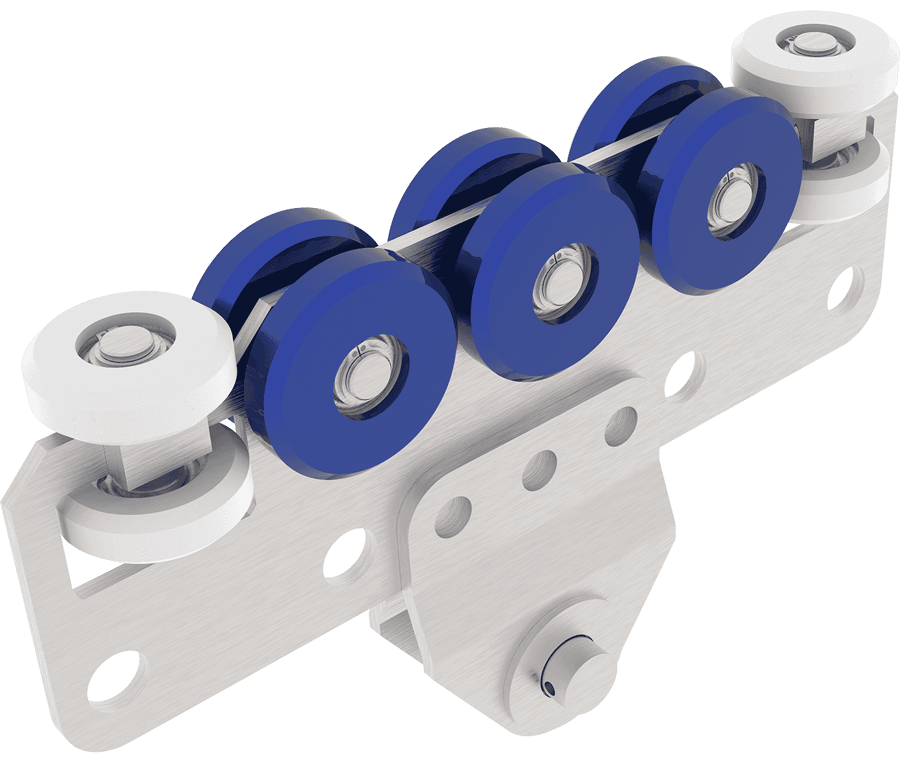

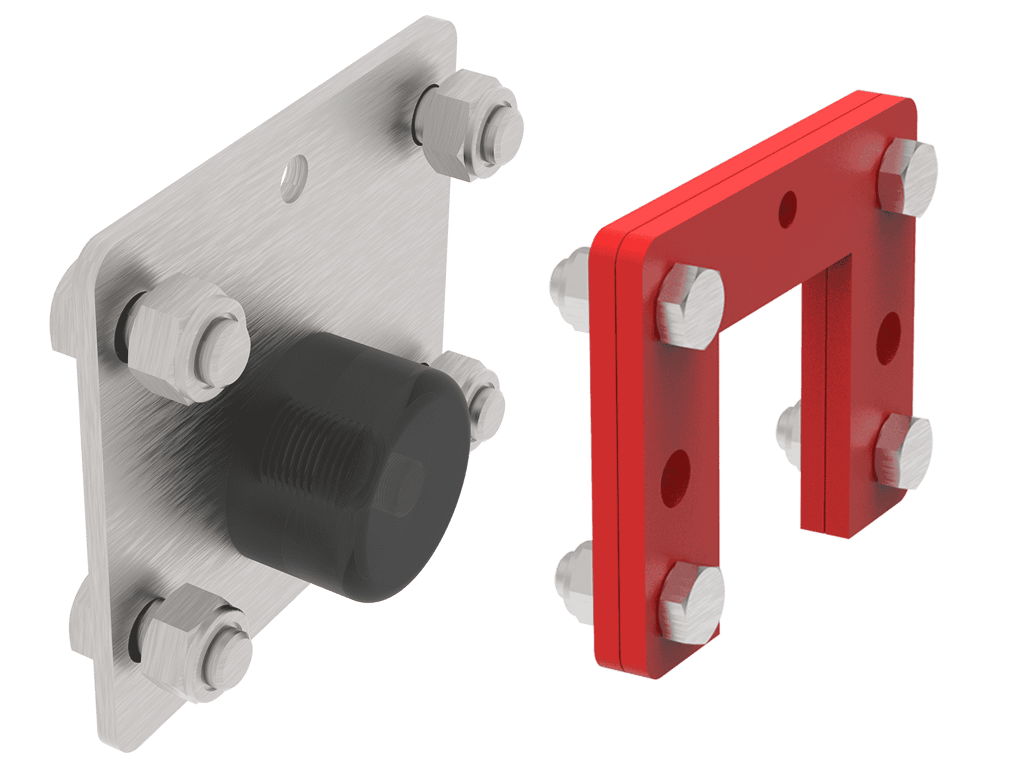

The trolleys are built for durability and smooth operation. They run quietly with very low rolling resistance and move easily. Side guide wheels keep the trolley perfectly centered inside the rail. In addition, every rail is fitted with rubber buffers at both ends to absorb impact.
