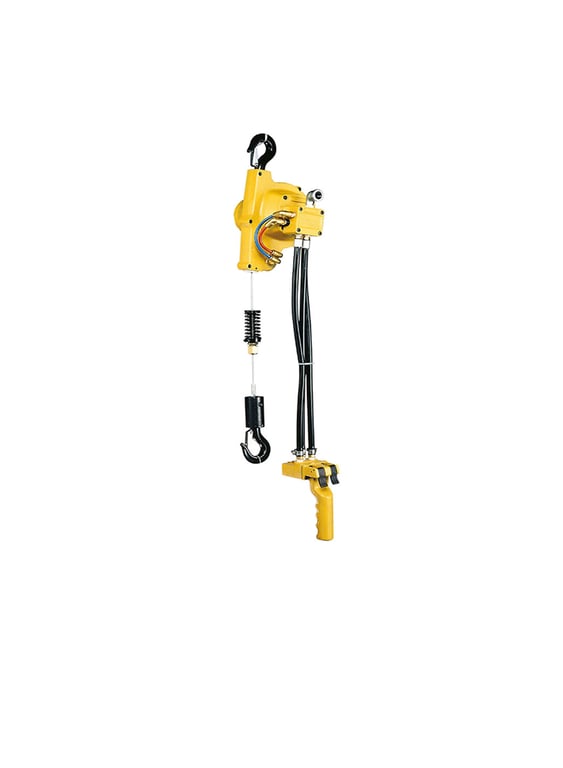

EHW-R

Rated load from 60 kg to 120 kg.

This air hoist series is designed for simple, easy operation via a pendant switch. It is also equipped with a reverse-winding prevention device, and the air motor stops automatically when the wire rope is paid out to 1.9 m.

Download PDF spec sheet

Technical Specifications

The Endo EHW-R air hoist series is operated by a pendant switch for easy, safe control. It features a reverse-winding prevention mechanism and stops automatically when the wire rope reaches the end of its 1.9 m stroke.

Model	Rated load (kg)	Stroke (m)	Air pressure (MPa)	Lifting speed (m/min)	Air consumption (m³/min)	Air inlet	Weight (kg)
EHW-60R	60	1.9	0.4	18.5	0.55	Rc 3/8	9.5
			0.5	22.5	0.70
			0.6	26.0	0.88
EHW-120R	120	1.9	0.4	11.0	0.59	Rc 3/8	9.7
			0.5	13.5	0.75
			0.6	16.0	0.93

Optional Accessories

Plentrolly

By attaching it to the hanging source, it enables smooth lateral movement manually.

Air Motor Trolley

This type of trolley is powered by air and transports a suspended load horizontally.
