FS-QFX pneumatic vacuum lifter: 90° flip and 90° rotation of glass

FS-QF pneumatic flip (rotation) series. Load: 150 kg, 250 kg, 350 kg. Power system: compressed air, 0.6–0.8 MPa.

The lifter is made for fixed workstations in glass deep processing, such as loading and unloading glass on insulating glass lines, laminated glass lines, glass edging machines, water jet cutting and other glass processes. At a fixed station it works with a pillar jib crane, a wall-mounted jib crane or an overhead rail, which makes it quick and convenient to use. Air cylinders lift and lower the glass and turn it through a 90° flip and a 90° rotation.

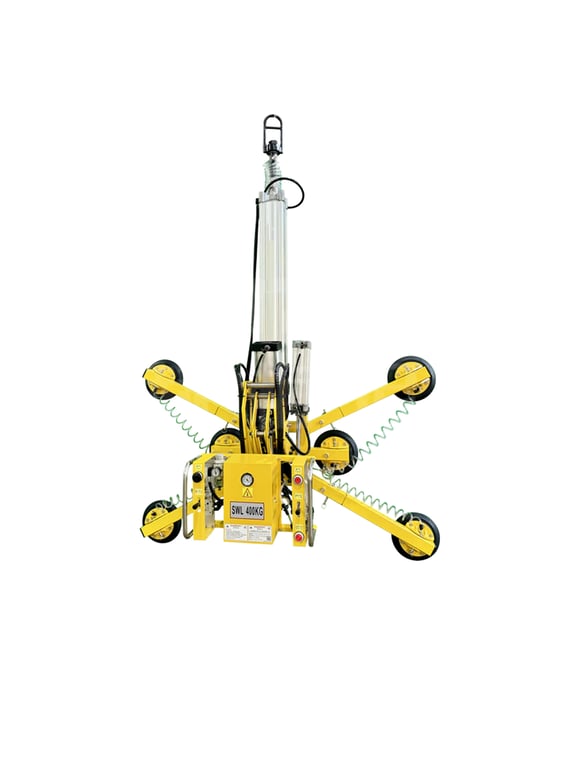

FS-QFX pneumatic glass vacuum lifter with flip and rotation

Specifications

Model	Safe load	Size (mm)	Suction cup diameter (mm)	Number of suction cups	Power system	Control mode	Function
FS-QFX150-2S	150 kg	760×250	Φ250	2	Compressed air (0.6–0.8 MPa)	Manual	0–90° pneumatic flip + 0–90° pneumatic rotation
FS-QFX250-4S	250 kg	830×650; extended: 1730×1100	Φ250	4	Compressed air (0.6–0.8 MPa)	Manual	0–90° pneumatic flip + 0–90° pneumatic rotation
FS-QFX350-6S	350 kg	830×650; extended: 1730×1100	Φ250	6	Compressed air (0.6–0.8 MPa)	Manual	0–90° pneumatic flip + 0–90° pneumatic rotation

All three models share Dia. 250 mm suction cups, 0.6–0.8 MPa compressed air supply, manual control and the same pneumatic flip and rotation functions.

Main components

High quality cylinder

High quality cylinder from an internationally known brand / Stable power output / Durable

Vacuum suction cup

Suction cup rubber Dia. 250 mm, nitrile rubber / Three-ring multi-cavity seal / Good pressure holding, safer

Equipment frame

Professionally custom made by the factory / National standard structural steel profiles / Welded, machined, shaped and finished with baked paint, durable

Other spare parts

Power switches, vacuum generator and other parts from internationally known brands / UL and other international certifications / Low failure rate, durable

Application scenes

**Loading glass onto a vertical insulating glass line**

**Flipping a glass sheet under a pillar jib crane**

**Feeding glass to an edge grinding line**

**Taking glass from a vertical rack beside the washing machine**

**Loading and unloading at a vertical insulating glass press**

**Lifting a large tinted glass sheet from a rack**

**Loading and unloading at the vertical washer of an insulating glass line**

**Installing curved glass on a railway carriage**

**Feeding glass to a straight-line edging machine**

Product advantages

Made for fixed workstations

FS-QFX vacuum lifters are ideal for fixed workstations in glass processing, including insulating glass lines, laminated glass lines, glass edge grinding, water jet cutting and other glass processes. They are designed to work seamlessly at a fixed station and can be used easily and quickly with pillar jib cranes, wall-mounted jib cranes or overhead cranes.

90° flip and 90° rotation without electricity

A key feature of the FS-QFX series is that air cylinders lift the glass, flip it 90° and rotate it 90° easily, with no electricity needed.

Quality, reliability and safety

The lifters are designed to high standards of quality, reliability and safety. They simplify glass handling, raise efficiency and reduce the risk of accidents or damage to the glass. The rugged construction and advanced technology give long-term performance and durability.
