FSE Roll Lifter

FSE Series Manual-Push Roll Lifter

A smart electric lifting solution for every industry

Product Overview

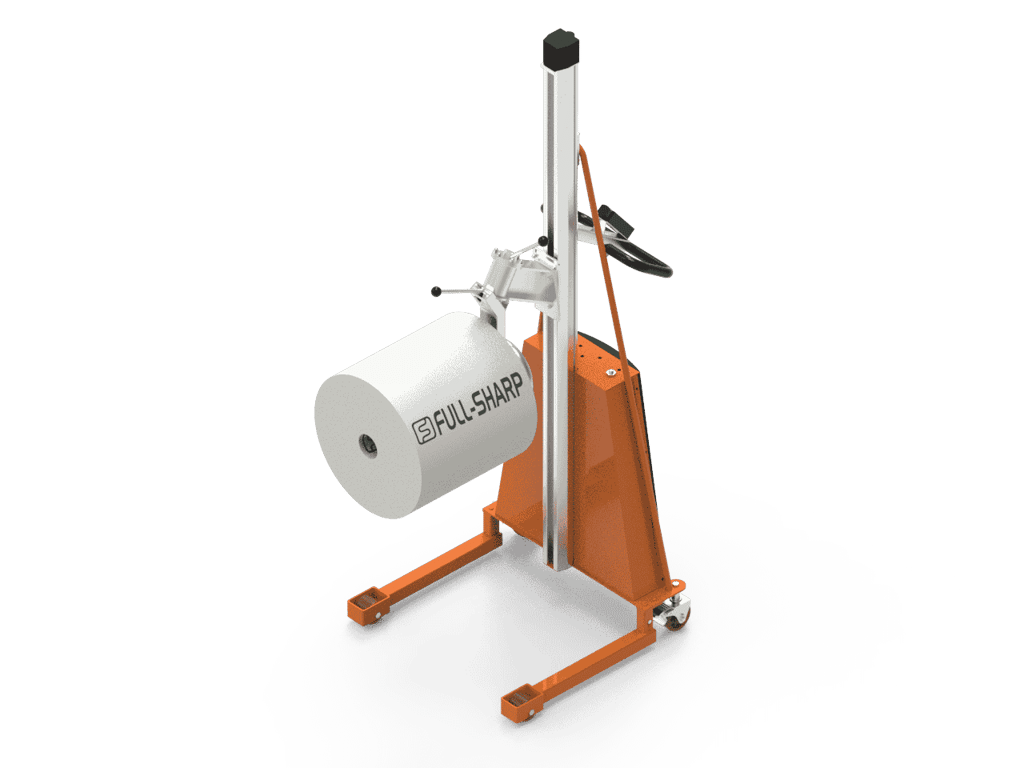

Xe nâng cuộn đẩy tay FSE — FSE manual-push roll lifter

Xe nâng cuộn đẩy tay FSE — FSE manual-push roll lifter

Our FSE roll lifter series

This series is designed for warehouses that need to lift rolls, and is a particularly good fit where the budget is moderate.

Key Features

Smart power supply

High-efficiency, maintenance-free battery, compact yet powerful

Drive system

Compact, reliable mechanical chain drive

Convenient control

High-performance control panel with a portable electric push button

Versatile applications

Suitable for factories, hospitals, warehouses and supermarkets

Main Applications

The FSE electric roll lifter is mainly used for:

Transporting goods, lifting or loading and unloading rolls
Moving loads at a set height on flat, smooth floors
Particularly suited to handling small cylindrical rolls
Widely used in printing and packaging plants

Key advantages:

Clean design with a high-strength aluminum alloy mast
Convenient, portable electric control
Reduces labor
Accepts a range of attachments and upgraded platforms

Specifications

FSE100 / FSE100A

Load capacity: 100 kg
Lift height: 130-1700 mm
Platform size: 470×600 mm
Battery: 24V/12Ah
Weight: 62 kg

FSE150 / FSE150A

Load capacity: 150 kg
Lift height: 130-1500 mm
Platform size: 470×600 mm
Battery: 24V/12Ah
Weight: 65 kg

FSE200 / FSE200A

Load capacity: 200 kg
Lift height: 130-1500/1700 mm
Platform size: 470×600 mm
Battery: 24V/20Ah
Weight: 78 kg

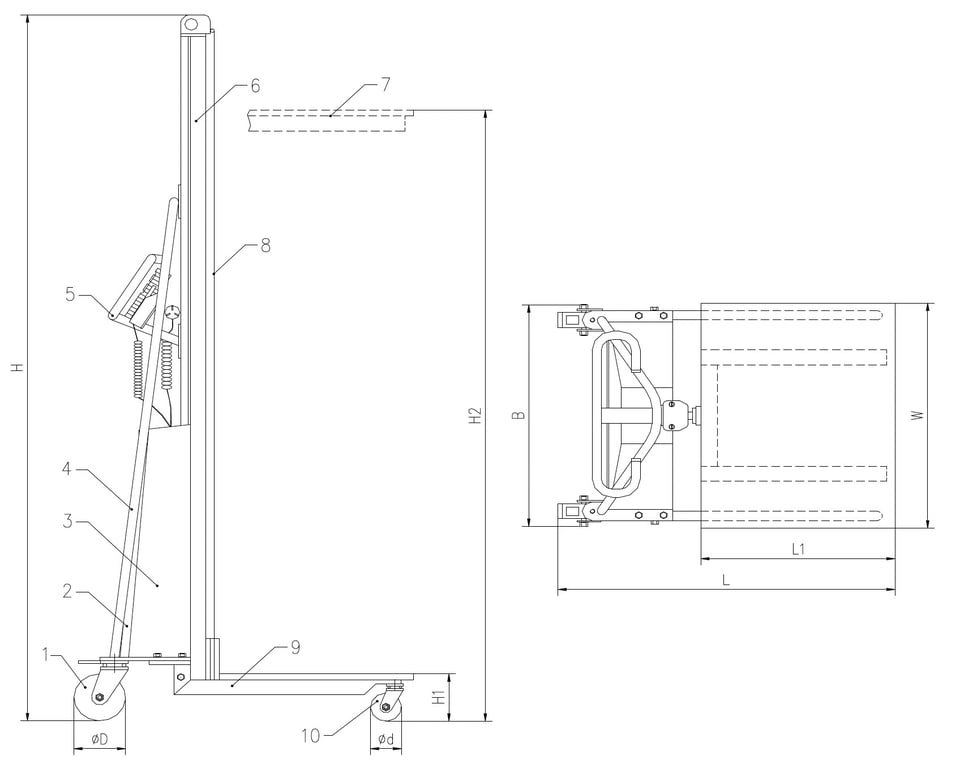

Detailed Specifications

Parameter	FSE100/100A	FSE150/150A	FSE200/200A
Load capacity (kg)	100	150	200
Load center C (mm)	235	235	235
Min. height H1 (mm)	130	130	130
Max. height H2 (mm)	1700	1500	1500/1700
Platform size L1×W (mm)	470×600	470×600	470×600
Overall dimensions L×W×H (mm)	890×600×1990	890×600×1790	890×600×1780/1990
Front wheel d (mm)	Φ75	Φ75	Φ75
Rear wheel D (mm)	Φ125	Φ125	Φ125
Maintenance-free battery	24V/12Ah	24V/12Ah	24V/20Ah
Weight (kg)	62	65	78

Optional Accessories

V block

Size: 400×400×80mm

Holds the roll in place

Single spindle

Diameter: Φ48mm

Length: 600mm

Double spindle

Spacing: 200-450mm

For handling two rolls

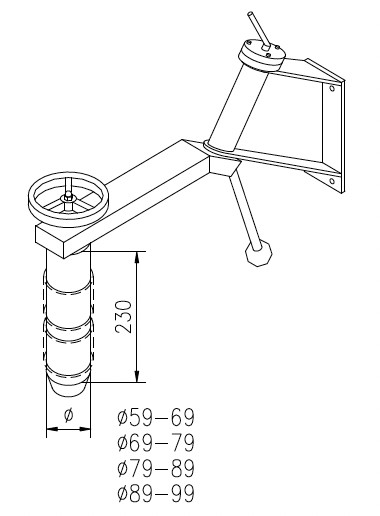

Rubber roll rotator

Diameter: Φ59-99mm

Height: 230mm

Important Notes

Safety comes first.

Read the operating manual carefully before use
Inspect the equipment before every shift
Do not exceed the rated load
Use only on flat, solid surfaces
Carry out regular maintenance to extend service life
