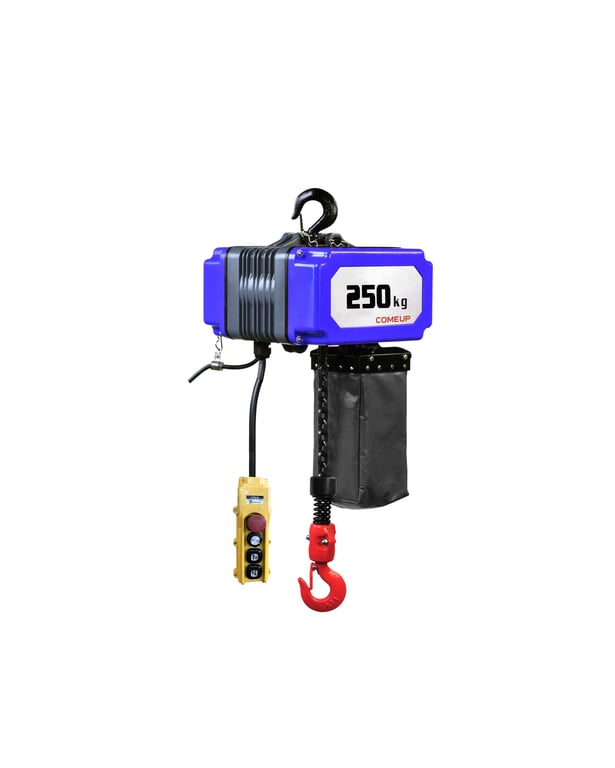

BMC-250

COMEUP BMC-250 is a modern lifting solution for industries that demand high precision and stable performance. Powered by a brushless DC motor, it eliminates carbon dust and sparks entirely, reduces maintenance and extends service life. Speed is adjustable in the low-speed range.

View catalogue

Technical Specifications

Model	BMC-250
Duty cycle	30% ED
Machine classification	1Am(FEM), M4(ISO)
Power supply	AC200-240V 50/60Hz, single phase
Rated load	250 kg
Lifting height	3 m
Chain falls	Single
Motor output	500W, brushless motor 6.6A
Lifting speed	0.4 ~ 3.6 / 13.1 m/min
Brake	Dual motor brake with mechanical brake
Gear ratio	35.2 : 1
Load chain	FC80 - 6.3 mm x 19 mm

Note: The lifting height shown is the maximum with the standard chain bag. Additional options are available on request.

Features

Brushless motor: no carbon dust or sparks, long service life.
Energy-efficient DC inverter control for smooth starting and stable operation.
2-speed pendant with emergency stop for precise positioning.
Ideal for high-precision applications such as mold lifting and vertical transfer.
6 safety features:
1. Automatic cut-off on motor overheating.
2. Automatic cut-off on overload.
3. Automatic cut-off on abnormal input voltage.
4. Automatic cut-off on motor stall.
5. Torque limiter to prevent hook jamming.
6. Upper/lower limit switches to prevent chain overrun.
Dual brakes for maximum safety.
IP55 dust and water protection.
Durable aluminum alloy housing.
Industrial plug for direct connection to single-phase power.
Compliance: CE, EMC, EN14492-2, JIS B8815, ISO4301-1, ASME B30.7

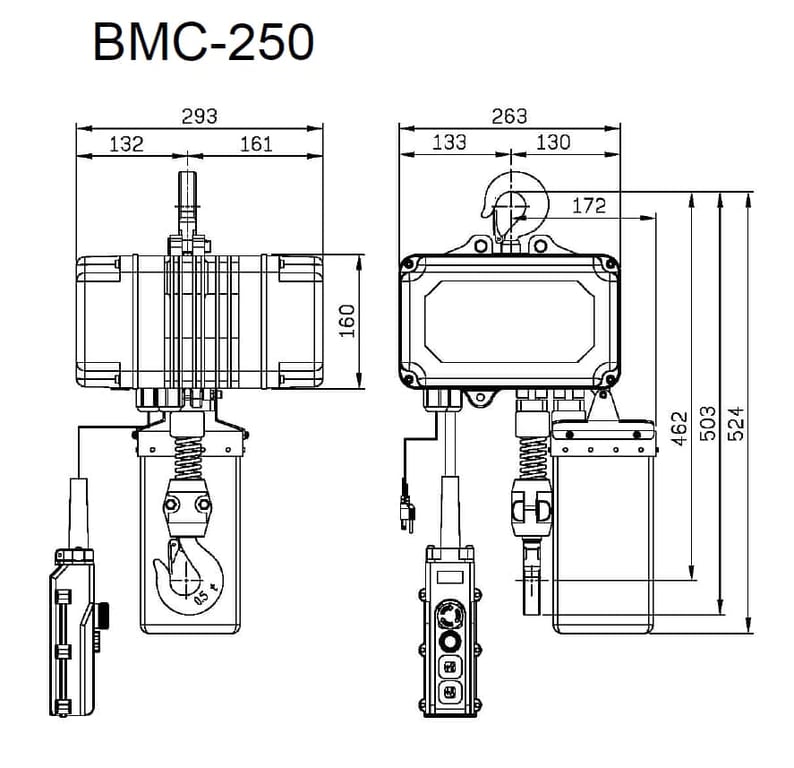

Dimensions

Accessories

Standard accessories:

FC80 load chain
Pendant control with emergency stop: 0.5 mm² x 7C x 3m
Industrial plug: 1.5 mm² x 3C x 3m
BMC-250 suspension hook
Hook suspension fitting
Chain bag

Packaging

Hoist weight: 19.3 kg
Gross weight: 27 kg
Carton size: 380 x 410 x 345 mm

Downloads

Document	Date	Format	Link
BMC-250 User Manual	2024-05-22	PDF, 0.8 MB	Download
