Pneumatic Sack Clamp Gripper

General specifications

  • Maximum capacity75 kg / 165 lbs
  • Controlpush-button speed control (PSH)
  • Weight11 kg / 24 lbs (integrated PSH), 15 kg / 33 lbs (separate PSH)
  • Air pressure6-7 bar / 90-100 psi
  • Part number with integrated PSH92-10043
  • Part number with separate PSH92-10044
View catalogue

Pneumatic mechanical sack gripper – ideal for loose, porous sacks

We recommend the mechanical sack gripper for loose, upright sacks weighing up to 75 kg. It lifts woven polypropylene sacks, jute sacks or laundry bags easily, quickly and with a secure grip. This lifter is also available in a stainless steel version for environments with strict hygiene requirements.

If you need to lift airtight sacks such as cement, mortar or soil bags, we recommend the pneumatic vacuum sack gripper .

Fast and easy lifting

The mechanical sack gripper has pressure-sensitive speed control handles – you control the gripper's up/down movement with both handles. Press lightly to move slowly, press harder to go faster. We especially recommend this control type when sack weights vary.

The gripping rollers are made of rubber and do not damage or mark the sacks. To use it, simply place the gripper on a sack and press the green button to clamp. The rollers grip the sack firmly so it can be lifted and moved to the desired position with ease.

Bộ kẹp cơ học nâng bao

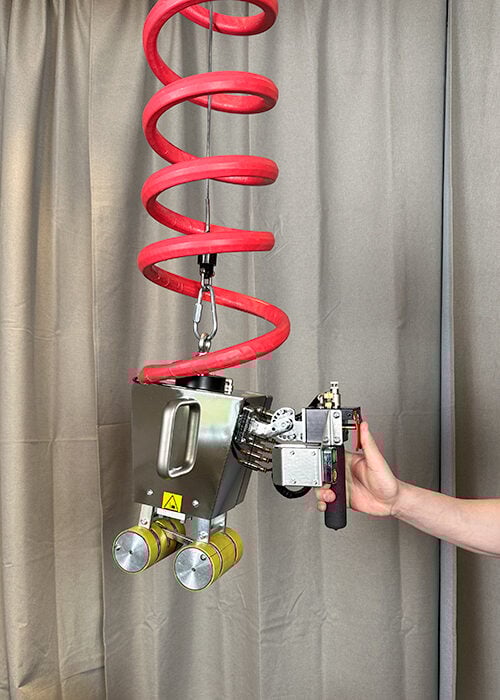

Stainless steel gripper for cleanrooms

Need equipment that meets high hygiene standards? The mechanical gripper is also available in stainless steel (SS) for cleanroom environments. This version is designed to meet strict hygiene standards, is easy to clean and limits dirt build-up. Sealed push buttons are also available as an option. Secure, safe sack lifting while keeping the work environment as clean as possible.
