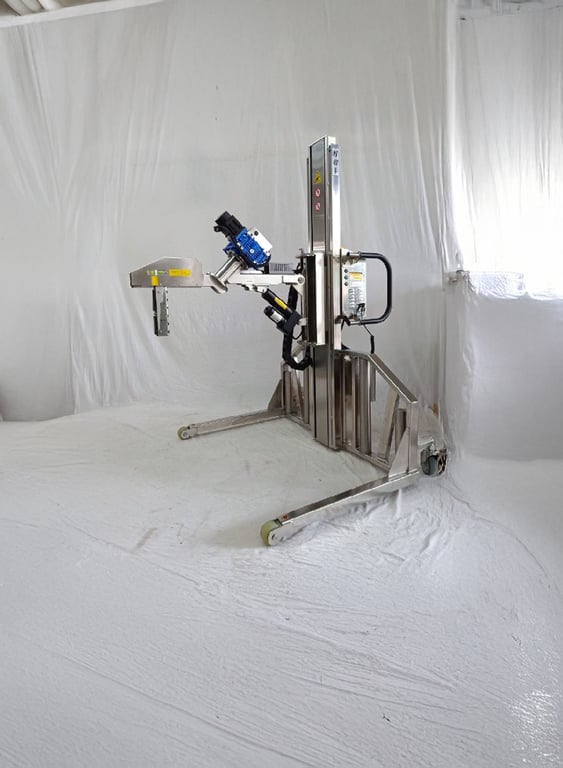

WilxonX200A-RR

WilxonX200A-RR is a high-quality roll lifter with a 130 kg load capacity, built from 304 stainless steel for durability and food-grade hygiene. It offers a lifting height of 160 to 1400 mm, a standard lifting speed of 125 mm/s and IP41 protection.

WilxonX200A-RR supports two battery types (lead-acid and lithium) with fast charging, and offers optional automatic horizontal rotation and the smart ASP position memory system. Suitable for rolls with ID ≥ 3” and width W ≤ 1300 mm, it is well suited to production environments that require precise and safe lifting.

Specifications

Parameter	WilxonX200A-RR
Dimensions	1500 x 1390 x 2026
Lifting height R Lifting height	160 - 1400
Load capacity Load	130kg
Lifting speed Lifting speed	125 mm/s (standard)
Protection rating Protection level	IP41
Battery Battery	Lead-acid battery DC24V20AH standard Lithium battery DC24V15AH optional
Charging Charging	Input 100–240V AC, 50/60Hz
Charging time Charging time	Lead-acid battery: 7 hours Lithium battery: 70 minutes
Material Material	304 stainless steel
Applicable rolls Applicable roll material	ID ≥ 3” W ≤ 1300mm
Options Options	Smart ASP lifting: 3 working positions x 5 memory positions (15 positions) Push-button automatic horizontal rotation Special materials on request: contact Full-Sharp
