Lifts All FlexiCrane 2 m articulated jib crane, 65 kg

Reach 2 m, maximum capacity 65 kg
Endless rotation on low-friction bearings
Pillar, ceiling, wall or mobile platform mounting
Fully stainless steel version for clean rooms
Combines with a Bal-Trol cylinder and lifting tool

FullSharp – official Lifts All representative in Vietnam

A versatile articulated jib crane with endless rotation

FlexiCrane is mounted on a steel pillar fixed to the wall, the ceiling or the floor, depending on the layout of the workplace. It fits all Lifts All standard pillars; the pillar length is made to measure and a telescopic version is available. If lifting is needed at several points in the workshop, the pillar can be placed on a mobile platform, so there is almost always room for a FlexiCrane lifting system.

Lifts All FlexiCrane 2 m articulated jib crane, 65 kg

Technical specifications

Item	Specification
Length (m)	2
Maximum capacity (kg)	65
Weight (kg)	30, 32, 40
Bal-Trol mounting	Basic, above, below
Other characteristics	Stainless steel (SS)
Installation	Cross mount, ceiling mount
Height (mm)	160, 378

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

Versions

SKU	Name	Length (m)	Maximum capacity (kg)	Weight (kg)	Bal-Trol assembly	Other characteristics	Assembly
95-10113	FlexiCrane (2.0) m - Overmounted - [65] kg	2	65	30	Over
95-10114	FlexiCrane (2.0) m - Under-mounted - [65] kg	2	65	30	During
95-10252	FlexiCrane (2.0 m) (Basic) [65 kg]	2	65	32	Basic
95-10252-RAL	FlexiCrane (2.0) m (Basic) Customized color [65] kg	2	65	32	Basic
	FlexiCrane (2.0 m) (Basic) - Ceiling-mounted - [65] kg	2	65		Basic		On the ceiling
95-10258	FlexiCrane (2.0)m Under-mounted stainless steel SS304, electro-polished [65]kg	2	65	40	During	Stainless steel (SS)
95-10286	FlexiCrane (2.0 m) - Cross-braced mounting	2		30			At the crossroads

Versions according to Lifts All (Sweden) data. Contact FullSharp to choose the right version for your product and workstation.

Light and silent

The lightweight design and compact size make FlexiCrane quick to install, which keeps installation costs low. Low weight combined with low-friction bearings gives very quiet, smooth operation.
The arm does not just turn a full circle: it rotates endlessly.

Combine it with a lifting tool

For a complete lifting system, FlexiCrane is fitted with a Bal-Trol compressed air cylinder and a suitable lifting tool. Because the system runs on compressed air, energy consumption during use is low, and in standby it costs nothing.

Stainless steel for sensitive environments

Besides the standard red finish, FlexiCrane is offered in a fully stainless steel version for clean rooms. Together with a stainless lifting attachment it provides ergonomic lifting for most clean-room-certified workstations, and both crane and attachment can be polished to the required surface finish.

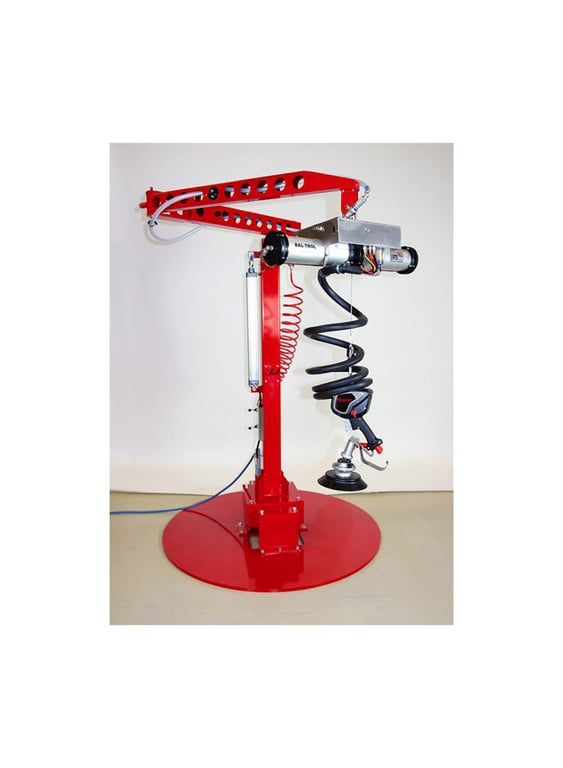

FlexiCrane Mobile for multiple workstations

Fitted to a mobile platform, the FlexiCrane 2 m becomes the FlexiCrane Mobile. It moves just as smoothly and quietly as the original, but can be relocated between workstations with a pallet jack. The platform keeps the crane stable during lifting without floor anchoring: position the crane, connect the compressed air and it is ready to lift up to 65 kg.

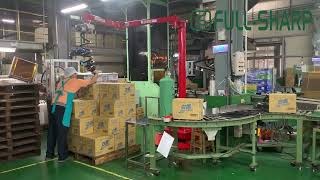

Height is adjusted pneumatically to suit different tasks, from low-ceiling areas to lifting onto shelves. The integrated Bal-Trol hoist can carry, for example, a vacuum gripper for cartons or a mechanical gripper that lifts and tilts rolls.

To move the crane, lower the column to its lowest position, disconnect the air supply, fold the articulated arm and secure it with the coupling. The whole unit can then be taken to the next workstation with a pallet jack.

Video

Compatible accessories and applications

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
