FS-SFXH

  • Safe load800–2,000 kg
  • PowerTwo DC 12 V batteries
  • Suction cups8 to 20 × Φ300
  • Tilt / rotateManual 0–90° tilt, 0–360° rotation
  • ControlManual or remote
  • FrameRemovable, spliced, sized to the glass
Download PDF spec sheet

FS-SFXH large-format glass vacuum lifter with manual tilt and rotation, up to 2,000 kg

FS-SFXH is a vacuum lifter series with manual tilt and rotation for curtain wall glass installation, built on a multi-cup beam frame for large glass panes.

  • Load capacity: 1,000–2,000 kg
  • Power system: DC 12 V battery
  • Features: suited to lifting large and extra-large glass and installing outdoor curtain walls; easy to operate, two international-brand batteries give long working time and higher efficiency; the whole frame is strong and durable, frame size can be customised to the customer's actual needs, and the frame is removable and can be spliced for easy transport.

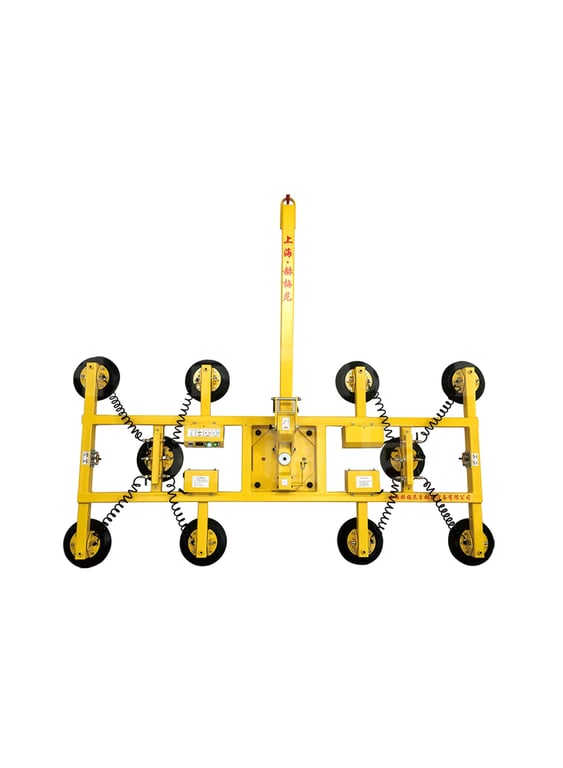

FS-SFXS800-8S glass vacuum lifter, beam frame with 8 suction cups FS-SFX2000-20S glass vacuum lifter, beam frame with 20 suction cups

Specifications

ModelSafe loadSize (mm)Suction cup diameter (mm)Suction cupsPower systemControl modeFunction
FS-SFXS800-8S800 kg1650×1000×240Φ3008 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation
FS-SFXS1000-10S1,000 kg(625+1400+625)×1000×240Φ30010 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation
FS-SFX1000-10S1,000 kg2750×1340×390Φ30010 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation
FS-SFX1200-12S1,200 kg2750×1340×390Φ30012 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation
FS-SFX1500-16S1,500 kg(1375+2500+1375)×1340×390Φ30016 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation
FS-SFX2000-20S2,000 kg(1625+3000+1625)×1340×600Φ30020 pcsDC 12 VManual / Remote0–90° manual tilt + 0–360° manual rotation

FS-SFXS800-8S (800 kg) and FS-SFXS1000-10S are the compact versions with a 240 mm frame height; the large beam-frame versions cover 1,000 to 2,000 kg. Sizes written (a+b+a) are three-section spliced frames: a centre section of length b with an extension of length a at each end.

Main components

1

Vacuum pump

Low energy consumption / High vacuum, strong suction / International-brand pump that runs continuously for 24 hours with more stable performance

Vacuum pump
2

Vacuum suction cup

Suction cup rubber 300 mm in diameter, made of nitrile rubber / Three-ring multi-cavity seal that holds pressure well and is safer

Vacuum suction cup
FS-SFXS800-8S
3

Equipment frame

Custom-built by the factory / National-standard structural steel sections / Welded, machined, formed and finished with baked paint, durable

Equipment frame
4

Other parts

International brands: power switch, battery, charger and more / UL and other international certifications / Low failure rate, durable

Other parts

On-site photos

Installing a long upright glass pane on a high-rise
Installing a long upright glass pane on a high-rise
Craning an extra-long glass pane off a trailer at night
Craning an extra-long glass pane off a trailer at night
Lifting an extra-long upright glass pane onto a building
Lifting an extra-long upright glass pane onto a building
Installing a large curtain wall pane, fitters guiding from below
Installing a large curtain wall pane, fitters guiding from below
Unloading an oversized glass pane from a truck on the street at night
Unloading an oversized glass pane from a truck on the street at night
Placing a roof glass panel on a mountain project
Placing a roof glass panel on a mountain project
