MaxiCrane Mini: 100 kg, 3 m

General specifications

Maximum capacity100 kg / 220 lbs
Reach3 meters / 9 feet 10 inches
Column heightCustom to order
Inner arm rotation270°
Outer arm rotation360° (non-continuous)
ColorRed (RAL 3020)
Sold separatelyColumn, Bal-Trol unit and gripper

View catalogue

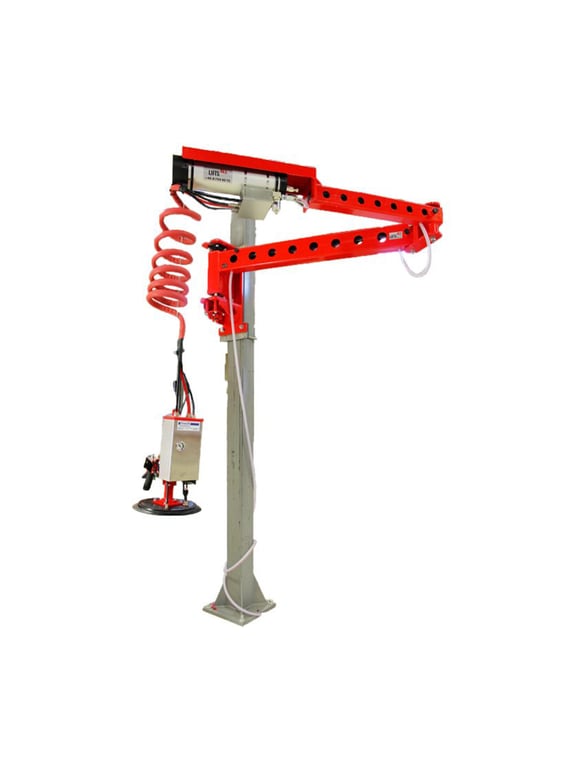

Articulating jib crane – MaxiCrane Mini

MaxiCrane Mini offers the same lifting capability as the standard MaxiCrane, with capacity up to 100 kg, but with a shorter arm (3 meters). It is ideal for work areas with low ceilings or without room for a standard crane.

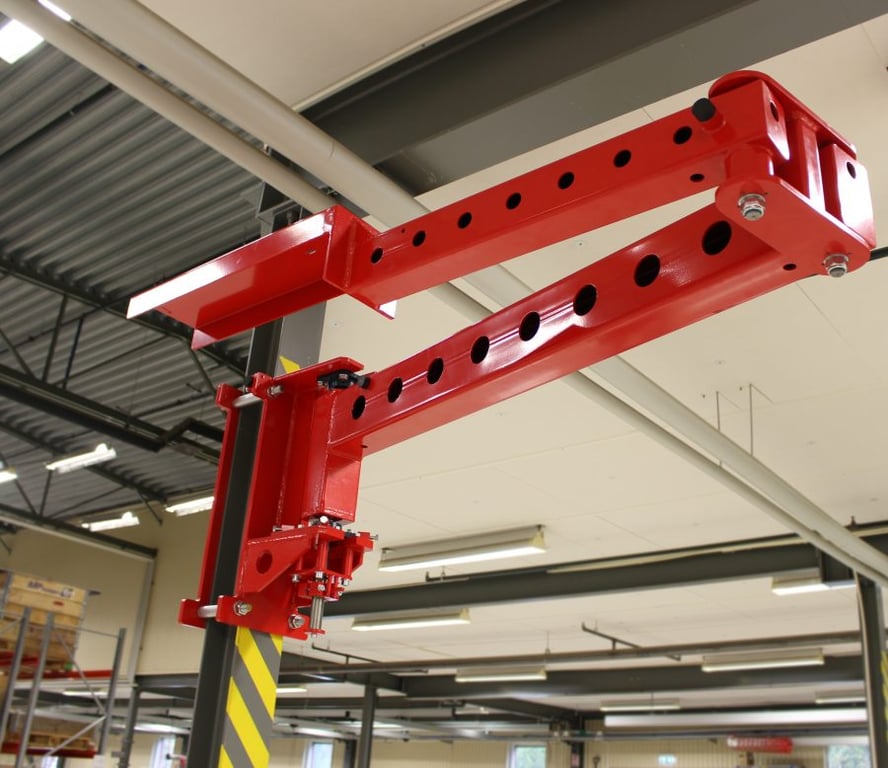

Quiet, smooth-running arm

Thanks to its low weight and low-friction ball bearings in the pivot joints, MaxiCrane Mini runs extremely smoothly. Like other Lifts All equipment, this mini crane can be:

Installed quickly at any height
Securely mounted on a steel column
A time and cost saver

Low-profile articulating jib crane – easy to pair with grippers

The outer arm integrates the Bal-Trol, creating a low-profile crane structure suited to the tightest workspaces while still providing maximum lifting height for the operator.

You can choose to:

Fit a hook for lifting boxes or rolls

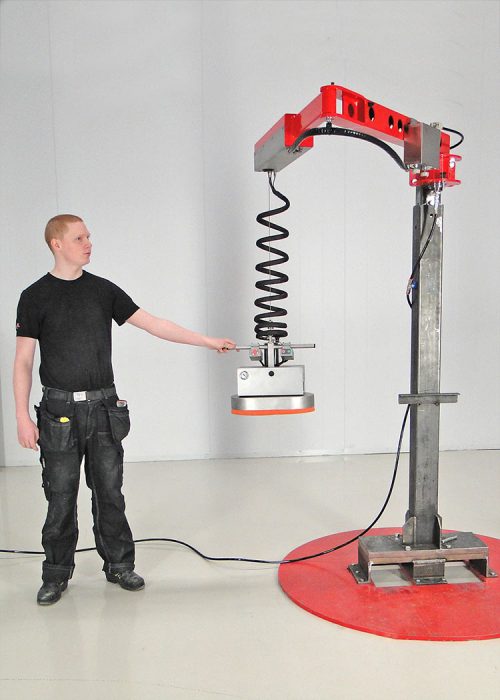

Fit a vacuum gripper for carton boxes
Fit a mechanical gripper for rotating material rolls

Grippers are custom-designed to optimize material handling and usually share the same coupling, so they can be changed quickly by a single operator.

MaxiCrane Mini – a compact, efficient and easy-to-use lifting solution for any workspace.
