Wilson-VAT

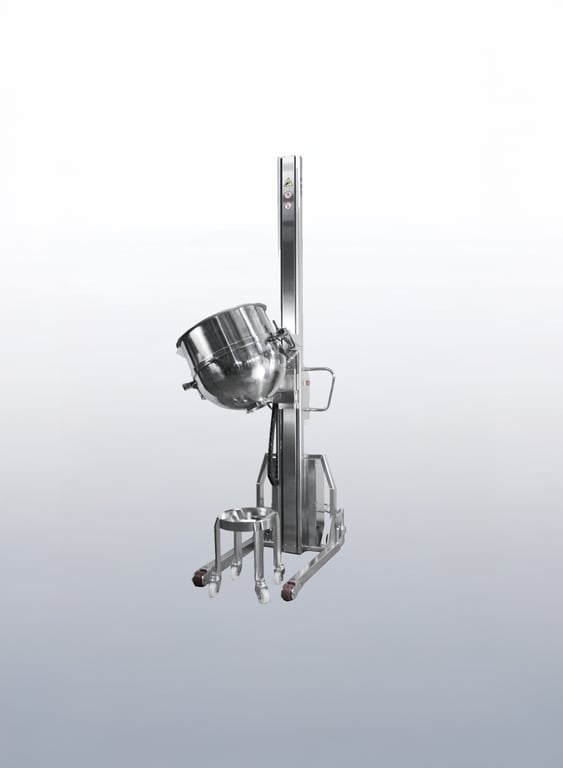

Wilson190S-VAT – a reliable assistant for the food and pharmaceutical industries

  • Anti-tip design for safe, stable operation
  • Manual and automatic mode buttons for convenient operation
  • Special design for easy, spill-free pouring
  • IP66 protection, waterproof and dustproof
  • Electropolished, all-stainless-steel construction, easy to clean and maintain, meeting food hygiene and safety standards

If you have special requirements or face difficulties in material handling, contact us and we will design the most suitable solution for you.

Specifications - Wilson VAT Series Lift and Tip Unit

ModelWilson-VAT190Wilson-VAT220Wilson-VAT250Wilson-VAT270
Spindle height
H		1900220025002700
Tipping lift height
T		1300160019002100
Working height
C		2400270030003200
Operation panel
▢ Battery indicator light
▢ Manual / automatic mode
▢ Manual mode – inching lift and rotation
▢ Automatic mode – one-button automatic lift, rotate, pour and return
▢ EMS emergency stop button
▢ Comes with wired remote control
Pouring method
Manual feeding, manual fastening, electric lifting and dumping
Load
80kg (excluding container)
Applicable containers
▢ 60L ▢ 80L ▢ 100L
304 stainless steel mixing tank
▢ Spout type ▢ Full-round type
** Only one tank size per lifting arm
Lifting speed
125 mm/s
Protection level
IP66
BatteryDC24V20AH
ChargingInput 100~240V AC
Material
304 stainless steel
