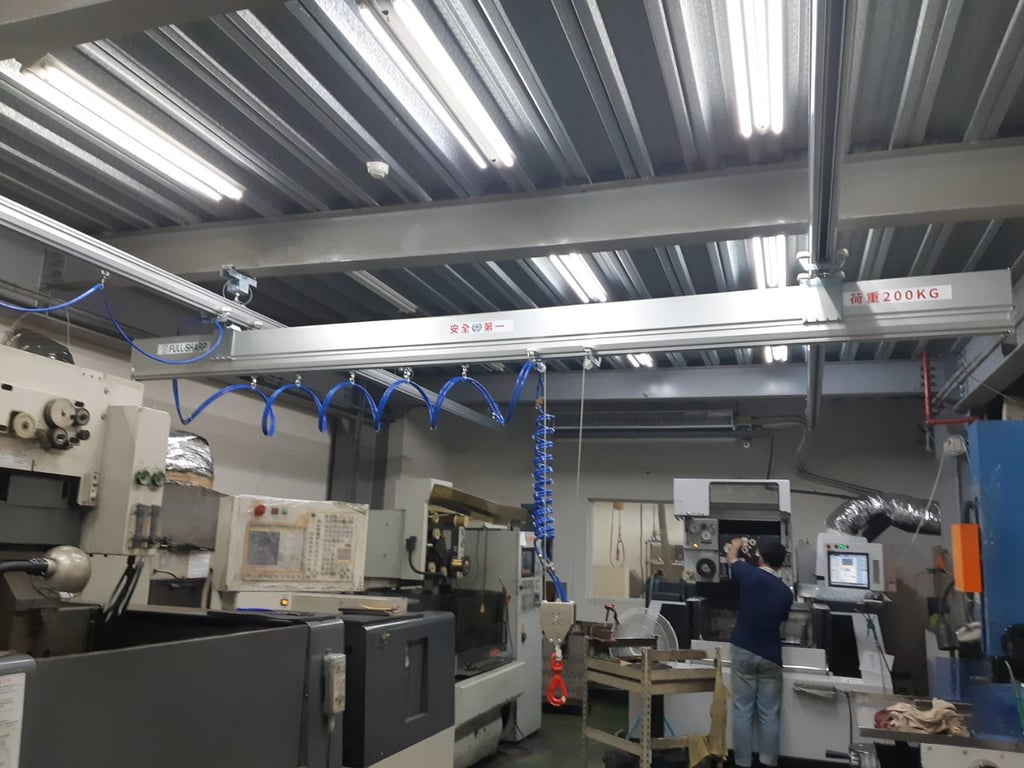

Rail-Mounted Pneumatic Hoist

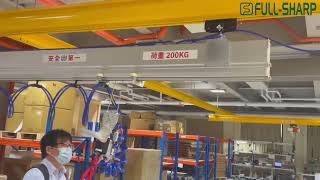

Thanh ray 1 tấn treo cầu trục khí nén 200kg

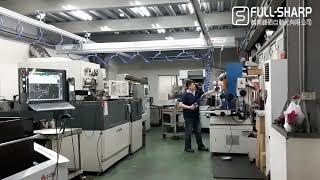

Hệ thống thanh ray treo tay cầm khí nén nâng khối kim loại

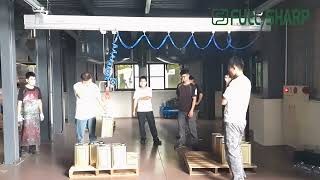

Cầu trục thanh ray treo tay cầm khí nén nâng thùng kim loại

Mounting options

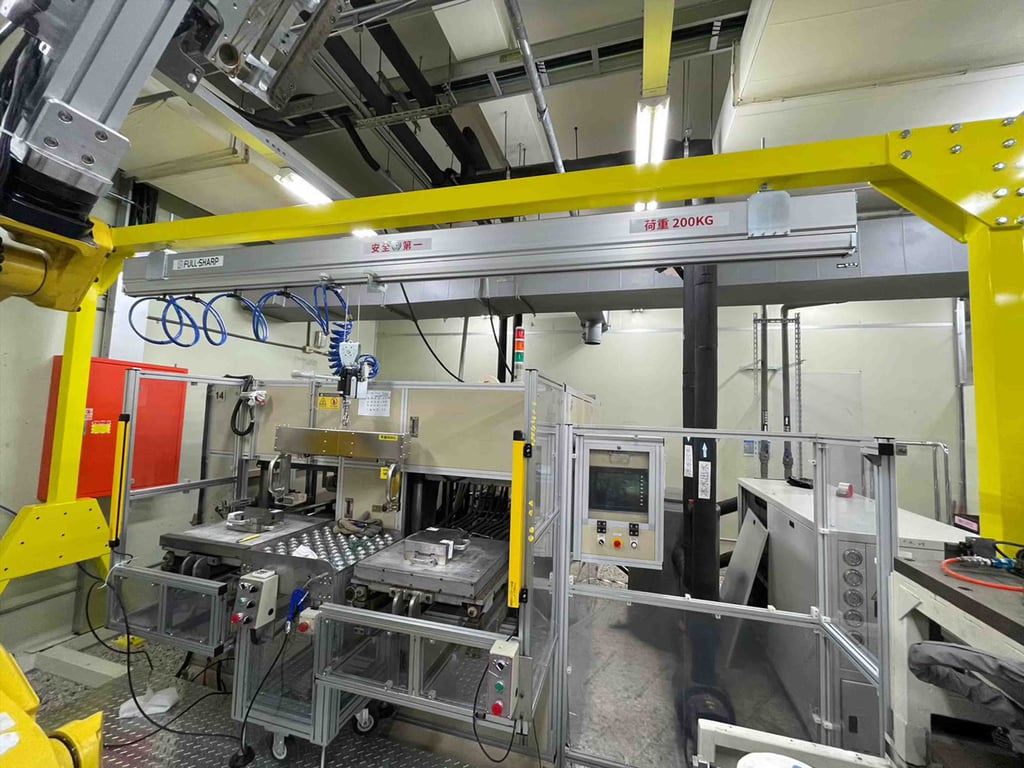

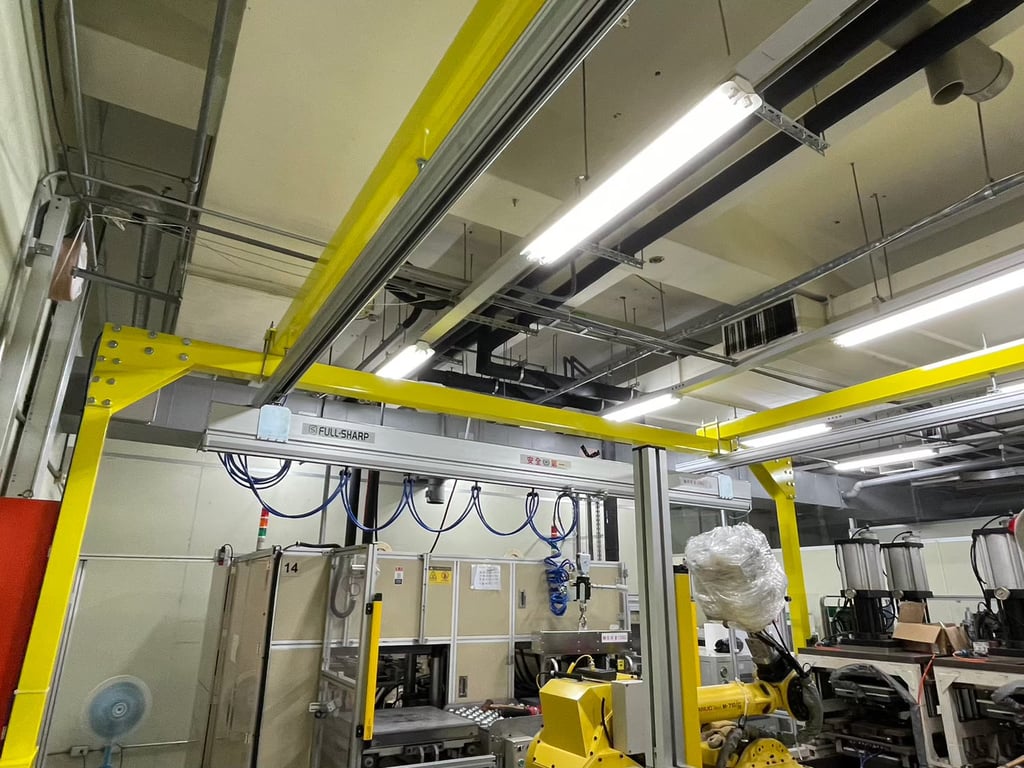

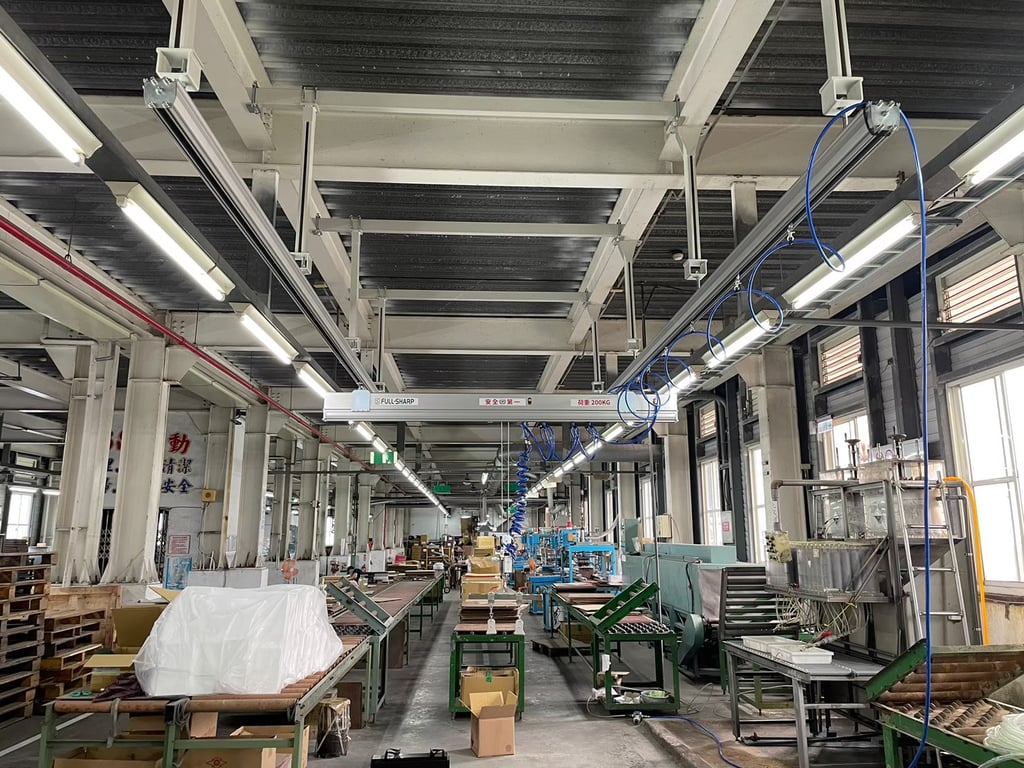

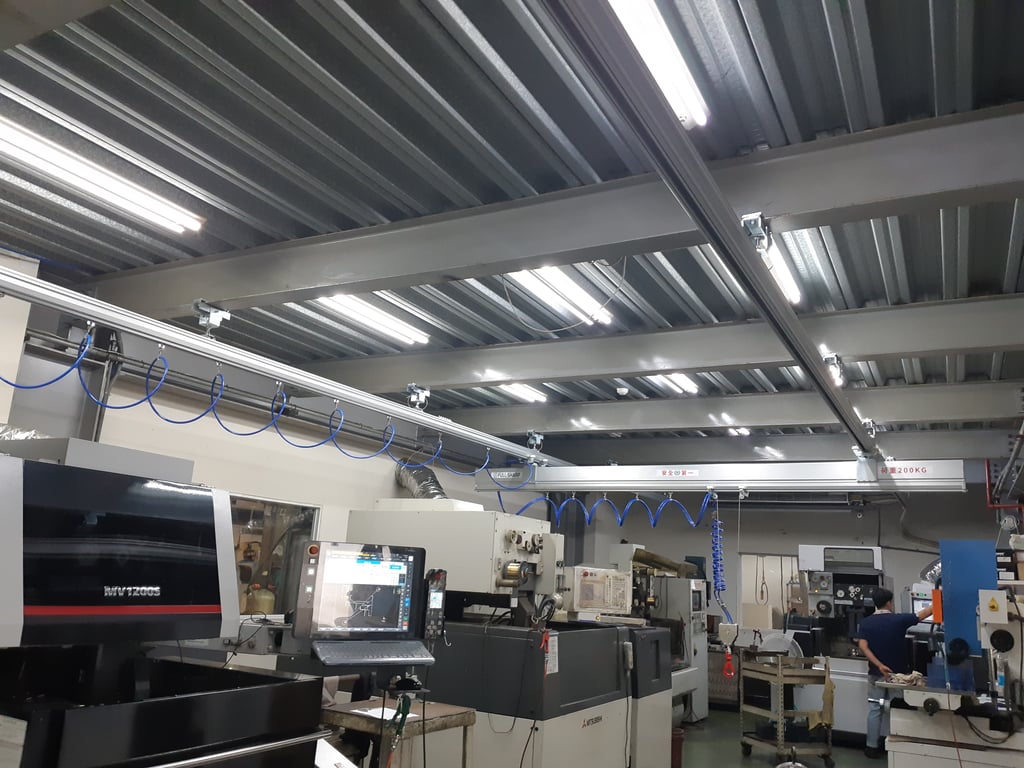

Gắn lên thanh ray dọc — **Longitudinal rail mounted**

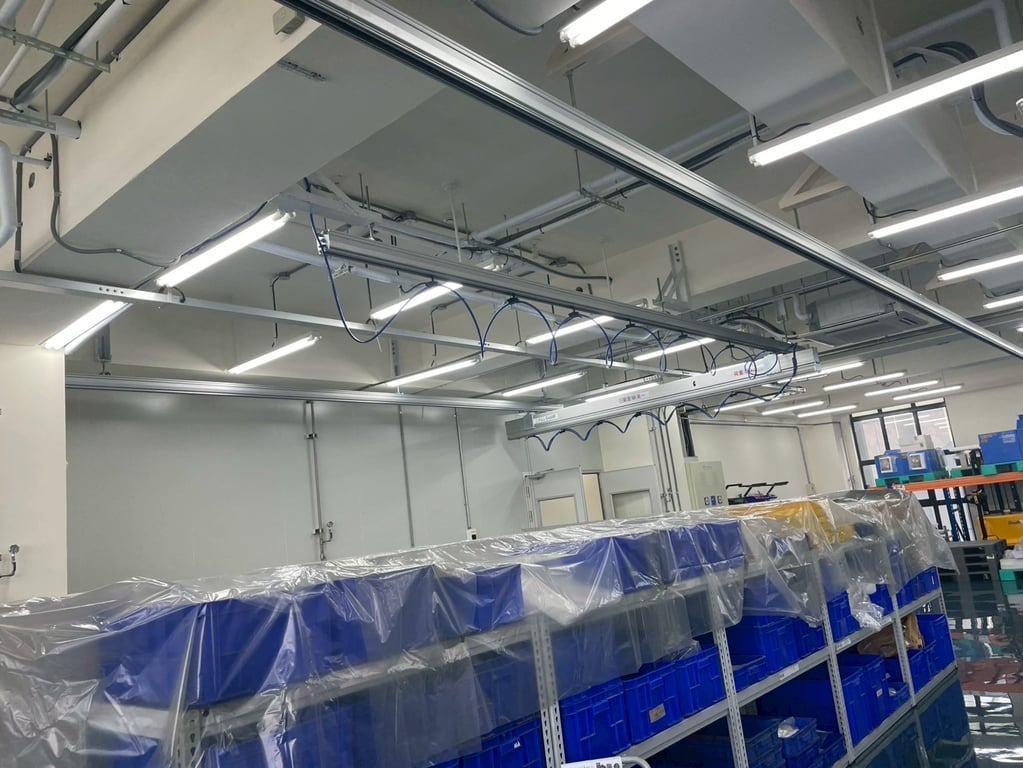

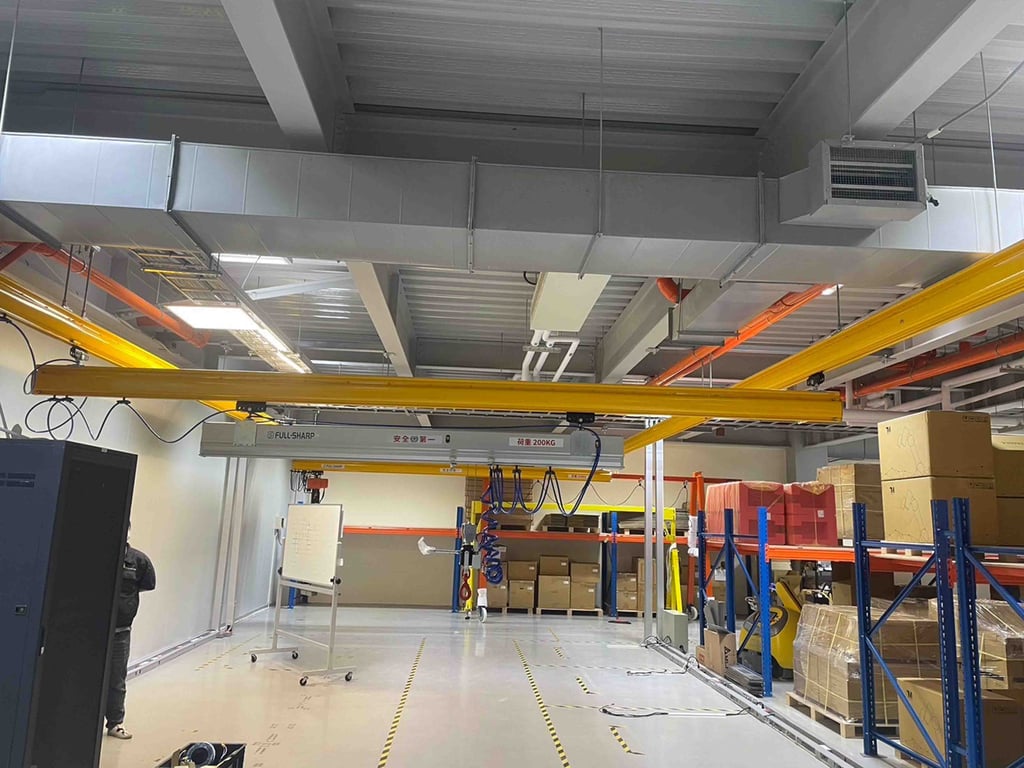

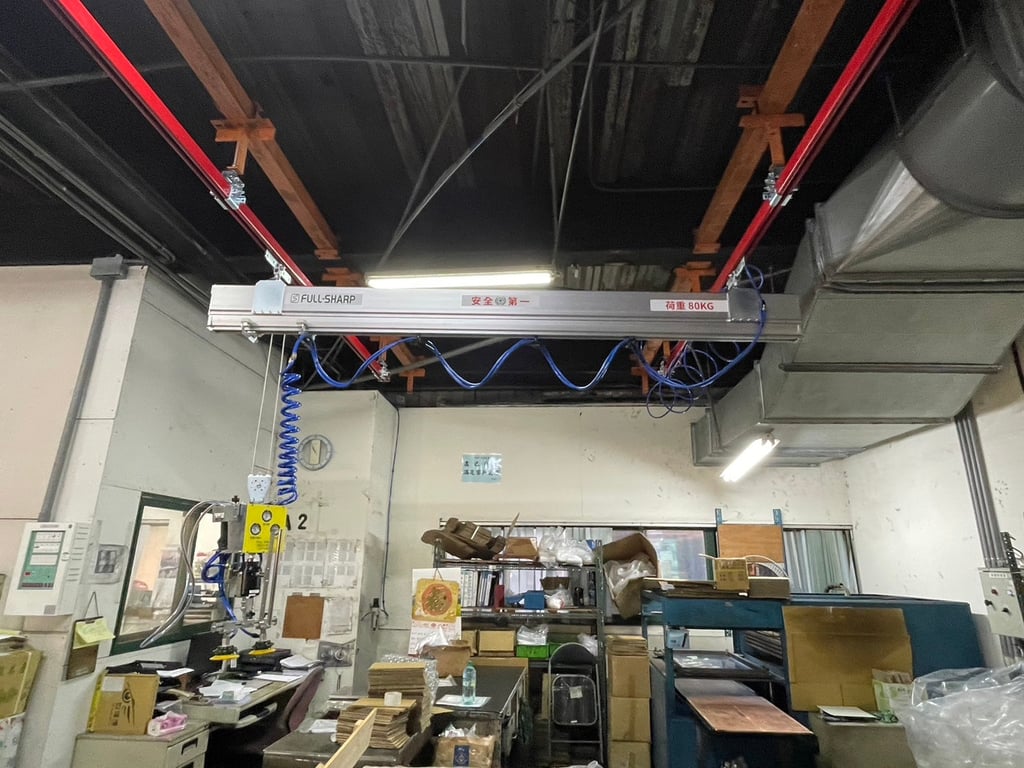

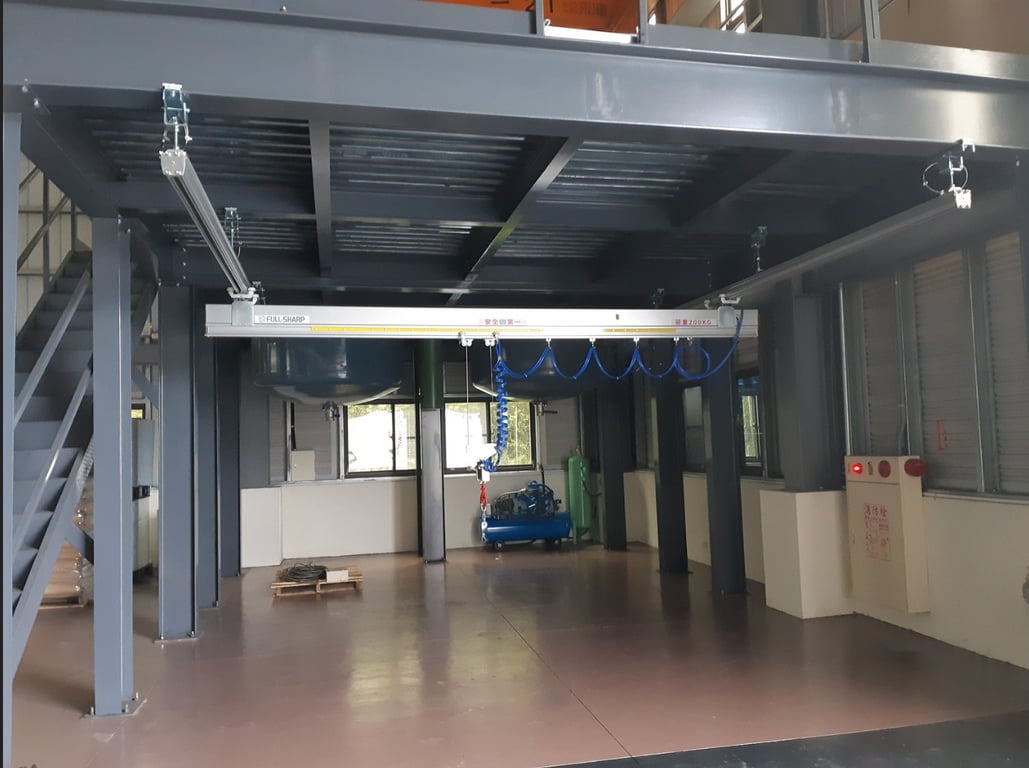

Gắn lên thanh ray ngang — **Cross rail mounted**

Control handles

Manual speed adjustment

Up/down push button

Simple connection; the handle can be detached to hold separately during operation or used with other equipment.

Twist to adjust speed manually

Force-sensing handle

Lifting and lowering speed follows the downward and upward force of your hand, so light that one finger is enough to operate it.

Construction and components

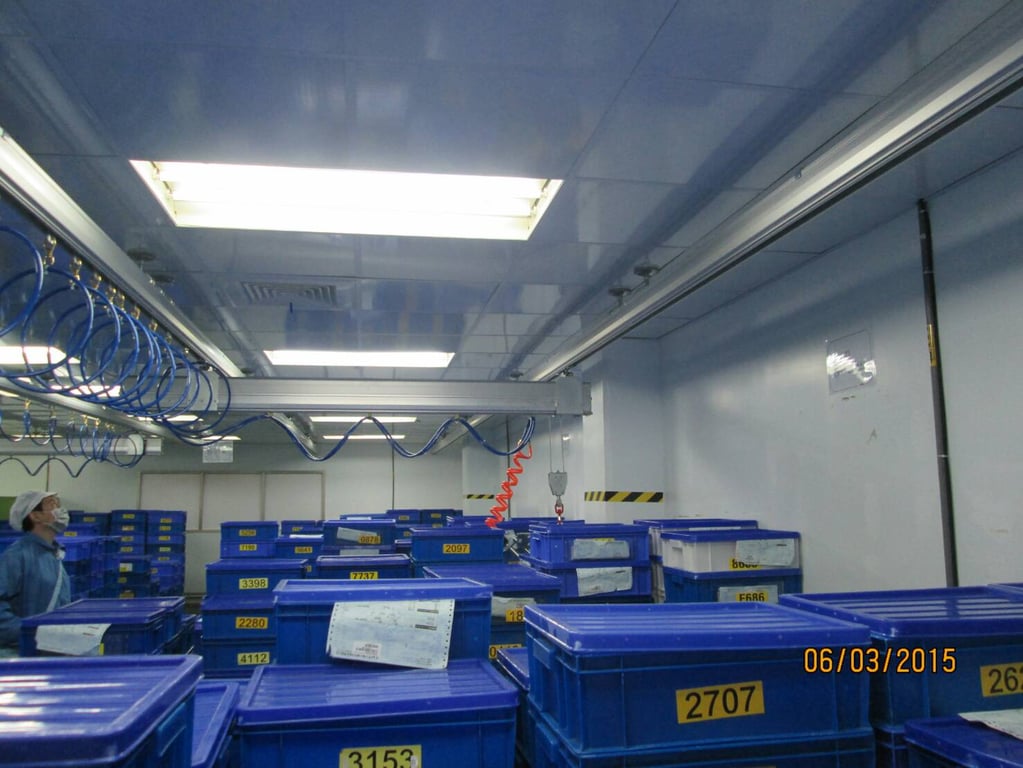

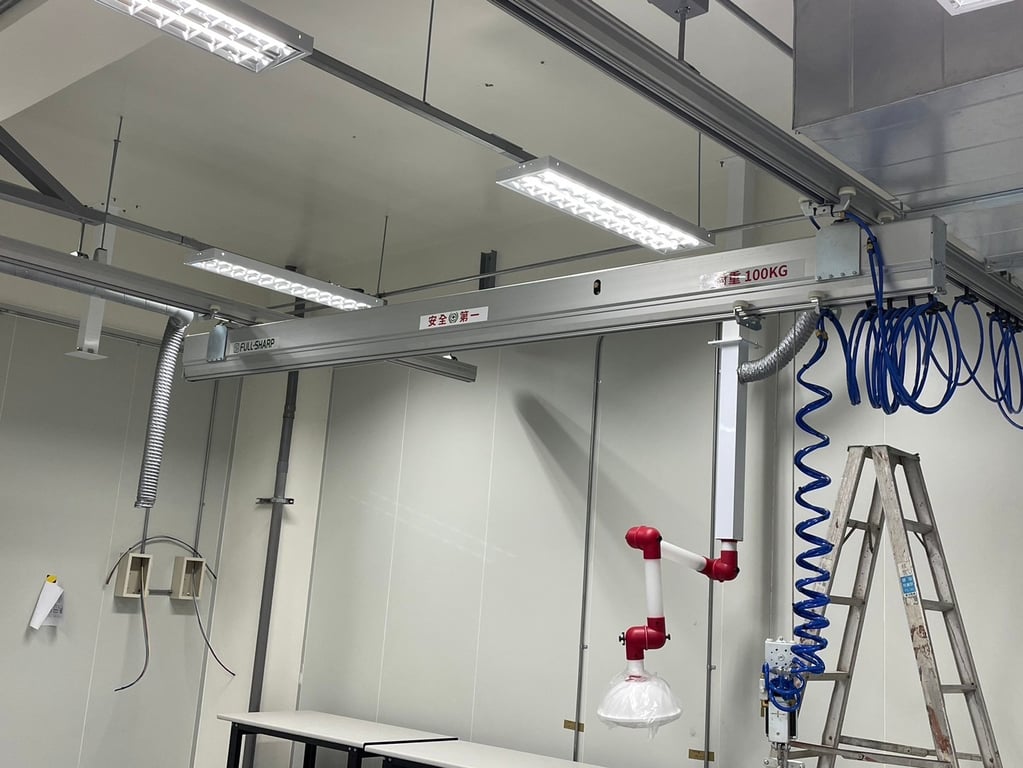

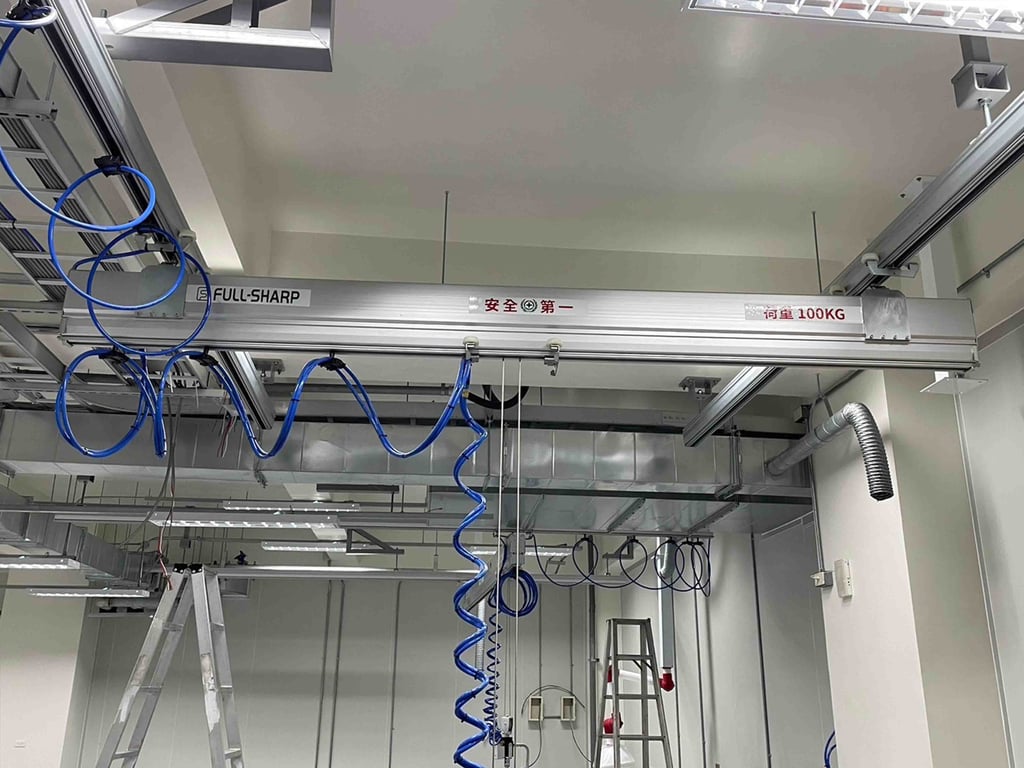

Suitable for cleanroom environments

Aluminum housing

Aluminum housing and pneumatic operation suit environments that must stay clean, free of falling dust and sparks.

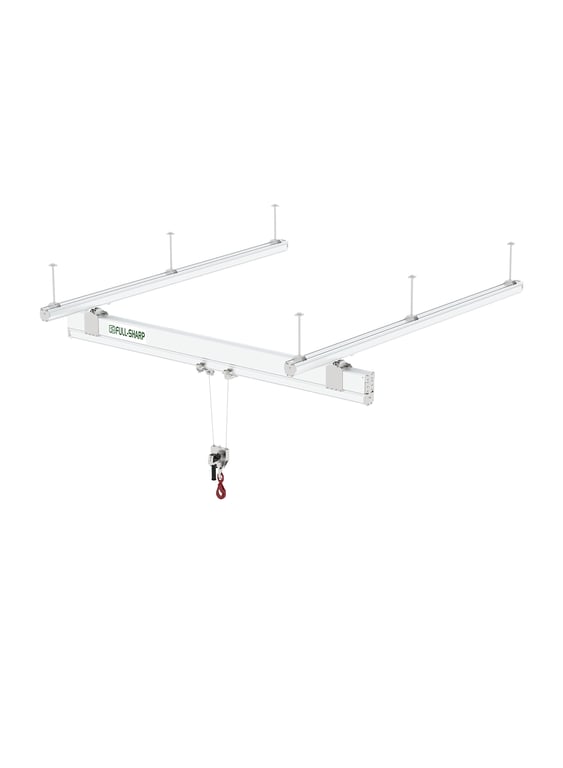

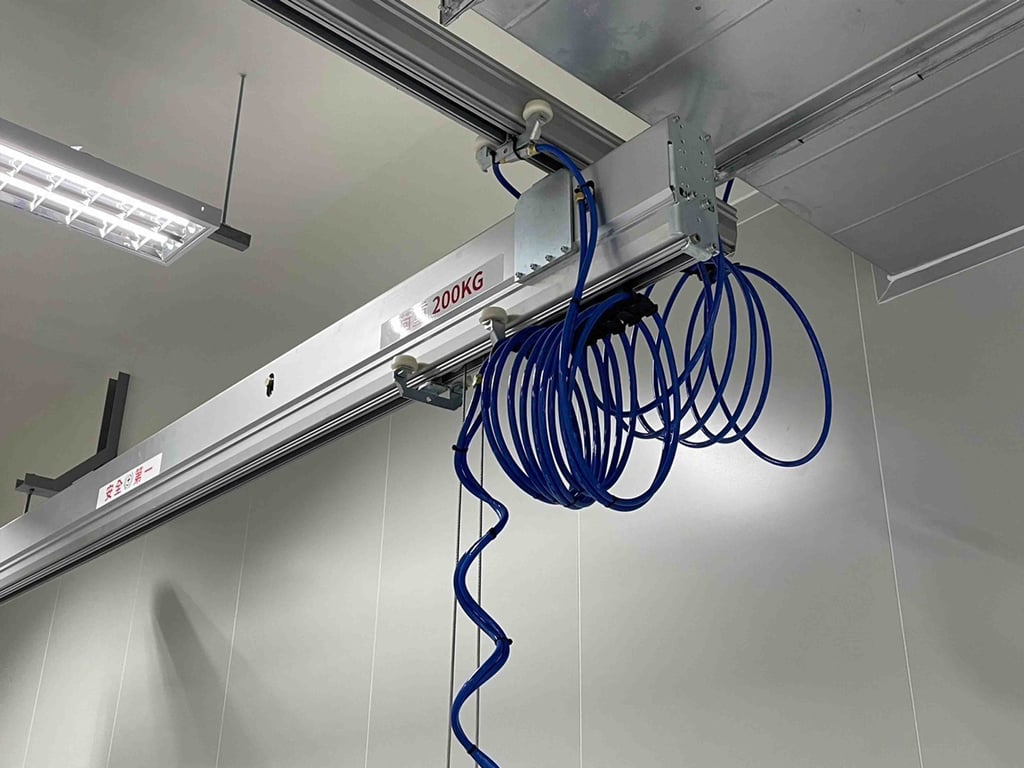

Rail combined with trolley

Aluminum rail

Pairs with the pneumatic hoist to give light, precise movement when pushing heavy loads by hand.

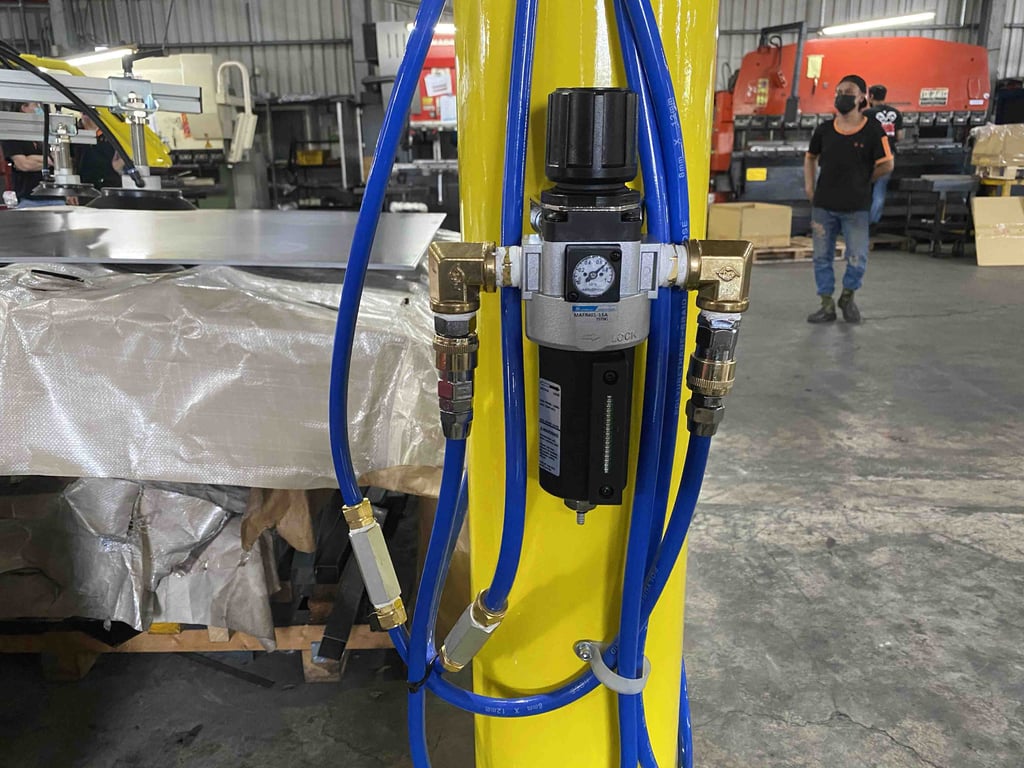

Built-in pressure gauge and adjustment knob

Air filter regulator

Removes water, dust and contaminants from compressed air, protecting pneumatic equipment from damage caused by pressure and impurities.

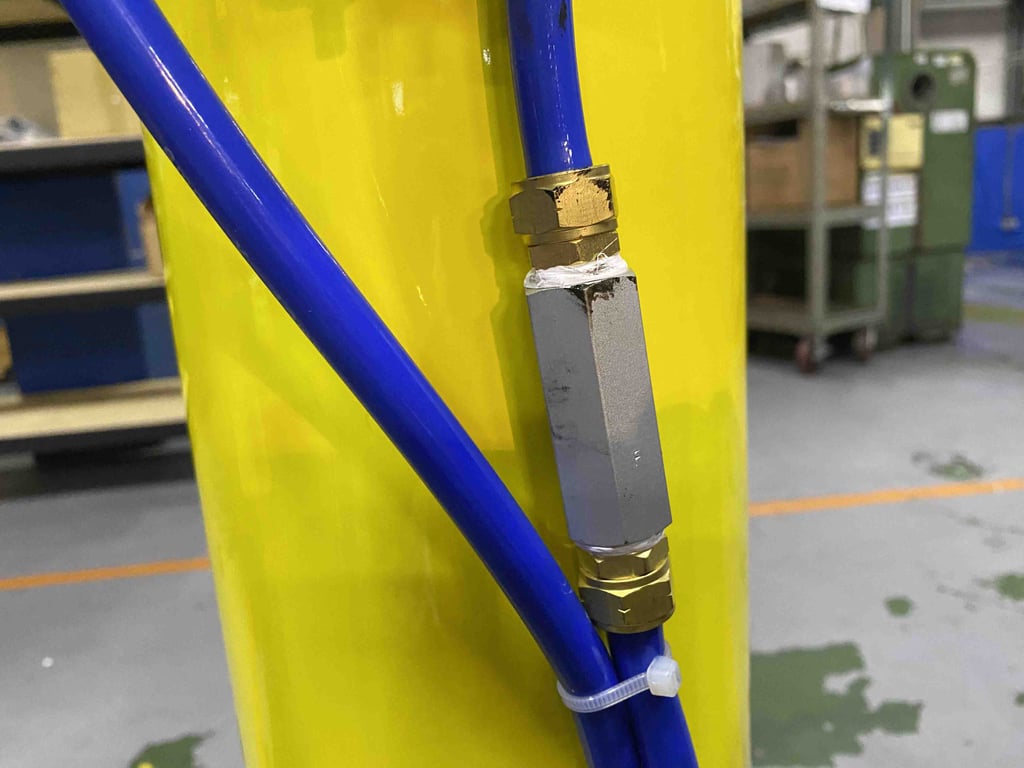

Prevents backflow and keeps pressure stable

Pneumatic check valve

Protects pneumatic components such as the filter, hoist and solenoid valves, and maintains pressure at the load end while lifting.

Kink-resistant, abrasion- and pressure-resistant

Fabric-reinforced PU air hose

Withstands higher pressure than standard PU hose and does not crack when extended. Stable air delivery and long service life.

About the pneumatic hoist

The pneumatic hoist is designed around ergonomics and high efficiency, letting operators move loads safely and quickly while minimizing physical effort. A dual-wire balancing structure, pneumatically controlled lifting and precise rotation allow loads to be handled steadily and accurately. Because the load weight is self-balanced, lifting and lowering is light and precise.

The unit can be fitted with various end effectors such as vacuum, mechanical grippers and magnets, or customized tooling, for use across many industries.

General features

Load capacity: Up to 200 kg
Maximum length: 4,000 mm
Vertical lifting stroke: 2,000 mm
Operating principle: Dry, oil-free compressed air, minimum pressure 7kg/cm²

Key advantages

High safety: The dual-wire mechanism keeps the load balanced, reducing the risk of tipping or dropping.
Versatile environments: Usable in explosive atmospheres – suited to chemicals, pharmaceuticals, oil and gas, paint and ink.
Aluminum exterior: Rugged aluminum housing suited to heavy industrial operation.
Precise movement: Easy, accurate handling.
Operator friendly: Ergonomic design reduces fatigue and increases productivity.
Low operating cost: Energy-saving, low maintenance, optimized running costs.
Modular design: Easy to add specialized end effectors.
High productivity: Shorter cycle times and less downtime.
