Flash(lite)220A-CTR

Load capacity: 120KG (dimensions can be customized to customer requirements)

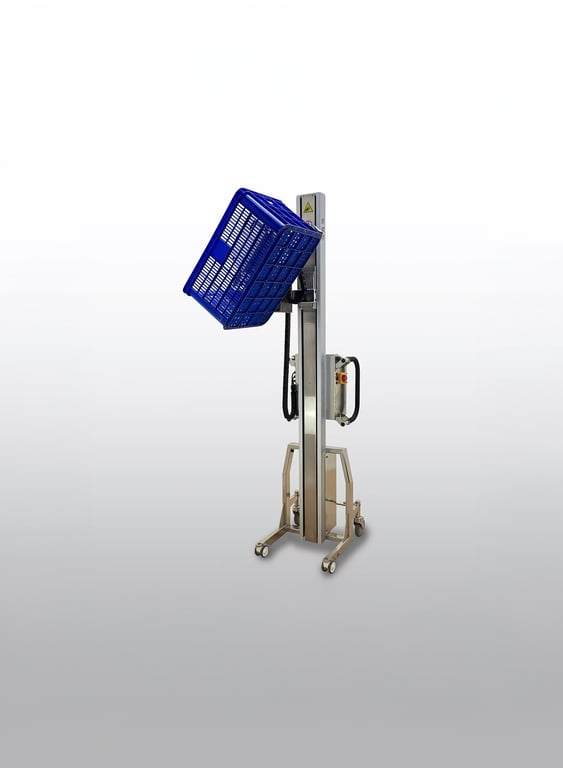

Flash(lite) 220A-CTR - Smart bin lifting and tilting unit

Overall equipment height: 2.2m
Overall stacking height approx. 2m (bins can be picked up and tilted easily on the left and right)
Height memory: 3 working positions, each with 5 memory levels, for a total of 15 height memory levels
Switchable between manual and automatic modes
Automatic mode: one button to tilt, one button to return to the home position
Body material: aerospace-grade aluminum alloy + stainless steel
Safe and hygienic, a reliable assistant for industrial and food applications.

Specifications

Parameter	A4190	A4220
Mast height (mm) Mast height	1900	2200
Lifting height (mm) Lifting height	1500	1800
Lifting speed Lifting speed	250mm/s	250mm/s
Protection rating IP Protection	IP41	IP41
Battery Battery	24V/10AH lead-acid battery
Charging voltage Charging voltage	100–240VAC, 50/60Hz
Charging time Charging time	4 hours
Optional upgrades Optional upgrades	Lithium battery 24V/15AH Charging voltage 115/230VAC Fast charging: 1 hour
Front wheels Front wheel options	⌀75mm swivel ⌀80mm fixed
Load capacity Load capacity	120kg
