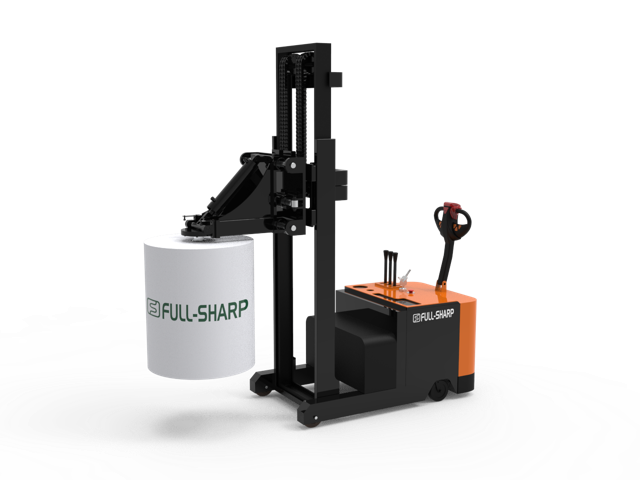

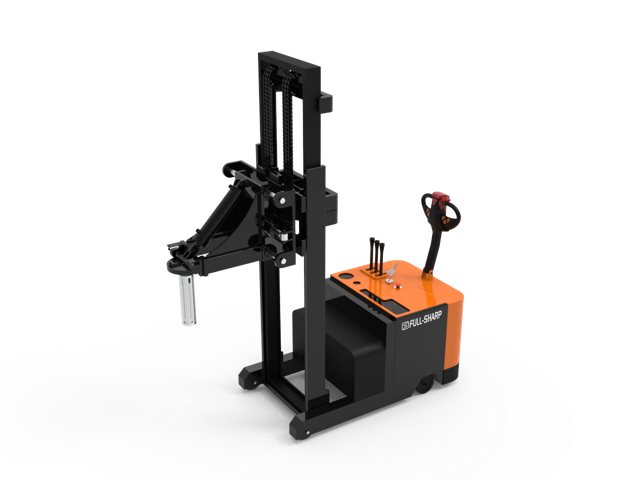

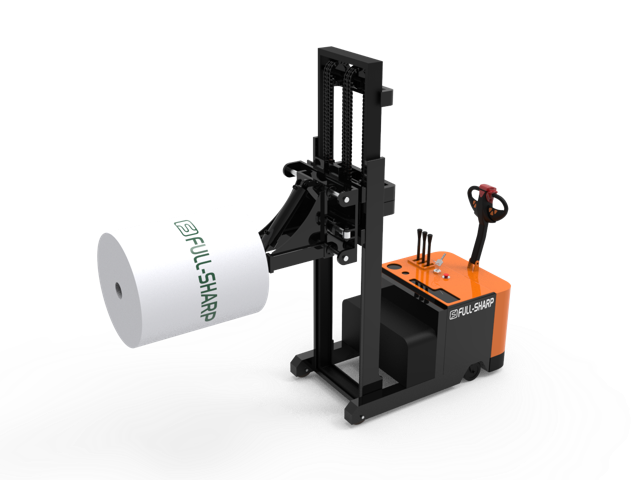

Hydraulic Air Shaft Roll Lifter

Name: Hydraulic Air Shaft Roll Lifter
Brand: Brand
Availability: InStock
Rating: 4.4 (1 reviews)

Electro-Hydraulic Roll Lifter

Purpose-built mechanical design on all electric shaft lifters for easy roll core loading
Emergency reverse / instant braking when the handle is in the uppermost position
Integrated hydraulic system and power control
Easy to operate, with stable performance and a small turning radius

Model	FSCDD01016-Q	FSCDD0316-Q	FSCDD0516-Q	FSCDD0530-Q
Lifting capacity (kg)	100	300	500	500
Max. lift height (mm)	1600	1600	1600	3000
Effective lift height (mm)	1000	1000	800	2000
Shaft length (mm)	400	600	600	800
Roll core (mm)	76.2/152.4
Truck weight (kg)	1100	1200	1300	1376
Overall dimensions (L×W×H) mm	2550×850×2000	2650×850×2000	2650×850×2000	2750×850×2050
Rotation angle	90 degrees
Battery capacity (V/Ah)	24V/210AH
Charger (V/A)	24V/30A
Drive wheel (mm)	24V/1.5KW
Lift motor (kW)	24V/2.5KW
Power	DC motor
Brake	Electromagnetic braking
Certification	CE&ISO&TUV&GS
Origin	China
