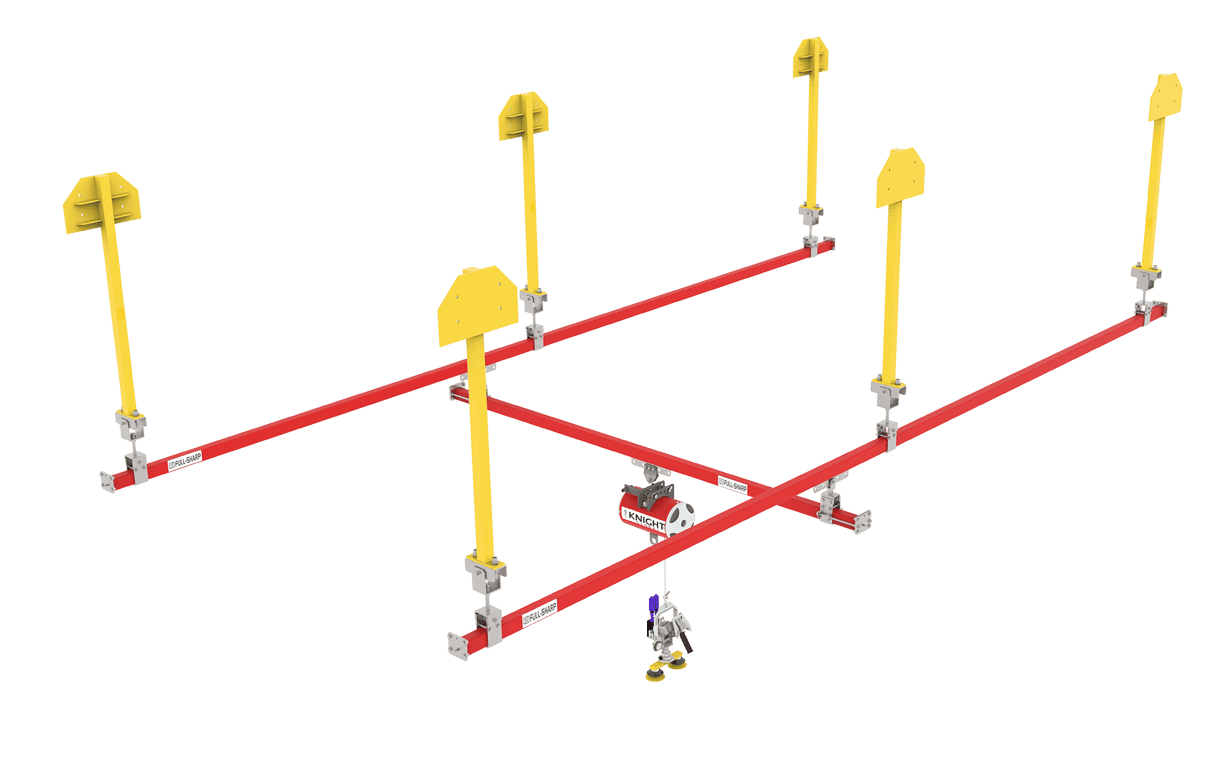

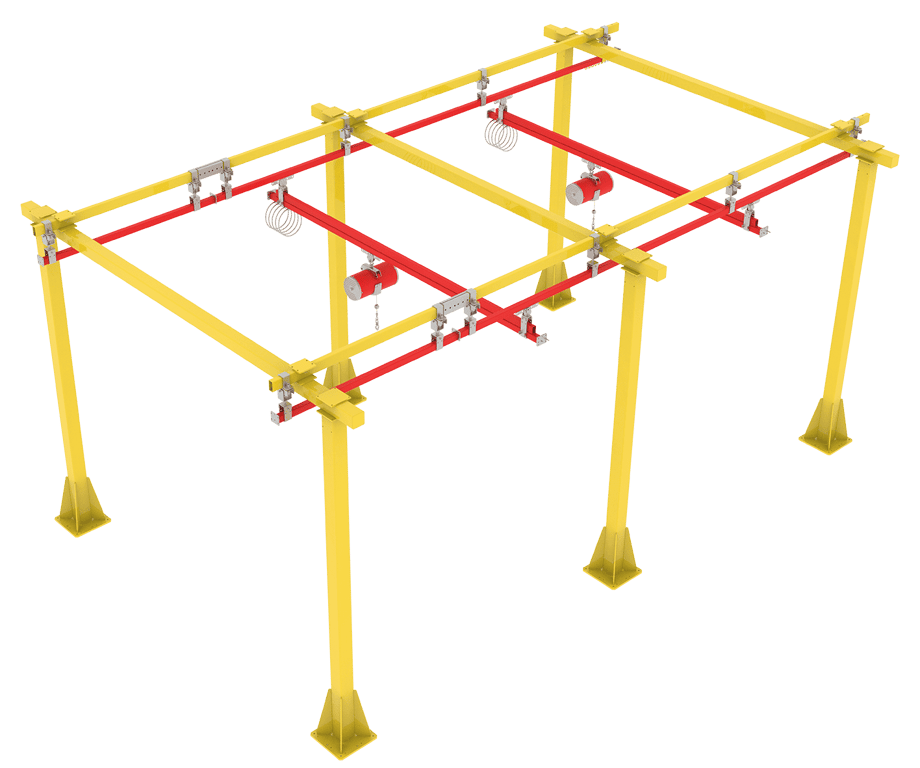

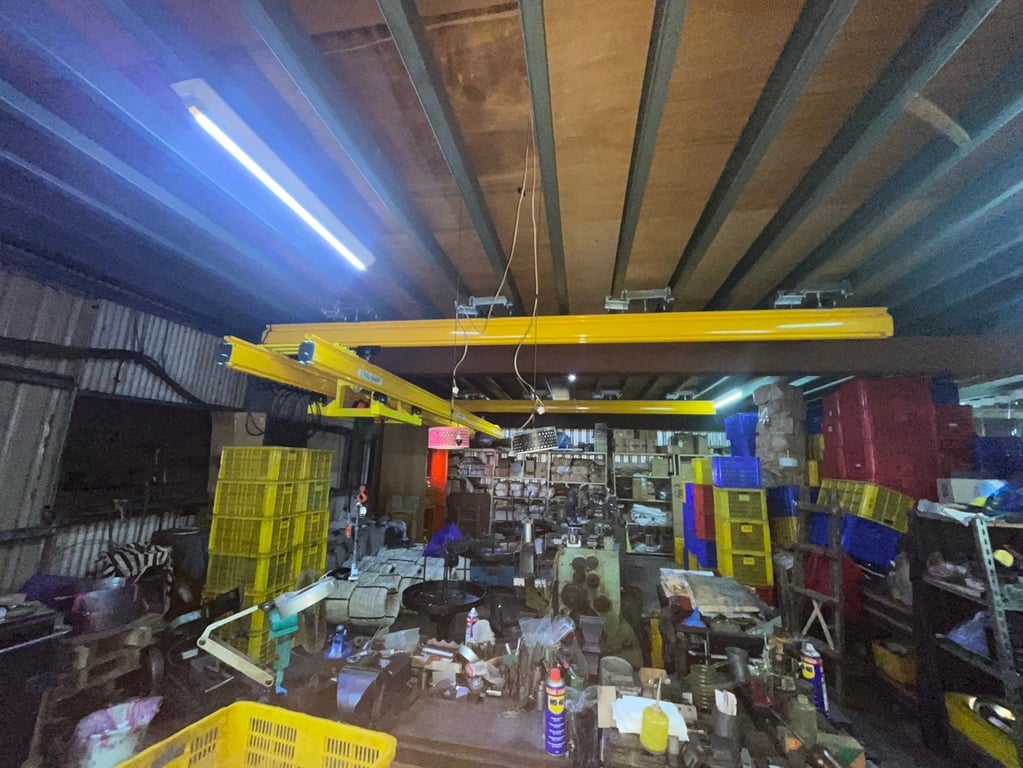

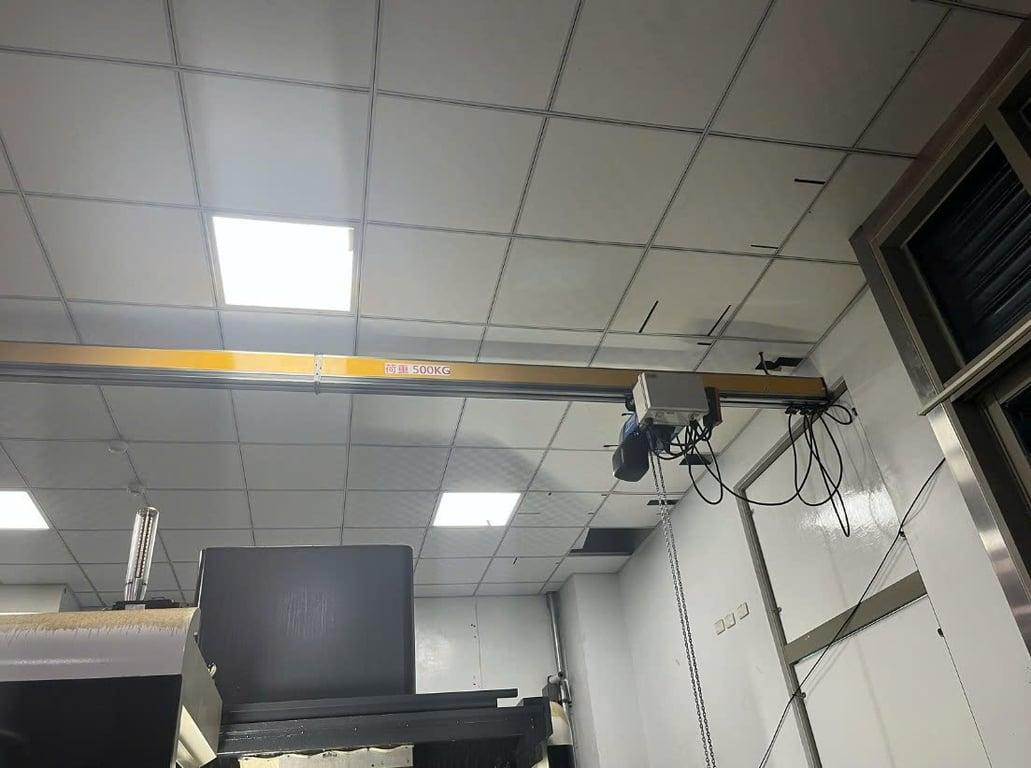

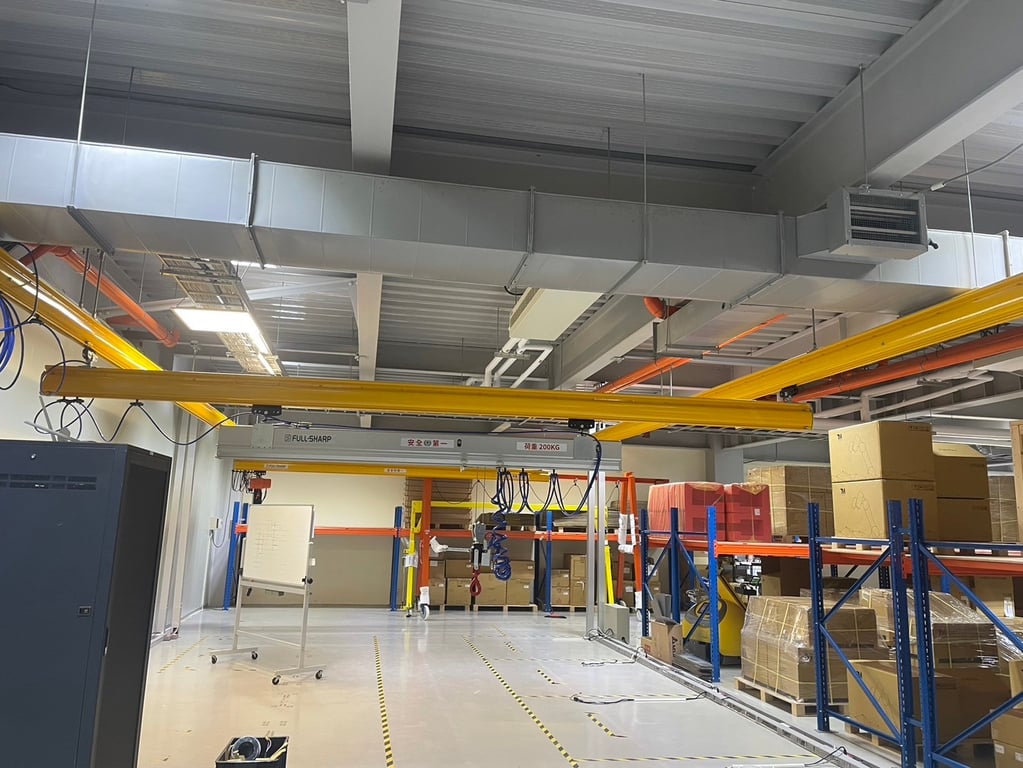

The 500 kg steel rails are made from high-quality alloy steel for outstanding strength, corrosion resistance and service life. Thanks to their modular design, users can easily install, extend or reconfigure the system without complex on-site fabrication. The 500 kg steel rail system suits a wide range of applications, from automated production lines and warehouses to electronics and automotive component assembly areas… A wide choice of rails and accessories allows flexible design of hoist suspension systems, manipulators, handling equipment or automation to match actual requirements.
| Specification | |
|---|---|
| Material | Alloy steel |
| Rated load | 500 kg |
| Runway rail length | Unlimited |
| Bridge rail length | 8 m |
| Length | Weight |
|---|---|
| 1000mm | 19 kg |
| 2000mm | 39 kg |
| 3000mm | 58 kg |
| 4000mm | 78 kg |
| 5000mm | 97 kg |
| 6000mm | 117 kg |
| 7000mm | 137 kg |
| 8000mm | 156 kg |

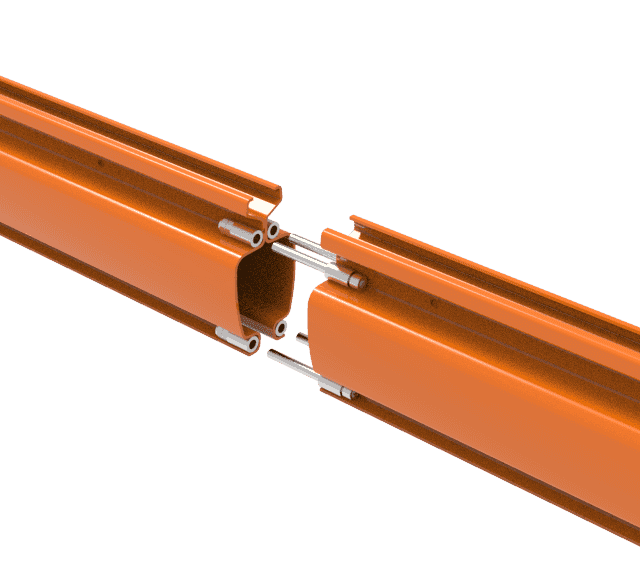

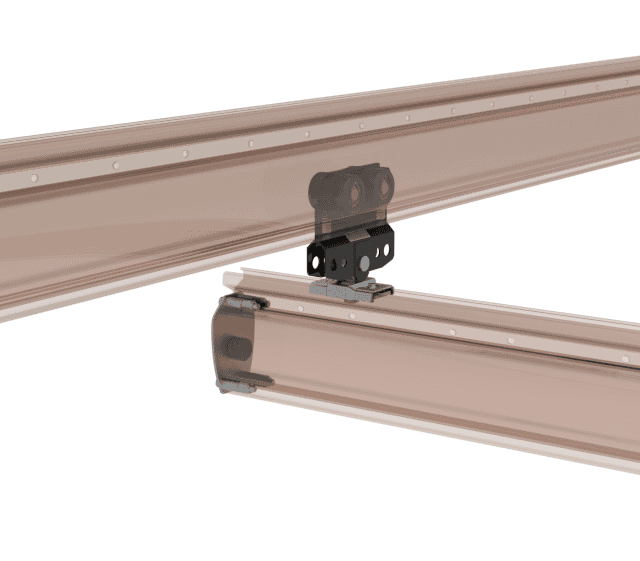

Chamfered rail ends allow fast, accurate assembly with no further adjustment. No tools or measuring are required. The smart joint design makes installation easy even in confined spaces. Precise alignment between rail sections lets the trolley run smoothly, with low effort and no noise. Rails can be installed from either end without turning the profile. The optimized design saves installation time.

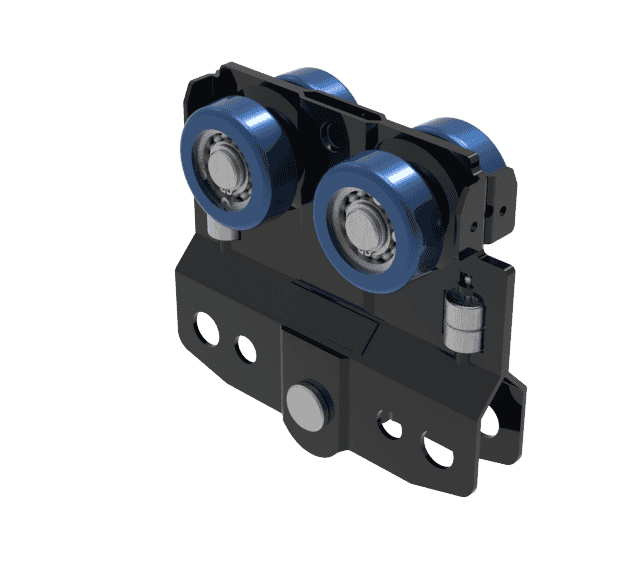

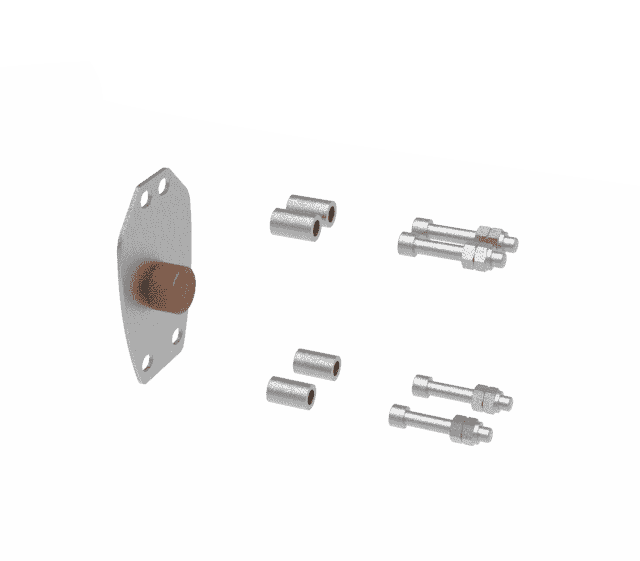

The trolleys are built for durability and smooth operation. They run quietly with very low rolling resistance and move easily. In addition, every rail is fitted with rubber buffers at both ends to absorb impact.
