Zac160-220s

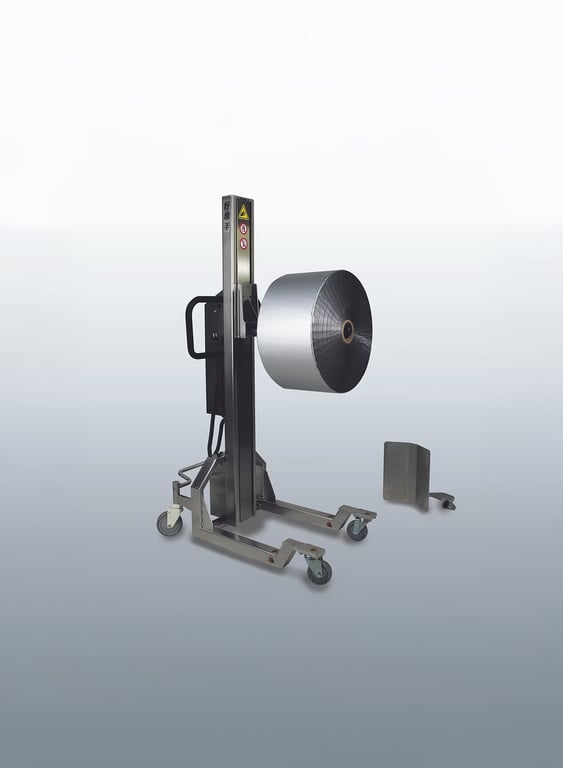

The Zac VB series is a compact electric stainless steel roll lifter with an 80 kg load capacity and a lifting height of 1200 to 1900 mm. The standard lifting speed is 125 mm/s, with a choice of lead-acid battery or fast-charging lithium battery. The body is made of aluminum and 304 stainless steel, suitable for rolls with core ID ≥ 3”, outer diameter ≤ 900 mm and width ≤ 500 mm. Advanced options include the smart ASP position memory system with 3 working positions and 5 memory positions.

Specifications

Specifications	Zac160S-VB	Zac190S-VB	Zac220S-VB
Spindle height (H) Spindle height	1600	1900	2200
Lifting height (R) Lifting height	120 - 1300	120 - 1600	120 - 1900
Load capacity Load	80kg
Lifting speed Lifting speed	125 mm/s (standard)
Protection rating Protection level	IP41
Battery Battery	Lead-acid battery DC24V10AH (standard) Lithium battery DC24V15AH (optional)
Charging Charging	Input 100–240V AC, 50/60Hz
Charging time Charging time	Lead-acid battery: 4 hours Lithium battery: 70 minutes
Material Material	Aluminum, 304 stainless steel
Applicable rolls Applicable roll material	ID ≥ 3” OD ≤ 900 W ≤ 500
Options Options	ASP: 3 working positions x 5 memory positions
